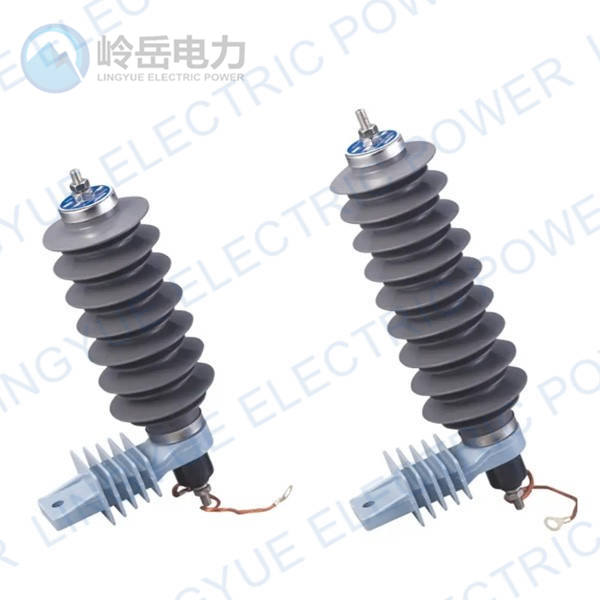

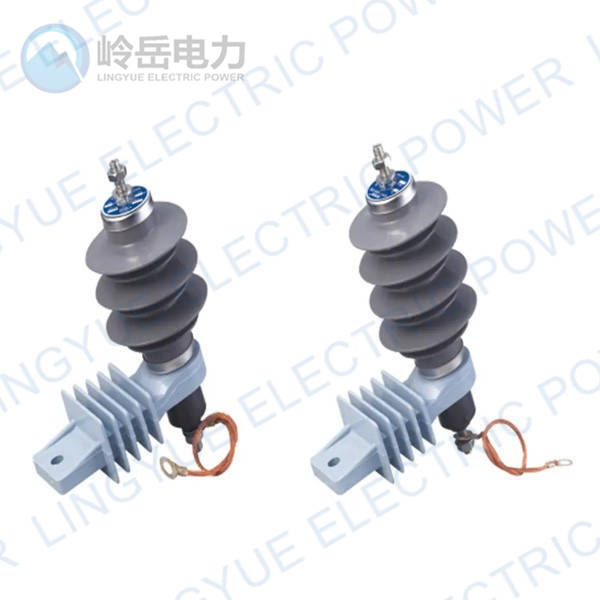

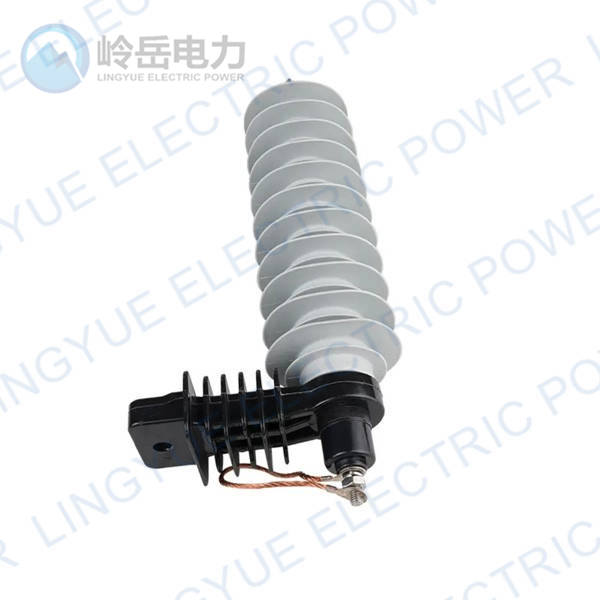

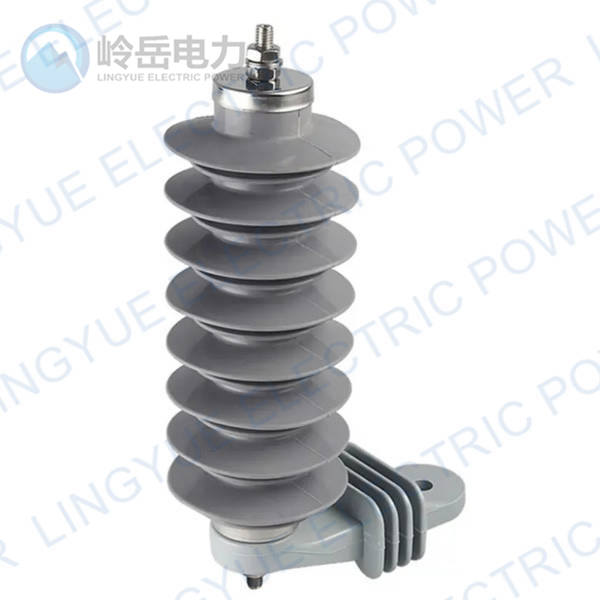

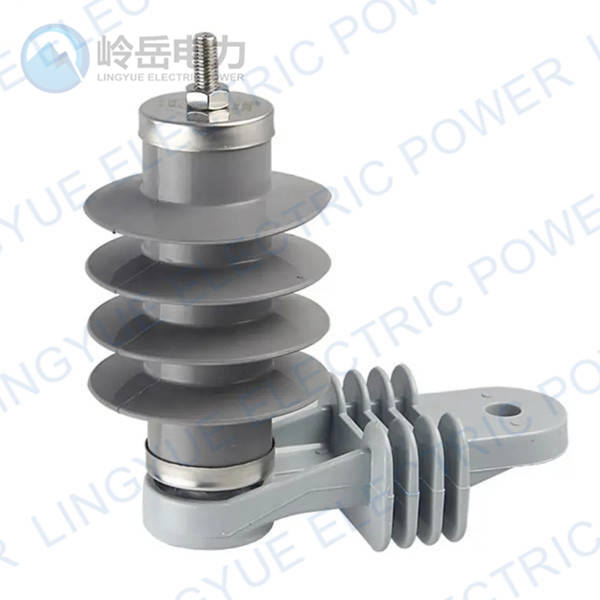

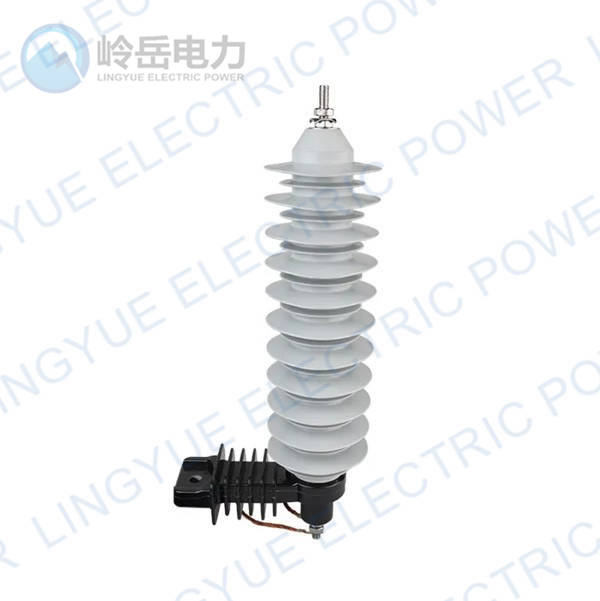

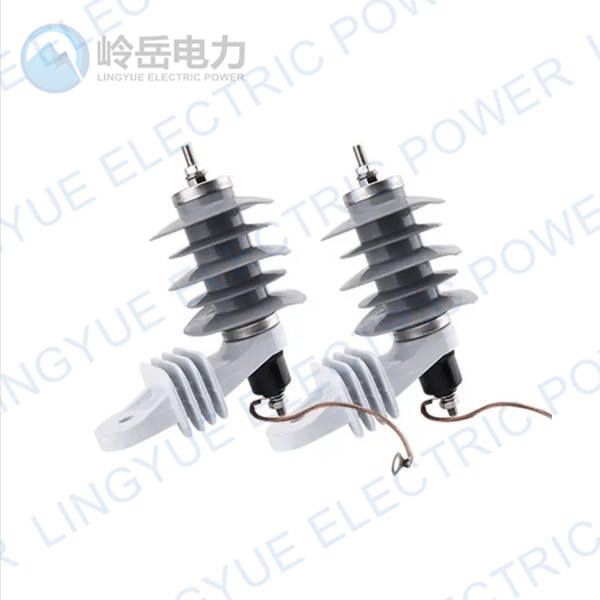

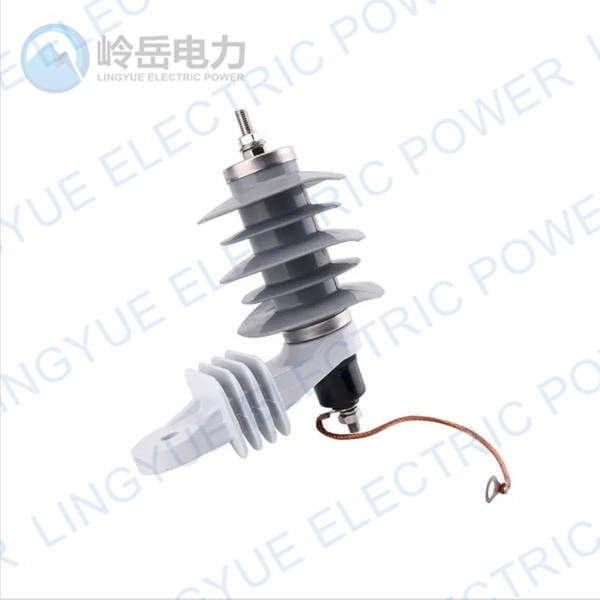

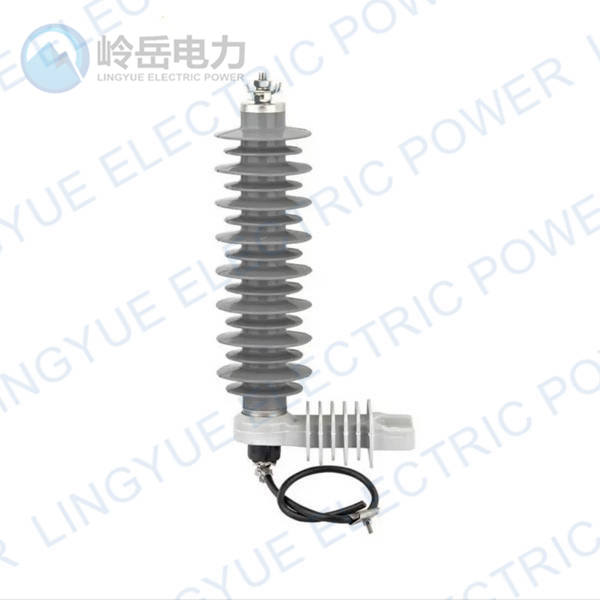

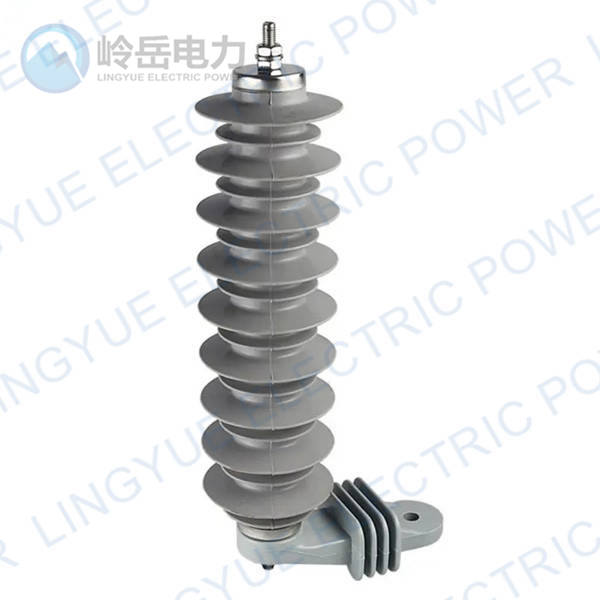

HY series Polymer Type Lightning Arrester

HY series Polymer Type Lightning Arrester

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Lightning arrester is one of the most world advanced over-voltage protector at present, due to its core components of resistance applying and other metal oxide to make of, comparing with traditional carborundum arrester, it improves greatly V-A characteristics of resistance, increases the getting through ability of resistance, therefore it brings fundamental change to features of arrester. Under normal working voltage, the current passing arrester only A class, when bearing over voltage, the excellent non-linear V-A features of arrester would make effect, the current passing through the arrester increase high to thousands of Ampere instant, the arrester is under getting through state, to release over-voltage energy, therefore it effective limits the damage to power transmission equipment due to over voltage. Polymer Type Lightning Arrester Without Gaps: Nominal Discharge Current:5kA

Item No.	Rated Voltage (kV)	MCOV (kV)	1/4 μs Lightning Current Impulse	8/20 μs Lightning Current Impulse	30/60 μs Switching Current Impulse	2000 μs Rectangular Current Impulse Withstand	4/10 μs High Current Impulse Withstand
(HY)YH5W–3	3	2.55	11.3	9	8.9	150	65
(HY)YH5W–6	6	5.1	22.6	18	16.8	150	65
(HY)YH5W–9	9	7.05	33.7	27	23.8	150	65
(HY)YH5W-10	10	8.4	36	30	23	150	65
(HY)YH5W-11	11	9.4	40	33	30	150	65
(HY)YH5W-12	12	10.2	42.2	36	27	150	65
(HY)YH5W-15	15	12.7	51	45	38.5	150	65
(HY)YH5W-18	18	15.3	61.5	54	46.2	150	65
(HY)YH5W-21	21	17	71.8	63	54.2	150	65
(HY)YH5W-24	24	19.5	82	72	62	150	65
(HY)YH5W-27	27	22	92	81	69.8	150	65
(HY)YH5W-30	30	24.4	102	90	79	150	65
(HY)YH5W-33	33	27.5	112	99	86.7	150	65
(HY)YH5W-36	36	29	123	108	92.4	150	65

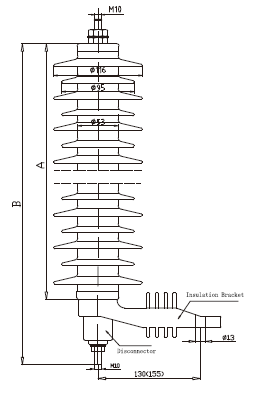

Item No.	Dimensions A (mm)	Leakage Distance (mm)	Shed No. PCS
(HY)YH5W–3	110	215	3
(HY)YH5W–6	135	300	4
(HY)YH5W–9	160	372	5
(HY)YH5W-10	160	372	5
(HY)YH5W-11	160	372	5
(HY)YH5W-12	160	372	5
(HY)YH5W-15	210	480	7
(HY)YH5W-18	235	575	8
(HY)YH5W-21	260	630	9
(HY)YH5W-24	285	680	10
(HY)YH5W-27	310	750	11
(HY)YH5W-30	335	820	12
(HY)YH5W-33	385	950	14
(HY)YH5W-36	385	950	14

Polymer Type Lightning Arrester Without Gaps: Nominal Discharge Current:10kA

Item No.	Rated Voltage (kV)	MCOV (kV)	1/4 μs Lightning Current Impulse	8/20 μs Lightning Current Impulse	30/60 μs Switching Current Impulse	2000 μs Rectangular Current Impulse Withstand	4/10 μs High Current Impulse Withstand
(HY)YH10W–3	3	2.55	11.3	9	8.9	250	100
(HY)YH10W–6	6	5.1	22.6	18	16.8	250	100
(HY)YH10W–9	9	7.05	33.7	27	23.8	250	100
(HY)YH10W-10	10	8.4	36	30	23	250	100
(HY)YH10W-11	11	9.4	40	33	30	250	100
(HY)YH10W-12	12	10.2	42.2	36	27	250	100
(HY)YH10W-15	15	12.7	51	45	38.5	250	100
(HY)YH10W-18	18	15.3	61.5	54	46.2	250	100
(HY)YH10W-21	21	17	71.8	63	54.2	250	100
(HY)YH10W-24	24	19.5	82	72	62	250	100
(HY)YH10W-27	27	22	92	81	69.8	250	100
(HY)YH10W-30	30	24.4	102	90	79	250	100
(HY)YH10W-33	33	27.5	112	99	86.7	250	100
(HY)YH10W-36	36	29	123	108	92.4	250	100
(HY)YH10W-48	48	39	165.6	144	122.4	250	100

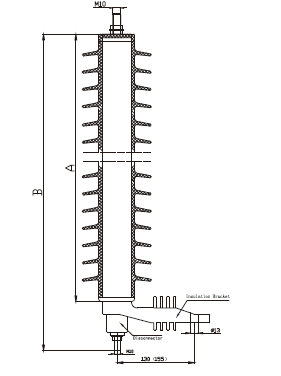

Item No.	Dimensions A (mm)	Leakage Distance (mm)	Shed No. PCS
(HY)YH10W–3	106	180	4
(HY)YH10W–6	134	300	6
(HY)YH10W–9	162	372	8
(HY)YH10W-10	162	372	8
(HY)YH10W-11	162	372	8
(HY)YH10W-12	162	372	8
(HY)YH10W-15	190	480	10
(HY)YH10W-18	218	575	12
(HY)YH10W-21	246	630	14
(HY)YH10W-24	274	750	16
(HY)YH10W-27	274	750	16
(HY)YH10W-30	302	925	18
(HY)YH10W-33	302	925	18
(HY)YH10W-36	358	1120	22
(HY)YH10W-48	522	1450	22
