DTGD(DOUBLE HOLES) COPPER LUG
DTGD(DOUBLE HOLES) COPPER LUG
DTGD(DOUBLE HOLES) COPPER LUG
DTGD(DOUBLE HOLES) COPPER LUG
DTGD(DOUBLE HOLES) COPPER LUG
DTGD(DOUBLE HOLES) COPPER LUG
DTGD(DOUBLE HOLES) COPPER LUG
DTGD(DOUBLE HOLES) COPPER LUG
DTGD(DOUBLE HOLES) COPPER LUG
Inquiry Contact us

Like this product? Share with friends:

Product Introduction

1.Designed for totally air-tight cable applications.
2.The barrels are intemally silver soldered at the palm junction and the inspection window is not present.
3.The long palm can easily accommodate two bolts, for secure termination. All lugs are standard with blank palm, and stud holes can be punched to order.
4.These lugs can easily be modified to make special lugs by bending the palm, cropping the palm or shortenint the barrel.

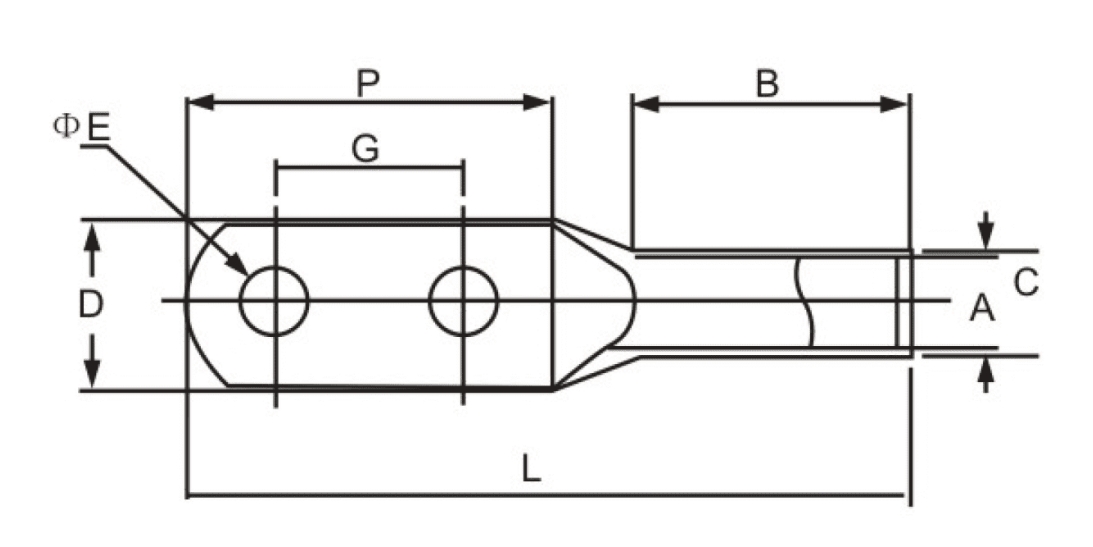

Item No.

ØE

Dimensions(mm)

Note



A

C

D

G

P

B

L


DTGD16

10.5

5.4

7.1

15

40

64

15

84

Material:
Cu≥99.9%

Tin-plated

Can be OEM



DTGD25

10.5

6.8

8.8

18

40

64

15

87

DTGD35

10.5

8.2

10.8

18

40

66

17

90

DTGD50

13

9.5

12.4

22.5

40

66

27.5

102

DTGD70

13

11.2

14.7

24

40

67

30

107

DTGD95

13

13.5

17.4

26

40

67

33

111

DTGD120

13

15

19.4

28

40

70

36

118

DTGD150

13

16.5

21.2

31

40

72

44

130

DTGD185

13

18.5

23.5

35

40

75

55

140

DTGD240

13

21

26.5

38

40

78

55

150

DTGD300

13

23.5

30

42

40

78

55

160
