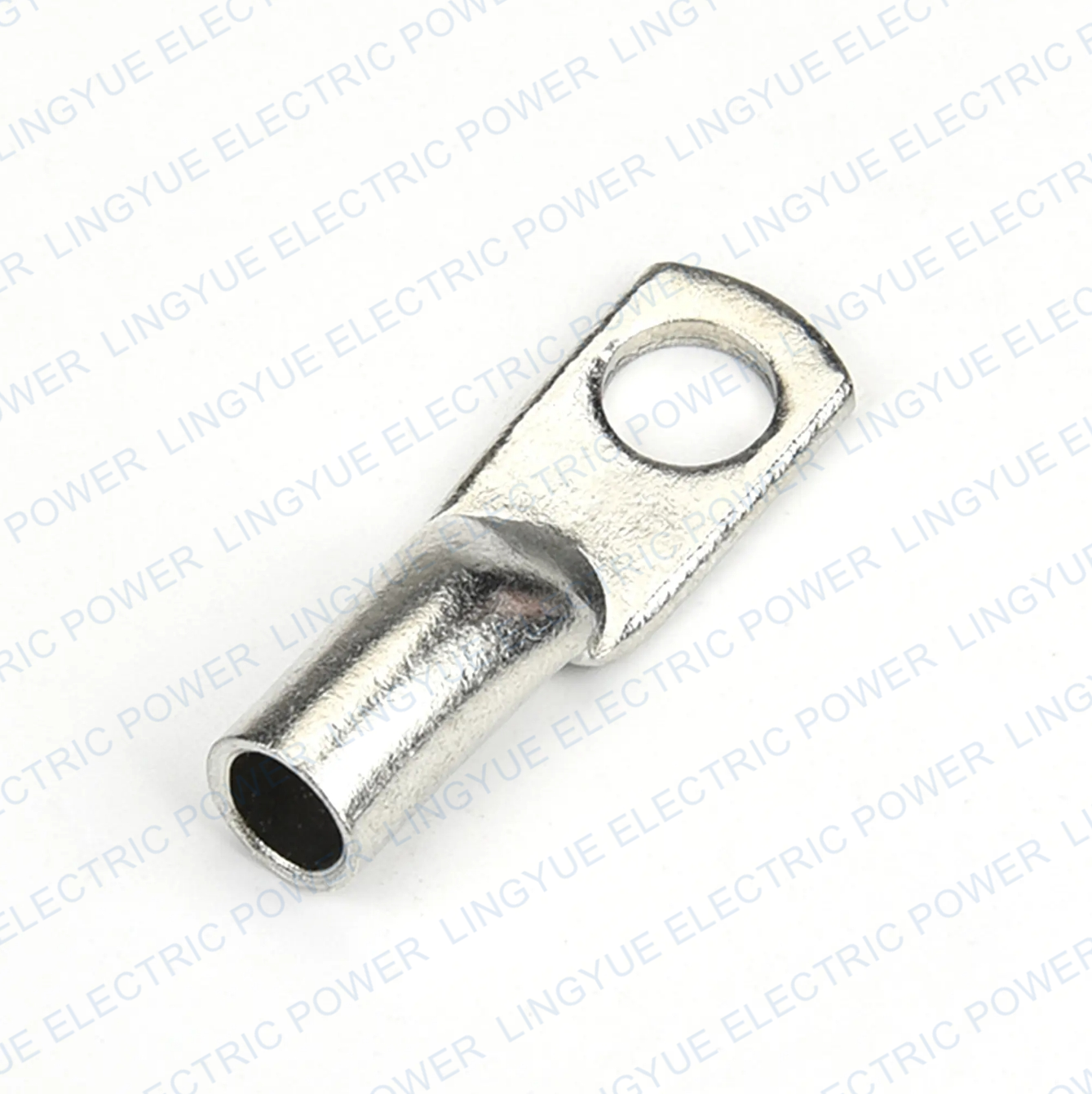

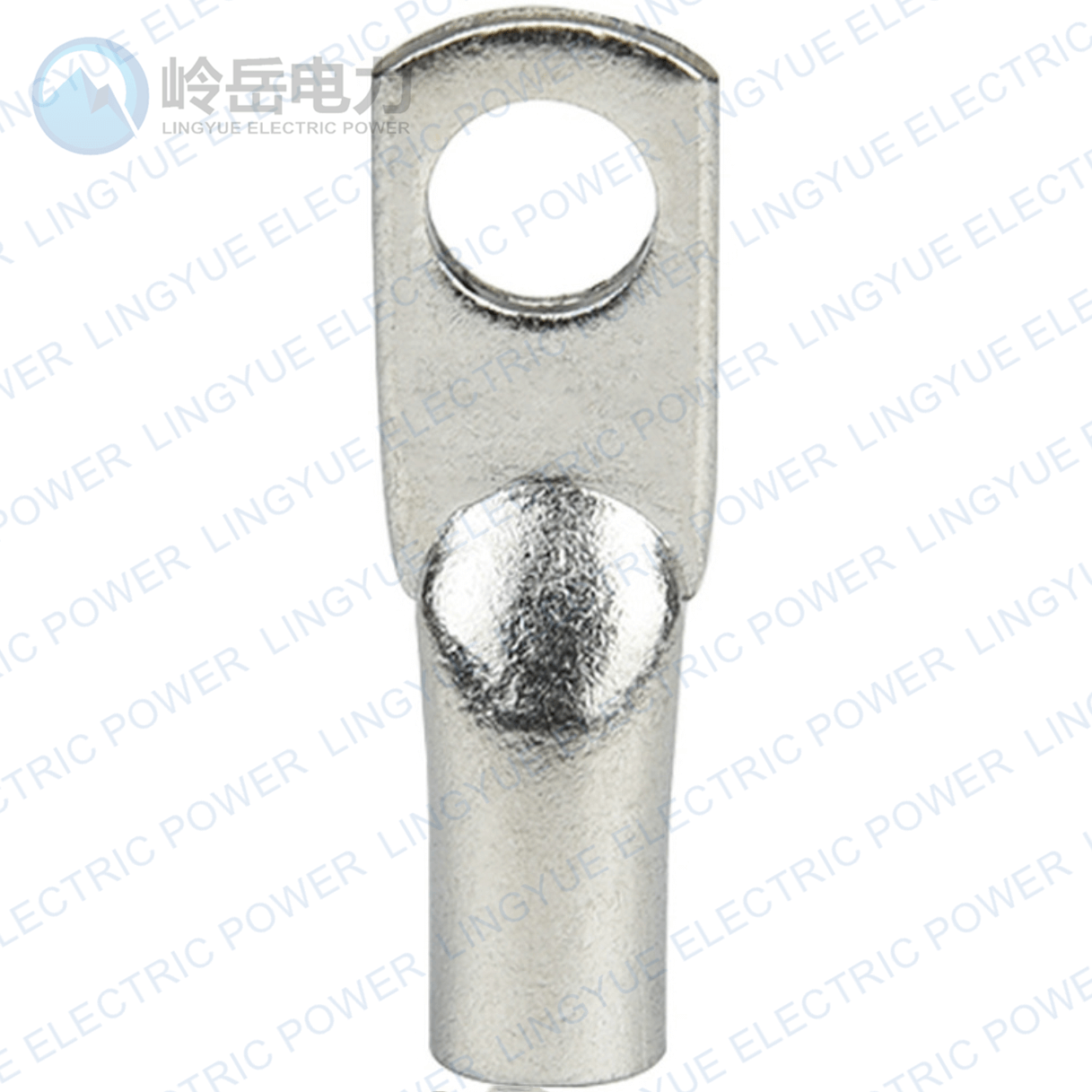

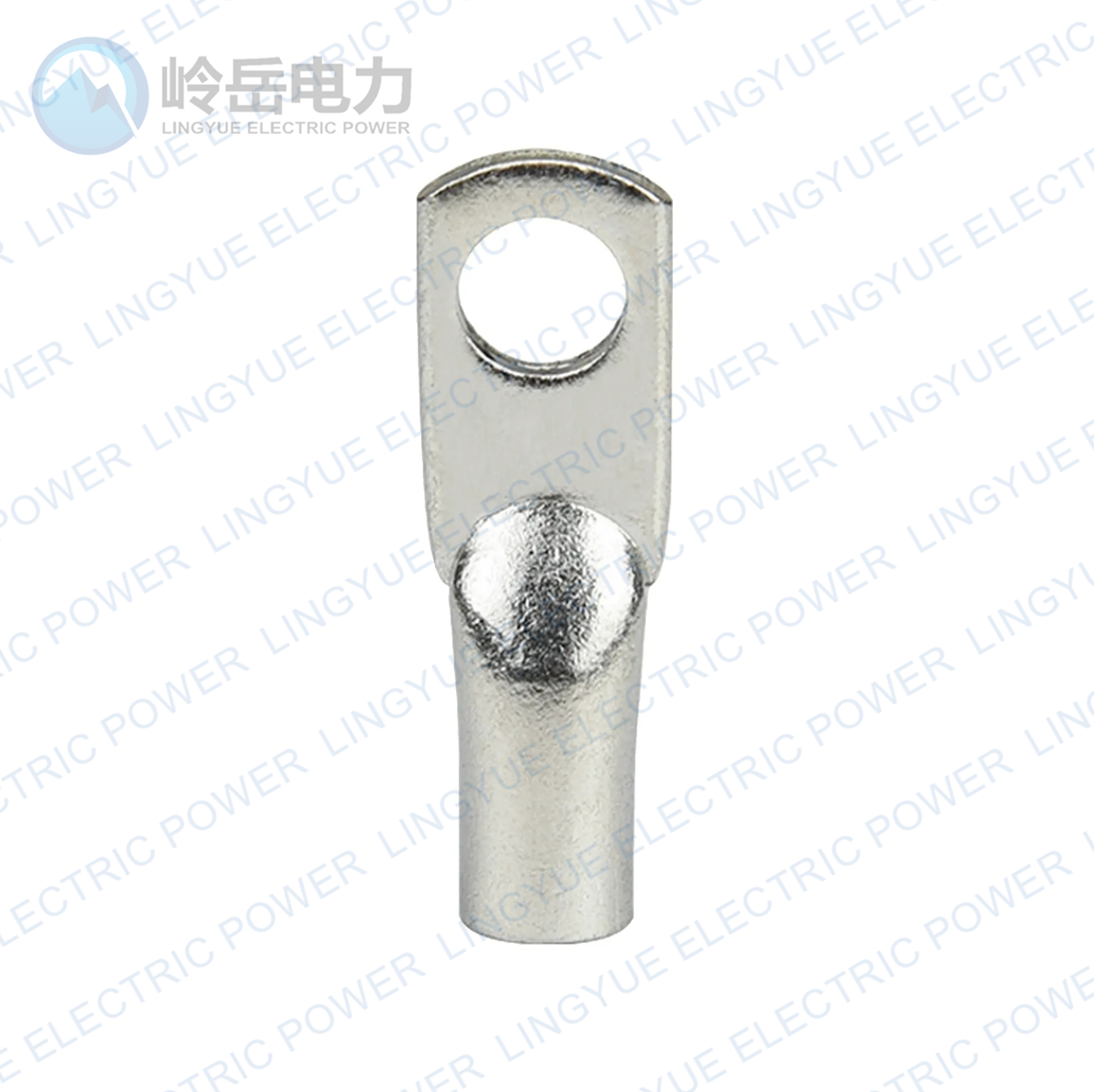

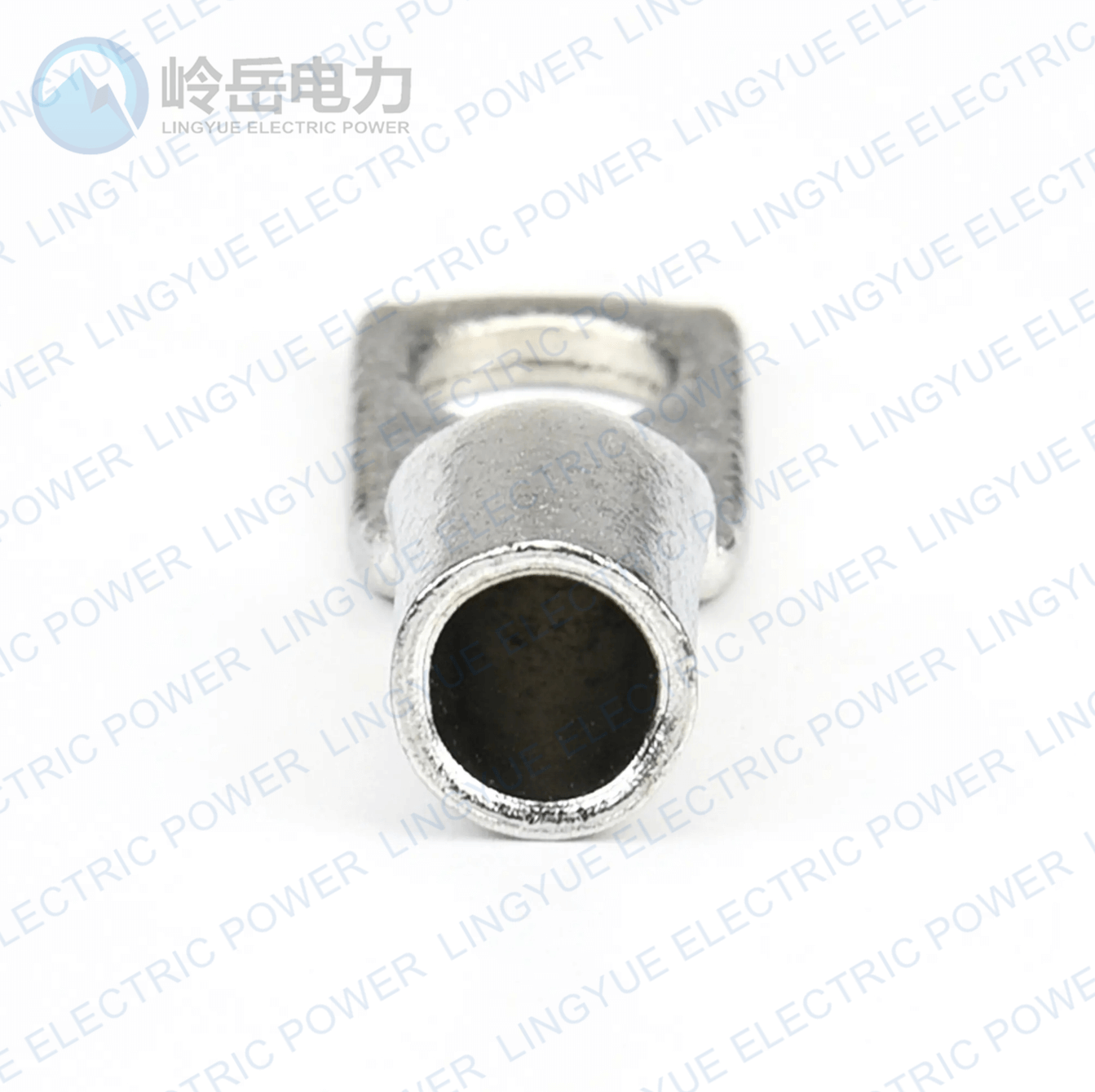

Product Introduction

MANUFACTURED BY PURE ELECTROLYTIC COPPER. Cu ≥99.9%
COPPER LUGS & CABLE TERMINALS FROM 2.5 TO 630 MM2 WITH DIFFERENT STUD HOLE SIZES AS REQUIRED .
LEAD FREE ELECTRO TIN PLATED TO PREVENT ATMOSPHERIC CORROSION.
CABLE LUGS ARE FULLY ANNEALED TO GUARANTEE OPTIMUM DUCTILITY.

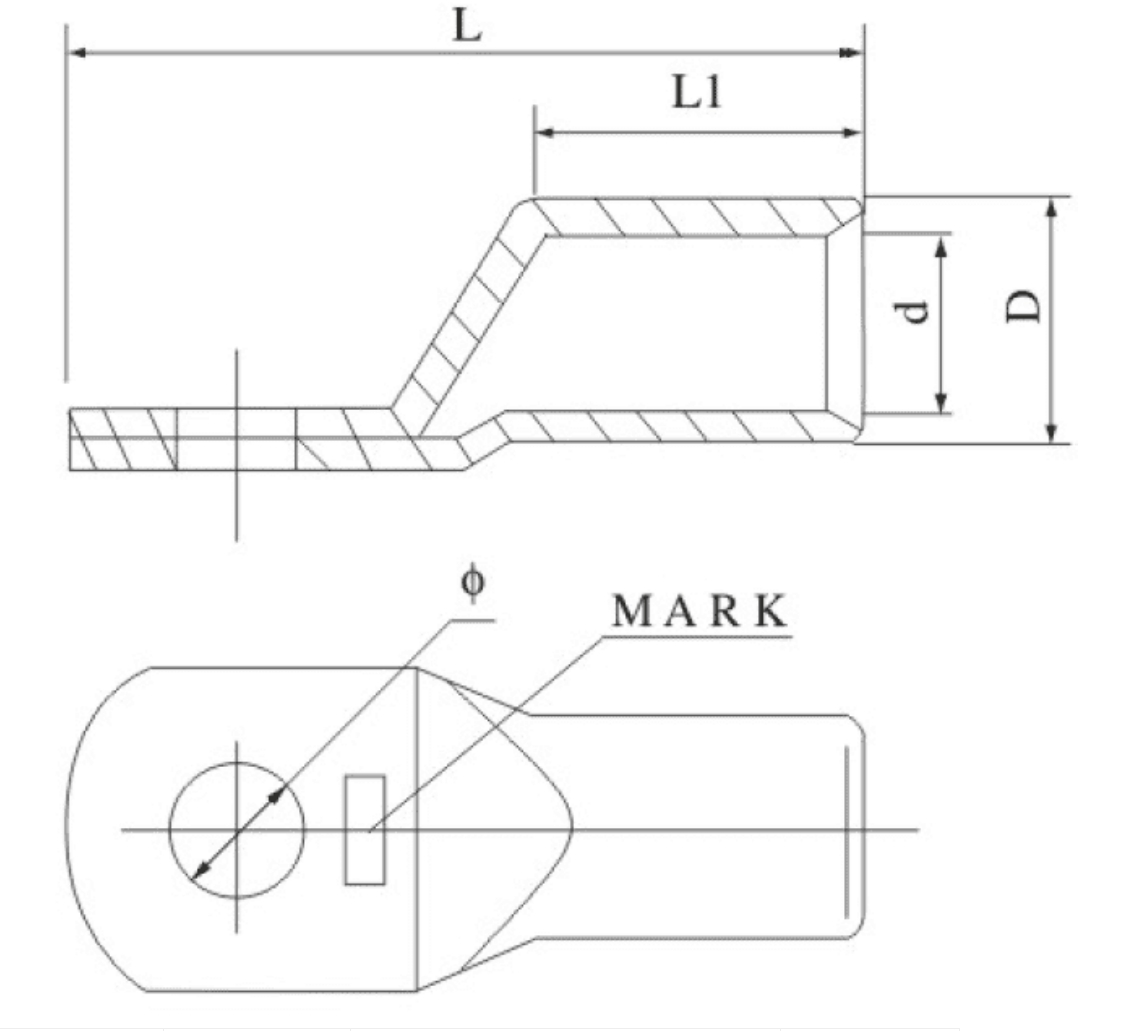

Item No.

Cable
spec(mm²)

Dimensions(mm)

Note



D

d

L

L1

Ø


DTGY2.5

2.5

4.2

2.6

20

6

5.5

Material:
Cu≥99.9%

Tin-plated

Can be OEM



DTGY4

4

5

3.2

20

6

5.5

DTGY6

6

5.5

3.7

21

7

5.5

DTGY10

10

7

4.6

26

9

6.5

DTGY16

16

8

5.5

32

10

8.5

DTGY25

25

9.5

7

38

14

8.5

DTGY35

35

11

8.4

40

16

8.5

DTGY50

50

13

10

50

18

10.5

DTGY70

70

14

11

54

20

10.5

DTGY95

95

17

13.4

62

22

12.5

DTGY120

120

20

15.5

70

26

12.5

DTGY150

150

21

16.5

76

28

14.5

DTGY185

185

24

19

84

32

14.5

DTGY240

240

26

21

90

34

17

DTGY300

300

30

23.5

95

40

17

DTGY400

400

35

26.8

115

47

17

DTGY500

500

38

30

130

55

17

DTGY630

630

45

34

130

55

17
