Bimetal lugs DTL-4

Bimetal lugs DTL-4

Bimetal lugs DTL-4

Bimetal lugs DTL-4

Bimetal lugs DTL-4

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Application:

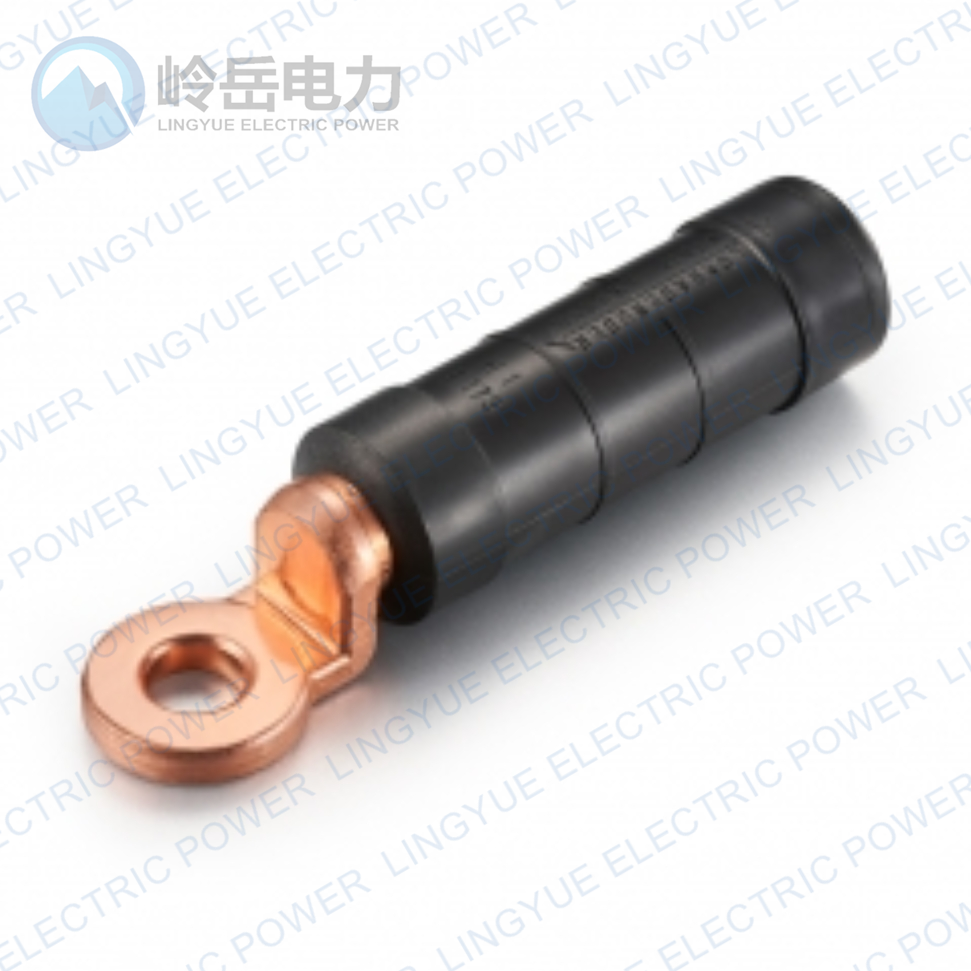

DTL-4 pre-insulated bimetallic lug is used to connect LV-ABC cable to electrical equipment.

Features:
1. The palm is made of 99.9% pure copper, and the sleeve is made of 99.6% pure aluminum.
2. The conductor cross-section is easy to identify by the color code of the elastomer rings.
3. The elastomer ring and pre-filled grease ensure waterproofness.
4. The waterproofness test is conducted under water at 6 kV for 1 minute.
5. The insulating tube is made of weather-resistant and UV-resistant polymer.
6. Standard: EN 50483-4, NFK 33-021

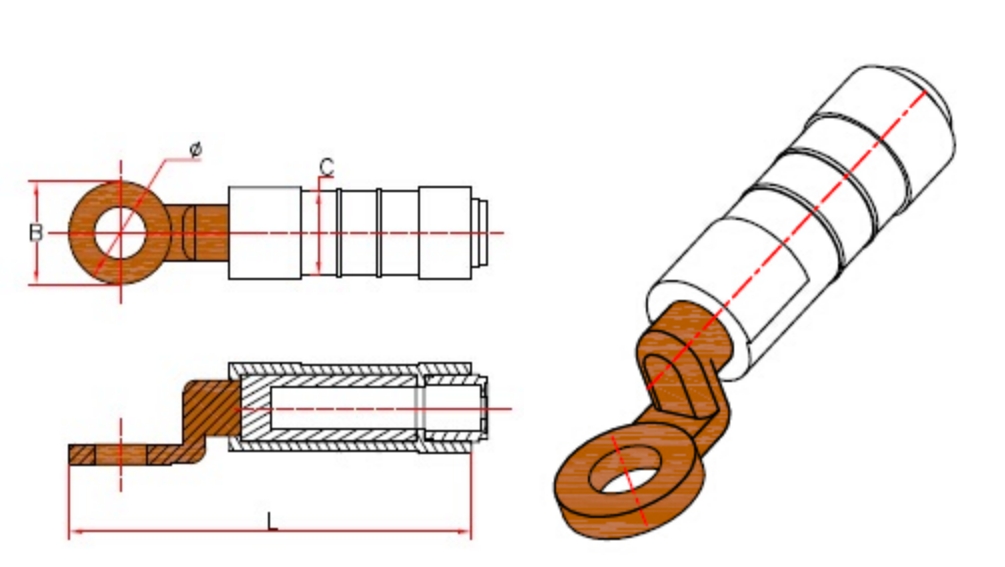

Item number.	φ	C	B	L	Color code
DTL-4 16-10	10.5	16	20	75	Blue
DTL-4 25-12	13	16	24	100	Orange
DTL-4 35-12	13	20	24	100	Red
DTL-4 50-12	13	20	24	100	Yellow
DTL-4 70-12	13	20	24	100	White
DTL-4 95-12	13	20	24	100	Gray
DTL-4 120-12	13	28	30	118	Pink
DTL-4 150-12	13	28	30	118	Violet
