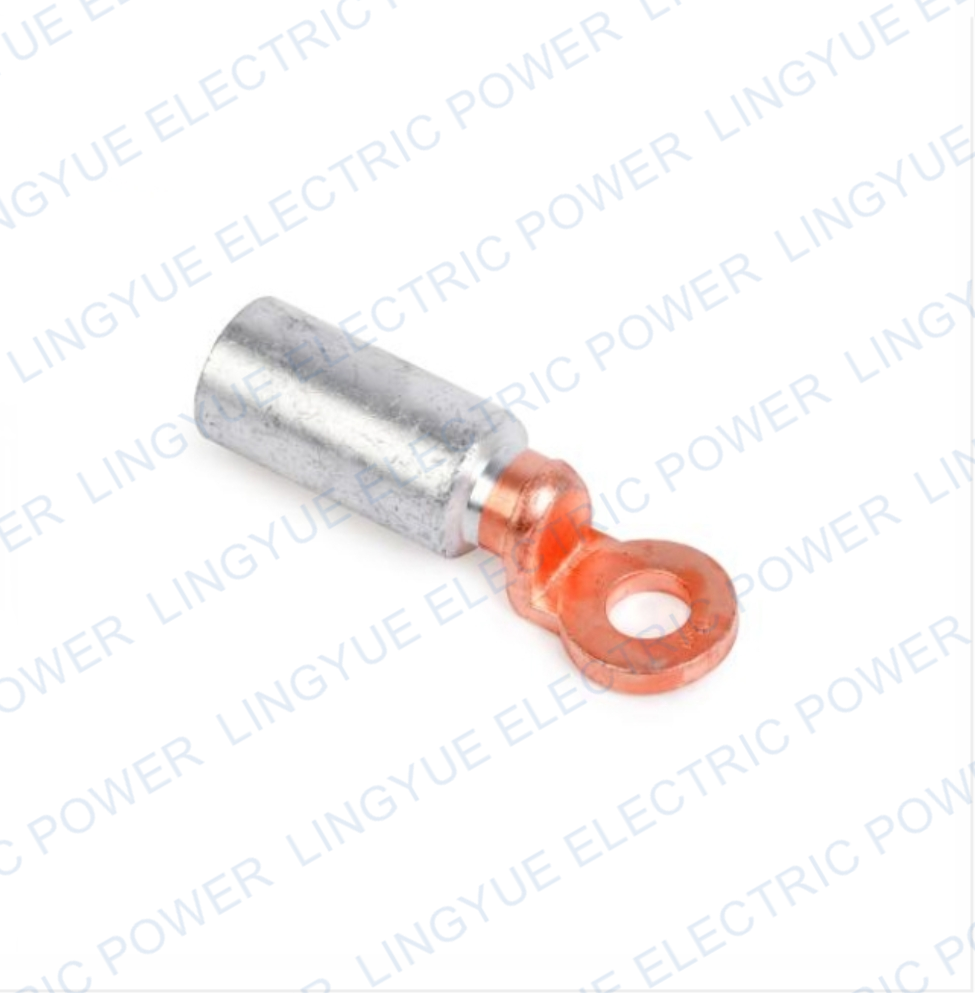

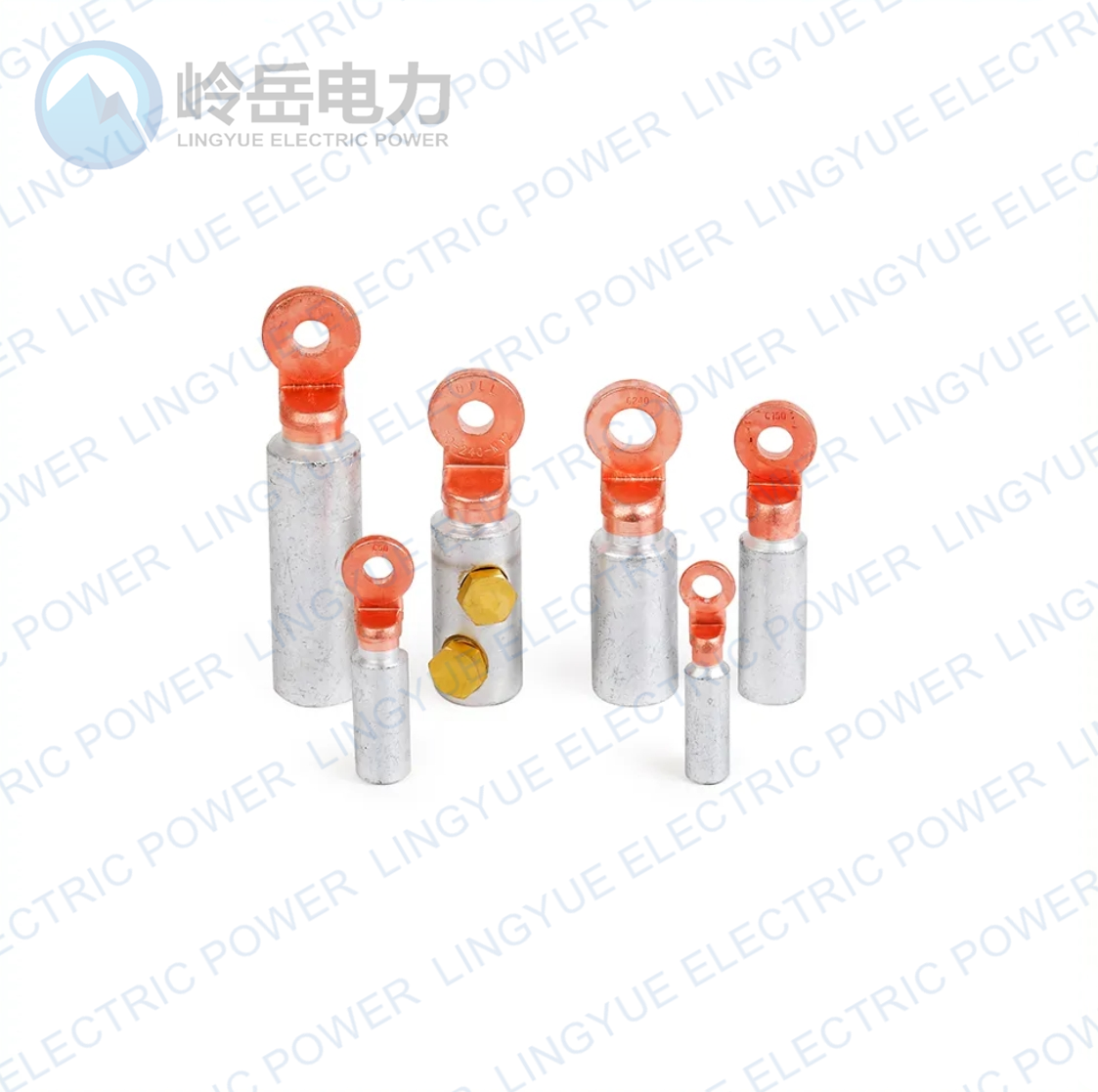

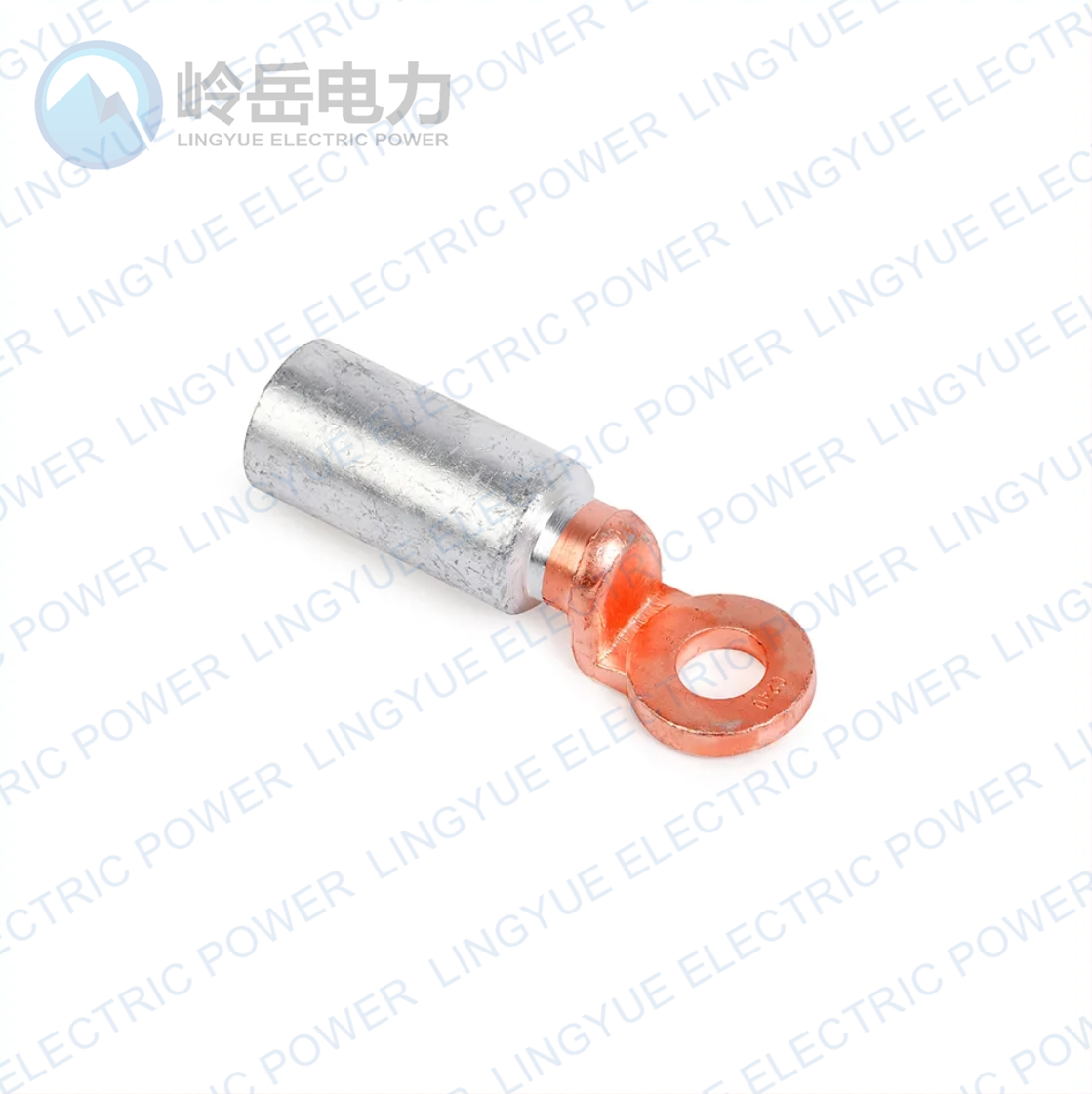

Bimetal lugs DTL-5
Bimetal lugs DTL-5
Bimetal lugs DTL-5
Bimetal lugs DTL-5
Bimetal lugs DTL-5
Bimetal lugs DTL-5
Bimetal lugs DTL-5
Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in medium voltage.Suitable for connecting ABC cables to transformers,switchgear etc.



Material:Al≥99.5%,CU≥99.9%

Structure Feature

1.Oil blocking structure

2.Friction welded

3.Prefilled with jointing compound.

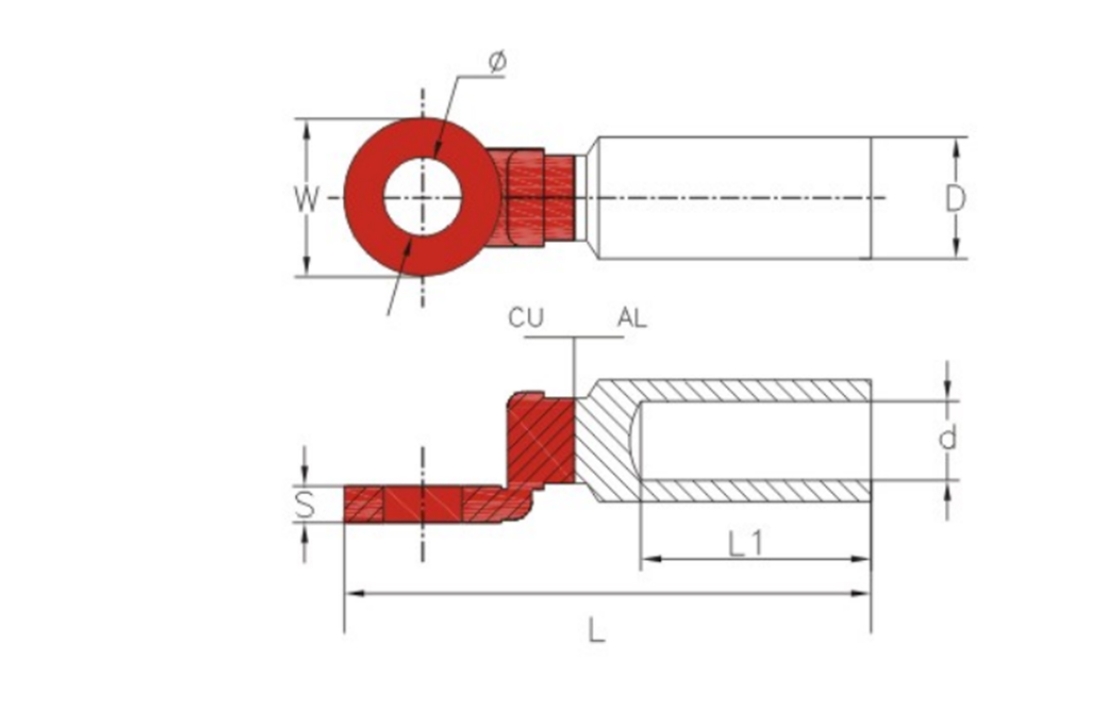

Datas


Type

φ±0.3

D±0.2

d±0.2

L±2

L1±2

W±0.2

DTL-5-16

10.5

16

5.5

80

44

20

DTL-5-25

10.5

16

7

80

44

20

DTL-5-35

10.5

16

8

80

44

20

DTL-5-50

13

20

9

92.5

43

25

DTL-5-70

13

20

11

92.5

43

25

DTL-5-95

13

20

12.5

92.5

43

25

DTL-5-120

13

25

14

111

59

30

DTL-5-150

13

25

15.5

111

59

30

DTL-5-185

17

32

18.5

121

60

35

DTL-5-240

17

32

19.5

121

60

35

DTL-5-300

13

34

23.5

155

92

35

DTL-5-400

17

40

26

155

93

35

DTL-5-500

17

40

29.5

160

93

37
