Product Introduction

CU-AL Bimetallic Cable Lug DTL-8

1.The solid palm eliminates the ingress of moisture.
2.The barrels are chemically treated to reduce contact resistance and corrosion
refilled with jointing compound
3.Friction welded.

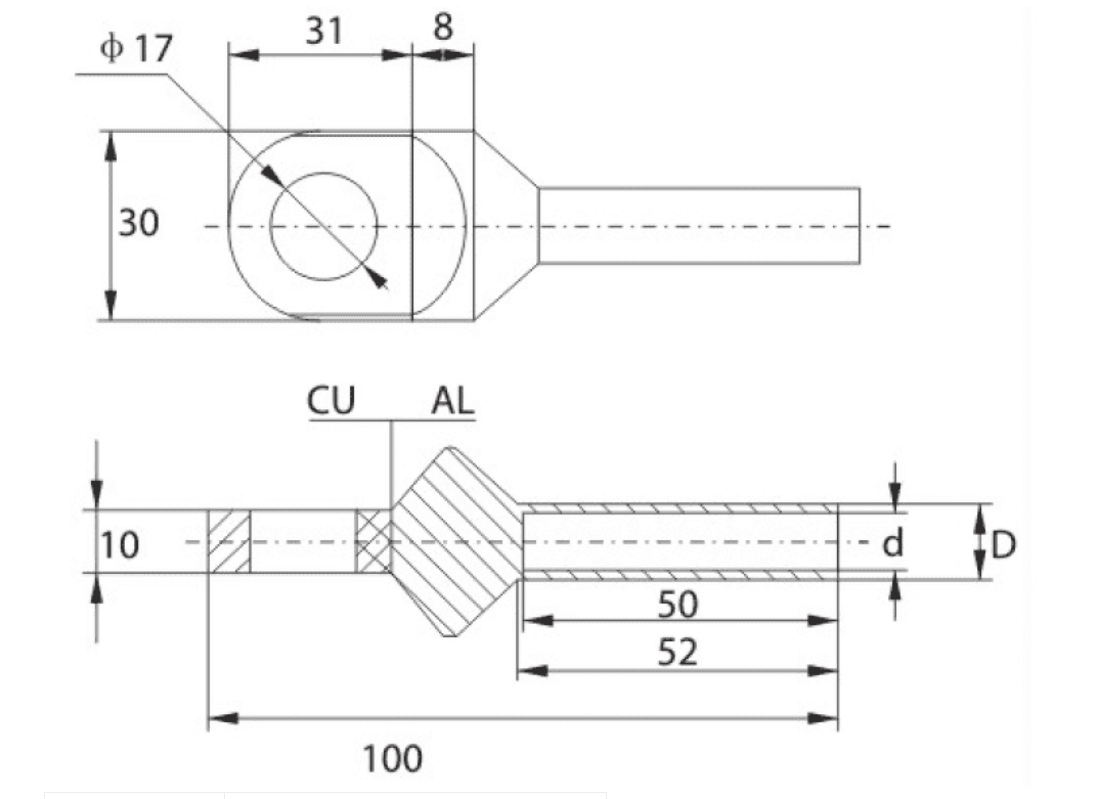

Item No.	Dimensions(mm)
	D	d	G.W (kg)
DTL-8-35	14	8	21.0
DTL-8-50	16	10	22.0
DTL-8-70	18	12	20.0
DTL-8-95	21	13	23.0
DTL-8-120	23	15	25.0
DTL-8-150	25	16	22.5
DTL-8-185	28	18	23.5
DTL-8-240	31	20	19.0
DTL-8-300	35	22	20.0
DTL-8-400	39	25	22.0

DTL-8 SERIES BIMETALLIC LUG ARE SUITABLE FOR TRANSITION CONNECTION OF THE CIRCULAR ALUMINUM WIRES, HEMICYCLES-SECTOR ALUMINUM WIRES, POWER SUPPLY CABLES IN THE DISTRIBUTION EQUIPMENT AND COPPER TERMINALS OF THE ELECTRICAL EQUIPMENT THEY ARE MADE FROM CU 99.9% PURITY AND AL 99.5 PURITY.
