Product Introduction

CU-AL Bimetallic Cable Lug DTLD.The solid palm eliminates the ingress of moisture.
2.The barrels are chemically treated to reduce contact resistance and corrosion
3.Refilled with jointing compound
4.Friction welded
5.Material：Cu≥99.9%，Al≥99.5%


Item No.

Cable spec(mm2)

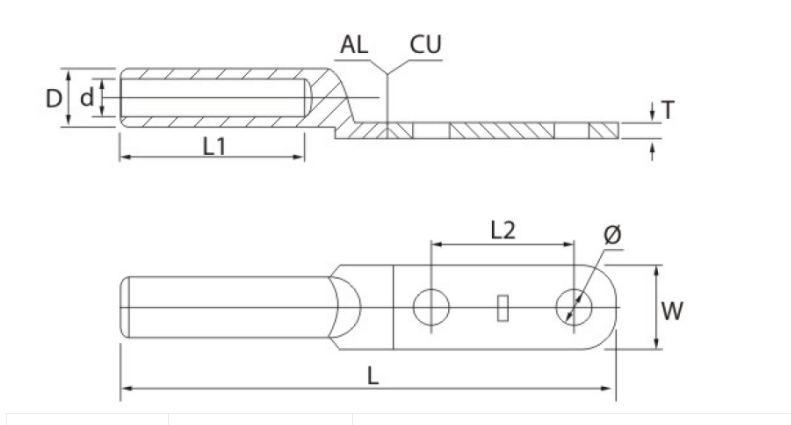

Dimensions(mm)

Note



D

d

Ø

L1

L2

L

W

T


DTLD16

16

11

6.4

8.5

33

25

95

16

4

Material:
Al≥99.5%
Cu≥99.9%

Friction
welding

Can be OEM



DTLD25

25

12

7.4

8.5

35

25

100

18

4

DTLD35

35

14

8.7

10.5

38

40

125

20.5

4

DTLD50

50

16

9.7

10.5

40

40

130

23

5

DTLD70

70

18

11.7

12.5

45

40

142

26

5

DTLD95

95

21

13.7

12.5

51

40

150

28

5

DTLD120

120

23

15.2

14.5

56

40

160

30

6

DTLD150

150

25

16.7

14.5

57

40

165

34

6

DTLD185

185

28

18.7

17

58

40

176

37

6.5

DTLD240

240

30

21

17

60

40

188

40

6.5

DTLD300

300

35

23.5

17

73

40

220

50

7

DTLD400

400

38

26

21

78

45

225

55

7.5

DTLD500

500

40

29

21

80

45

230

55

9.5

DTLD630

630

45

34

21

80

45

235

60

9.5
