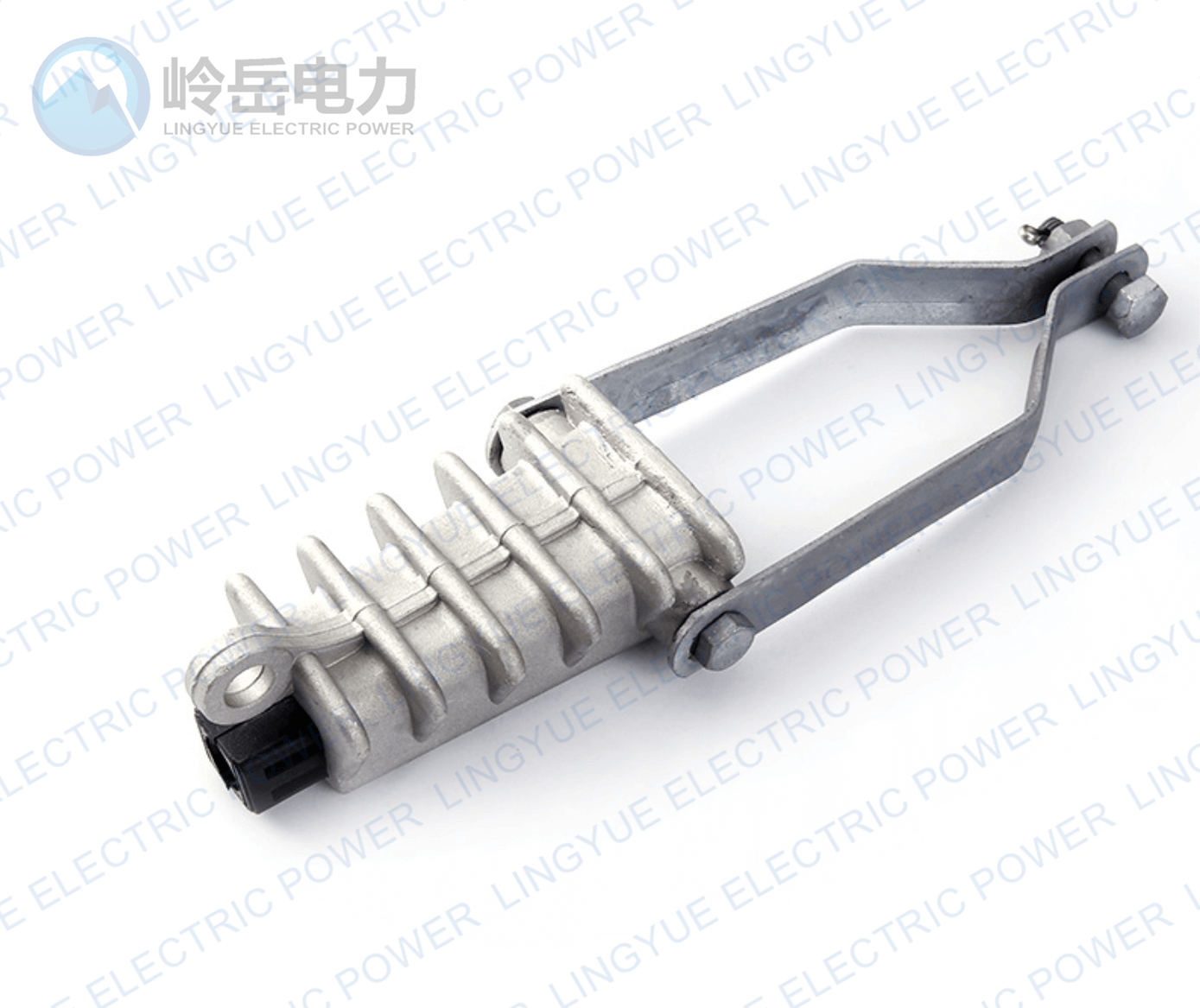

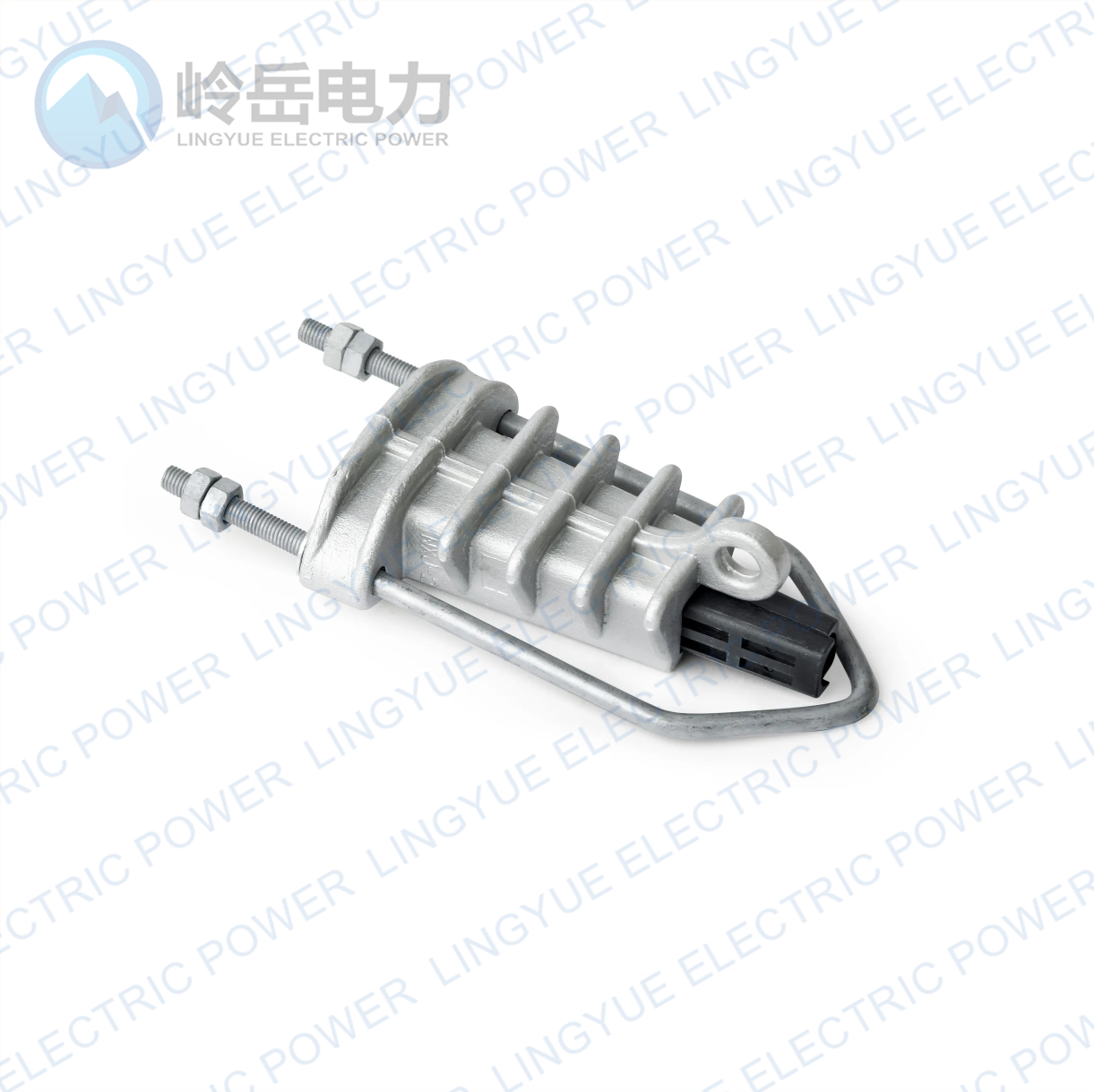

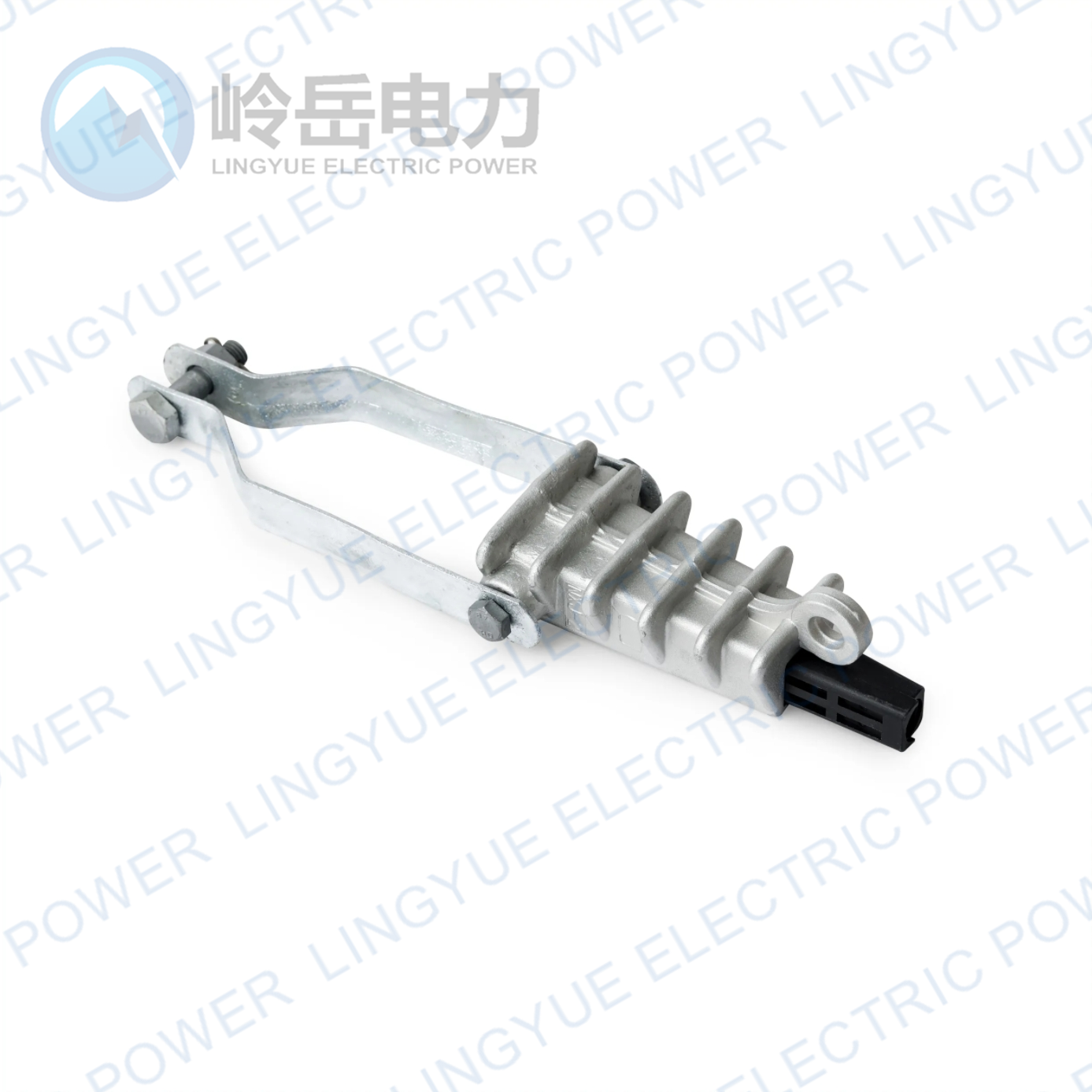

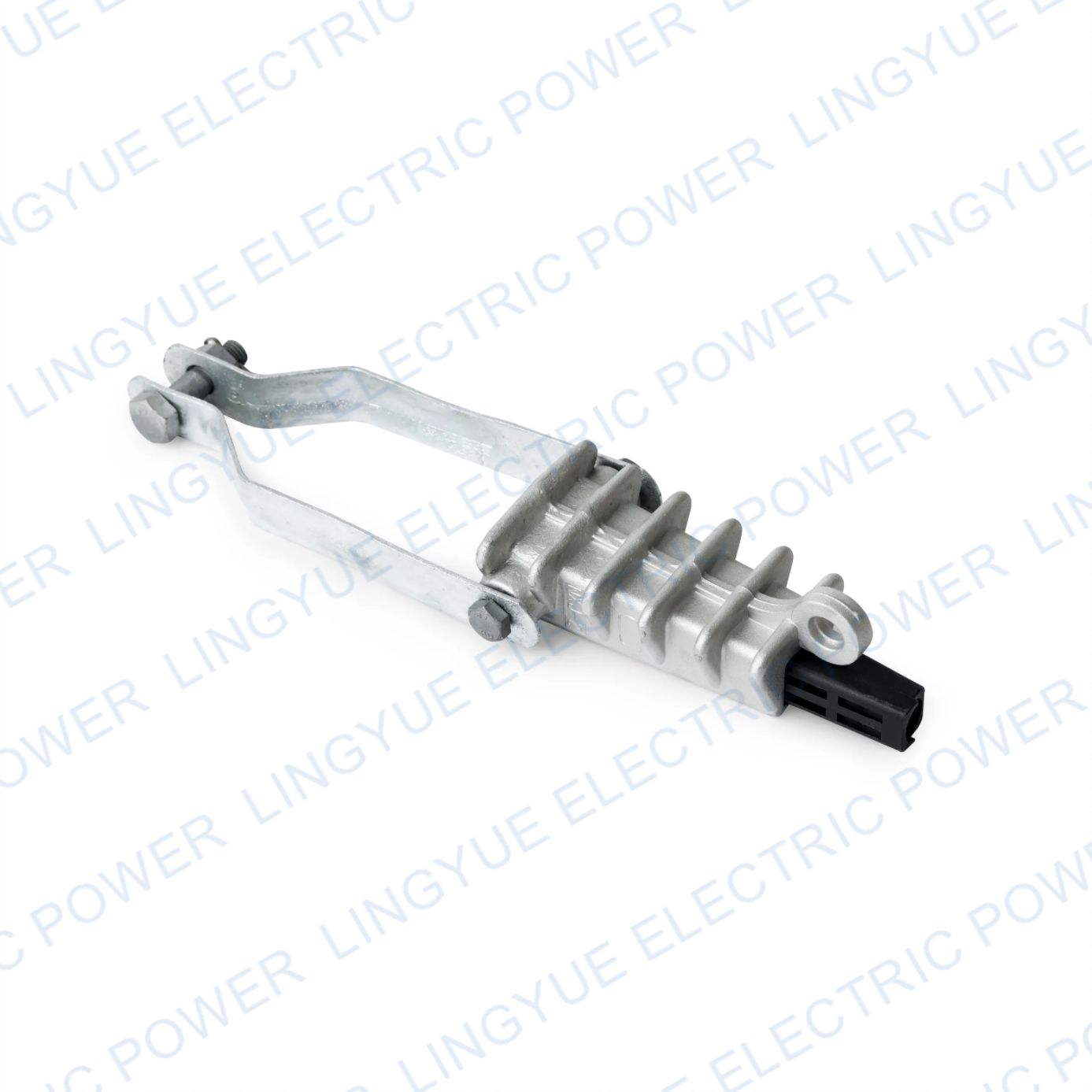

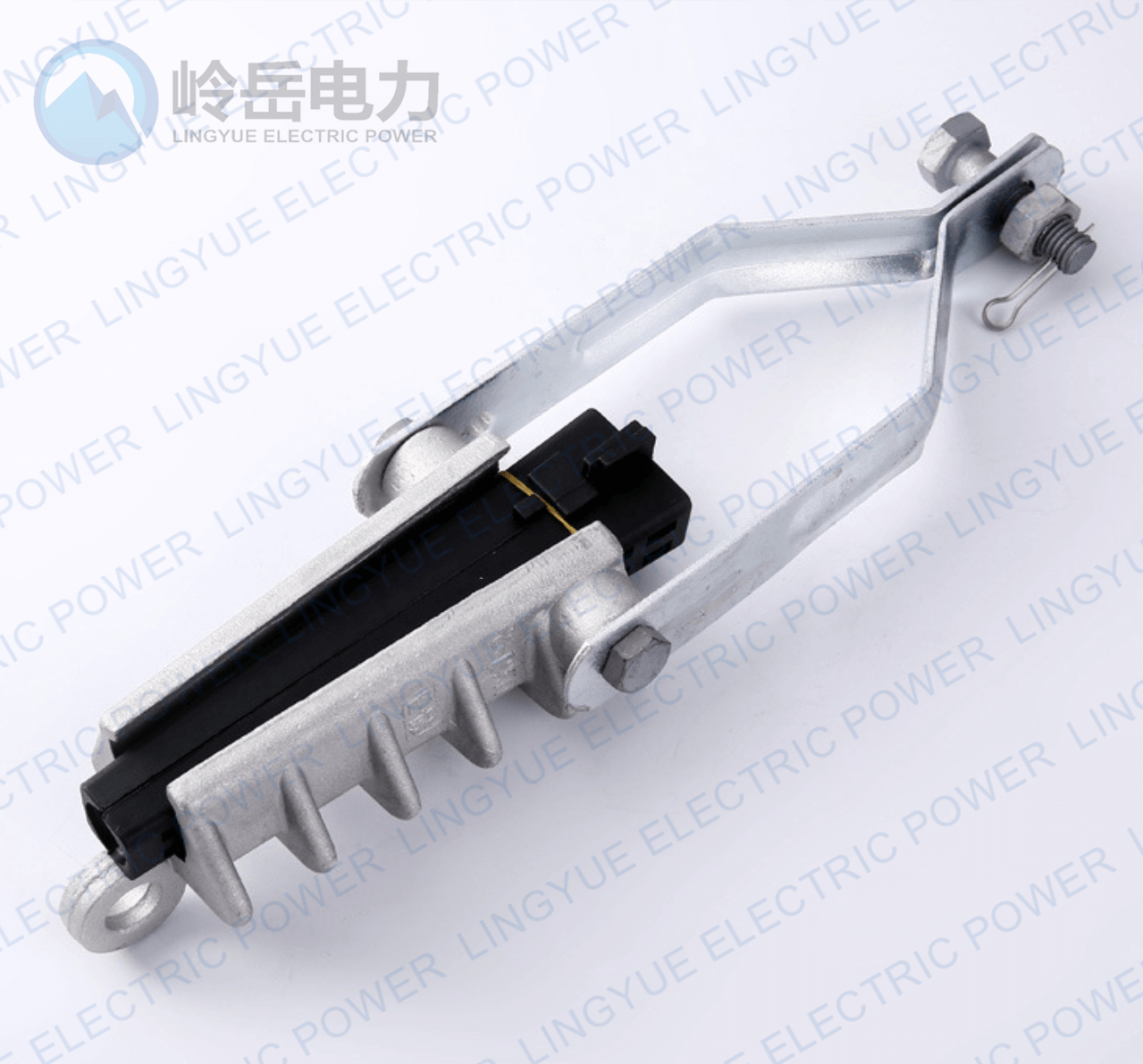

NXJ clamp

Inquiry Contact us

Like this product? Share with friends:

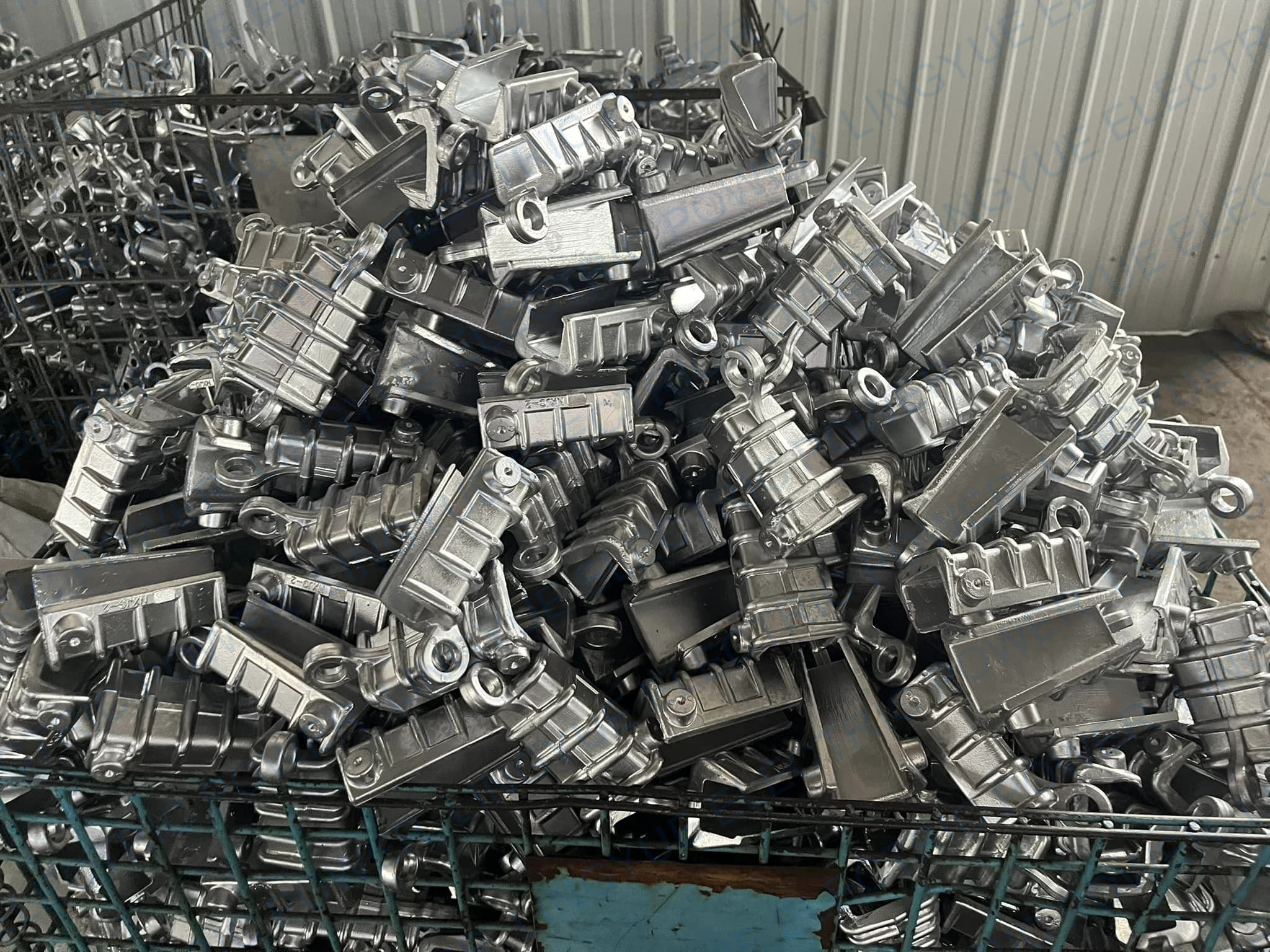

Product Introduction

NXJ Series clamp is a kind of anchor clamp in distribution line.It is applicable for aerial insulated conductor on the corner or terminal wire pole.

The product is equipped with 1kV 10kV 20kV plastic inner wedge separately according to the voltage standard.

The product body is cast with high strength aluminum alloy and has the advantages such as high strength,good holding power,light in weight,no magnetic hysteresis loss and easy of installation.

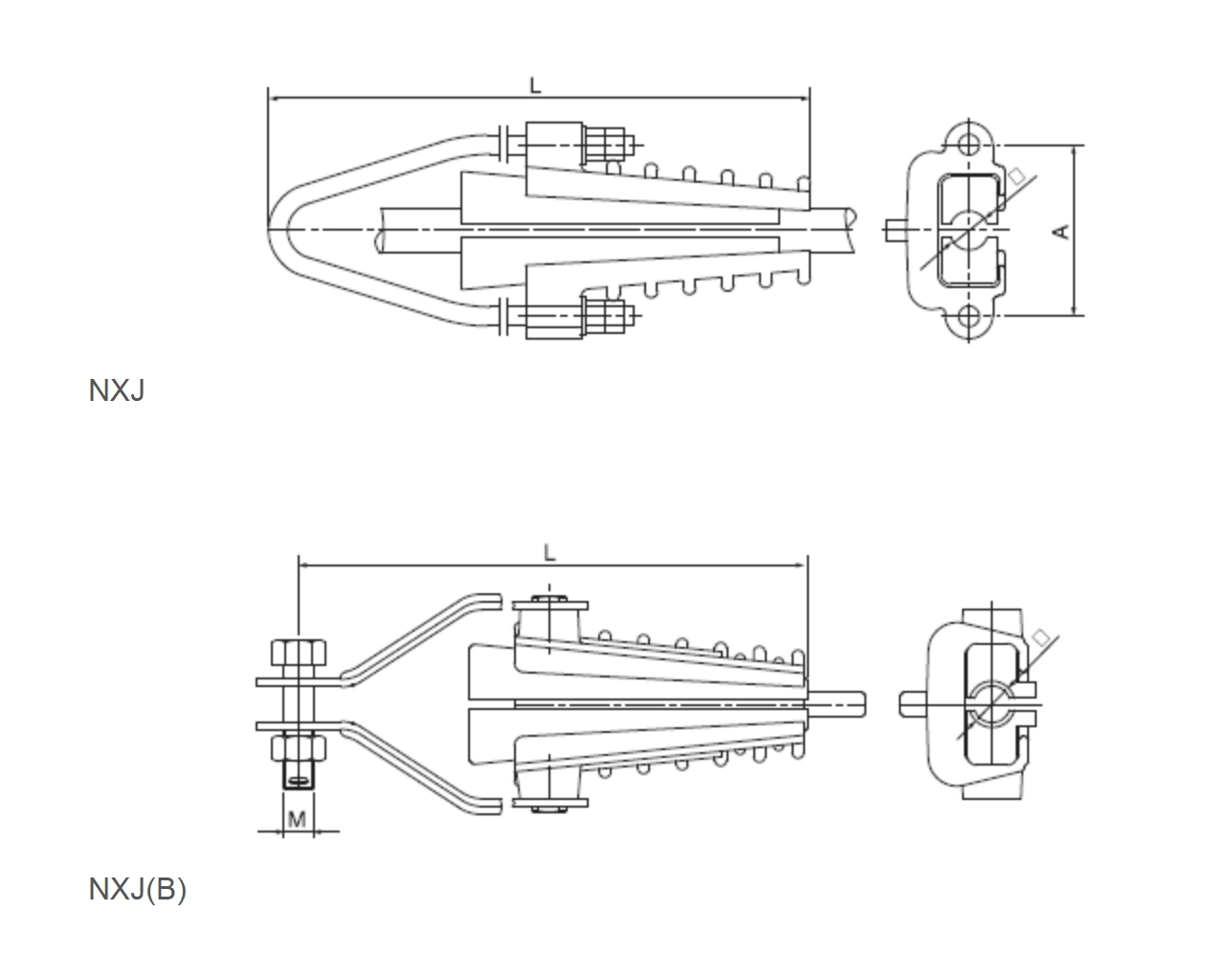

Structure Feature

1.The shell made of anti-oxidation high strength aluminum alloy,without waste power.

2.The core of wedge made of insulating reinforce plastics,1-10kV withstand voltage:≥18kV,not breakdown one min.

3.No need to remove the insulation layer, al-core wire can ve used directly.

4.Without waste power.

5.Wedge structure,easy to install.

Data

TYPE	Insulated Al cable size(mm²）			core size	grip strength （kN)	breaking load (kN)
TYPE	1kV	10kV	20kV	core size	grip strength （kN)	breaking load (kN)
NXJ-1(B)	16-35	/	/	7.1-10	1.6	13.7
	50-70	16-25		11.7-13.7	2.4
	95	35-50		14.8-16.1	4.55
NXJ-2(B)	50-70	10-16	/	11.2-12.8	/	21
	70-95	16-35		12.6-15.8
	95-120	35-50		14.8-16.7
	120-150	70-95	25-35	17.8-19.4	8.9
	185	120-150	50-70	20.8-22.4	13.65
NXJ-3(B)	185	120-150	50-70	20.8-22.4	13.65	43.3
NXJ-3(B)	240	185-240	95-120	24-26.2	22.5	43.3
NXJ-4(B)	/	300	120-150	28.4	28.2	46.5
