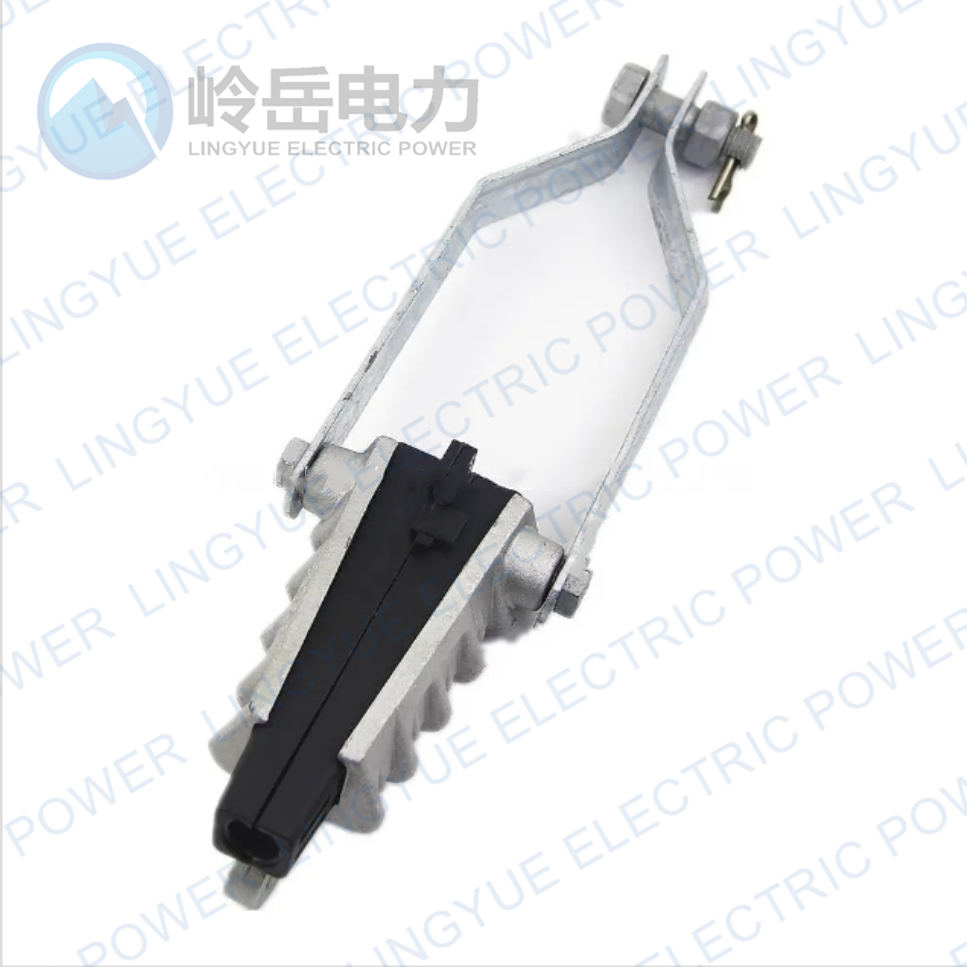

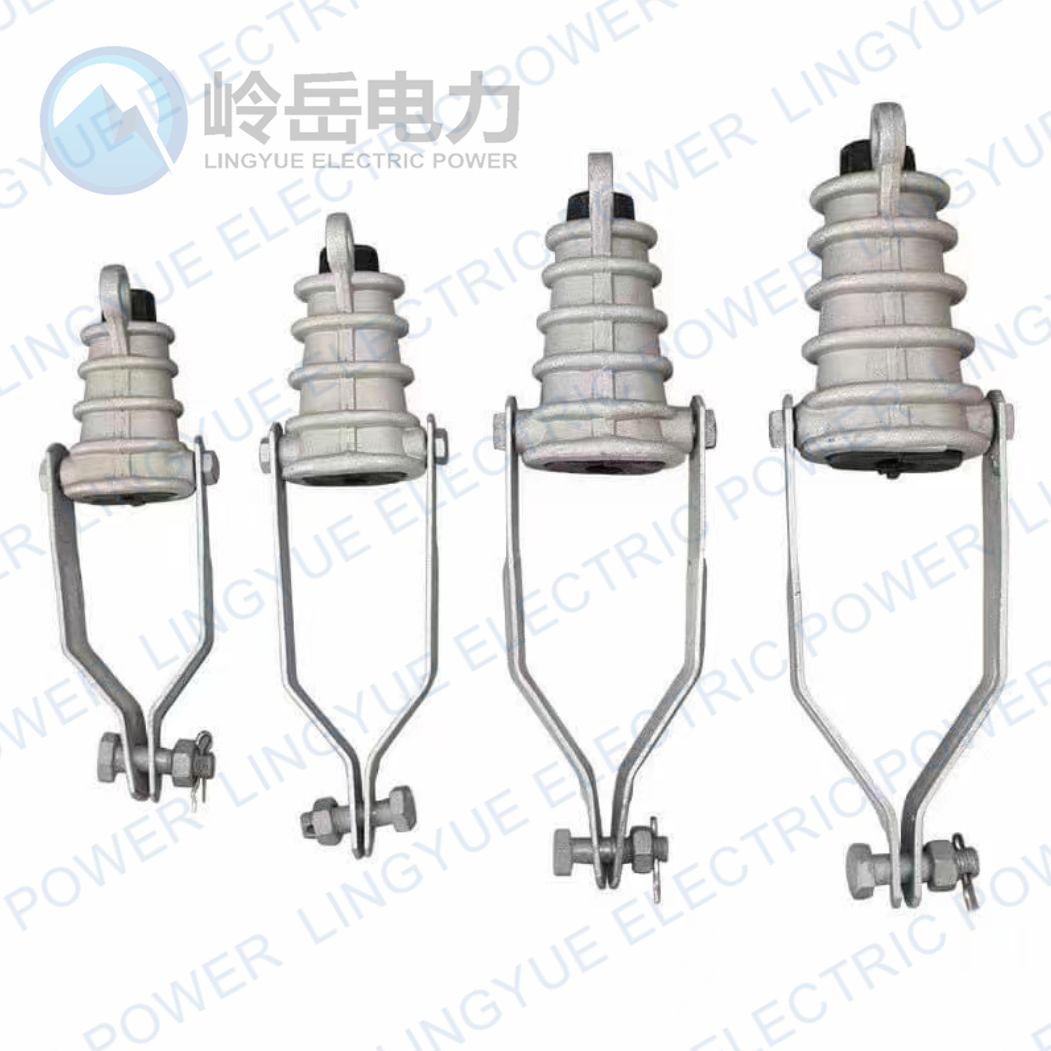

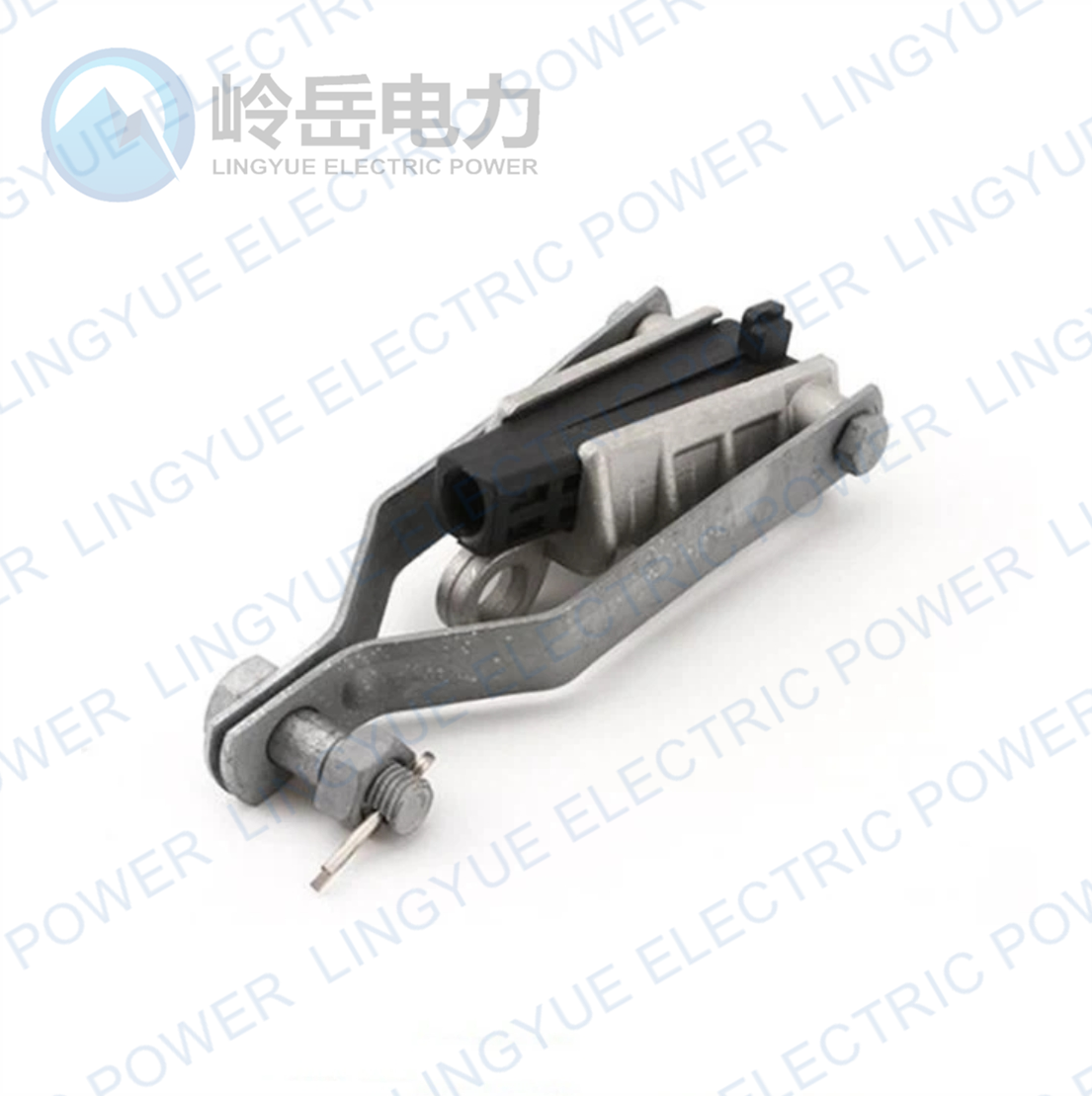

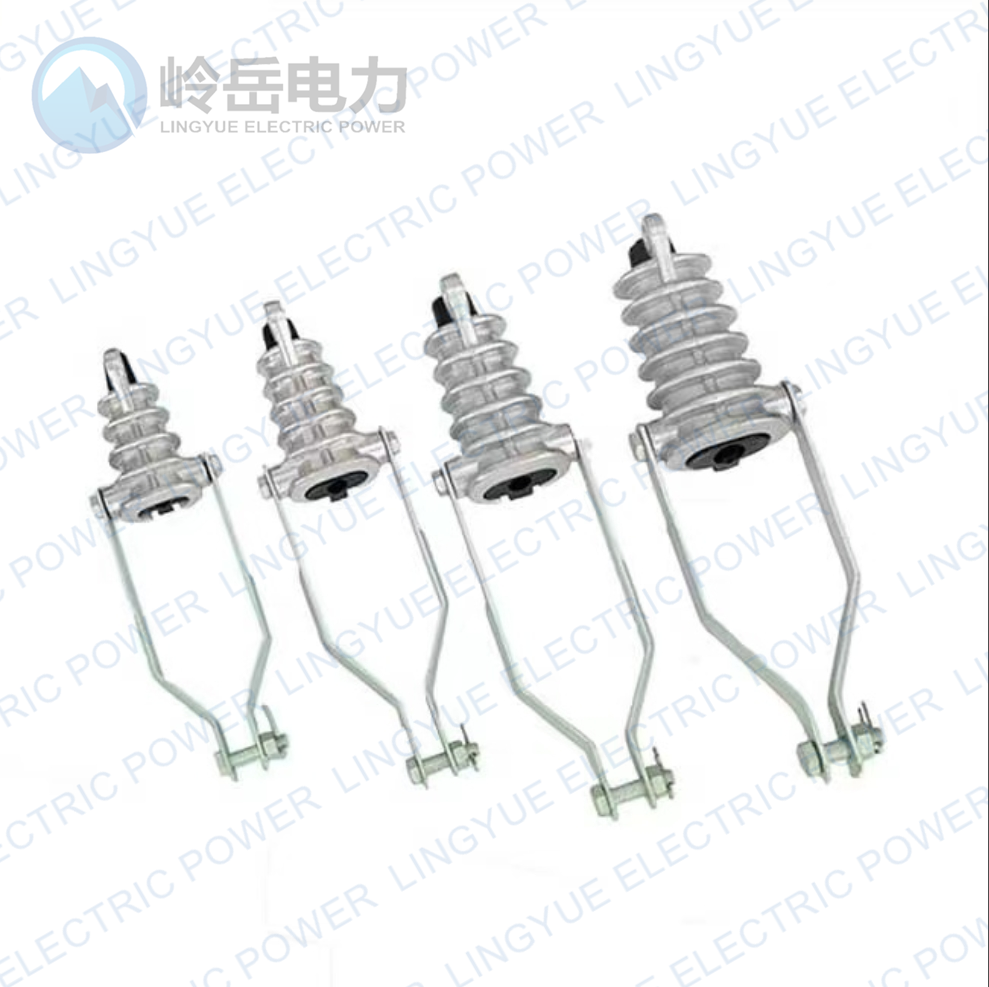

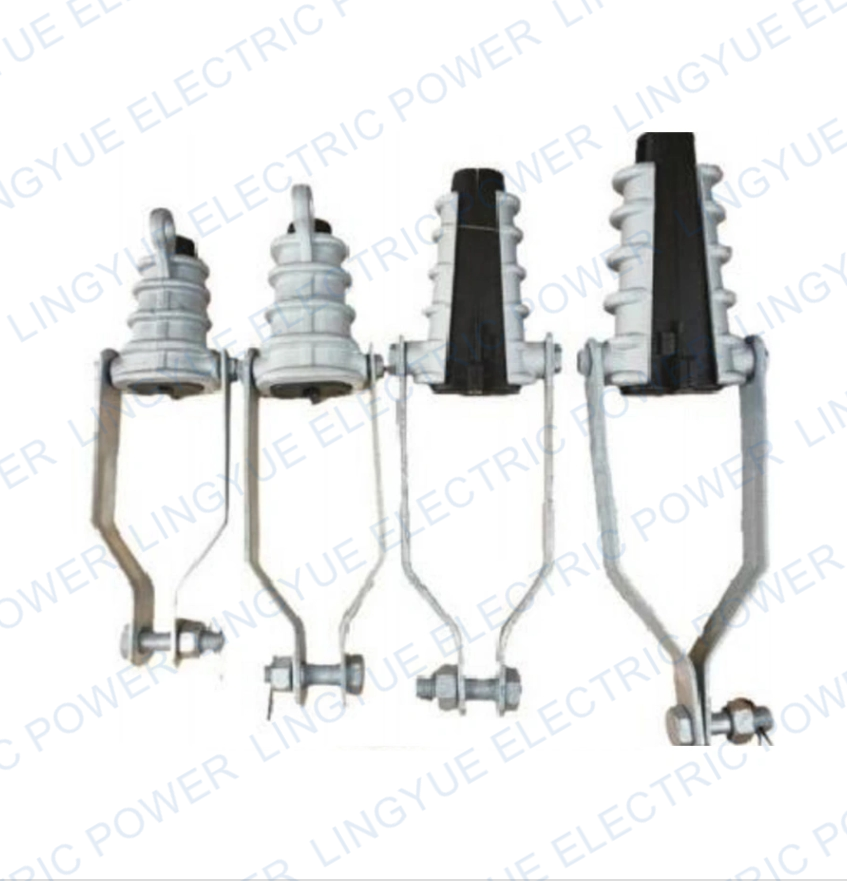

NXJG clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Application：

The NXJG series is suitable for fixing and tension serial insulated aluminum conductor (LKLYJ) with insulator string at both ends of terminal or tension segment of 20KV and below.The products are equipped with different plastic wedge cores according to wire specifications

Structure feature：

1.The shell is made of anti – oxidation high – strength aluminum alloy with no tape loss

2.Wedge core is made of high strength engineering plastics with good insulation performance.

3.The cable can be installed directly without removing the insulation layer.

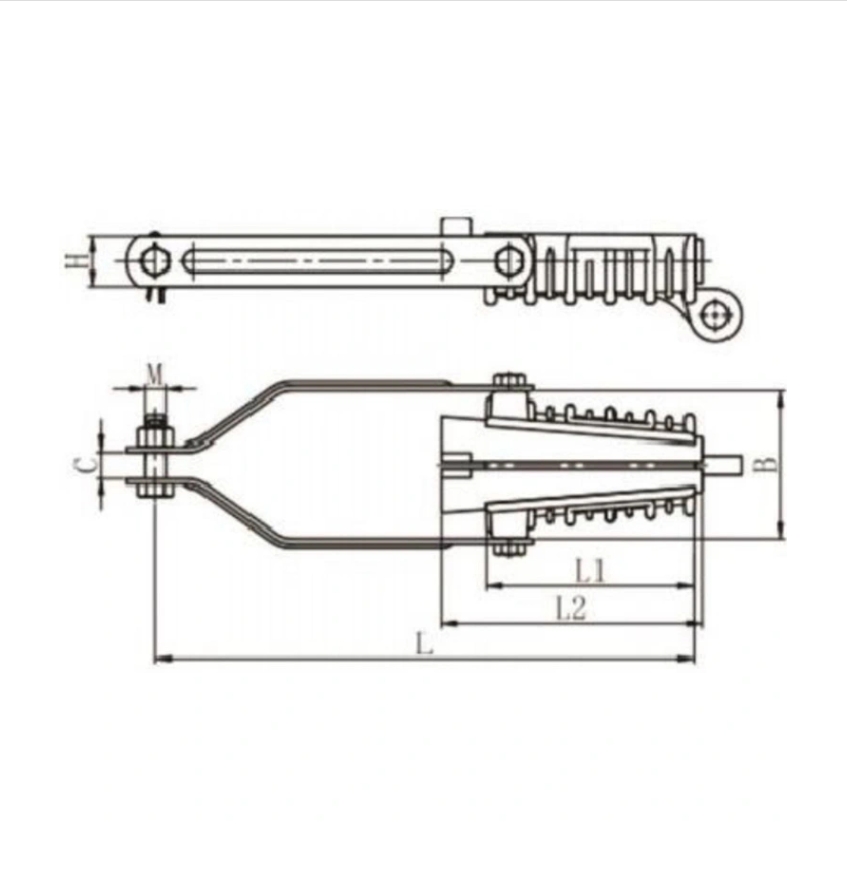

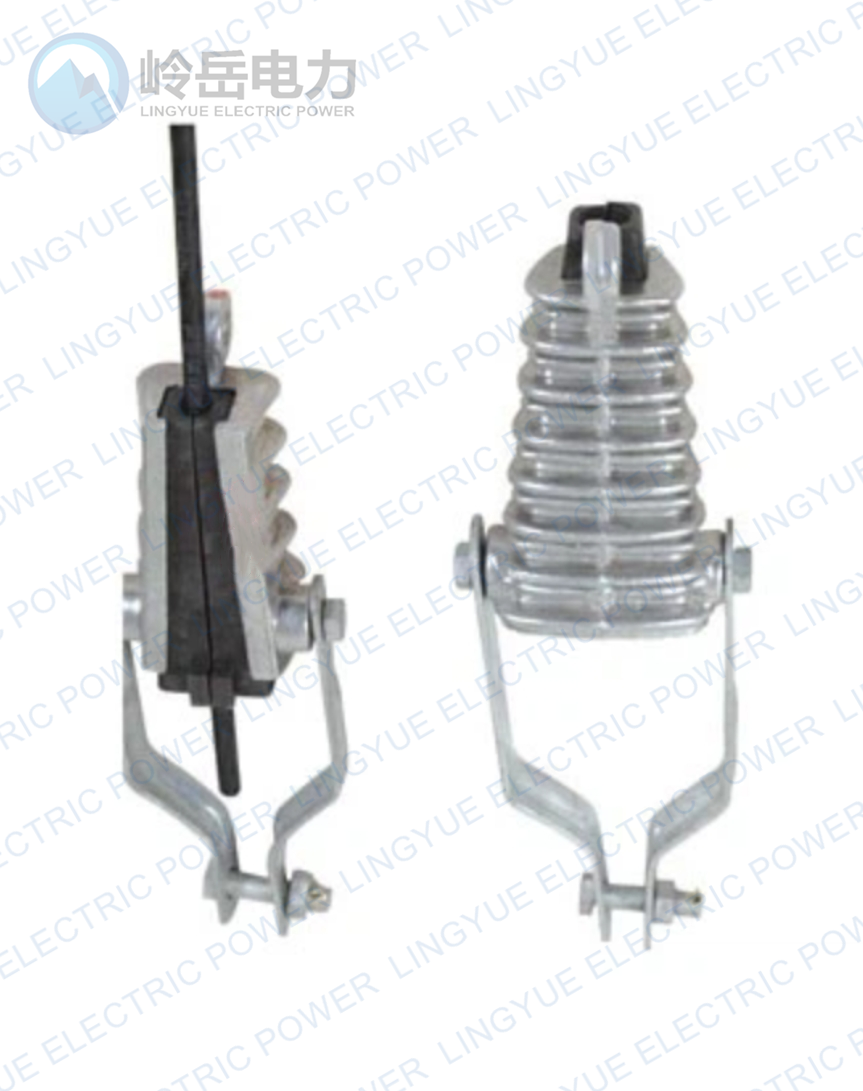

4.Wedge structure, easy and reliable installation

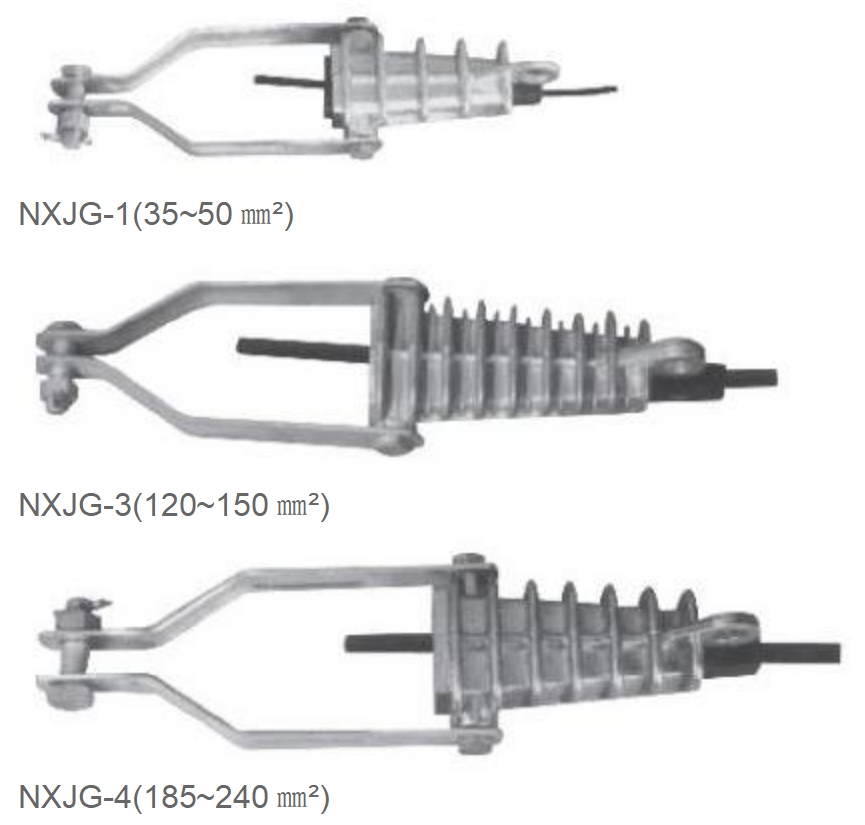

1~10KV Specification

Stable design Catalog No.	Suitable Conductor	Aerial insulation aluminum conductor/1KV		Aerial insulation aluminum conductor/10KV		Grip strength （KN）	Specified Failure Load（KN）
Stable design Catalog No.	Suitable Conductor	Dia（mm）	Applicable wedge core	Dia（mm）	Applicable wedge core	Grip strength （KN）	Specified Failure Load（KN）
NXJG-1	35	9.8	1KV/35	15.8	10KV/35	3.4	7.5
NXJG-1	50	11.2	1KV/50	17.1	10KV/50	4.6	7.5
NXJG-2	70	12.8	1KV/70	18.8	10KV/70	6.7	14.5
NXJG-2	95	14.8	1KV/95	20.4	10KV/95	8.9	14.5
NXJG-3	120	16.2	1KV/120	21.8	10KV/120	11.3	22.0
NXJG-3	150	18.2	1KV/150	23.4	10KV/150	13.7	22.0
NXJG-4	185	20.2	1KV/185	25.0	10KV/185	17.3	36.4
NXJG-4	240	22.6	1KV/240	27.2	10KV/240	22.5	36.4

20KV Specification

Stable design Catalog No.	Catalog No.	Suitable Conductor	Aerial insulation aluminum conductor/20KV		Grip strength （KN）	Specified Failure Load（KN）
Stable design Catalog No.	Catalog No.	Suitable Conductor	Dia（mm）	Applicable wedge core	Grip strength （KN）	Specified Failure Load（KN）
NXJG-3	NXJ-3Q（20KV）	35	19.2	20KV/35	3.4	10.8
		50	20.5	20KV/50	4.6
		70	22.0	20KV/70	6.7
NXJG-4	NXJ-4Q（20KV）	95	23.7	20KV/95	8.9	22.1
		120	25.2	20KV/120	11.3
		150	26.7	20KV/150	13.7
	NXJ-5Q（20KV）	185	28.3	20KV/185	17.3	45.5
		240	30.6	20KV/240	22.5
		300	32.8	20KV/300	28.2
