Application

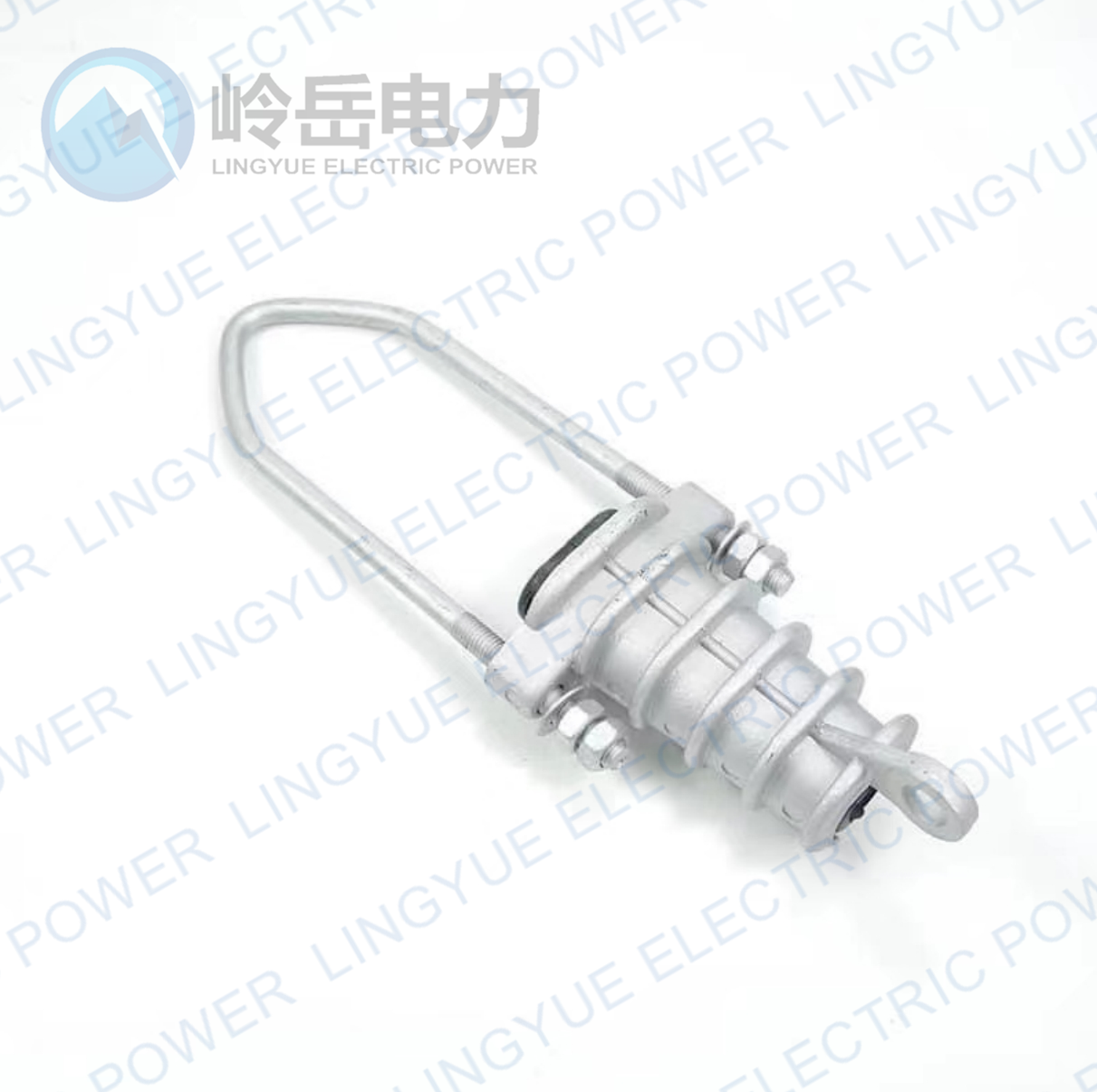

NXJL series is suitable for fixing and tension overhead insulated aluminum core wires (JKYL) with insulator strings at the end or both ends of tension section of 1-10kV and below.Products according to wire specifications are equipped with different plastic wedge core.
Structure feature

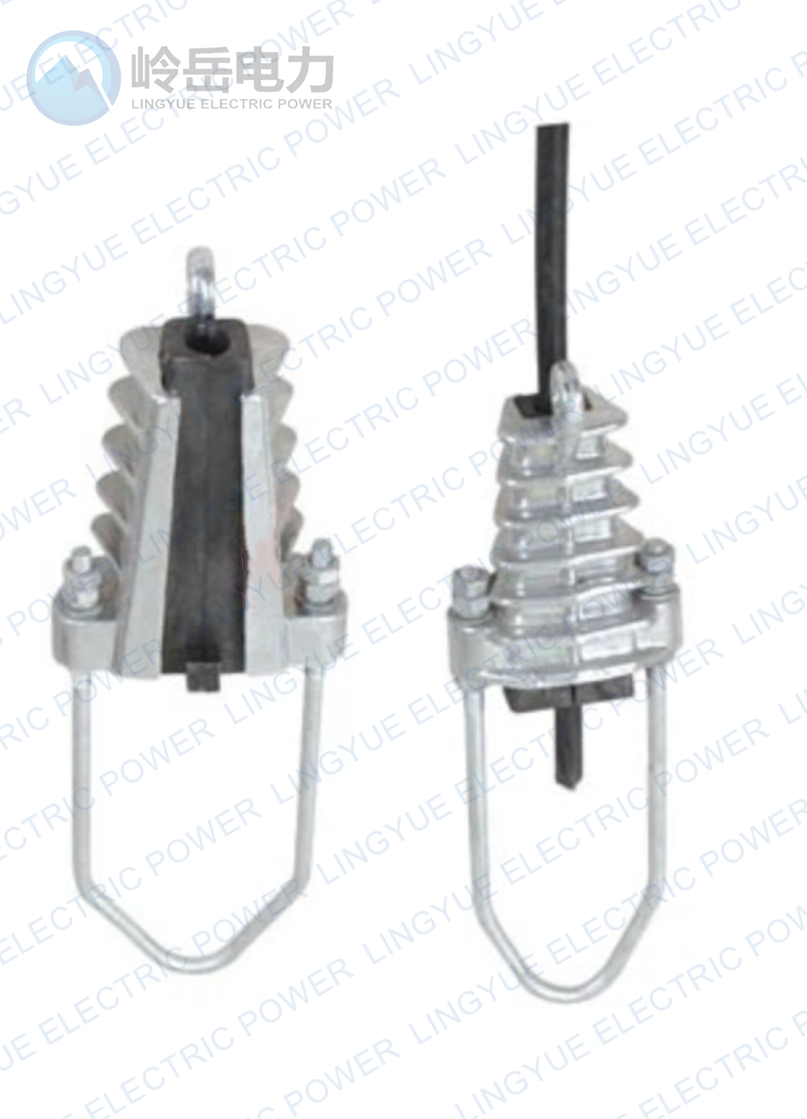

00001. The shell made of anti-oxidant high strength aluminum alloy,without waste power
00002. The core of wedge made of insulating reinforce plastic,have good insulation
00003. Not remove the insulation layer,AL-core wire are current use.
00004. Wedge shape structure,easily installing
00005.
Our Services
1. Small Orders Accepted
2. Fast producing time, Prompt Delivery
3. International Approvals
4. Reply promptly in 24 hours
5. Best Price
1-10kv Specification
Stable design catalog No. | Catalog No. | Suitable conductor | Aerial insulation aluminum conductor/1kv | Aerial insulation aluminum conductor/10kv | Grip strength（KN） | Specified failure load（KN） |
Dia（mm） | Applicable wedge core | Dia（mm） | Applicable wedge core |

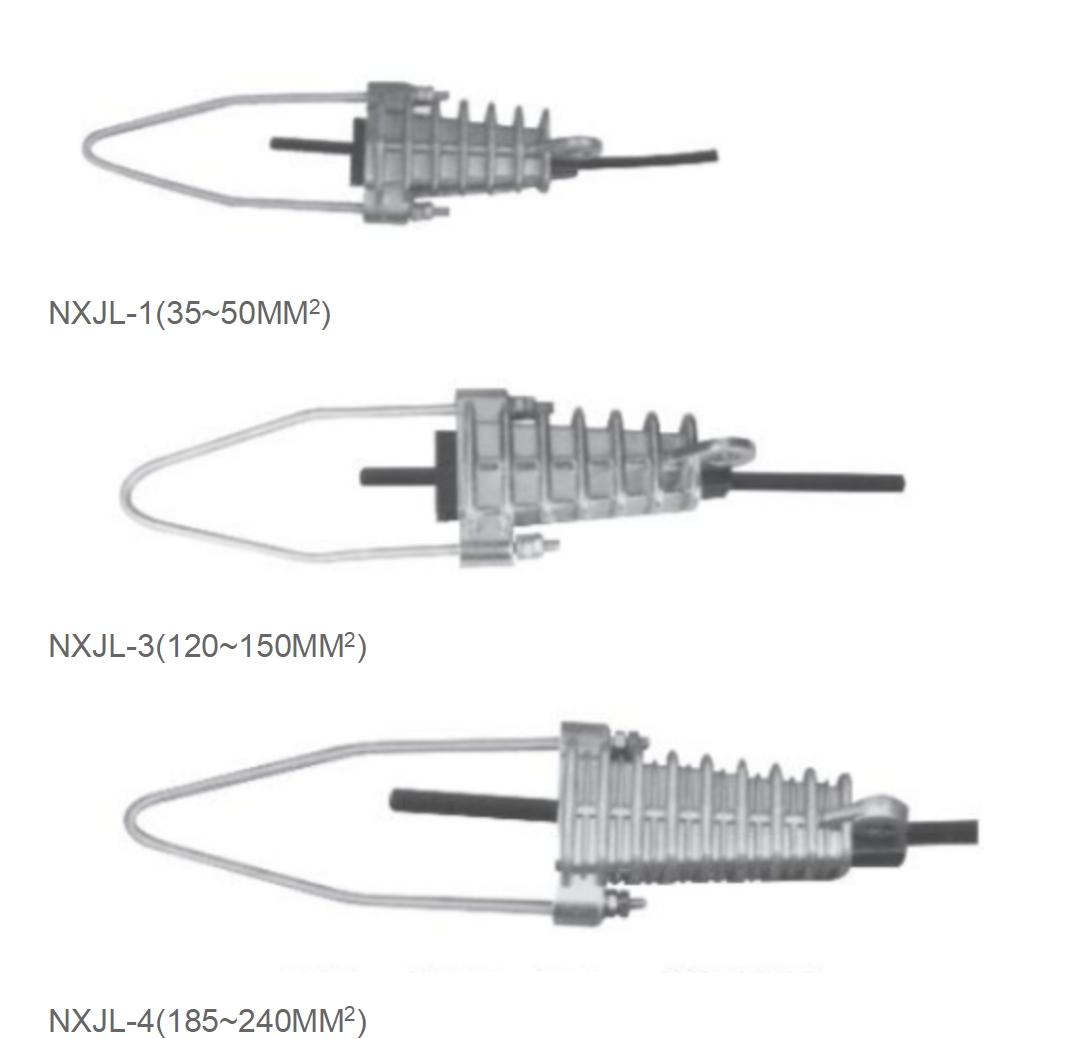

NXJL-1 | NXJ-1Q | 35 | 9.8 | 1KV/35 | 15.8 | 10KV/35 | 3.4 | 7.5 |
50 | 11.2 | 1KV/50 | 17.1 | 10KV/50 | 4.6 |
NXJL-2 | NXJ-2Q | 70 | 12.8 | 1KV/70 | 18.8 | 10KV/70 | 6.7 | 14.5 |
95 | 14.8 | 1KV/95 | 20.4 | 10KV/95 | 8.9 |
NXJL-3 | NXJ-3Q | 120 | 16.2 | 1KV/120 | 21.8 | 10KV/120 | 11.3 | 22.0 |
150 | 18.2 | 1KV/150 | 23.4 | 10KV/150 | 13.7 |
NXJL-4 | NXJ-4Q | 185 | 20.2 | 1KV/185 | 25.0 | 10KV/185 | 17.3 | 36.4 |
240 | 22.6 | 1KV/240 | 27.2 | 10KV/240 | 22.5 |
20KV Specification
Stable design Catalog No. | Catalog No. | Suitable Conductor | Aerial insulation aluminum conductor/20KV | Grip strength （KN） | Specified Failure Load（KN） |
Dia（mm） | Applicable wedge core |
NXJG-3 | NXJ-3Q（20KV） | 35 | 19.2 | 20KV/35 | 3.4 | 10.8 |
50 | 20.5 | 20KV/50 | 4.6 |
70 | 22.0 | 20KV/70 | 6.7 |
NXJG-4 | NXJ-4Q（20KV） | 95 | 23.7 | 20KV/95 | 8.9 | 22.1 |
120 | 25.2 | 20KV/120 | 11.3 |
150 | 26.7 | 20KV/150 | 13.7 |
| NXJ-5Q（20KV） | 185 | 28.3 | 20KV/185 | 17.3 | 45.5 |
240 | 30.6 | 20KV/240 | 22.5 |
300 | 32.8 | 20KV/300 | 28.2 |
