PAT clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

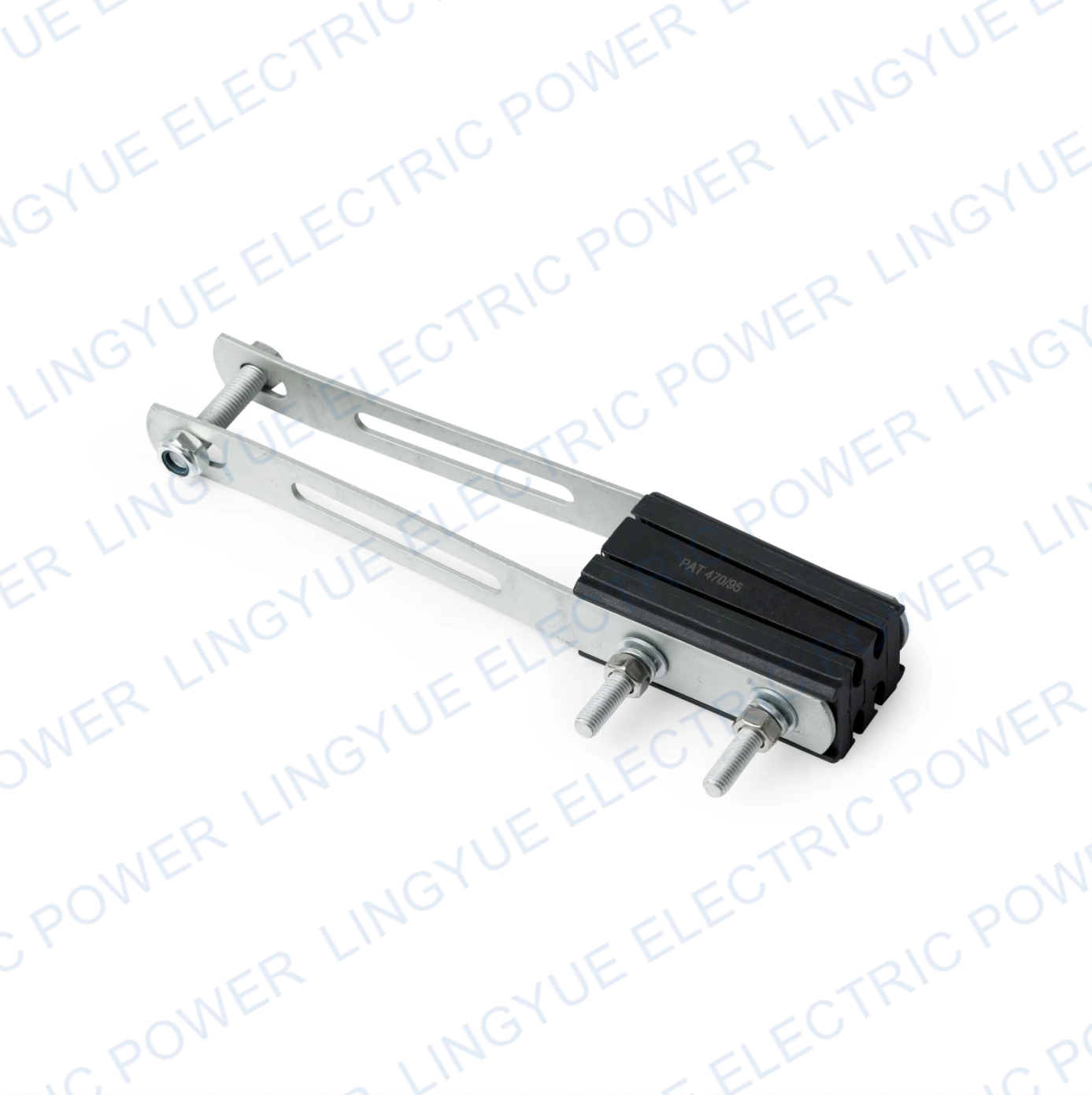

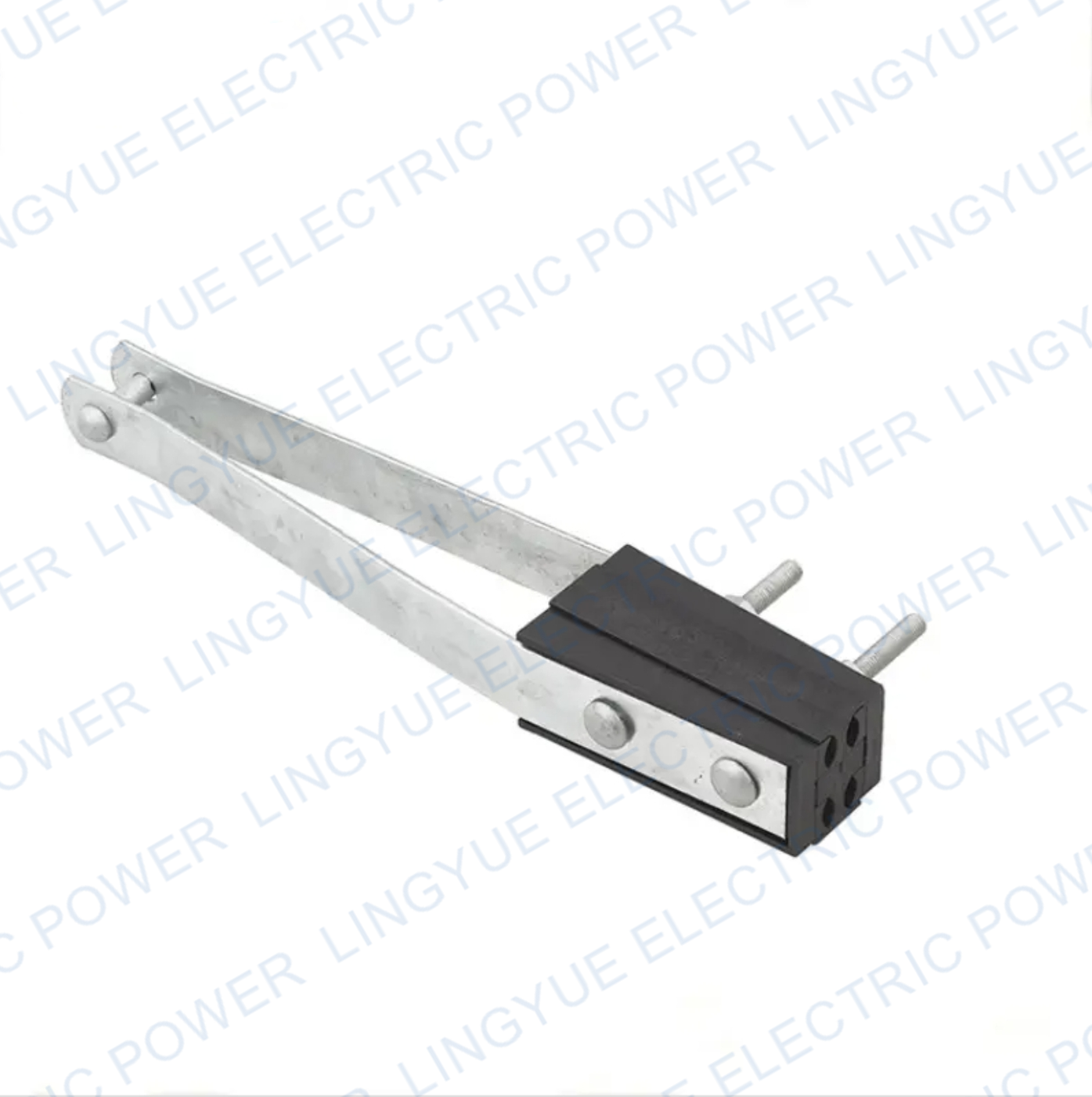

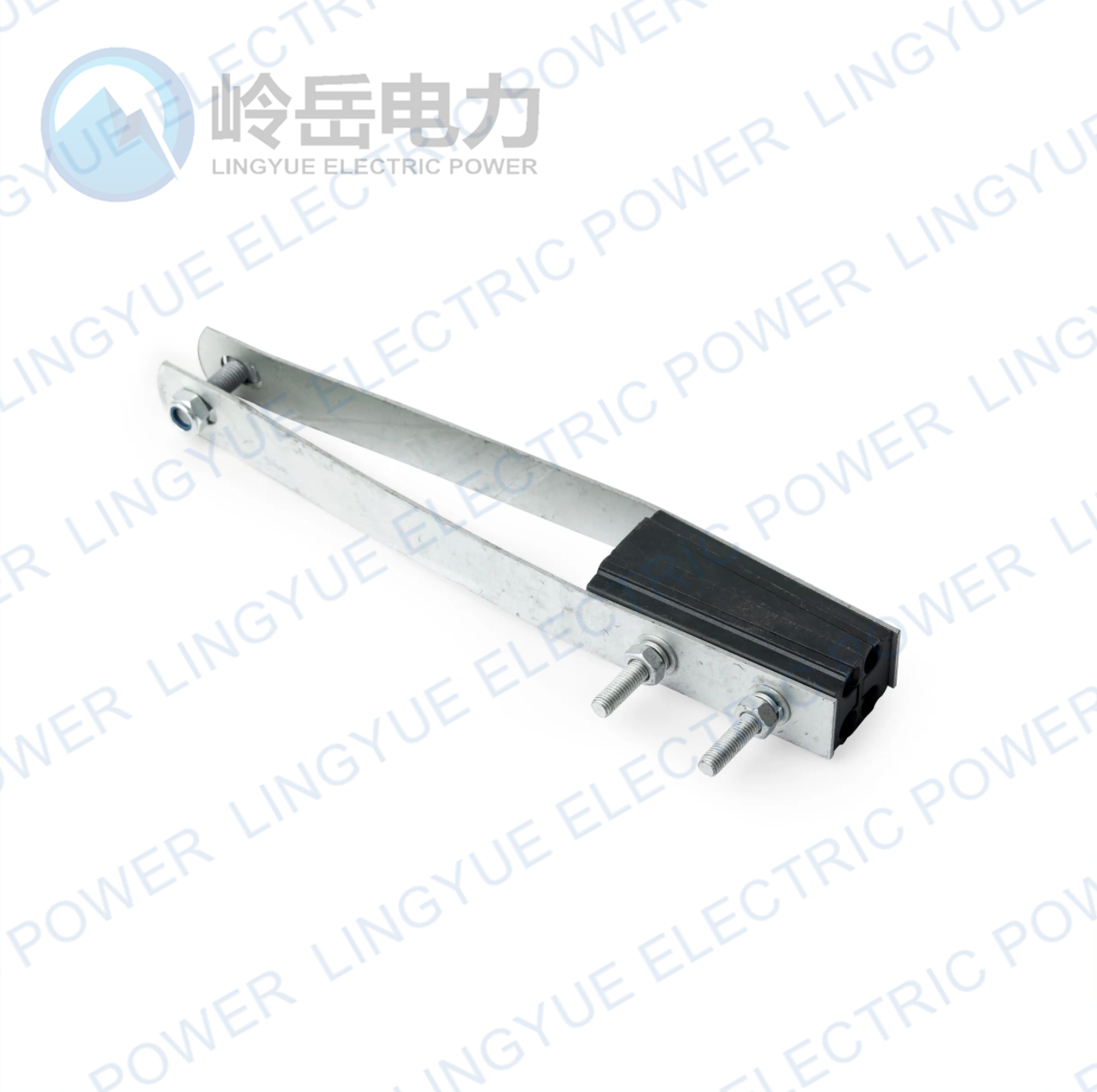

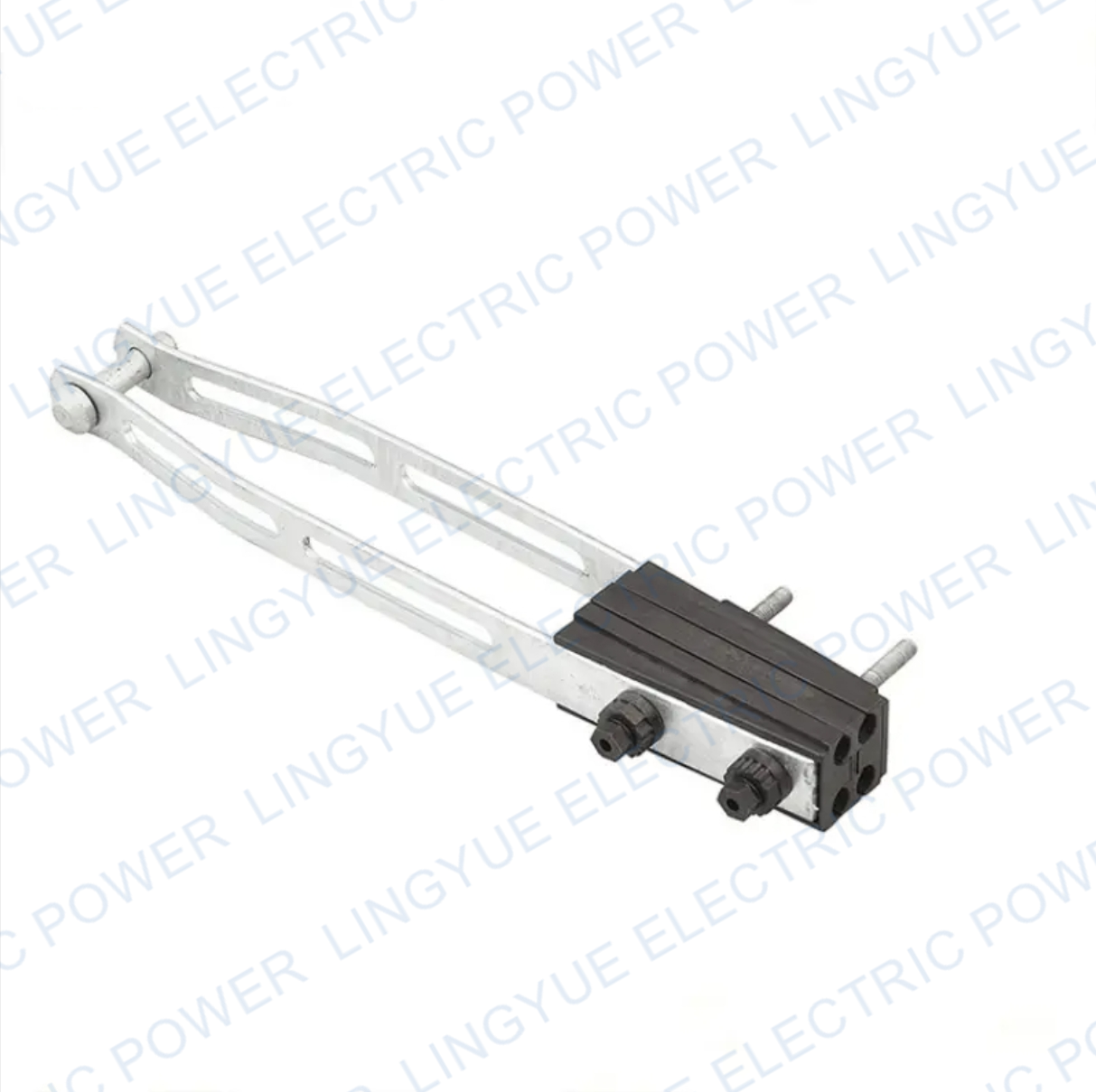

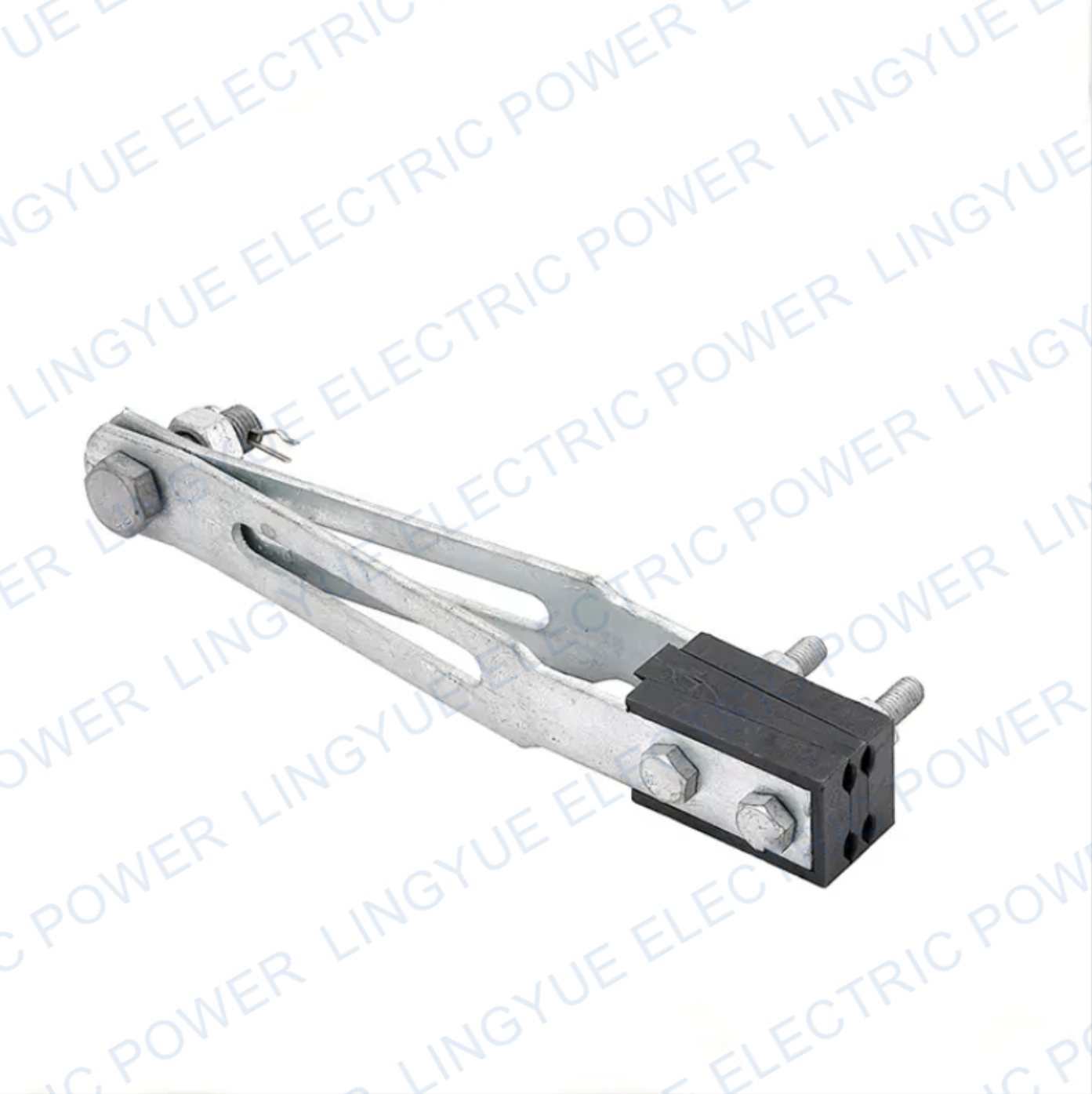

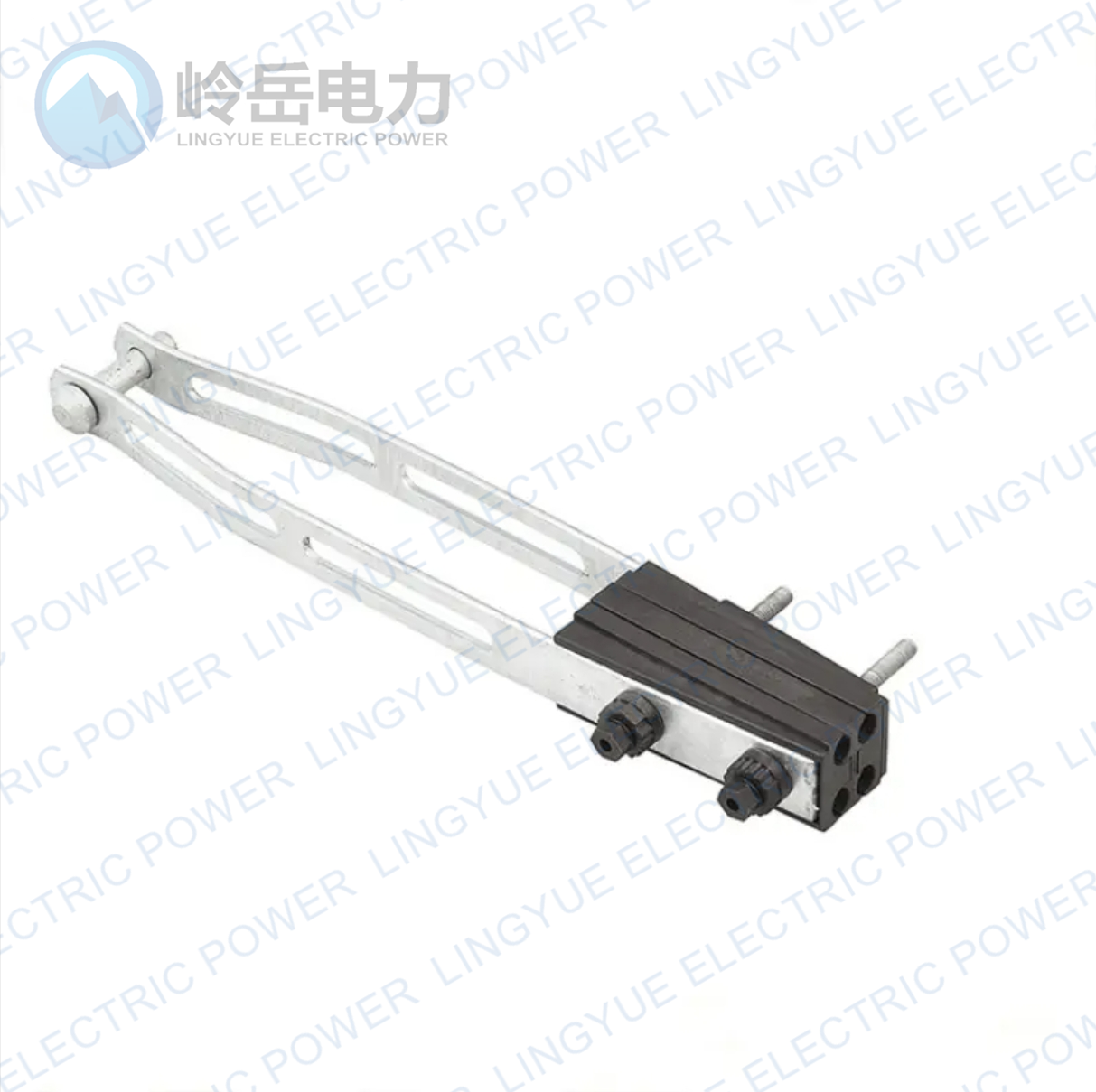

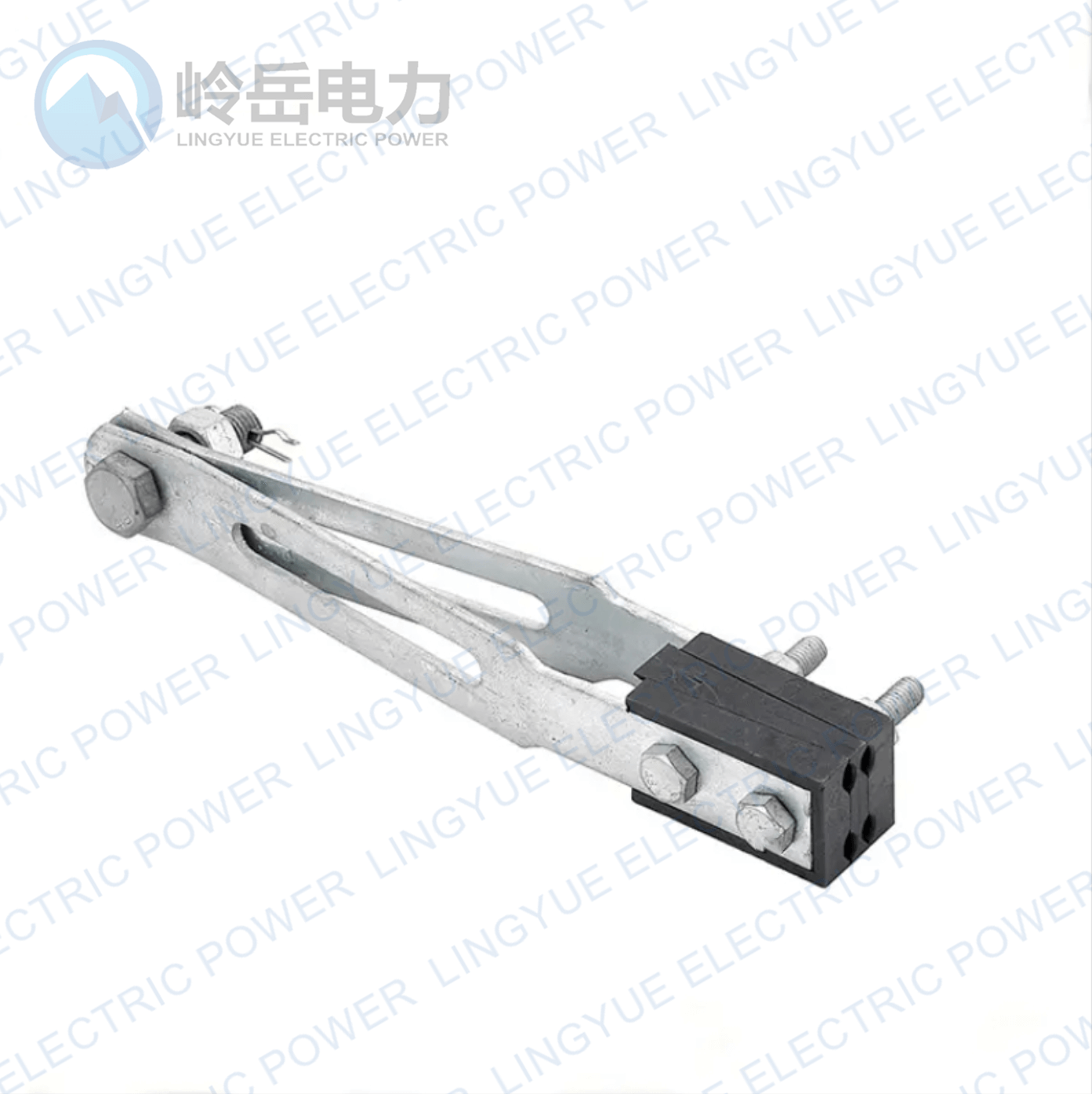

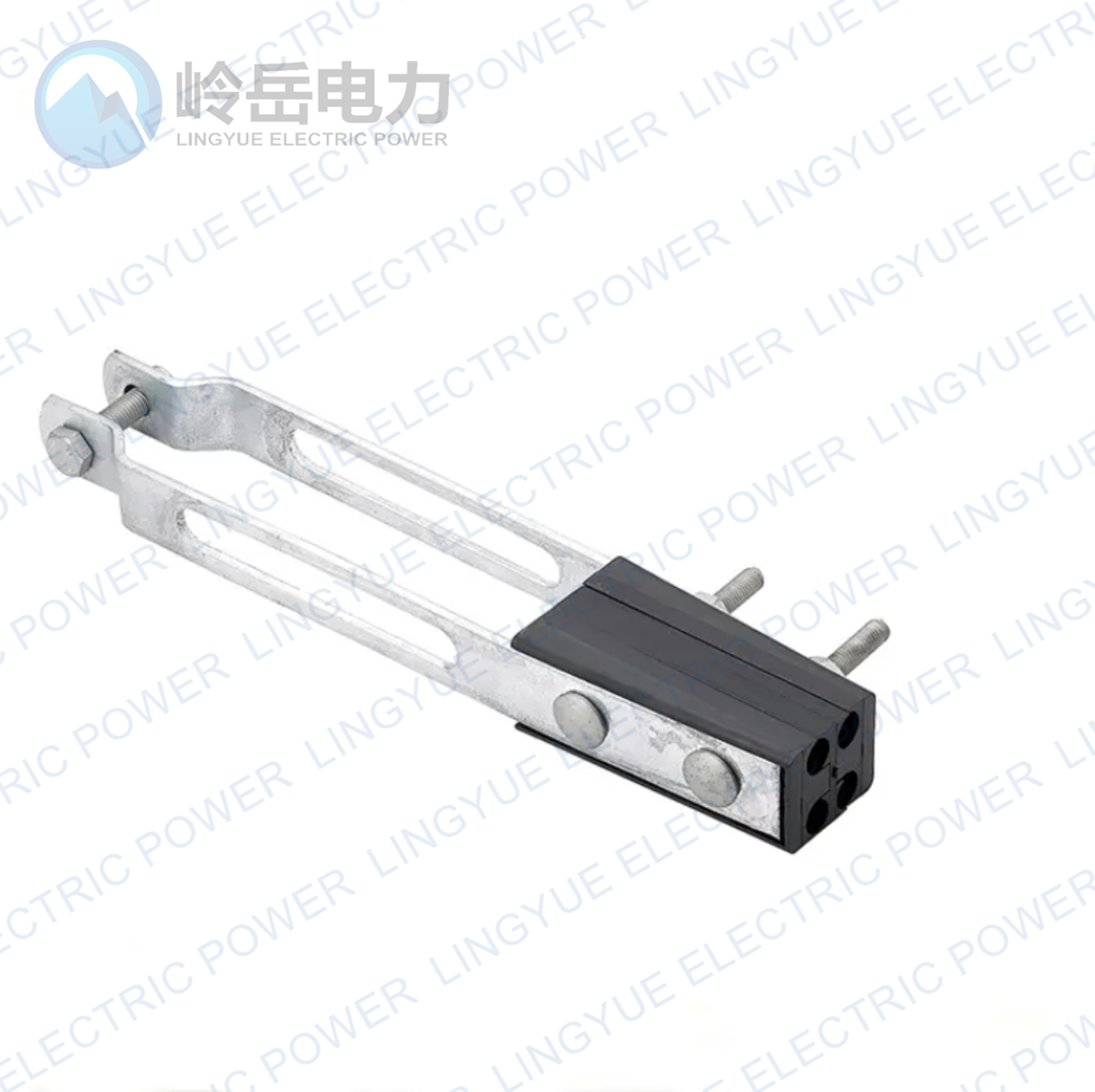

PAT tension clamp are applicable to four-core self-supporting low voltage aerial cables.These clamps are used for anchoring and tightening insulated conductors.

Structure Feature

1.Iron braces are made of steel strap with surface galvanized.

2.Wedges are made of weather resistant and anti-UV material with high mechanical strength.

3.Equipped with bolts.

4.Strong springs between wedges facilitate the insertion of conductors.

5.No loose parts could fall off during installation.

Application

High Voltage Transmission Line: In overhead high voltage transmission lines, this accessory is used to support, protect and fix ADSS cables.

Distribution Network: Plays a role in the medium and low voltage distribution network, ensuring the reliable operation of ADSS cable in various weather conditions.

Communication Network: This accessory is used in telecommunication network to support ADSS fiber optic cable used for data transmission.

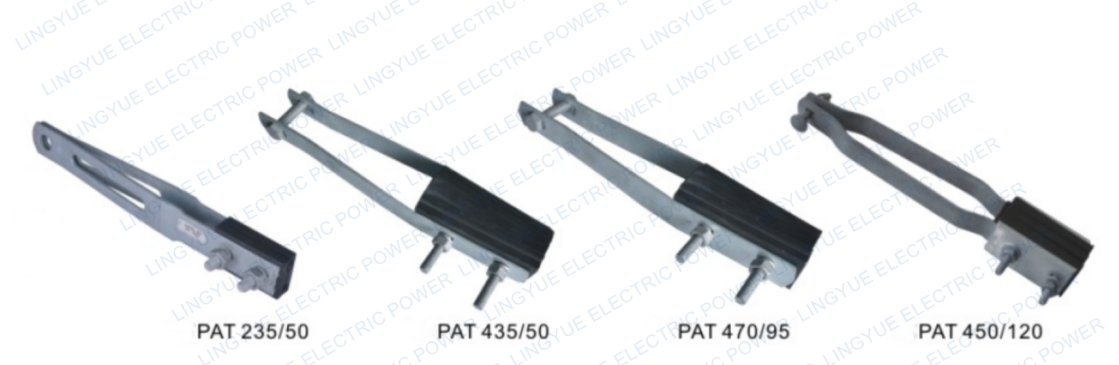

Item No.	Cross section(mm²)	Messsenger DIA.（mm）	Breaking load
PAS 216/435	2×16-4×35	4-11	4KN
PAT 235/50	2×(35-50）	8-11	15KN
PAT 435/50	4×(35-50）	11-14	15KN
PAT 470/95	4×(70-95)	14-16	40KN
PAT 450/120	4×(50-120)	11-17	40KN
