ZNXJ dead end clamp
ZNXJ dead end clamp
ZNXJ dead end clamp
ZNXJ dead end clamp
ZNXJ dead end clamp
ZNXJ dead end clamp
ZNXJ dead end clamp
ZNXJ dead end clamp
ZNXJ dead end clamp
Inquiry Contact us

Like this product? Share with friends:

Product Introduction

ZNXJ series dead end clamp is suitable for strain clamp insulation string of 10KV aerial insulation aluminum core wire JKLYJ terminal or two ends fixing and tighten aerial insulation.



The body is made of anti-oxidant high strength aluminum alloy.


The core of wedge is made of insulated reinforce plastics, withstand voltage≥18Kv not breakdown one min.


Item

Wire range(mm2)

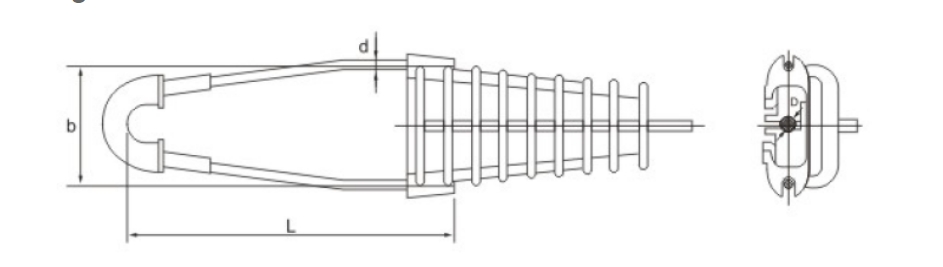

Dimensions(mm)

Gripping(KN)

Rated failure Load(kN)



b

d

D

L



NXJ-1(ZNXJ-1)

JKLYJ-35 JKLYJ-50

108

10

18

160

5.3

5.8

NXJ-2(ZNXJ-2)

JKLYJ-70 JKLYJ-95

108

10

20

160

11.0

12.0

NXJ-3(ZNXJ-3)

JKLYJ-120 JKLYJ-150

128

10

23

170

11.0

12.0

NXJ-4(ZNXJ-4)

JKLYJ-185 JKLYJ-240

128

10

27

170

11.0

12.0
