J1530 Aluminum hot line tap clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Description

Hot-line clamps(hotline clamp are live line tools which used for line tap distribution connections.

Feature

1-Bronze alloy and aluminum alloy casting offer high strength, corrosion-resistance and conductor compatibility

2-Extended jaw width means excellent conductor contact, reduced joint temperature,minimal conductor cold flow and reduced twisting of the conductor during installation

3-Spring loaded feature compensates for cold flow and offsets tightening torque vibrations

4-Forged eyebolts provide corrosion free strength and uniformed expansion under loading

5-The side positioned tap connection prevents possible corrosion of conductor or clamp on bimet connections

For Aluminum and ACSR conductor.
• Designed for standard “hot stick” application.

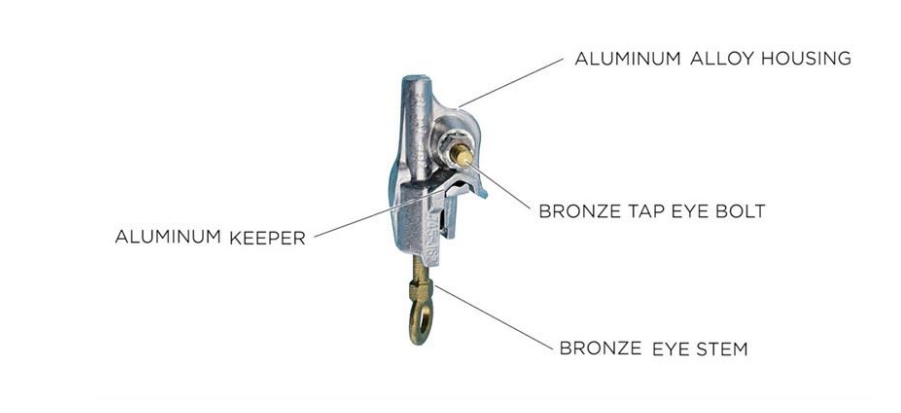

Material:

Body and Keeper – Aluminum Alloy
Eyebolt – Bronze Alloy – Tin Plated
Eyestem – Bronze Alloy, Forged or Stainless Steel
Spring (on eyestem) – Stainless Steel
