52 Series Ball-Socket and Clevis -Tongue Type Porcelain Insulator

52 Series Ball-Socket and Clevis -Tongue Type Porcelain Insulator

52 Series Ball-Socket and Clevis -Tongue Type Porcelain Insulator

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Product Details

Suspension Insulator

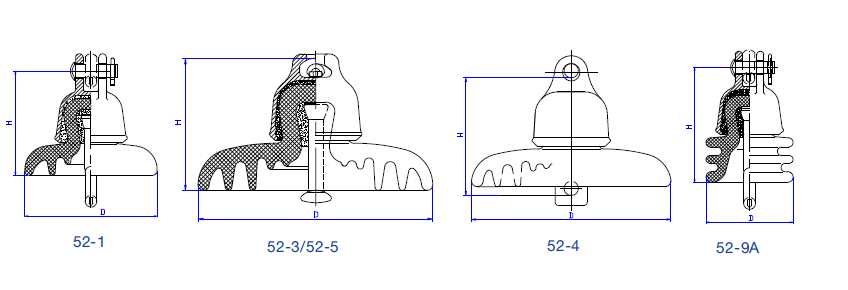

52 Series Ball-Socket and Clevis -Tongue Type

Standard: ANSI C29.1 ANSI C29.2

Voltage:6-33kV

ANSI CLASS		52-1	52-2	52-3	52-4	52-5	52-9A/B
Porcelain Shell Diameter, D. mm		165	190	254	254	254	108
Unit Spacing, H. mm		140	146	146	146	146	159
Leakage Distance, mm		178	210	292	292	292	171
Combined M & E Strength, kN		44	70	70	70	111	44
Impact Strength, N-m		5	5	6	6	7	5
Tension Proof Load, kN		22	33.5	33.5	33.5	55.5	22
Low-Frequency Flashover Voltage	Dry, kV	60	65	80	80	80	60
Low-Frequency Flashover Voltage	Wet, kV	30	35	50	50	50	30
Critical Impulse Flashover Voltage	Pos., kV	100	115	125	125	125	100
Critical Impulse Flashover Voltage	Neg., kV	100	115	130	130	130	90
Lower- Frequency Puncture Voltage, kV		80	90	110	110	110	80
Radio Influence Voltage Data	Test Voltage to Ground, kV	7.5	7.5	10	10	10	7.5
Radio Influence Voltage Data	Max. RIV at 1000 KHz, uV	50	50	50	50	50	50
Net Weight,Each, Approx., kg		2.5	3.8	4.6	4.9	5.6	2.6

Each suspension shell undergoes rigorous electrical testing before and after assembly before being shipped.
