Product Introduction

Model	Use equipment screw (mm)	Applicable aluminum conductor (mm2)	Main dimensions (mm)
Model	Use equipment screw (mm)	Applicable aluminum conductor (mm2)	M	B	L
SBTB-M10	M10	35-120	M10	50	60
SBTB-M12	M12	35-120	M12	50	60
SBTB-M14	M14x1.5	50-150	M14X1.5	50	60
SBTB-M16	M16	50-150	M16	50	60
SBTB-M18	M18	95-240	M18	60	65
SBTB-M20	M20	95-240	M20	60	65
SBTB-M22	M22	95-240	M22	60	65
SBTB-M24	M24	185-400	M24	70	128

Note: If the conductive column of the transformer is a smooth rod, please indicate the rod diameter. Copper transformer equipment clamp can be tinned according to user requirements.

Model	Use equipment screw (mm)	Applicable aluminum conductor (mm2)	Main dimensions (mm)
Model	Use equipment screw (mm)	Applicable aluminum conductor (mm2)	M	B	L
SBGB-M12	M12	35-120	M12	50	65
SBGB-M14	M14X1.5	50-120	M14X1.5	50	65
SBGB-M16	M16	50-120	M16	50	65
SBGB-M18	M18	95-240	M18	60	97
SBGB-M20	M20	95-240	M20	60	97
SBGB-M22	M22	95-240	M22	60	97
SBGB-M24	M24	185-400	M24	70	130

Model	Use equipment screw (mm)	Applicable aluminum conductor (mm2)	Main dimensions (mm)
Model	Use equipment screw (mm)	Applicable aluminum conductor (mm2)	M	B	L
SBG1-35/120-M10	M10	35-120	M10	54	70
SBG1-50/120-M12	M12	35-120	M12	54	70
SBGI-70/15-M14	M14x1.5	50-150	M14X1.5	54	70
SBG1-95/185-M16	M16	70-185	M16	54	70
SBG1-95/240-M18	M18	95-240	M18	70	105
SBG1-95/240-M20	M20	95-240	M20	70	105
SBG1-185/300-M22	M22	185-300	M22	70	105

Standard	Model	Applicable conductor (mm2)	Main dimensions (mm)
Standard	Model	Applicable conductor (mm2)	B	11
eight five stereotypes	ST-1A	35-50	40	65	145
	ST-2A	70-95	40	80	175
	ST-3A	120-150	50	125	225
	ST-4A	185-240	50	125	225
Seven four stereotypes	ST-1A (single hole)	35-50	40	65	120
	ST-2A (single hole)	70-95	40	80	135
	ST-3A (double hole)	35-50	40	65	145
	ST-4A (double hole)	70-95	40	80	175
	ST-5A (double hole)	120-150	50	125	225
	ST-6A (double hole)	185-240	50	125	225
	ST-7A (four holes)	120-150	80	128	239
	ST-8A (four holes)	185-240	80	138	239

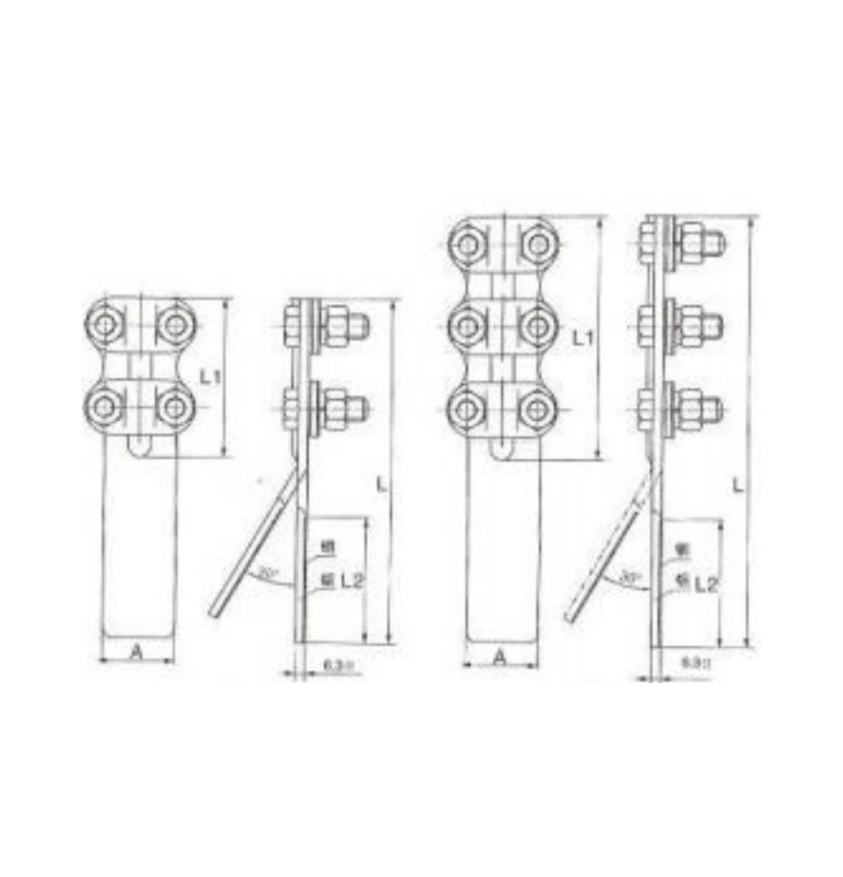

Model	Applicable conductor (mm2)	Number of bolts	Main dimensions (mm)
Model	Applicable conductor (mm2)	Number of bolts	A	B	L1	L2	L
HSLG-1A	35-50	4	40	4	65	65	0. 32
HSLG-1B	35-50	4	40	4	65	65	0. 32
HSLG-2A	70-95	4	40	5	80	80	0.36
HSLG-2B	70-95	4	40	5	80	80	0.36
HSLG-3A	120-150	6	50	6	125	85	0.48
HSLG-3B	120-150	6	50	6	125	85	0.47
HSLG-4A	185-240	6	50	6	125	85	0.51
HSLG-4B	185-240	6	50	6	125	85	0.51

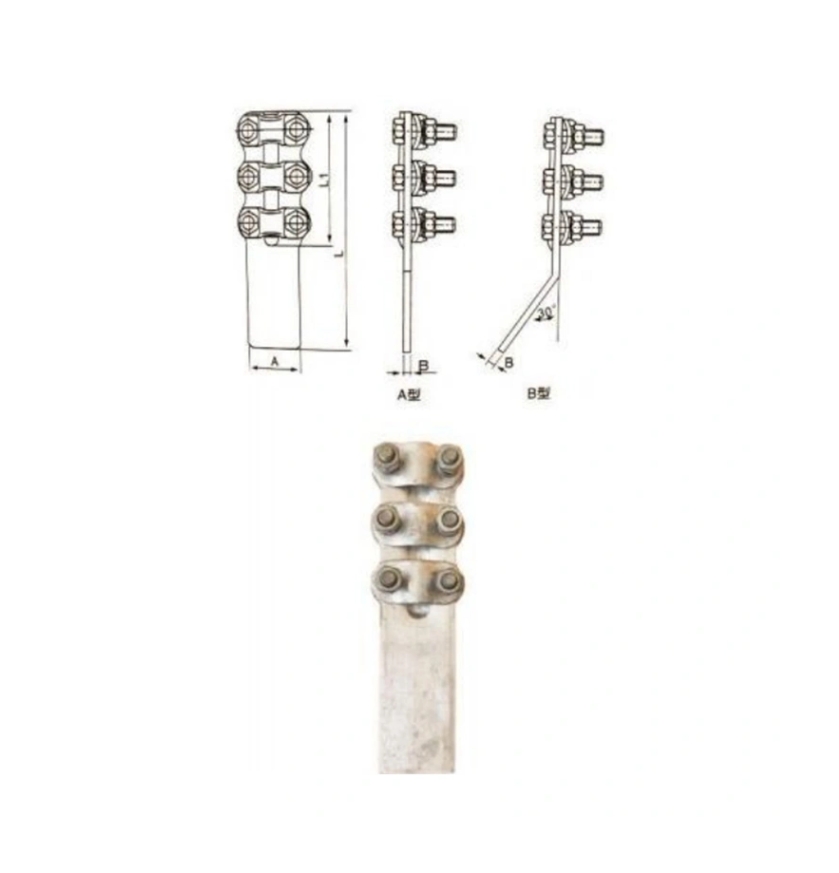

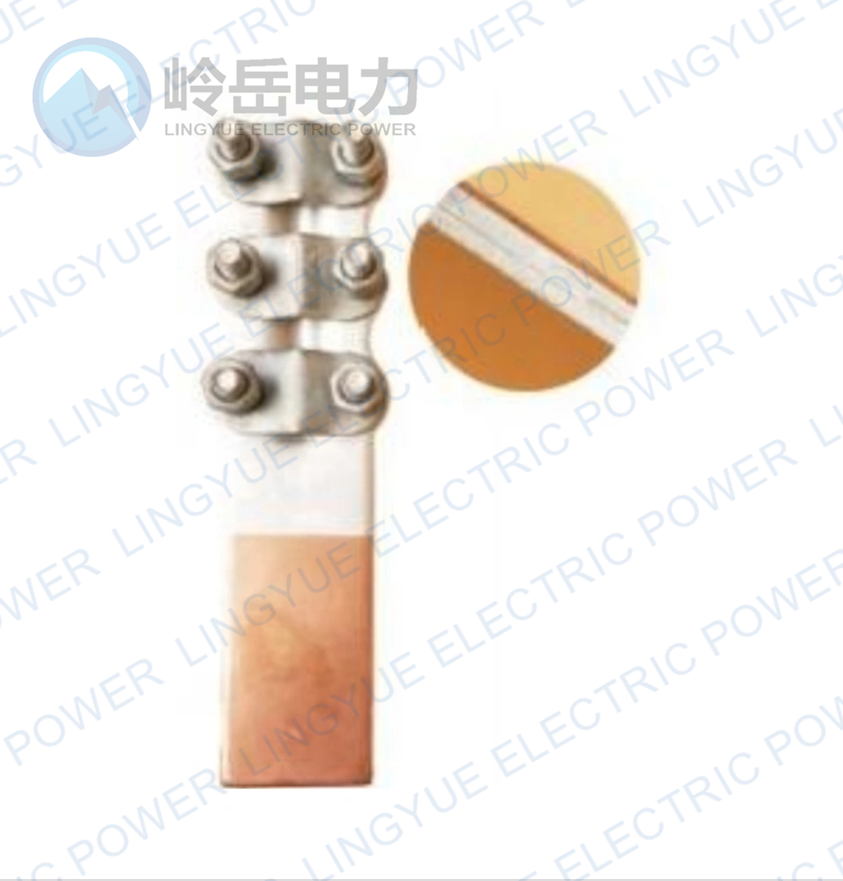

Model	Applicable conductor (mm2)	Number of bolts	Main dimensions (mm)
Model	Applicable conductor (mm2)	Number of bolts	A	B	L1	L
SL-1A	35-50	4	40	6	145	0. 32
SL-1B	35-50	4	40	6	145	0. 32
SL-2A	70-95	4	40	6	175	0.36
SL-2B	70-95	4	40	6	175	0.36
SL-3A	120-150	6	50	8	225	0.48
SL-3B	120-150	6	50	8	225	0.47
SL-4A	185-240	6	50	8	225	0.51
SL-4B	185-240	6	50	8	225	0.51
