WCJB Bolt connector

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

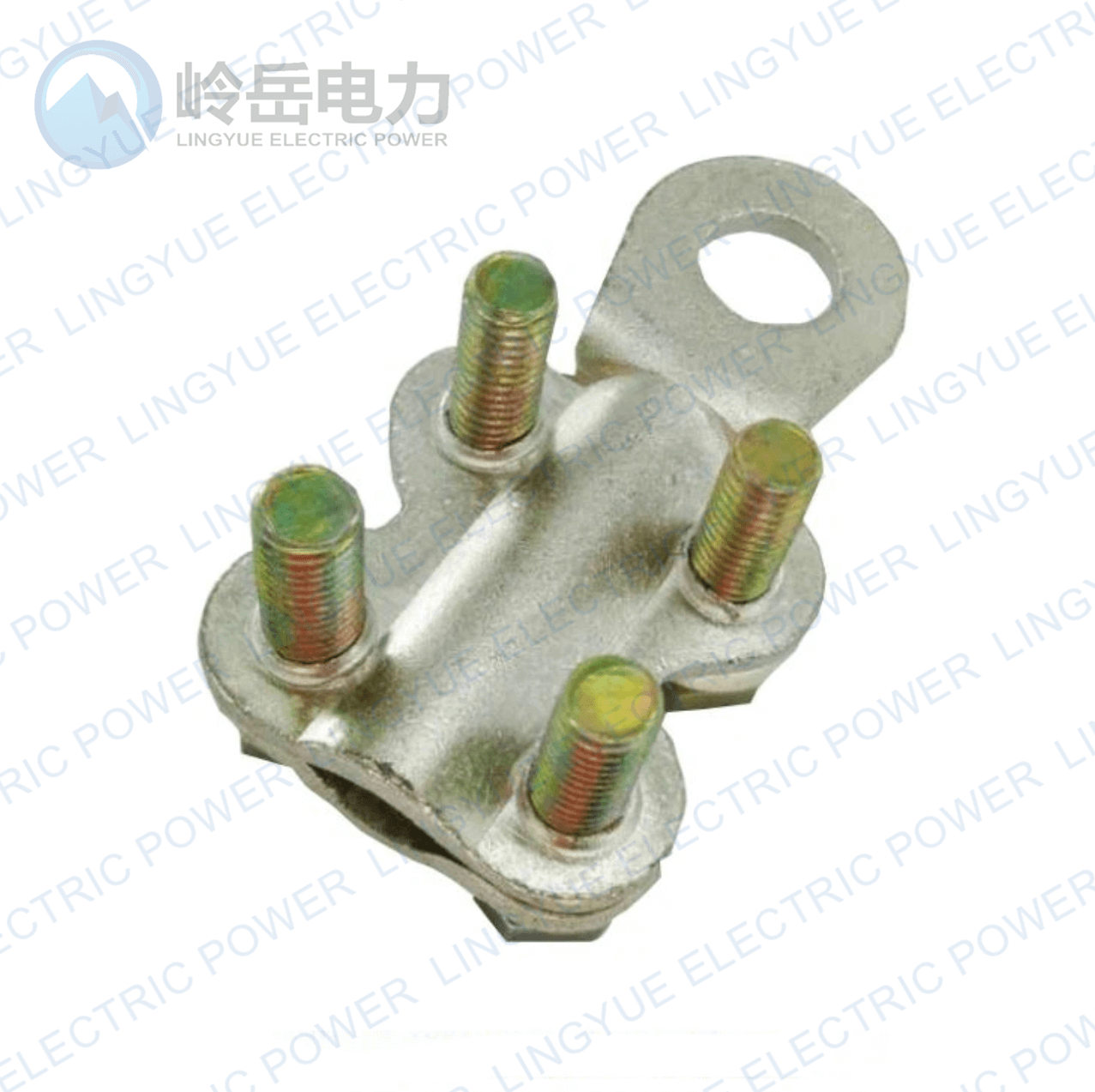

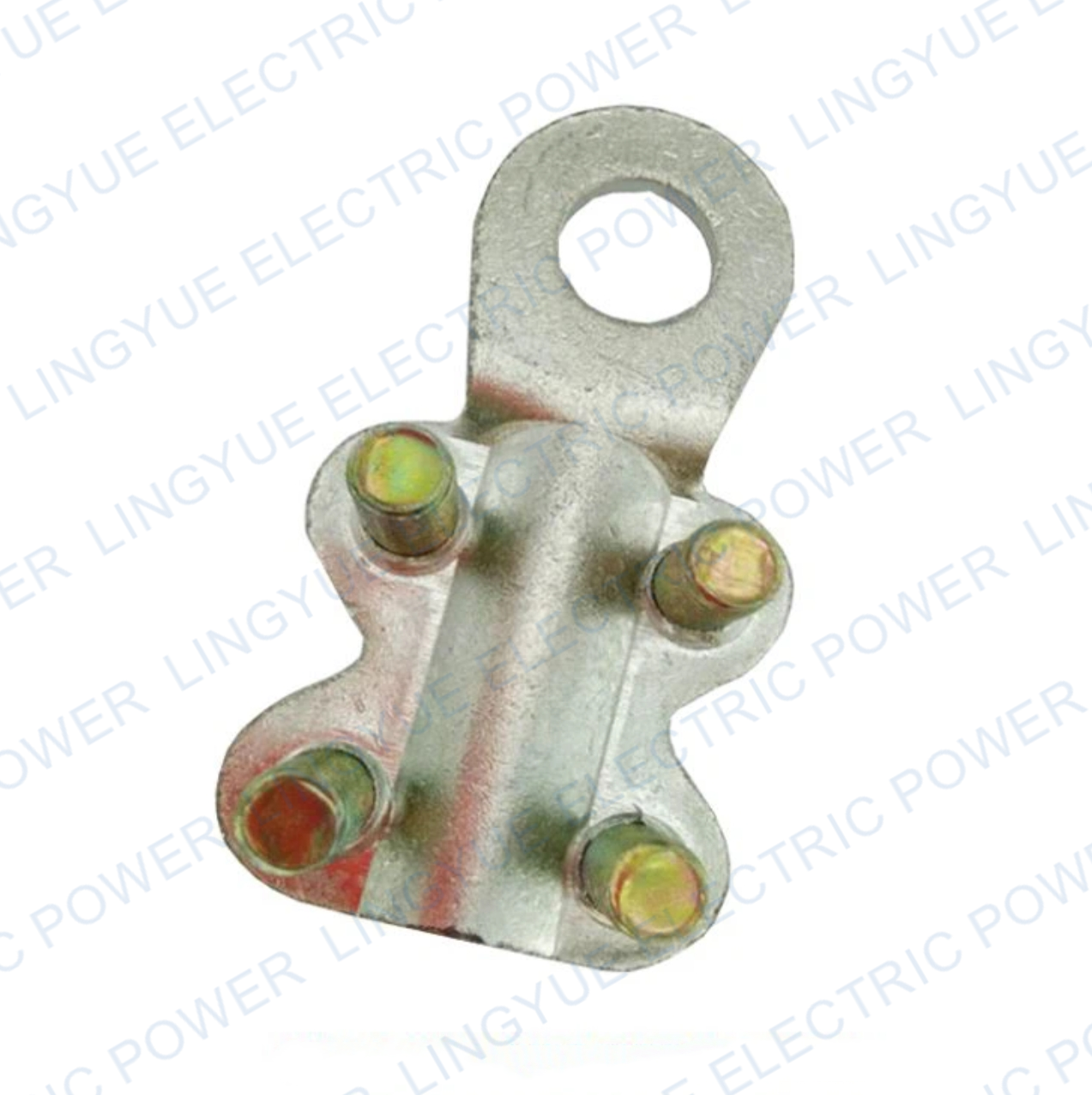

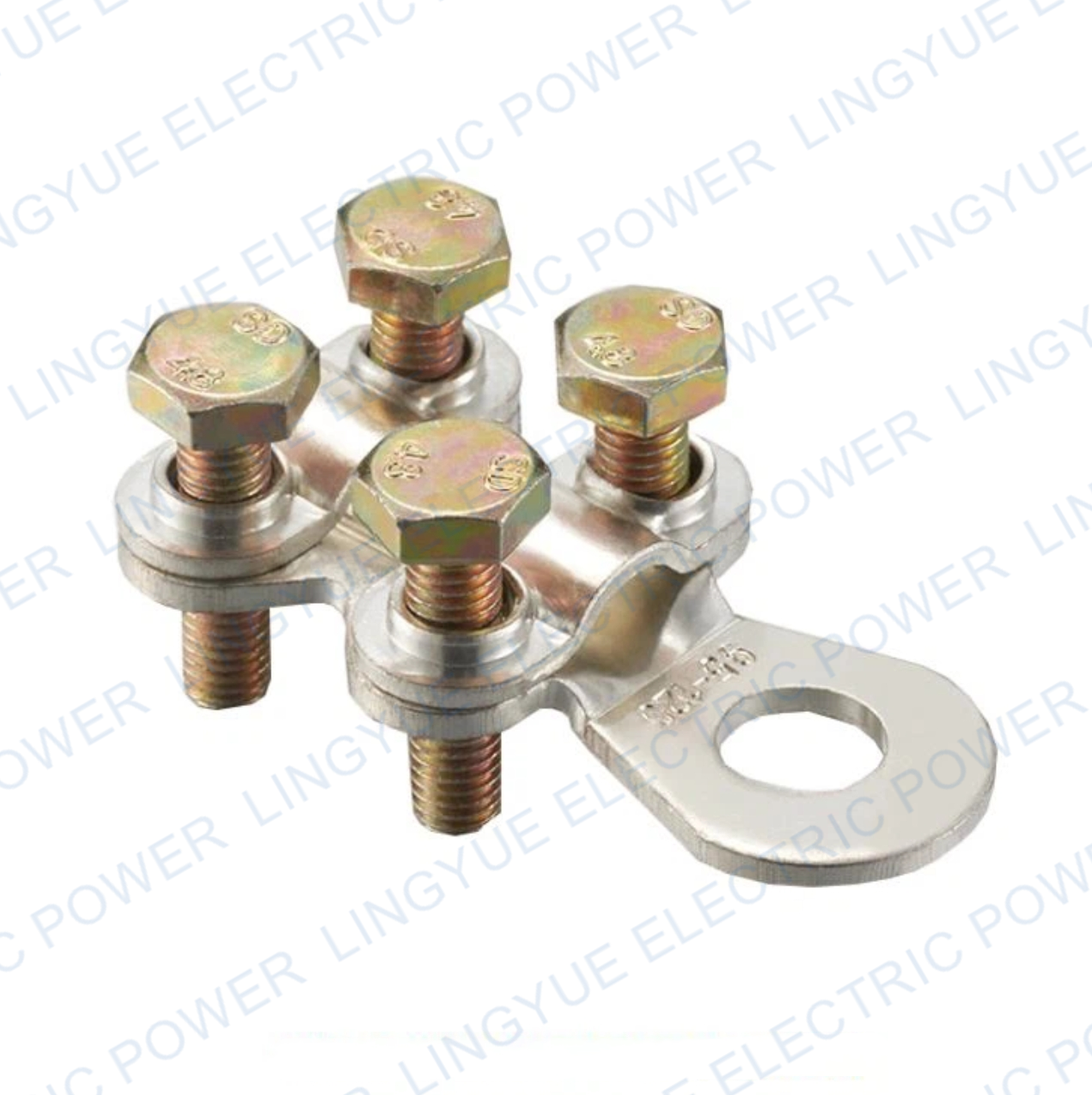

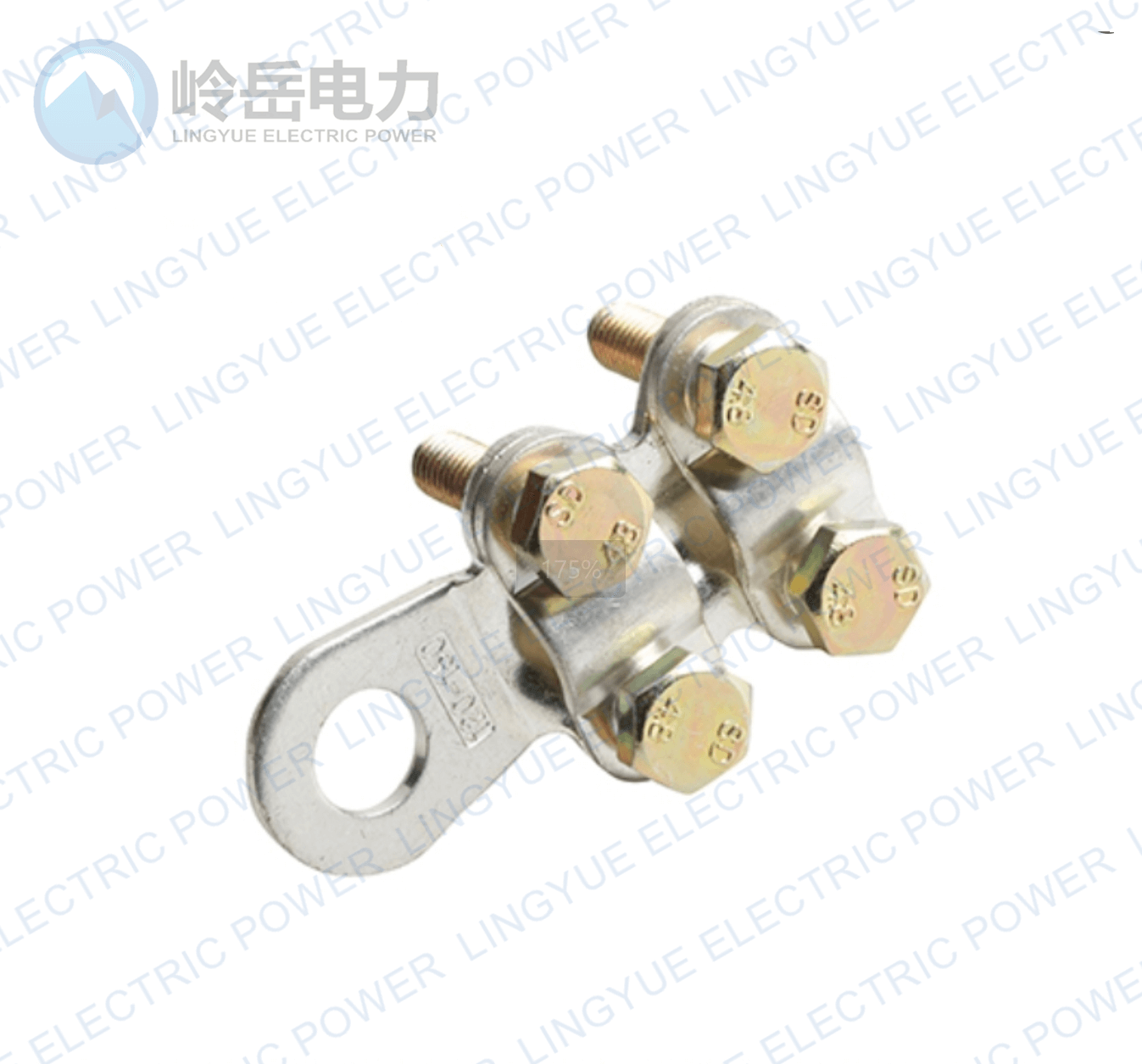

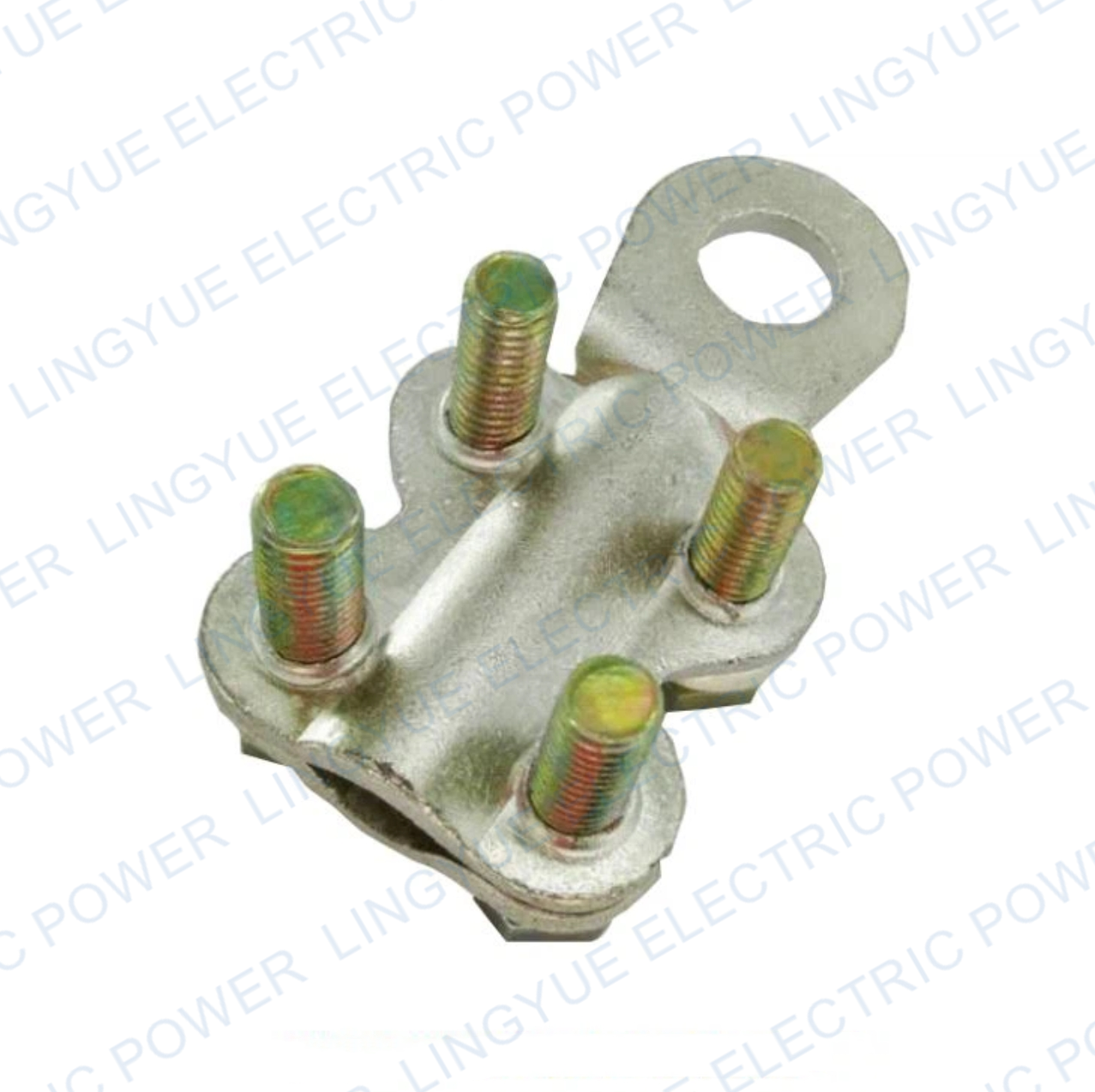

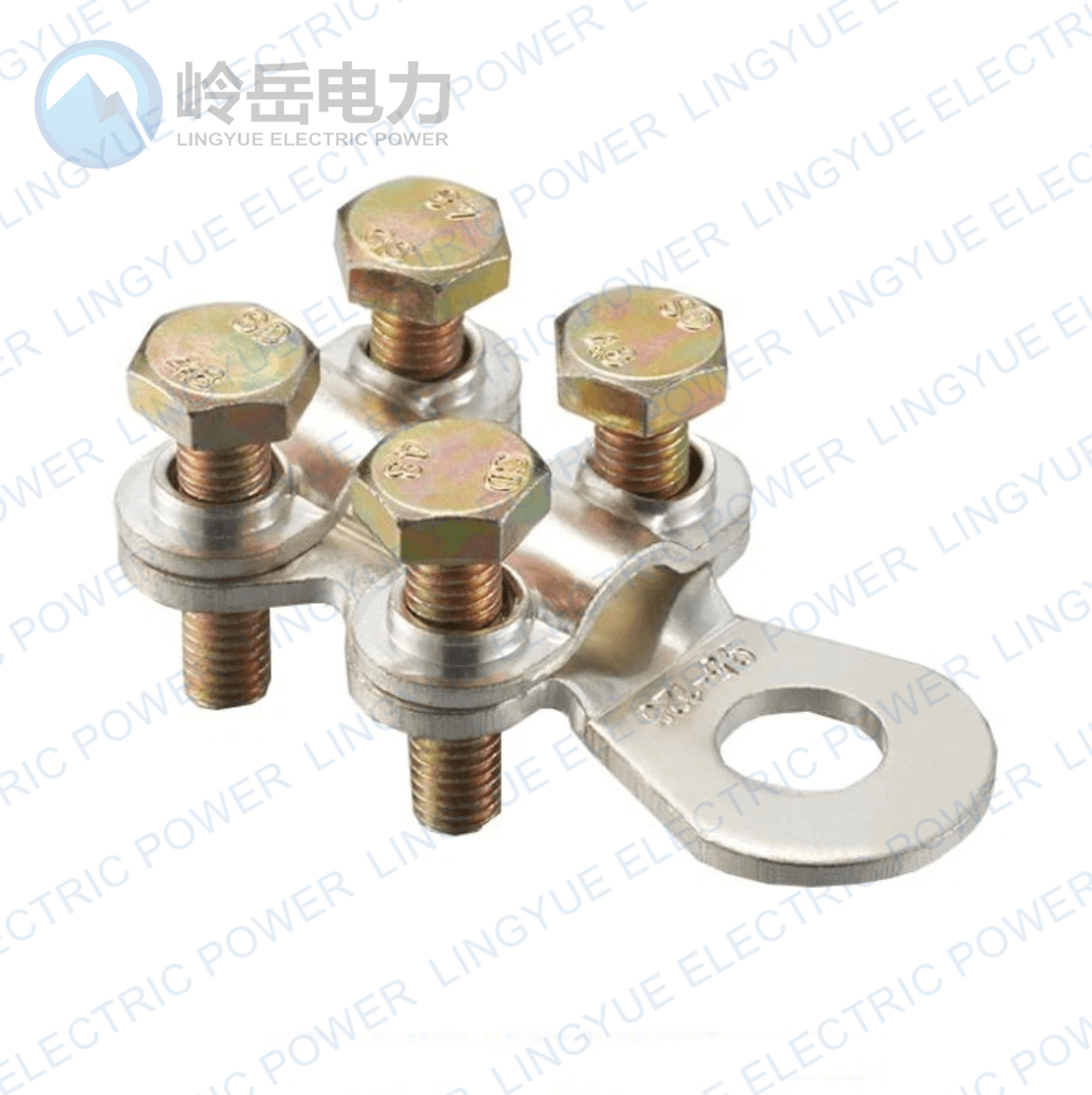

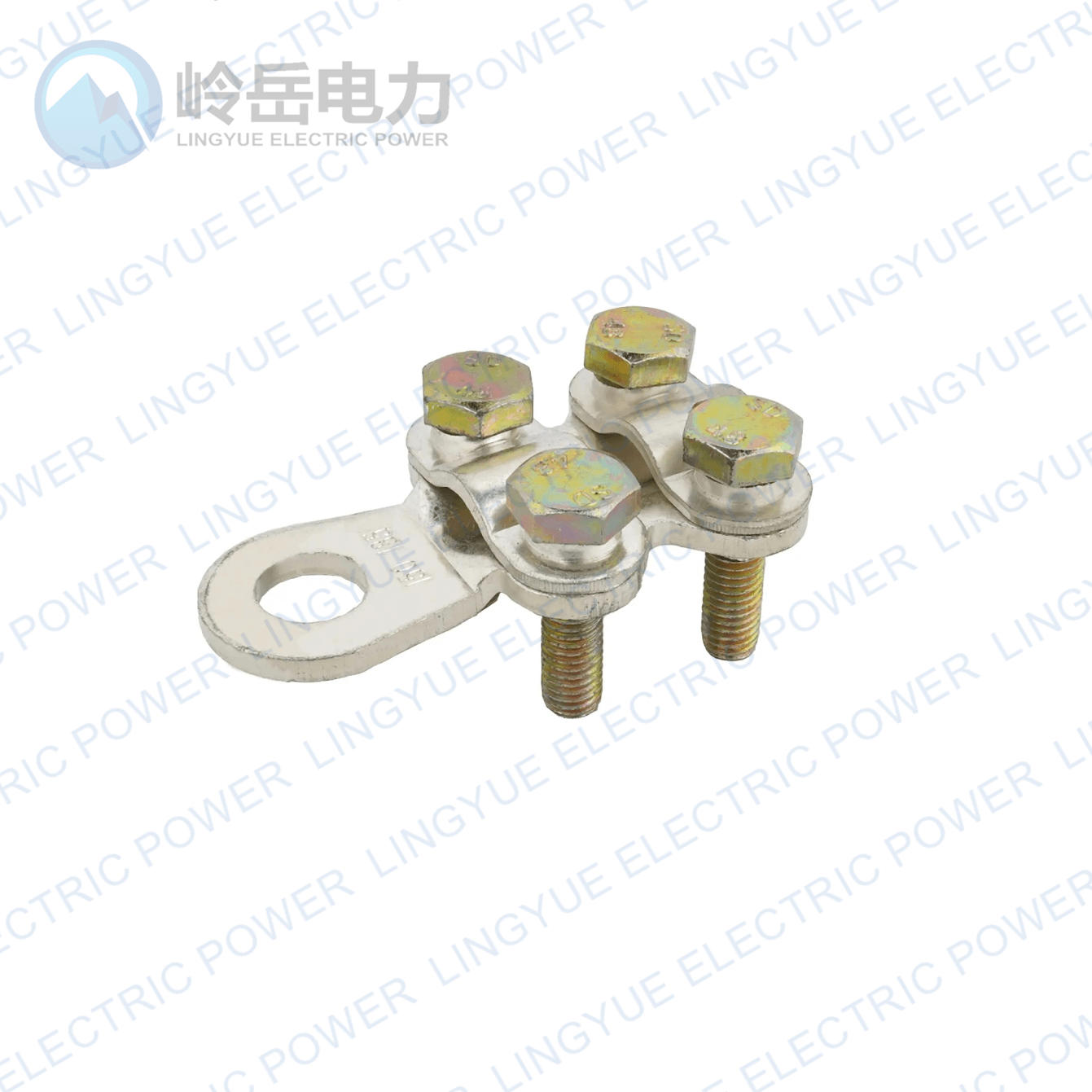

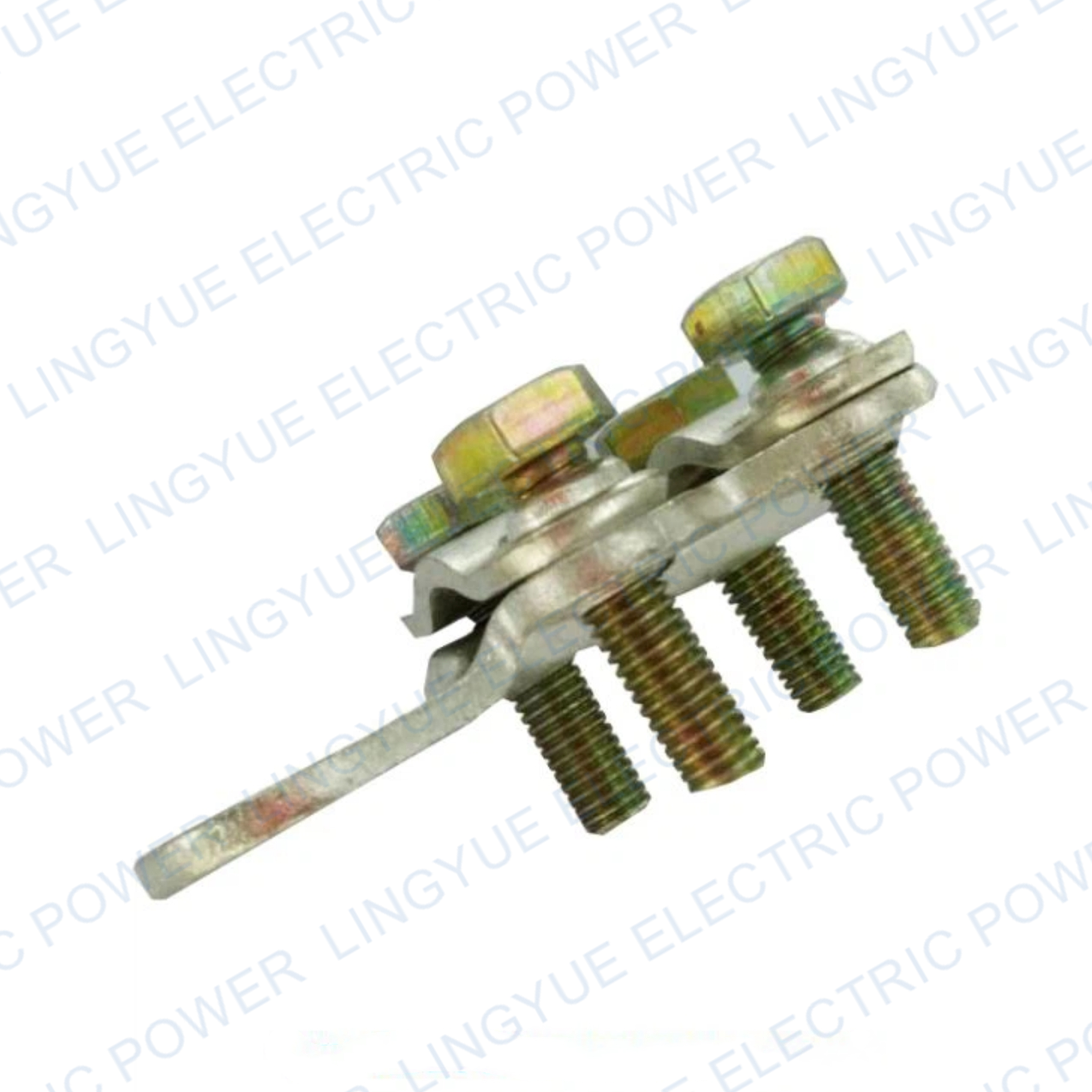

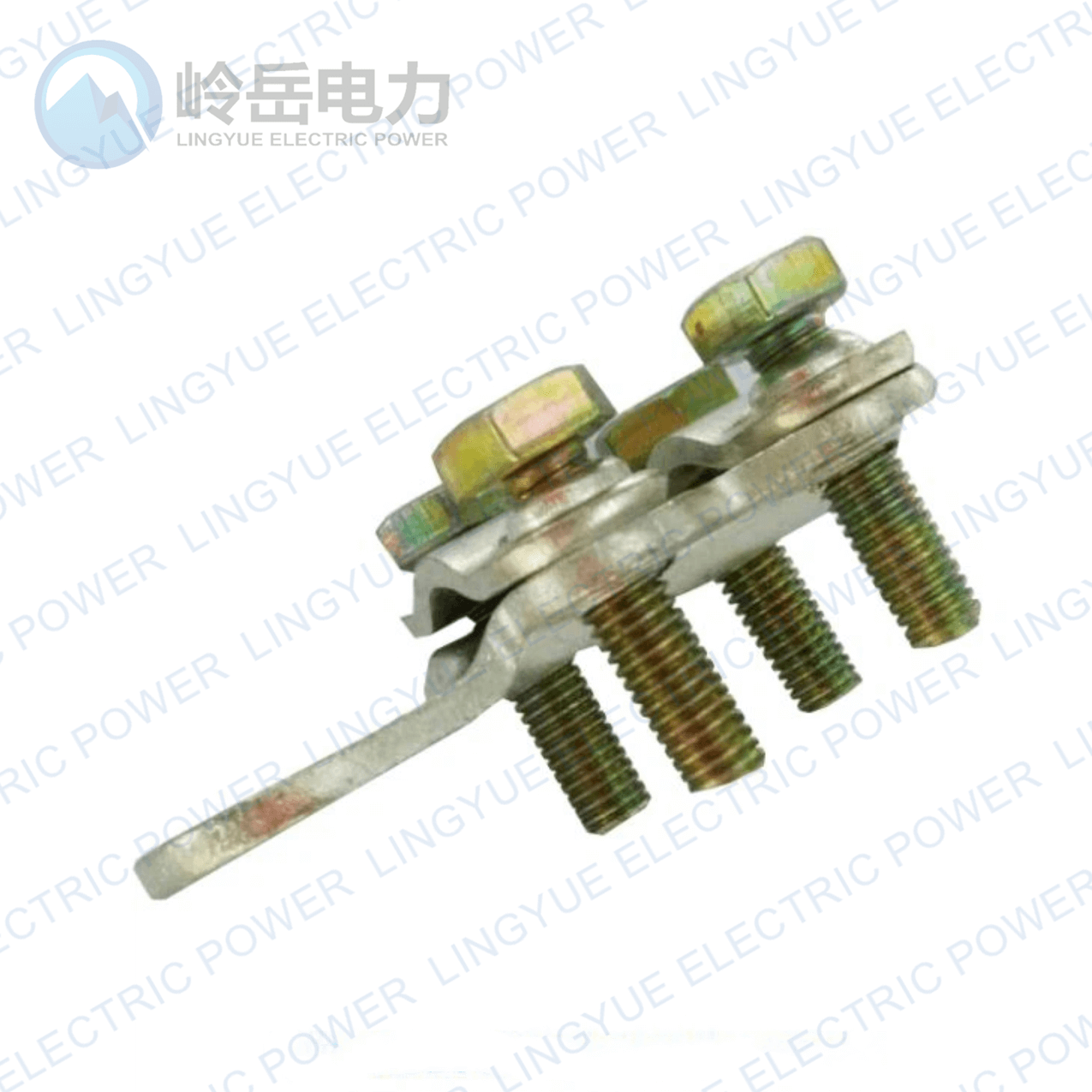

WCJB Brass Jointing Clamp is made of brass through die casting and plating process, which is fixed by bolts and used in the connections between electrical equipment with cable and indoor distribution equipment. It is suitable for the transition connection of electrical appliances of indoor distribution device and kinds of wire cables. The surface is nickel plated. The range of WCJB brass jointing clamp is from 16sqm to 240sqm.

(1) Material: T2 red copper and the surface adopts nickle plating;
(2) Size: WCJB-1~WCJB-10;
(3) Surface treatment: Tin plated.

Advantages:
1) They can be used repeatedly.
2) Various sizes meet customers' requirements.
3) Surface: tin plated

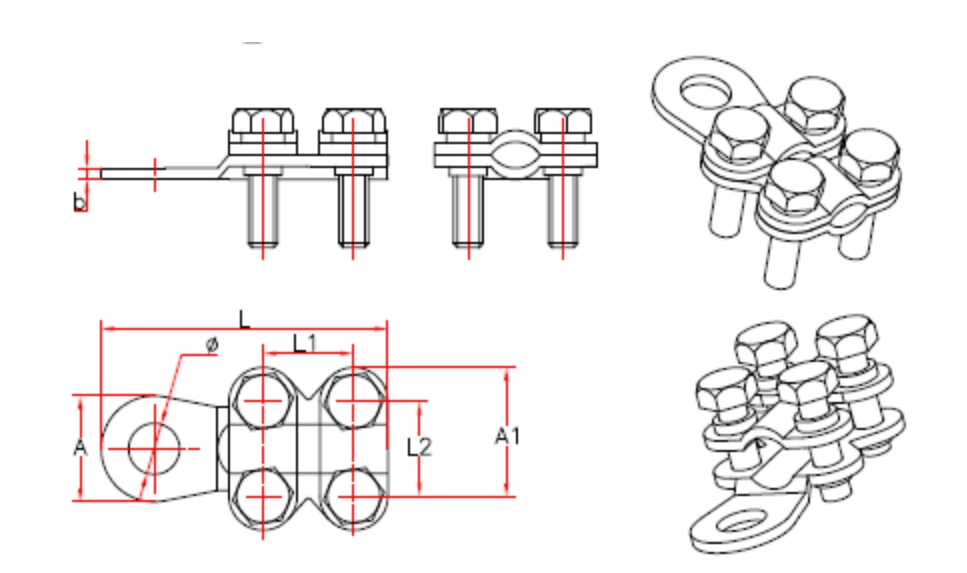

Item No.	Conductor	L	L1	L2	A	A1	b	φ	R
WCJB-1	16-25	39.5	/	13	25	16.5	2.8	8.8	3.5
WCJB-2	16-25	45	13	13	22	18	2.8	8.5	3.5
WCJB-3	25-35	52.5	13.5	13.5	24.5	21	2.9	10.5	4
WCJB-4	35-50	57	16	16	27.5	22	3	10.5	5
WCJB-5	50-70	61	19	19	31	23	3	10.5	5.5
WCJB-6	70-95	69	20	20	35	23.5	3.2	10.5	6.5
WCJB-7	95-120	74	23.5	23.5	42	28.5	3.3	13.5	7.5
WCJB-8	120-150	73.5	25	25	41	27	3.5	13.5	8.5
WCJB-9	150-185	76	25.5	25.5	42	28	3.7	13.5	9
WCJB-10	185-240	80	26	26	44	30	4	13.5	10.5
