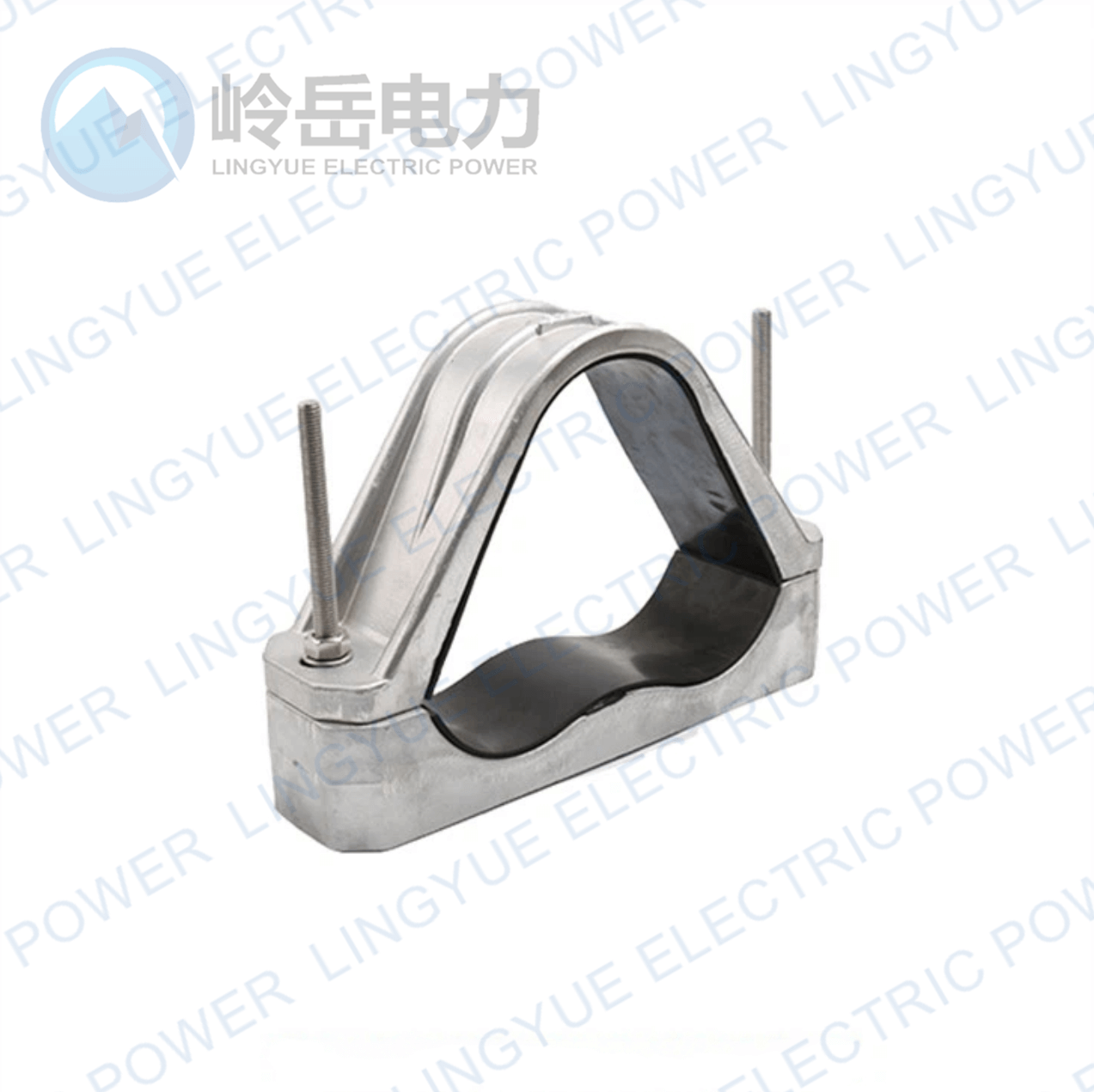

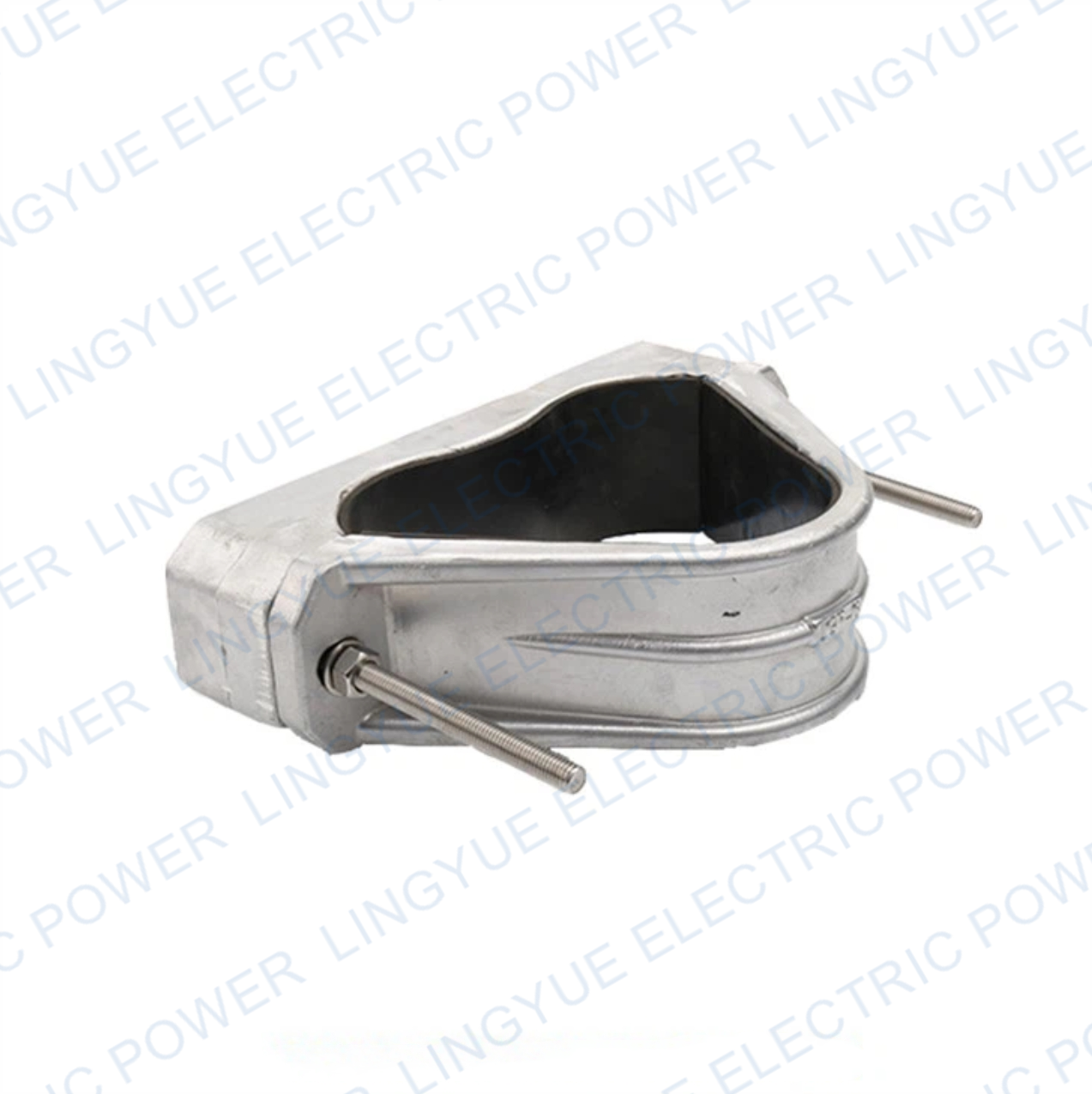

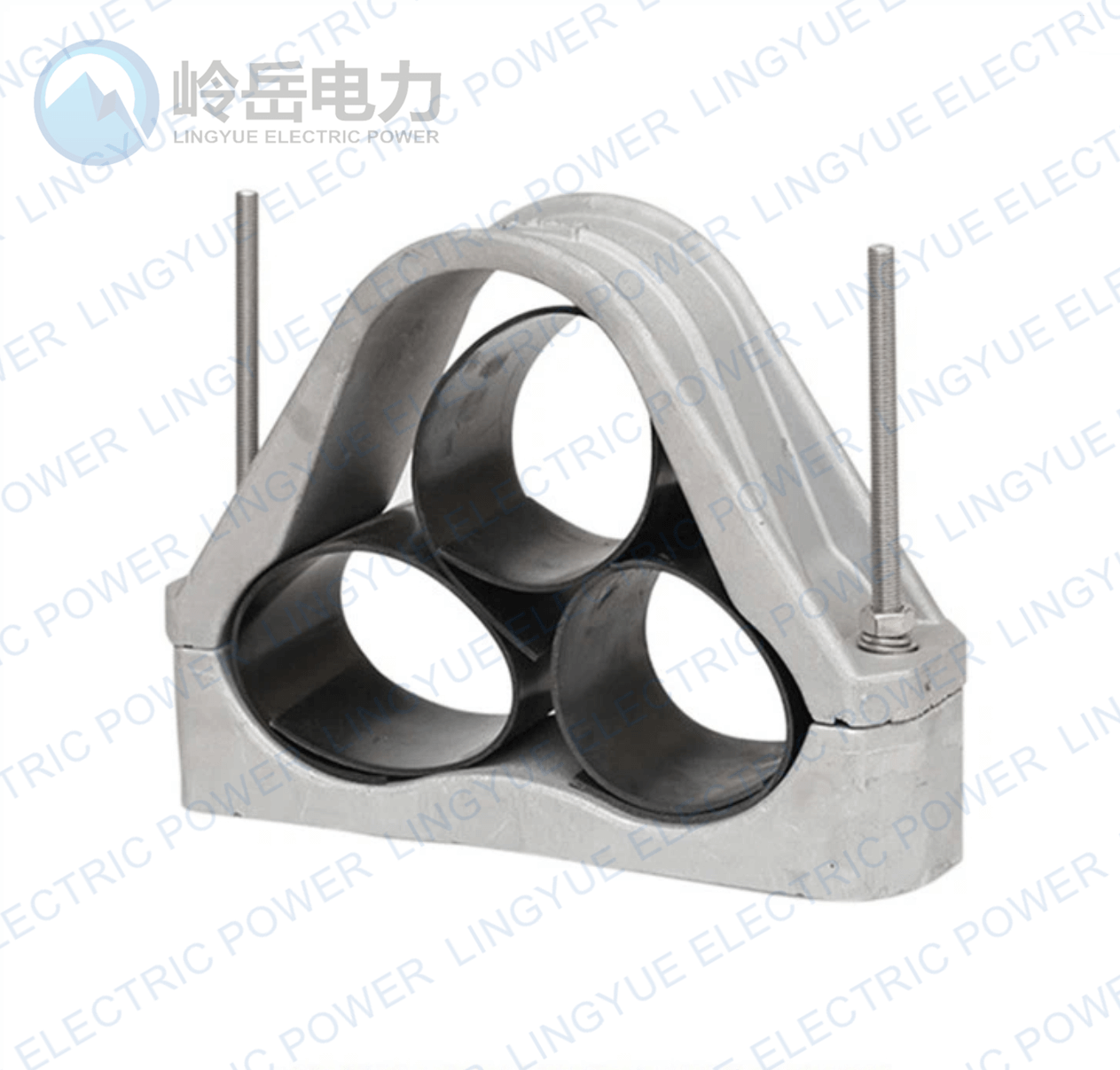

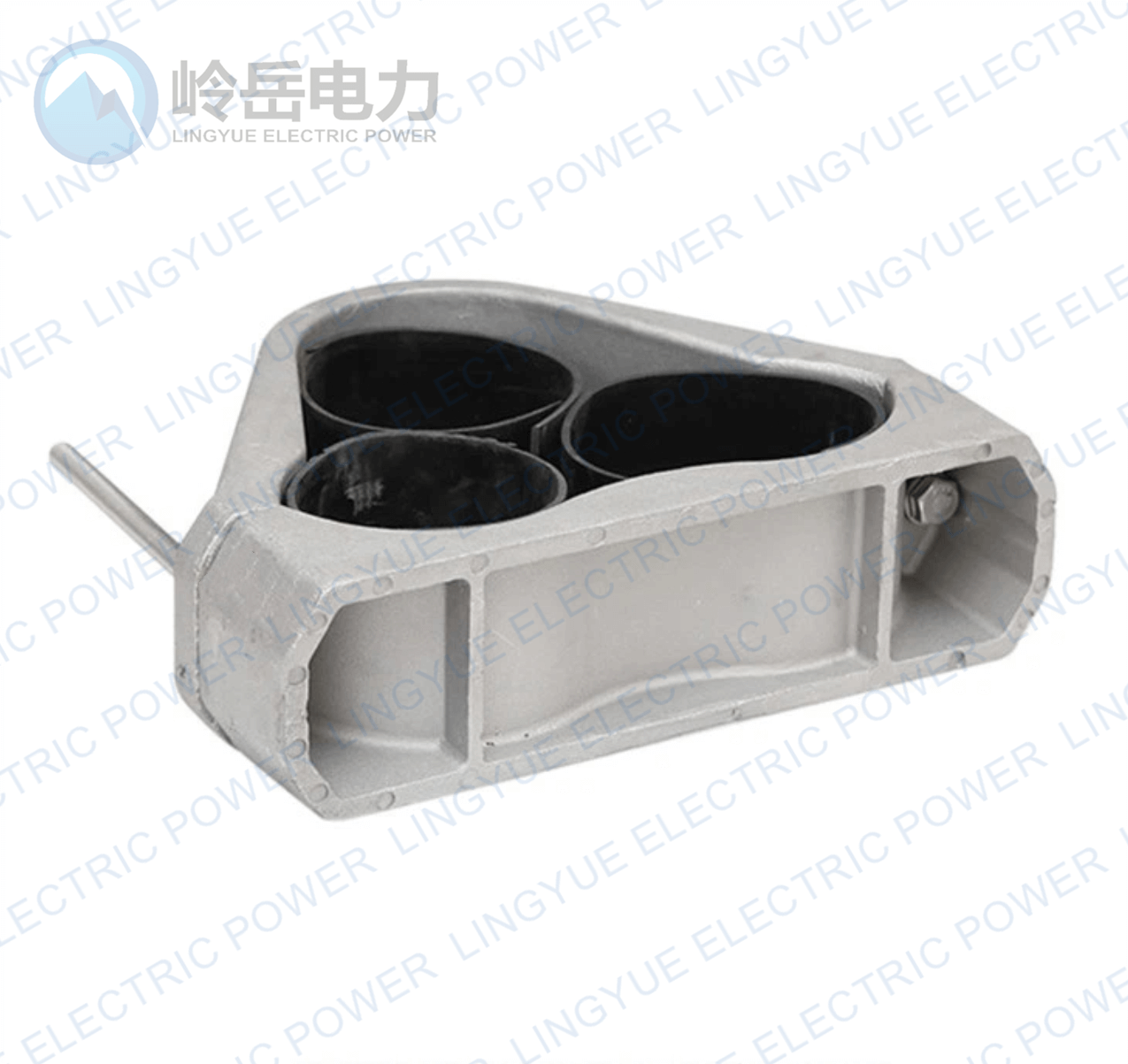

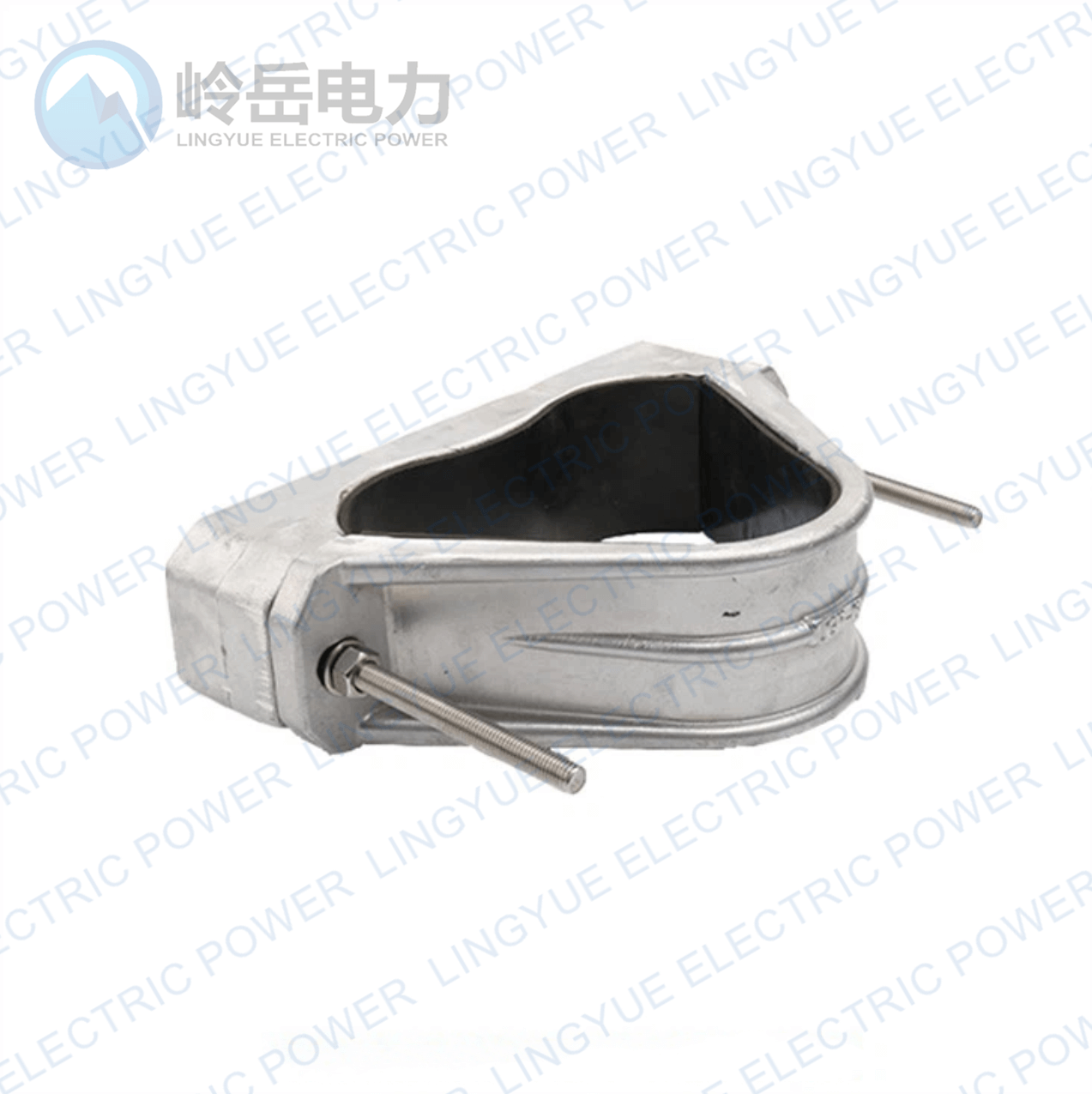

JGP aluminum trefoil cable clamp, also known as cable fixing clamp, cable clamp, etc., is a new type of cable fixing device. It is used to lay the cable and fix the correct position of the cable after installation to prevent the cable from moving under its own weight or other external forces.
Statement:
Aluminum trefoil cable clamp, also known as cable fixing clamp, cable clamp, etc., is a new type of cable fixing device. It is used to lay the cable and fix the correct position of the cable after installation to prevent the cable from moving under its own weight or other external forces.
Installation:
1. After the aluminum trefoil cable cleat is disassembled and separated, first fix the base on the crossbar of the entire construction tunnel or cable trench.
2. Place the cable directly on the base of the cable clamp of the entire crossbar.
3. After the cables are laid horizontally, close the cover and tighten the bolts in sequence.
Functions:
1. It is mainly used for fixing high and low voltage cables or other insulation cables to ensure the stability of the cables.
2. The main material of aluminum trefoil cable cleat is glass resin, which can effectively prevent the occurrence of resistance short circuit and has strong bearing capacity.
3. Due to the special material and the addition of glass fiber to polyamide, it has good stability, high mechanical strength and longer service life.
4. It can be well fireproof, accident-preventing and has good anti-aging and anti-fragility effects, so it is suitable for indoor and outdoor use.
5. The aluminum trefoil cable cleat has good corrosion resistance and can be used in environments such as oil and alkali, and has high strength.
6. It also has good ability to resist radiation and ozone, so it is still applicable in places with strong radiation and ultraviolet radiation.

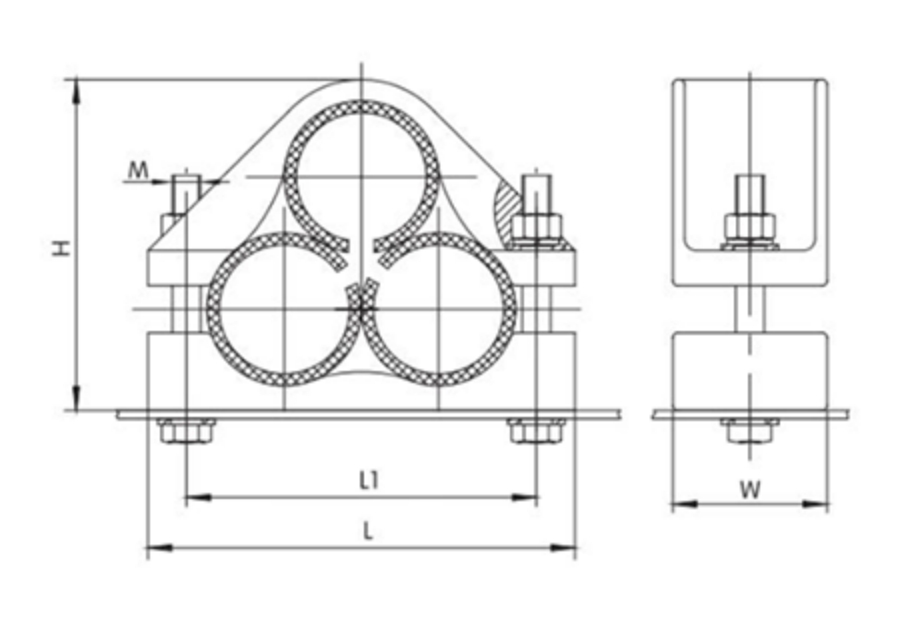

Catalog No. | Applicable outside diameter of cable | Main dimensions(mm) |
L | W | H | L1 | M |
JGP-1 | 45~55 | 180 | 65 | 135 | 150 | 12 |
JGP-2 | 55~68 | 224 | 70 | 156 | 186 | 12 |
JGP-3 | 68~80 | 274 | 75 | 186 | 224 | 14 |
JGP-4 | 80~90 | 288 | 80 | 205 | 245 | 14 |
JGP-5 | 90~100 | 332 | 100 | 235 | 280 | 16 |
JGP-6 | 100~114 | 342 | 100 | 252 | 290 | 16 |
JGP-7 | 114~130 | 352 | 100 | 265 | 300 | 16 |
