Guy strain insulator

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Product Details

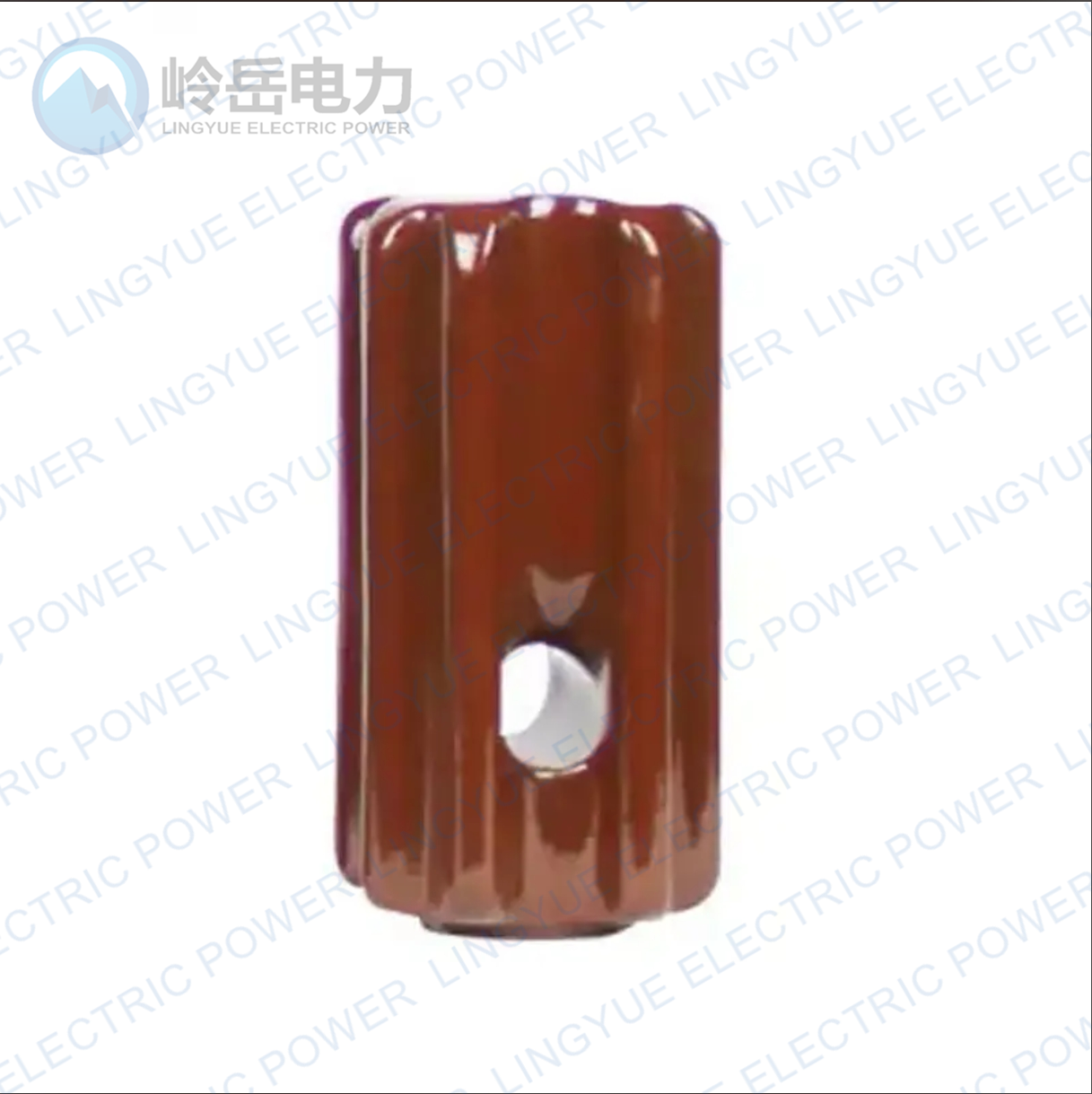

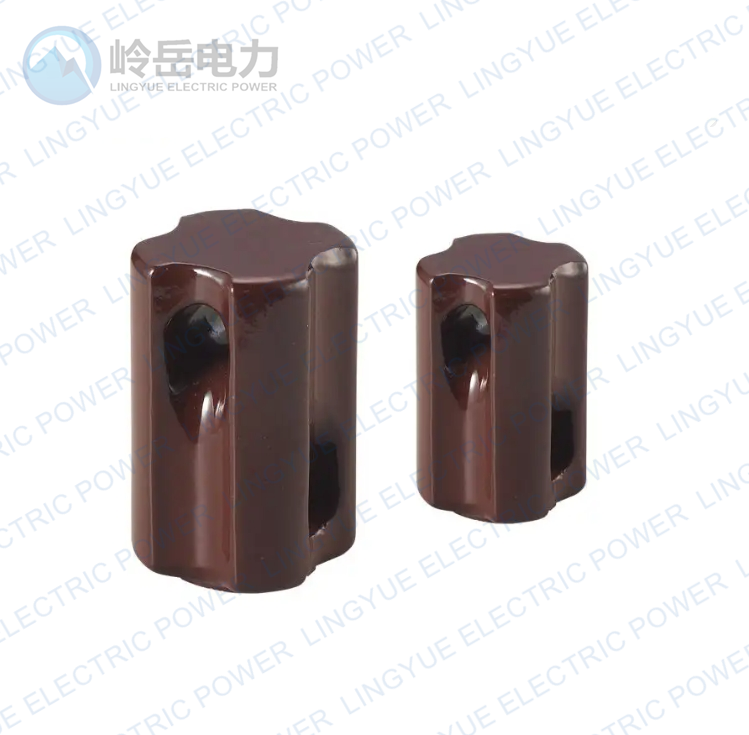

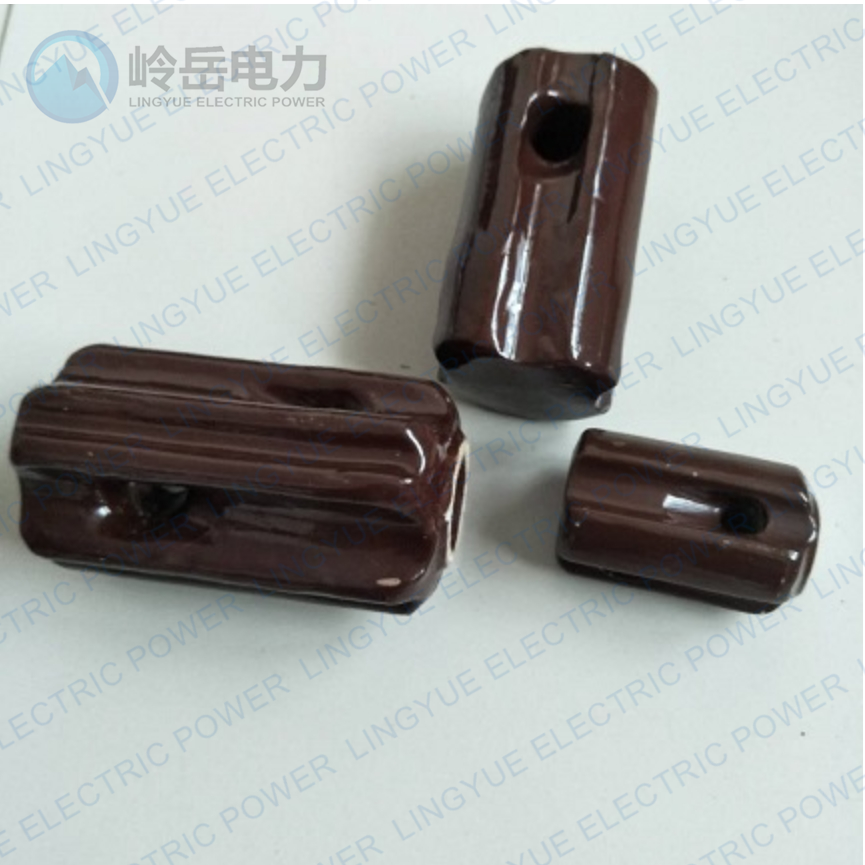

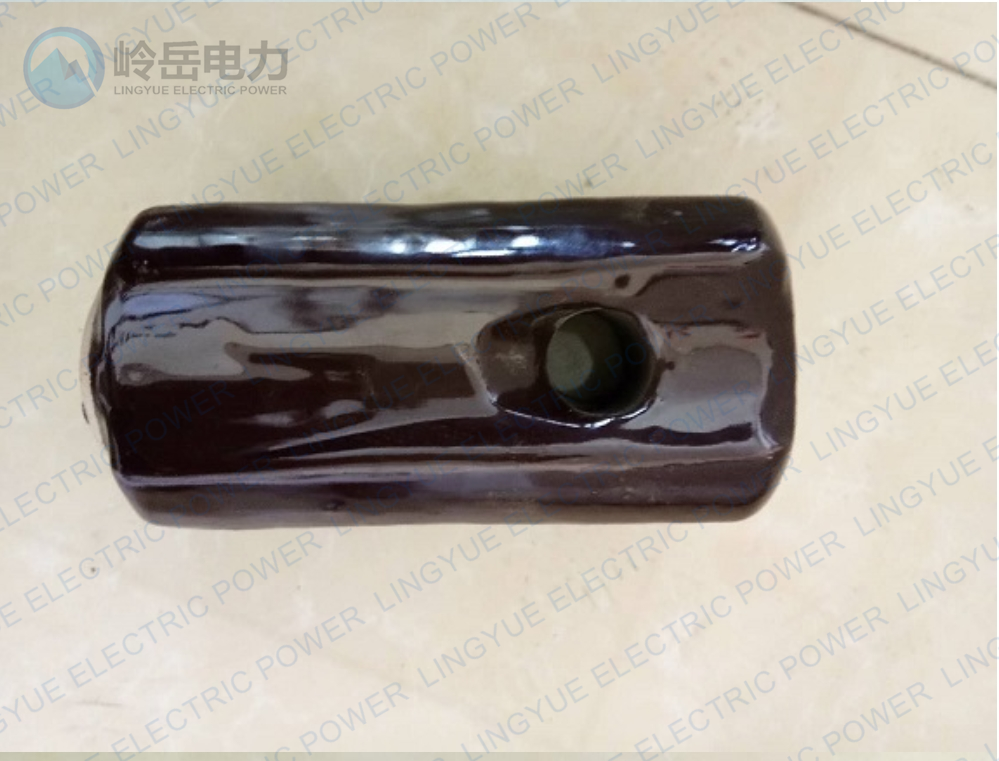

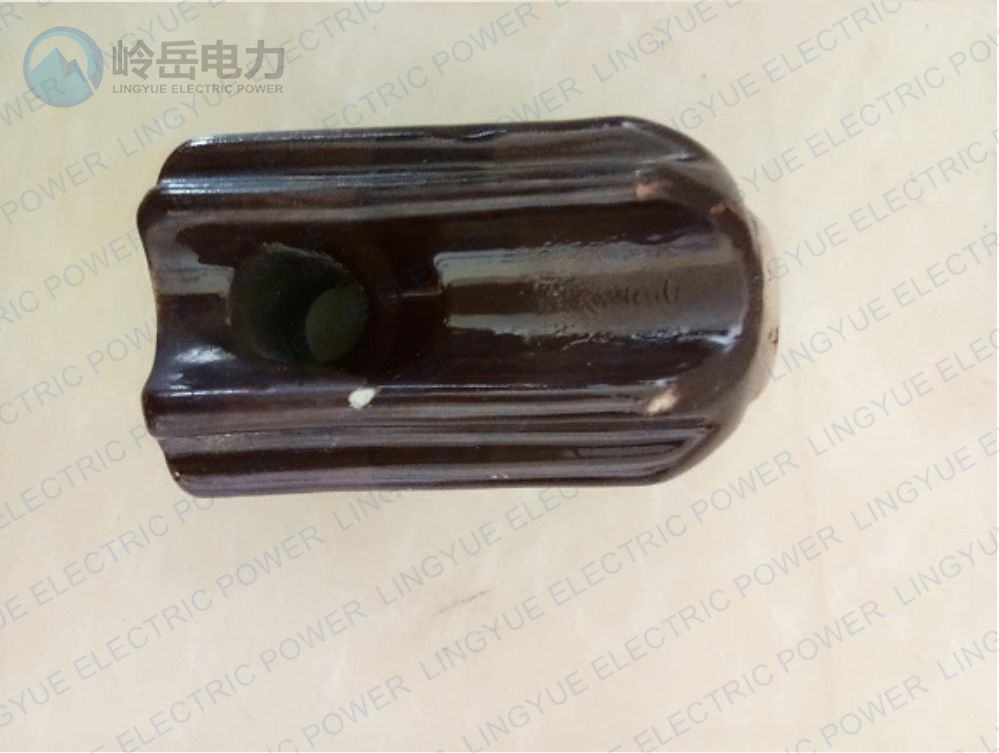

Guy Strain Insulator

54 Series

Standard: ANSI C29.4

Voltage:0.4-33kV

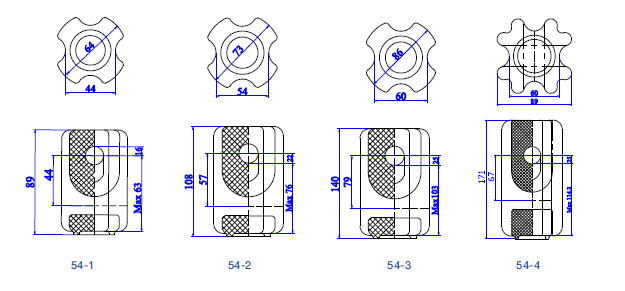

ANSI Class		54-1	54-2	54-3	54-4
Dimensions, mm		41	48	57	76
Dimensions, mm	A - Height	89	108	140	171
	B - Hole Centers Spacing	44	57	79	67
	C - Inner Diameter	44	54	60	60
	D - Outer Diameter	64	73	86	89
	E - Cable Hole Diameter	16	22	25	25
	F - Height To Hole	Max63	Max76	Max103	Max114.3
Mechanical Failing Load, kN		44	53	89	89
Low Frequency Flashover Voltage	Dry, kV	25	30	35	40
Low Frequency Flashover Voltage	Wet, kV	12	15	18	23
Net Weight, Each, Approx. kg		0.5	0.65	1.2	2.2

The porcelain stay insulator boasts excellent electrical specifications, thanks to its robust internal bearing. This feature significantly enhances the reliability and safety of its operation. Additionally, it exhibits exceptional resistance to dirt and pollution, making it an ideal choice for use in heavily polluted areas. Even during thunderstorms or rainy days, the insulator remains highly durable and reliable, ensuring efficient power transmission without any concerns of leakage or damage.
