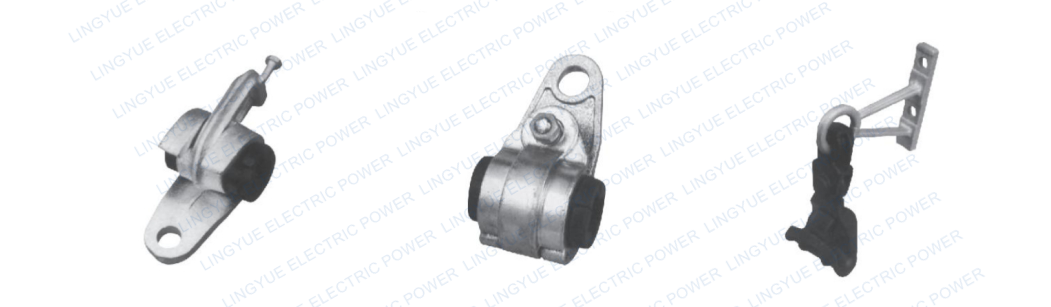

XJG series is suitable for aerial electric wire suspension insulation conductor,it provides Hook type、hinge type and export type for users

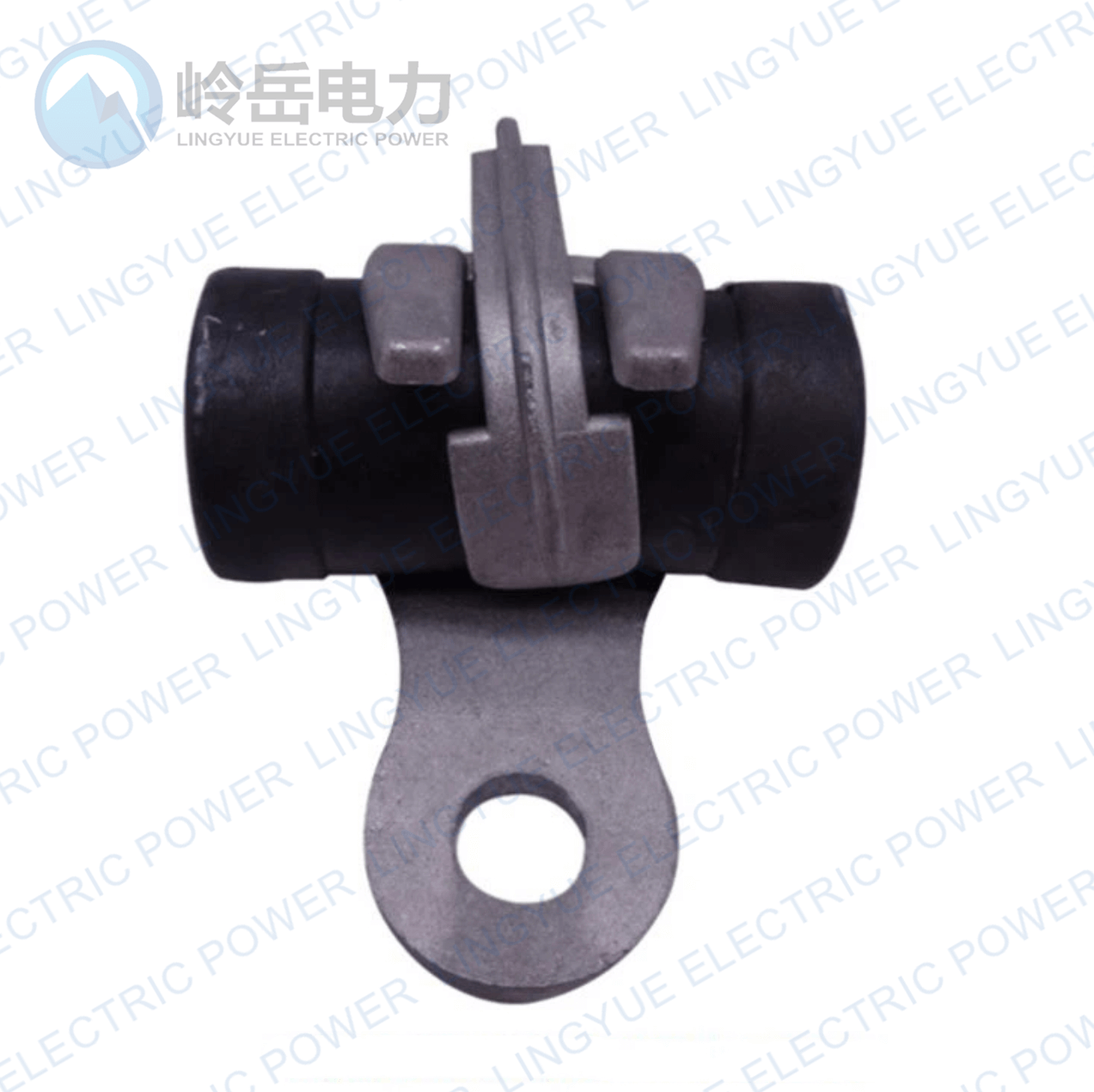

Hook type
XJG-A

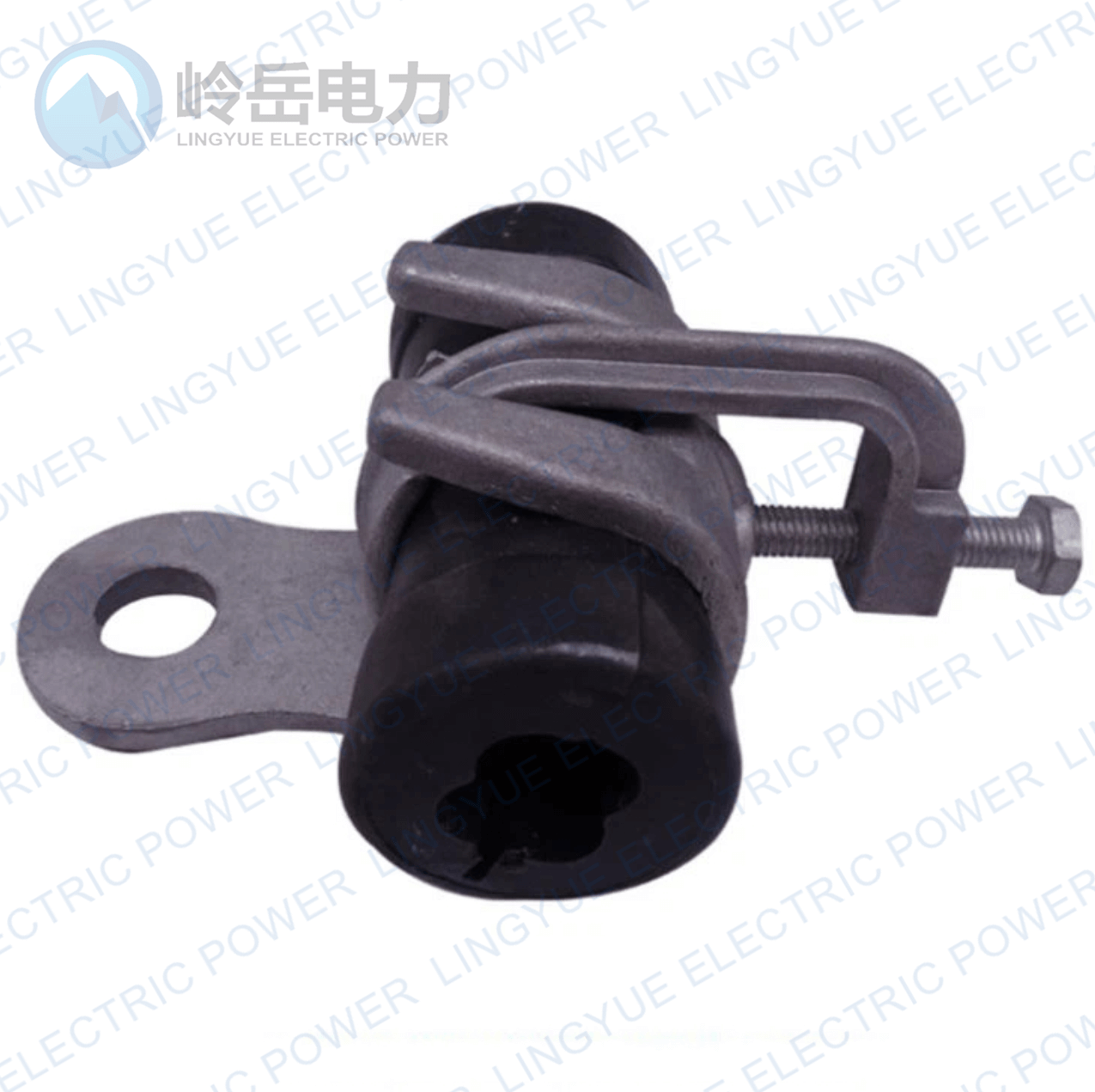

Hinge type
XJG-B
Export type
Specification
Category | Catalog No. | Suitable conductor |
Hook type 1kv | XJG-10~25A | 4×10~25 |
XJG-35~50A | 4×35~50 |
XJG-70~95A | 4×70~95 |
XJG-120~150A | 4×120~150 |
Hinge type 1kv | XJG-10~25B | 4×10~25 |
XJG-35~50B | 4×35~50 |
XJG-70~95B | 4×70~95 |
XJG-120~150B | 4×120~150 |
XJG-0B 20kv | JKLYJ-20/25 | 18.2 |
JKLYJ-20/35 | 19.2 |
JKLYJ-20/50 | 20.5 |
JKLYJ-20/70 | 22.0 |
XJG-1B 20kv | JKLYJ-20/95 | 23.7 |
JKLYJ-20/120 | 25.2 |
JKLYJ-20/150 | 26.7 |
XJG-2B 20kv | JKLYJ-20/185 | 28.3 |
JKLYJ-20/240 | 30.6 |
JKLYJ-20/300 | 32.8 |
Export type 1kv | XJG-16~95 | 4×16~95 |
Product features:
The suspension clamp is a connecting device that suspends optical cable from the tower of transmission line.The cable clip can reduce the static stress of the cable at the suspension point, improve the anti-vibration ability of the cable, and suppress the dynamic stress of the wind vibration.It can also ensure that the bending of the cable does not exceed the allowable value, so that the cable does not produce bending stress.Because the cable is installed after the clip, will not produce a variety of harmful stress concentration, so the optical fiber in the cable will not produce additional loss.
Instructions:
1. Single overhanging wire clip can be used for connection between optical cable and linear tower or the pole tower with Angle/elevation ≤25°;Double hanging line clip can be used for large span or large elevation (bending) Angle of the straight line tower.One set for each tower.
2, according to the cable outer diameter and range/comprehensive load selection of suspension clamp.
3. According to the different methods of hanging wires on poles and towers, different connecting fittings can be selected and matched with the hanging wire clip.
