Product Introduction

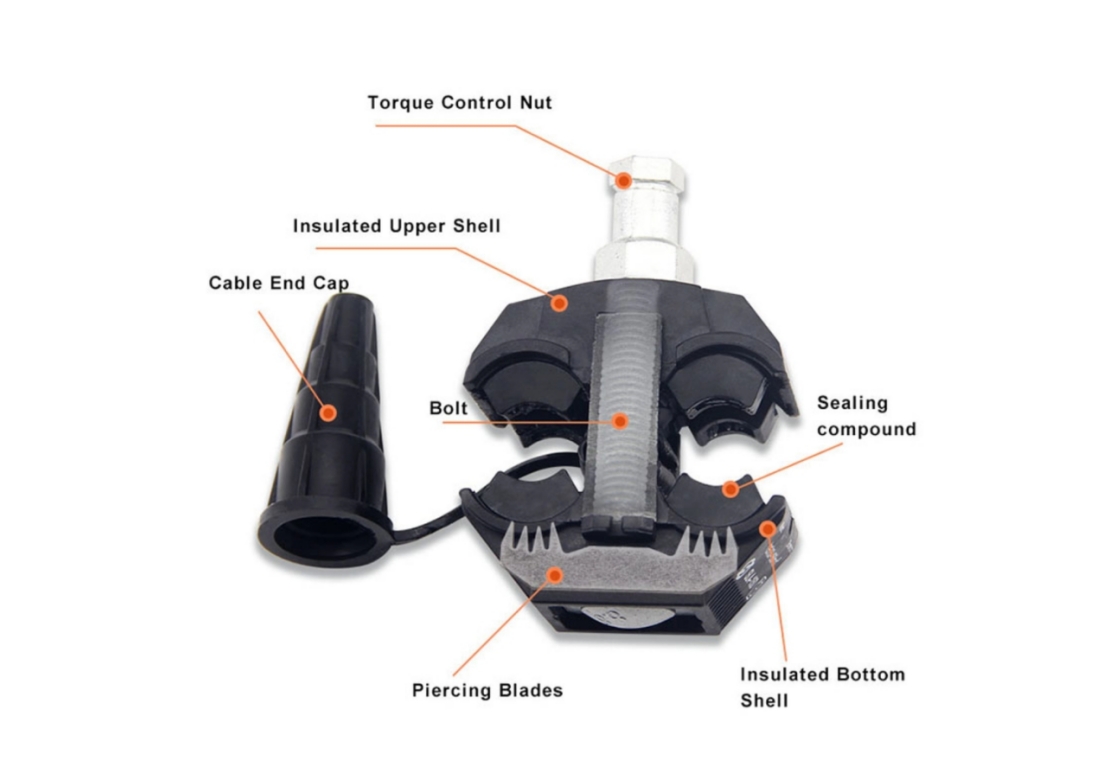

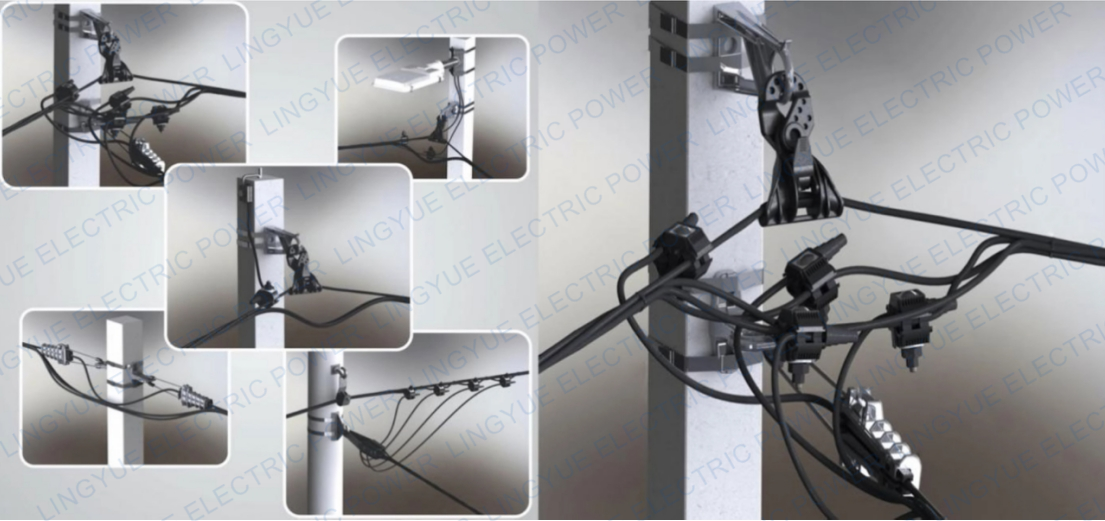

JBC insulation piercing connectors are applicable for all types of LV-ABC conductors as well as connections in service line system,building electrical system and street lighting system.Installation of JBC can be easily done by tightening bolts to force teeth penetrate insulation of main line and tap line simultaneously.Stripping of insulation is avoided for both lines.



Material

Insulation material made of weather resistant glass fiber reinforced polymer.

Contact teeth made of tinned brass or copper or aluminum.

Structure Feature

1.Had passed 6kV test under water for 1 Min.

2.Standard:EN 50483-4,NF C33-020,NF C33-004

Datas


Type

Main line section
(mm²)

Branch line section
(mm²)

Bolt

JBC-0

25-70

6-35

1

JBC-1

35-70

6-35

1

JBC-2

35-150

35-150

1

JBC-3

50-240

50-150

2
