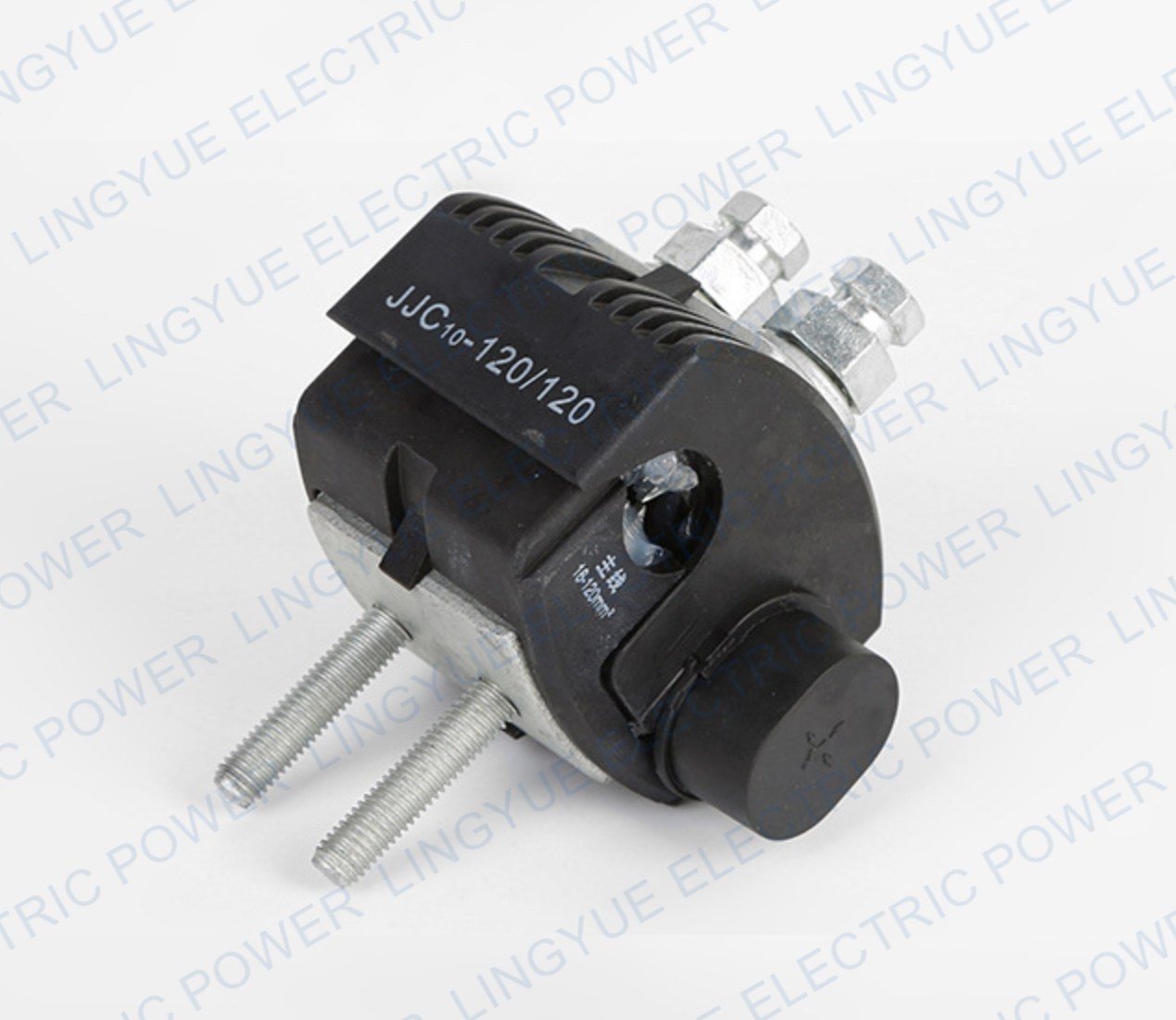

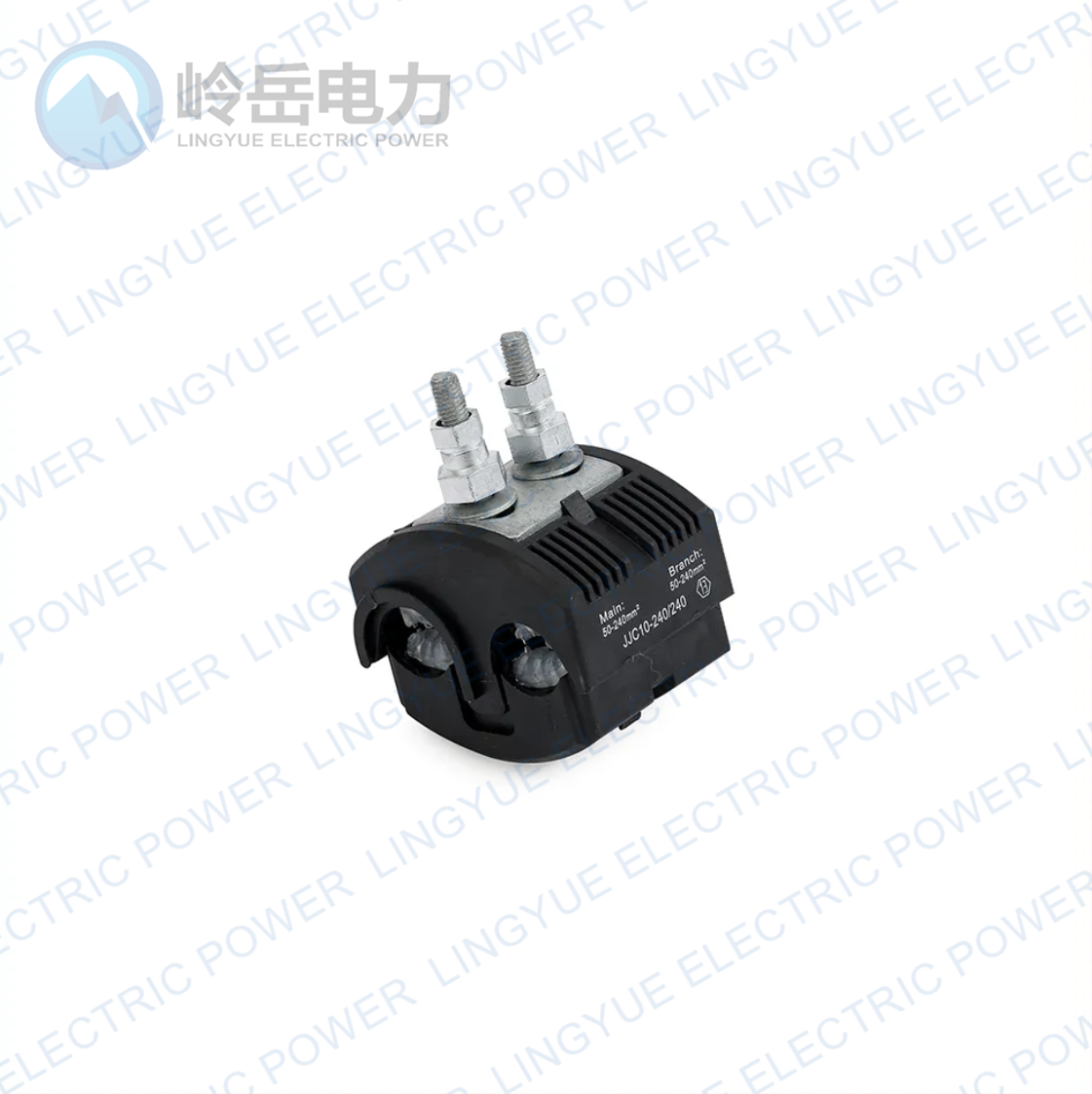

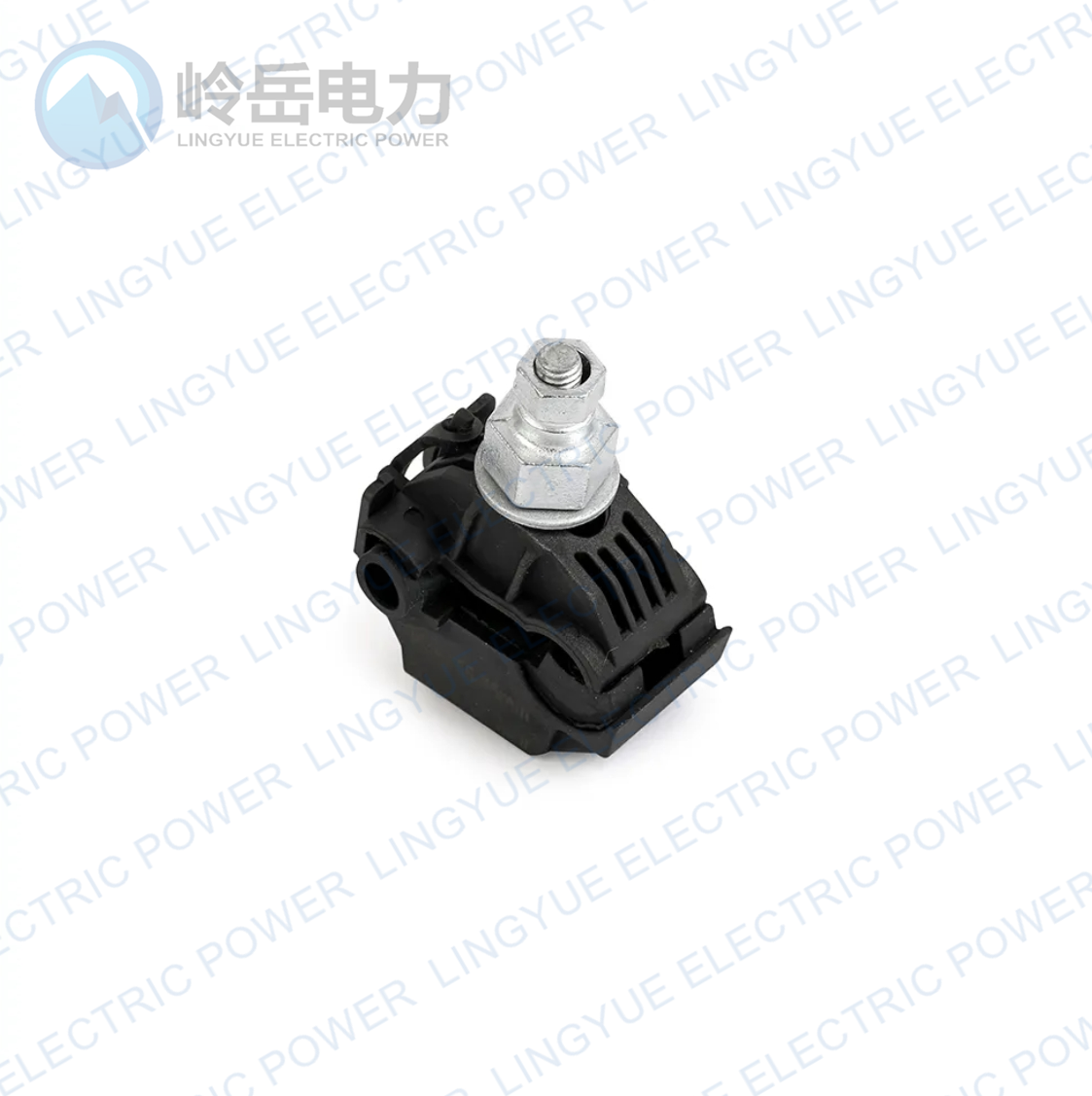

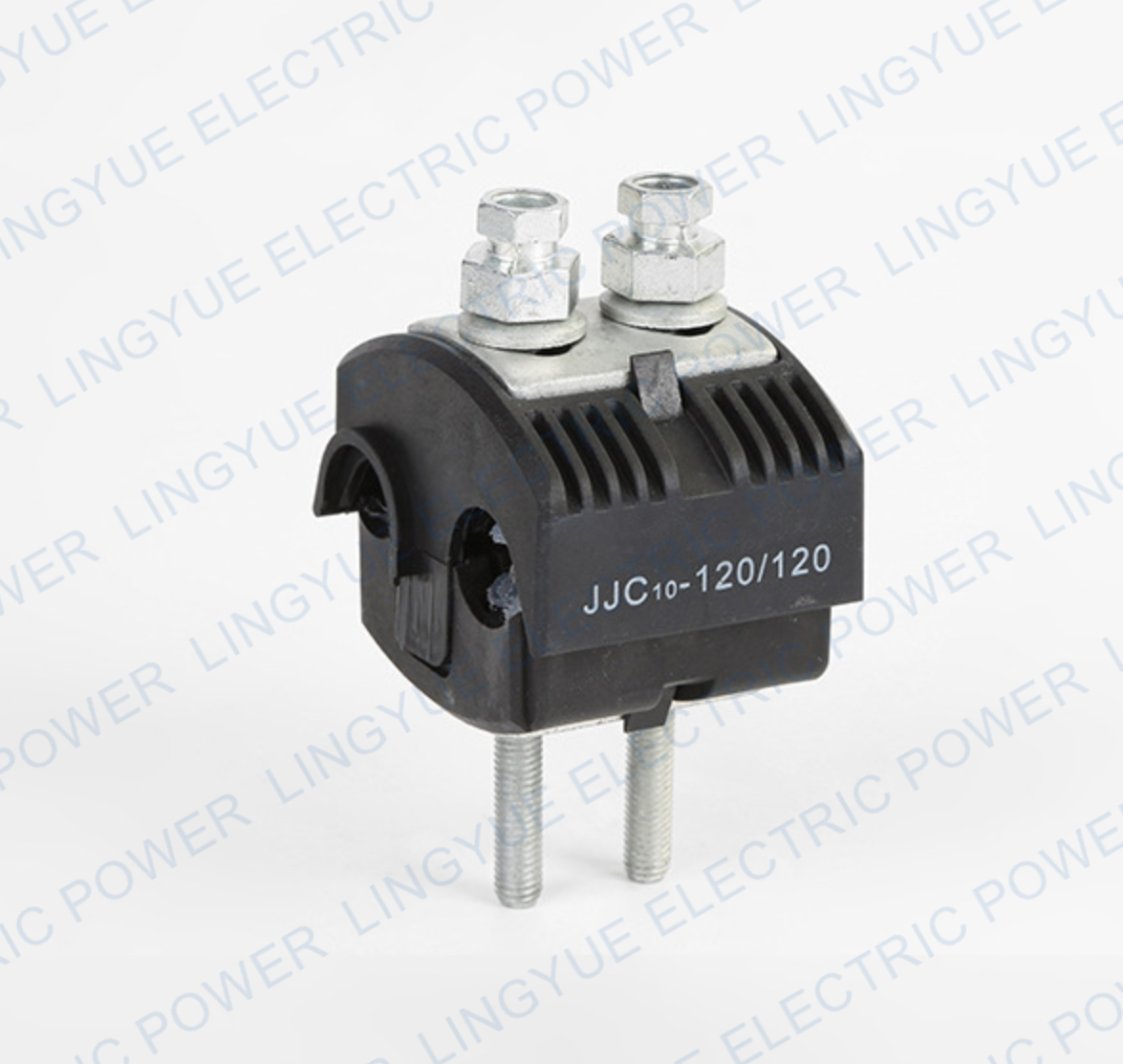

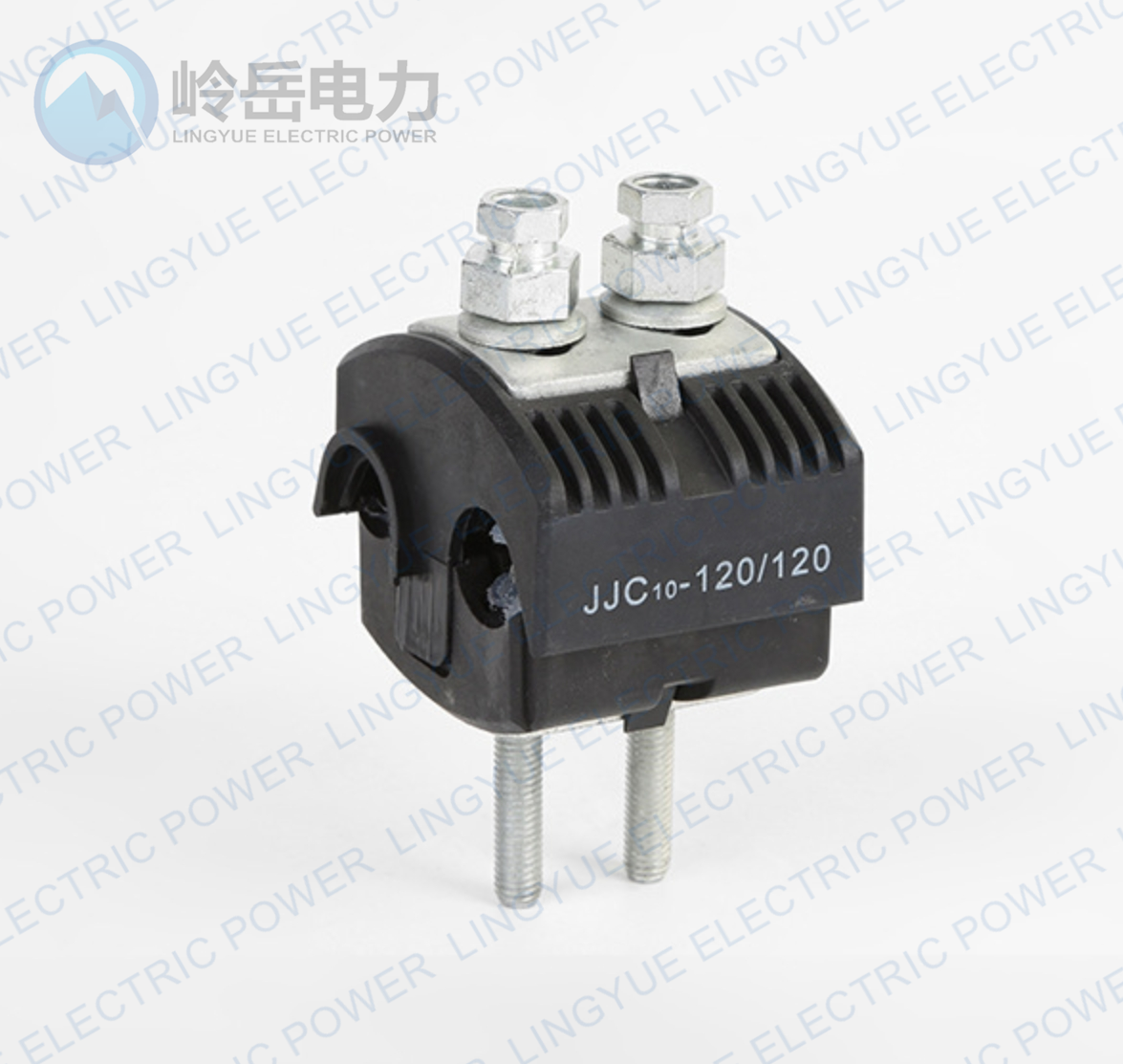

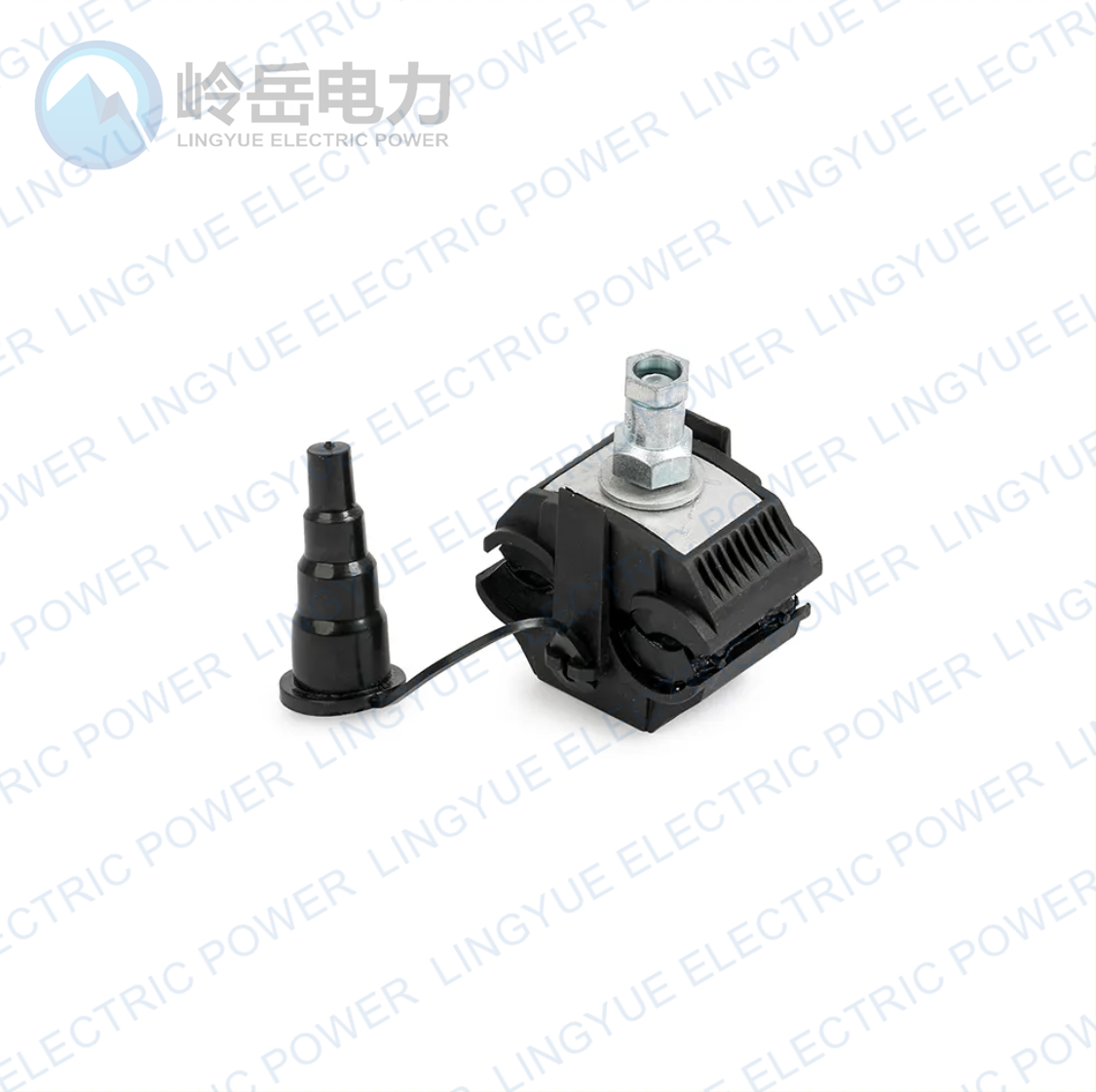

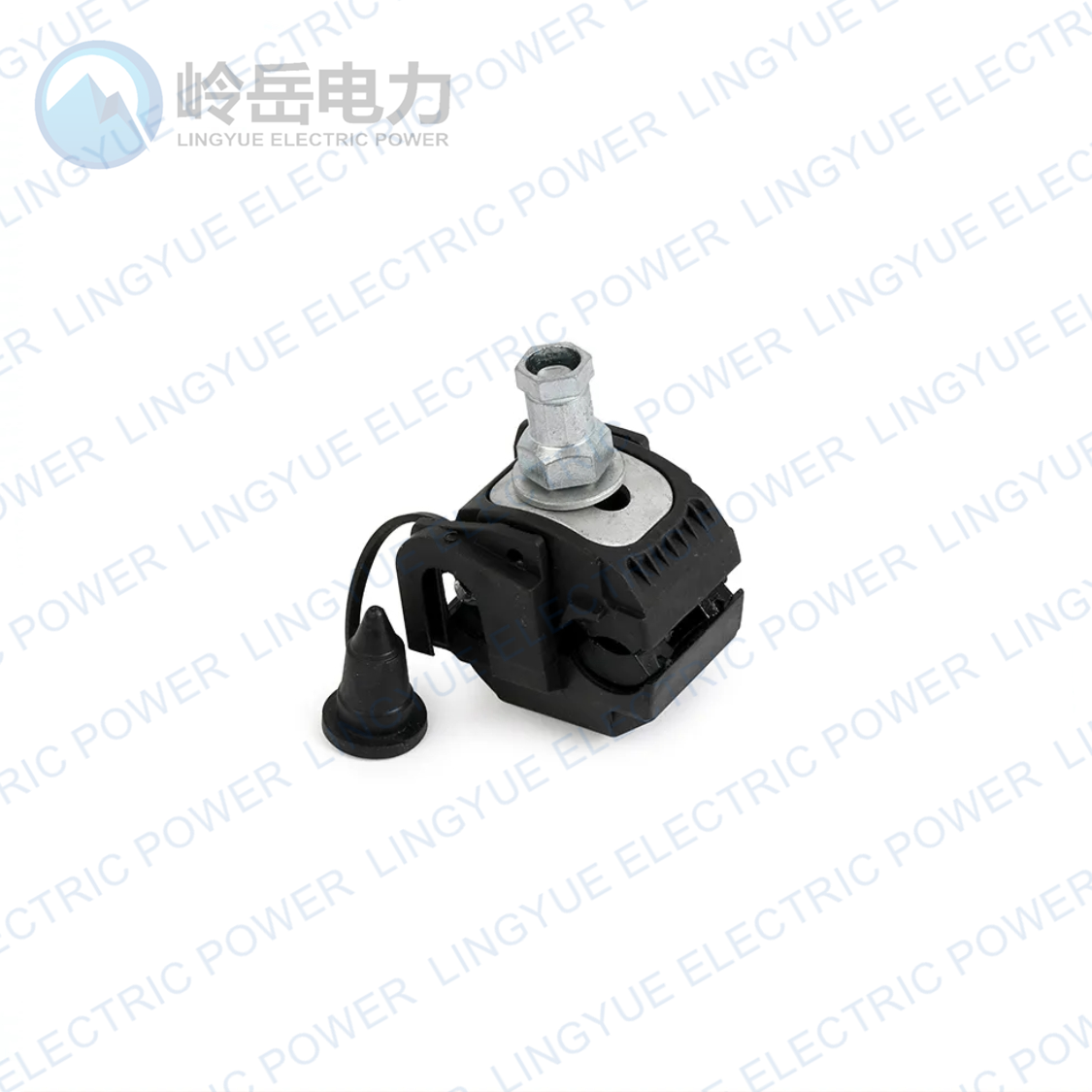

JJC insulation piecring connector

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

SJ (JJC) insulation piercing connectors are applicable for all types of LV-ABC conductors as well as connections in service line system,building electrical system and street lighting system.Installation of SJ (JJC) can be easily done by tightening bolts to force teeth penetrate insulation of main line and tap line simultaneously.Stripping of insulation is avoided for both lines.

Structure feature

·Puncture structure ensures puncture pressure and easy installation

·Structure seal, anti-corrosion, long service life

·Low contact resistance, low temperature rise of wire clip

·Reducing wire connection, wide range of application

·Excellent insulation performance

Specification

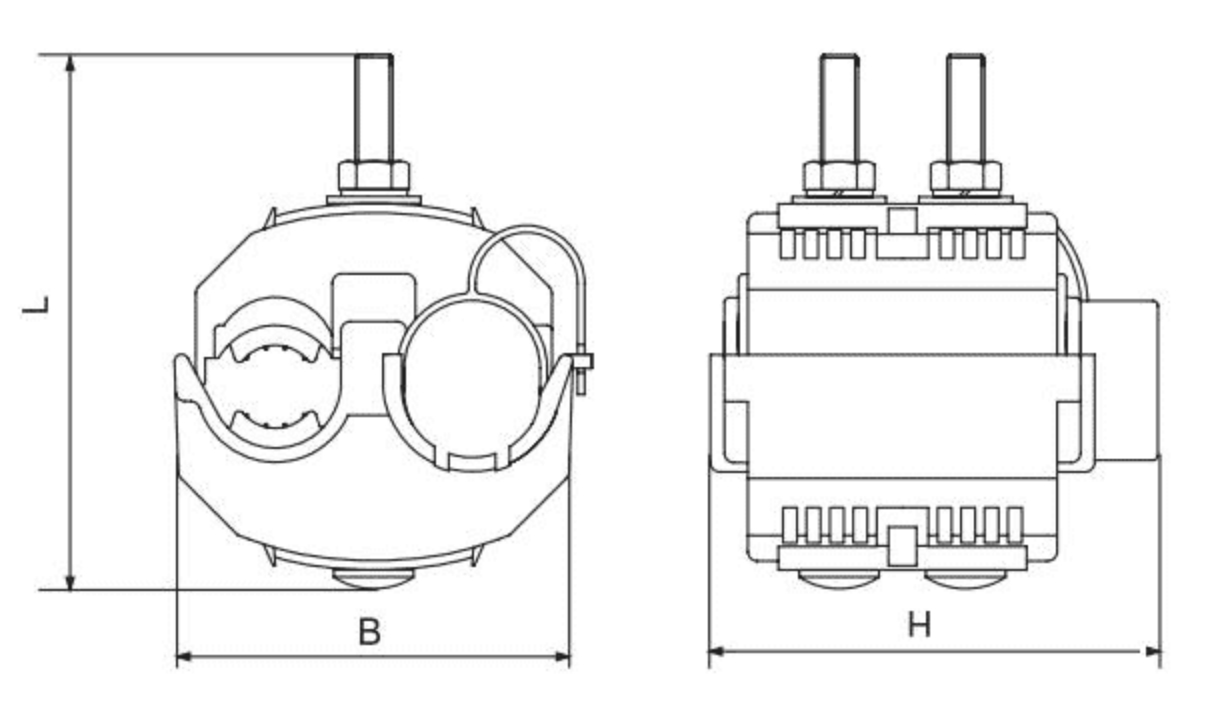

Application of voltage	Catalog No.	Main wire	Branch with	Main dimensions（mm）			Bolt No.	Torque value
Application of voltage	Catalog No.	Main wire	Branch with	L	B	H	Bolt No.	Torque value
1KV	JJC1.5~25/1.5~10	1.5~25	1.5~10	45	27	60	1	13
	JJC16~70/4~15	16~70	4~25	52	52	85	1	25
	JJC16~70/16~70	16~70	16~70	52	52	85	1	25
	JJC16~120/16~20	16~120	16~120	52	52	85	1	25
	JJC16~95/4~35	16~95	4~35	60	45	85	1	25
	JJC25~95/25~95	25~95	25~95	65	56	85	2	25
	JJC50~120/16~50	50~120	16~50	56	54	85	1	25
	JJC50~150/50~120	50~120	50~120	60	54	85	1	25
	JJC50~150/6~35	50~150	6~35	60	45	85	1	25
	JJC50~150/50~150	50~150	50~150	67	58	95	2	25
	JJC95~240/95~240	95~240	95~240	77	67	95	2	25
	JJC120~240/25~120	120~240	25~120	67	63	95	2	25
	JJC120~240/70~120	120~240	70~120	78	60	95	2	25
	JJC120~240/120~240	120~240	120~240	80	64	95	2	25
10KV	JJC10-0	10~25	10~25	95	73	115	2	30
	JJC10-1	25~50	25~50	95	73	115	2	30
	JJC10-2	70~120	25~50	95	78	115	2	30
	JJC10-3	70~120	70~120	95	78	115	2	30
	JJC10-4	150~240	70~120	95	89	115	2	30
	JJC10-5	150~240	150~240	95	86	115	2	30
	JJC10-6	150~240	25~50	95	86	115	2	30
