BD ground wire hangers

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

BD type hanging bracket (hanging clamp) is a device used for hanging overhead wires in a straight mast, which plays the role of hanging, gripping and connecting with the cross-arm or ground wires in the mast through other fittings and insulators.

Description:
BD type hanger bracket (hanger clamp) is a device used for hanging overhead wires in a straight mast, which plays the role of hanging, gripping and connecting with the cross-arm or ground wires in the mast by other fittings and insulators.

Hanger fitting is also called support fitting or hanger clamp, which is mainly used for hanging conductors to insulator circuits (straight support tower) and jumpers to insulators.

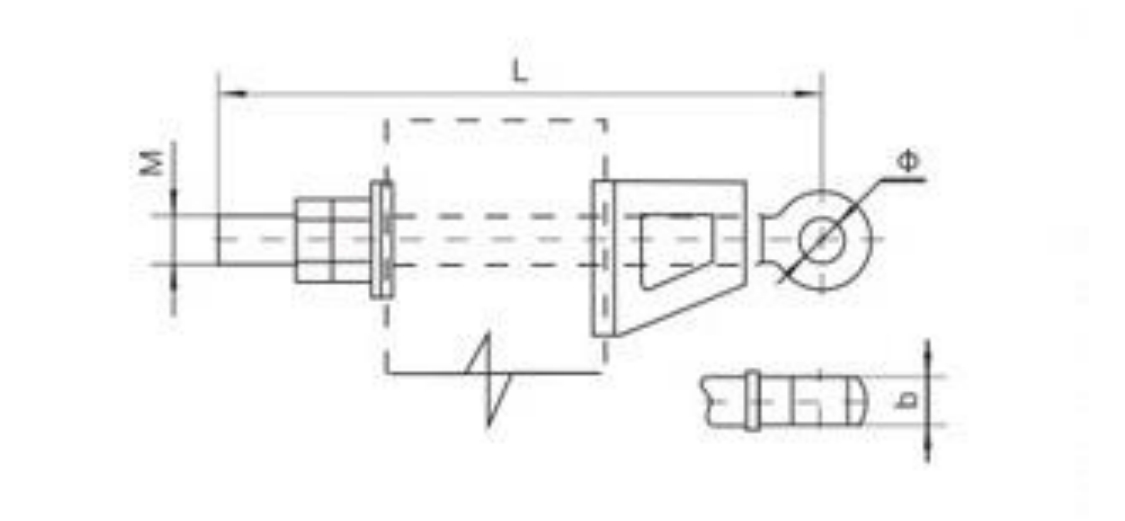

No.	Suitable range	Overall dimensions (mm)				Weight (kg)
No.	Suitable range	b	Φ	M	L	Weight (kg)
BD-1839	Φ190	18	18	20	390	4.26
BD-2244	Φ230	18	22	20	440	4.77
BD-2451	Φ300	18	24	20	510	5.25
BD-2762	Φ400	18	27	20	620	7.10
