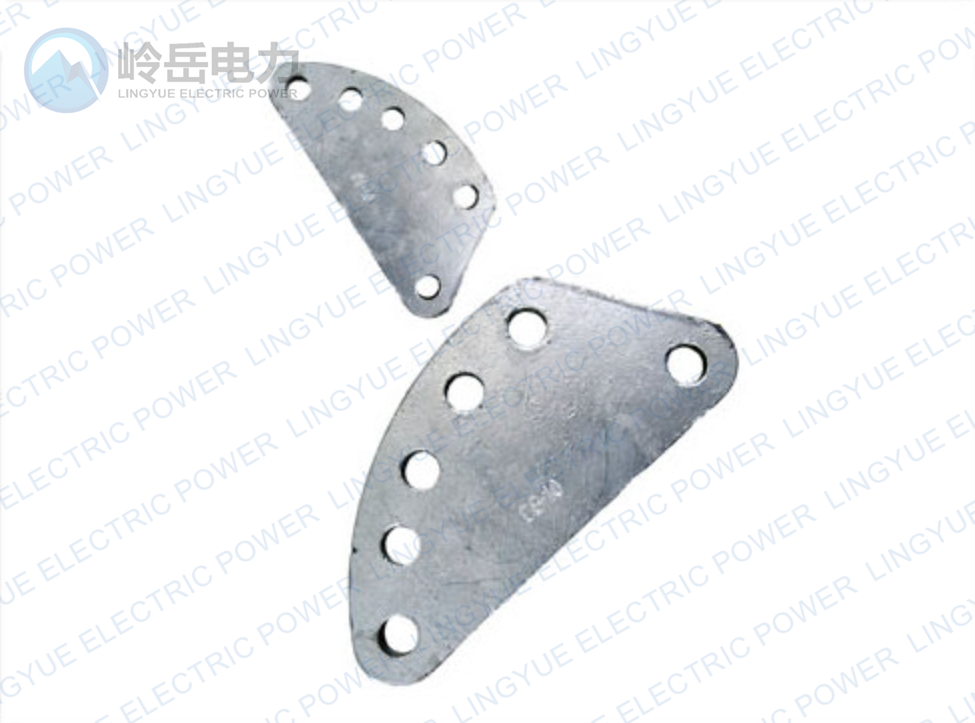

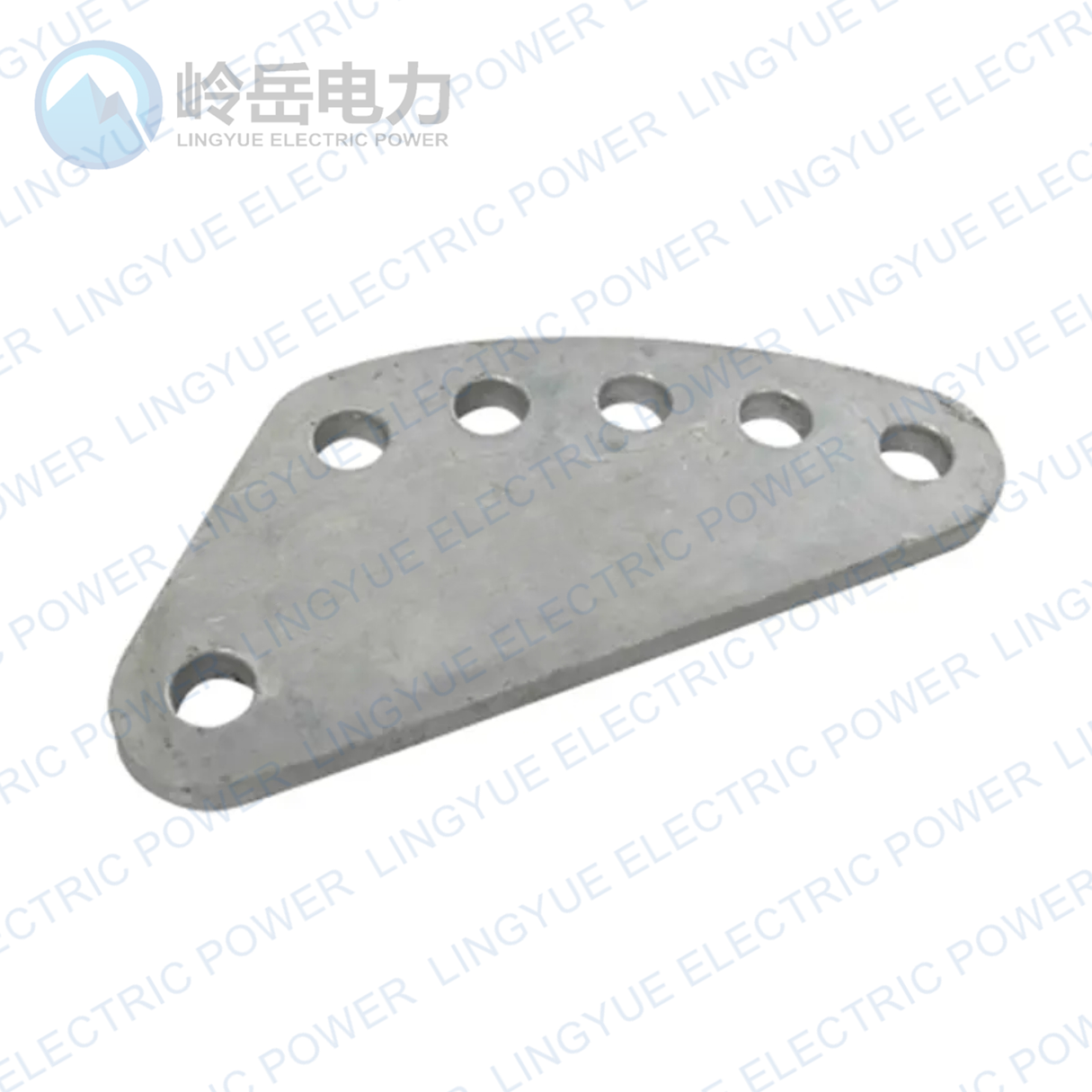

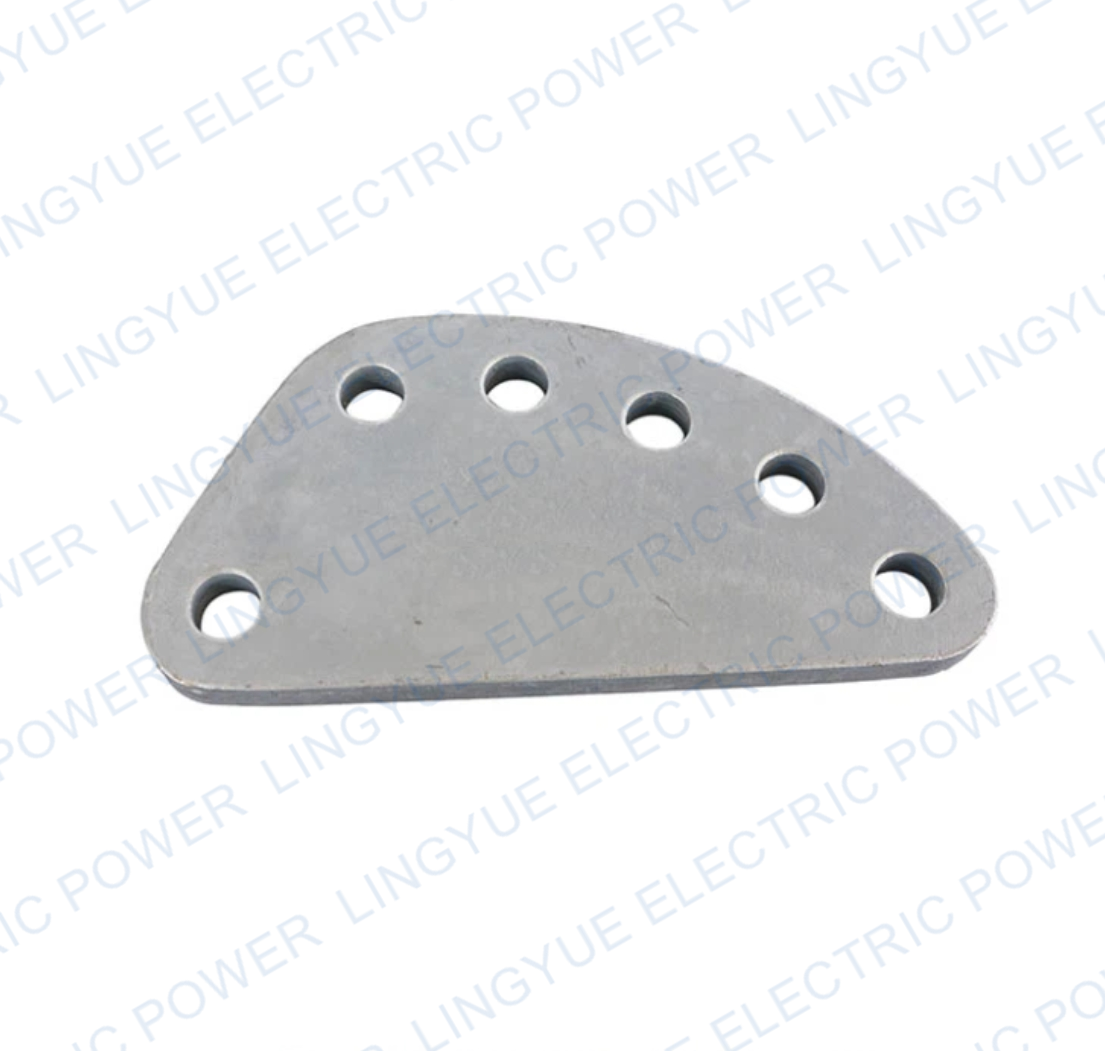

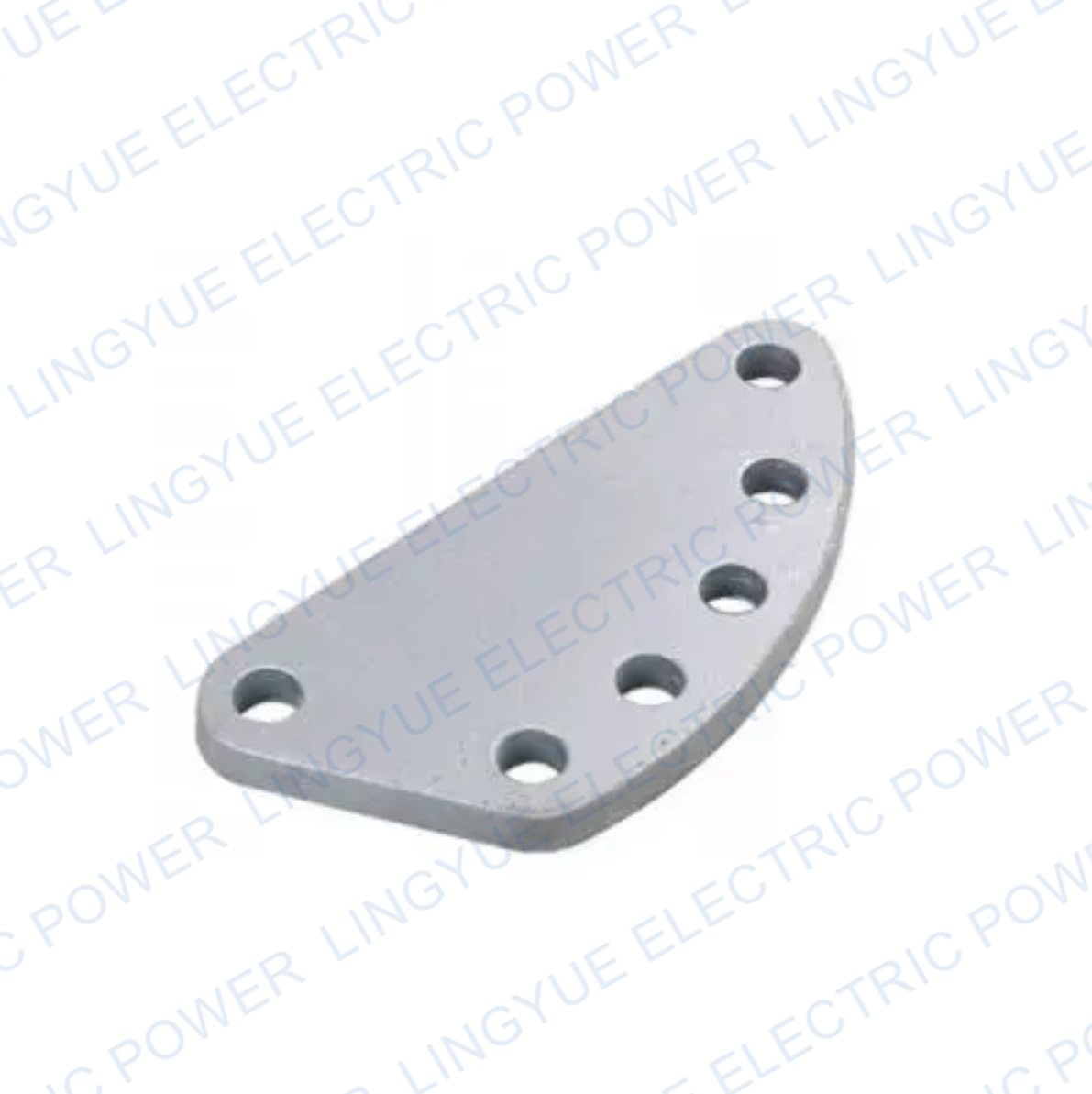

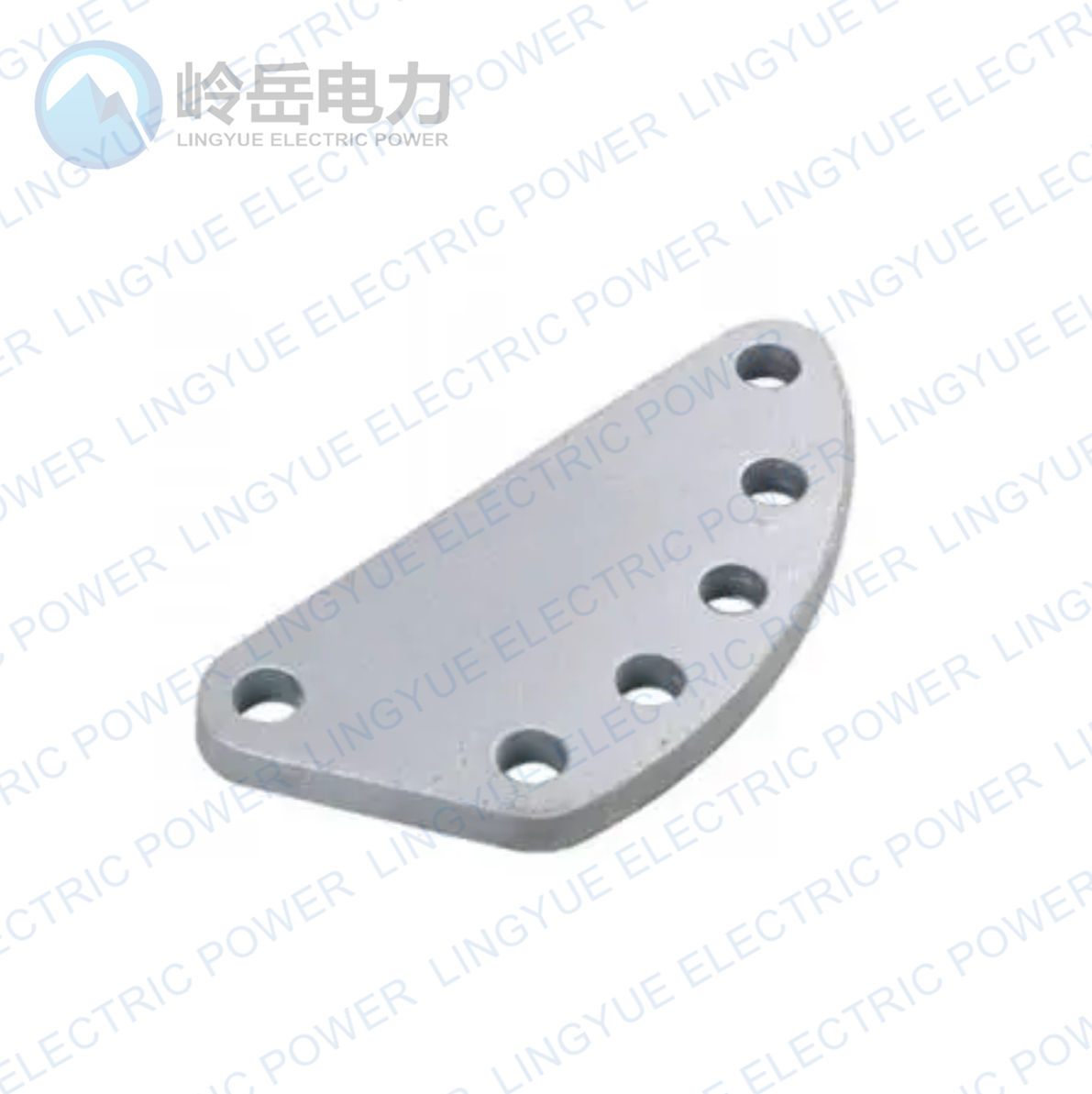

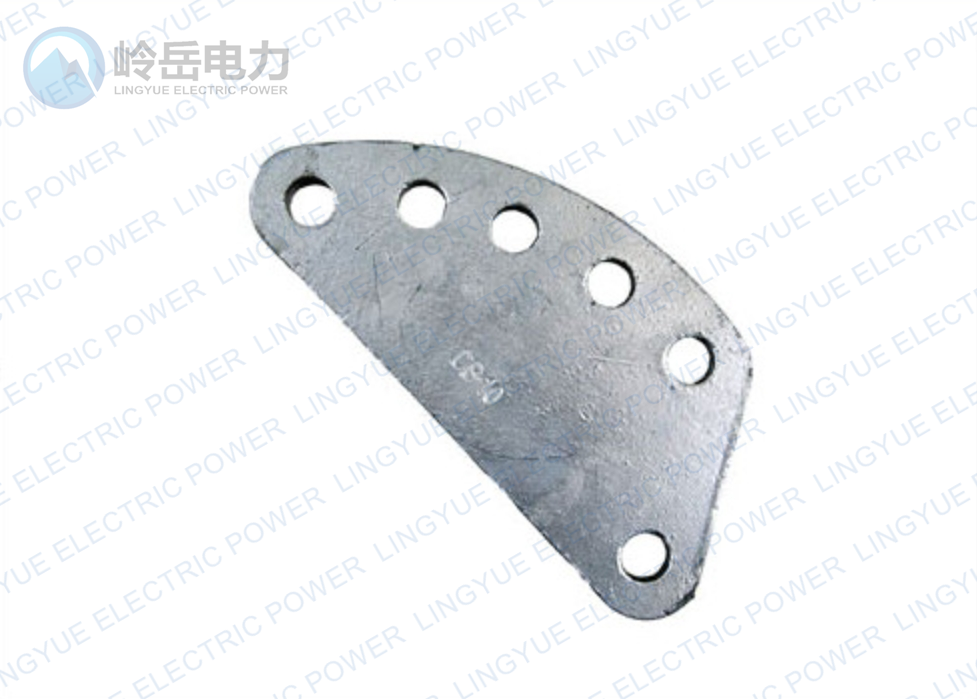

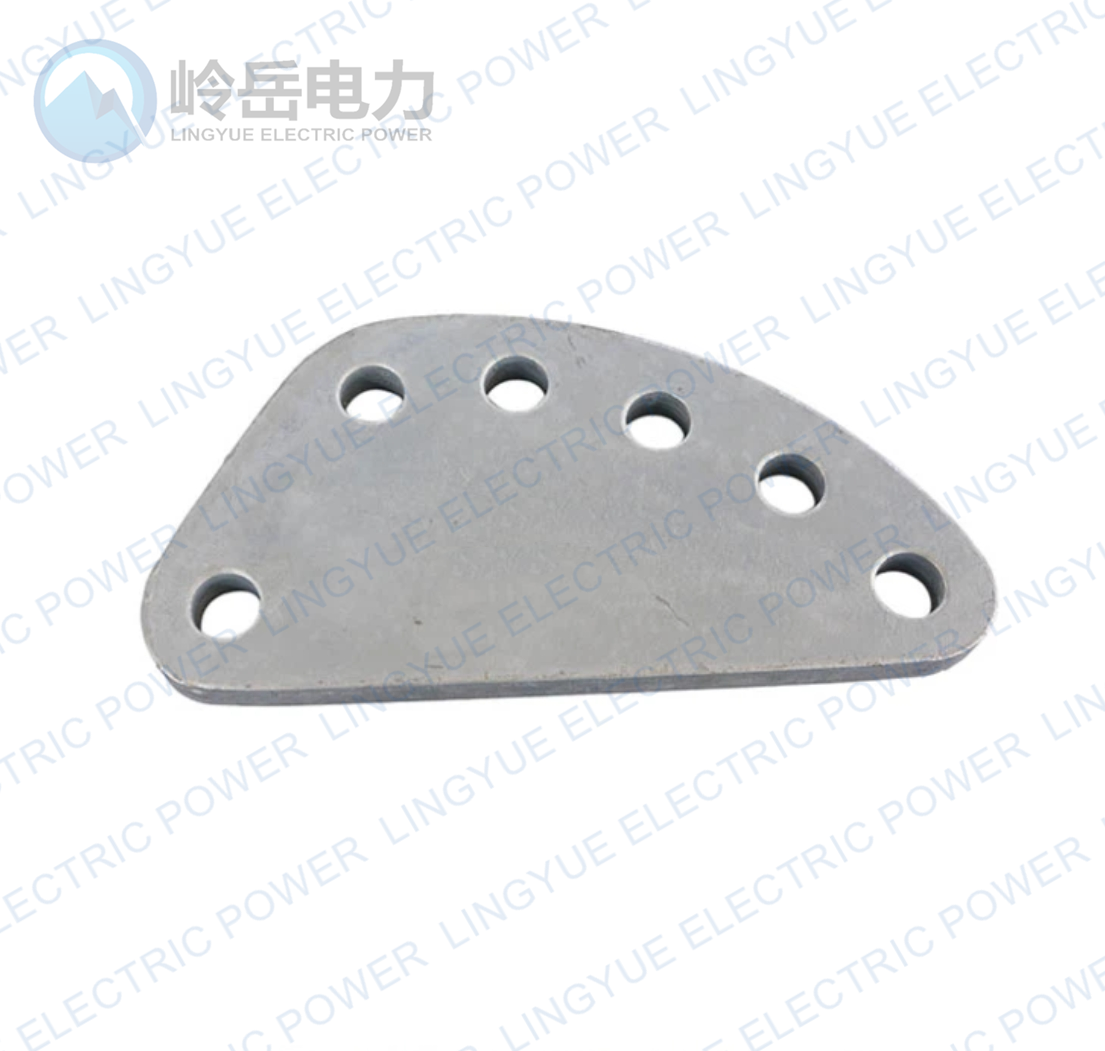

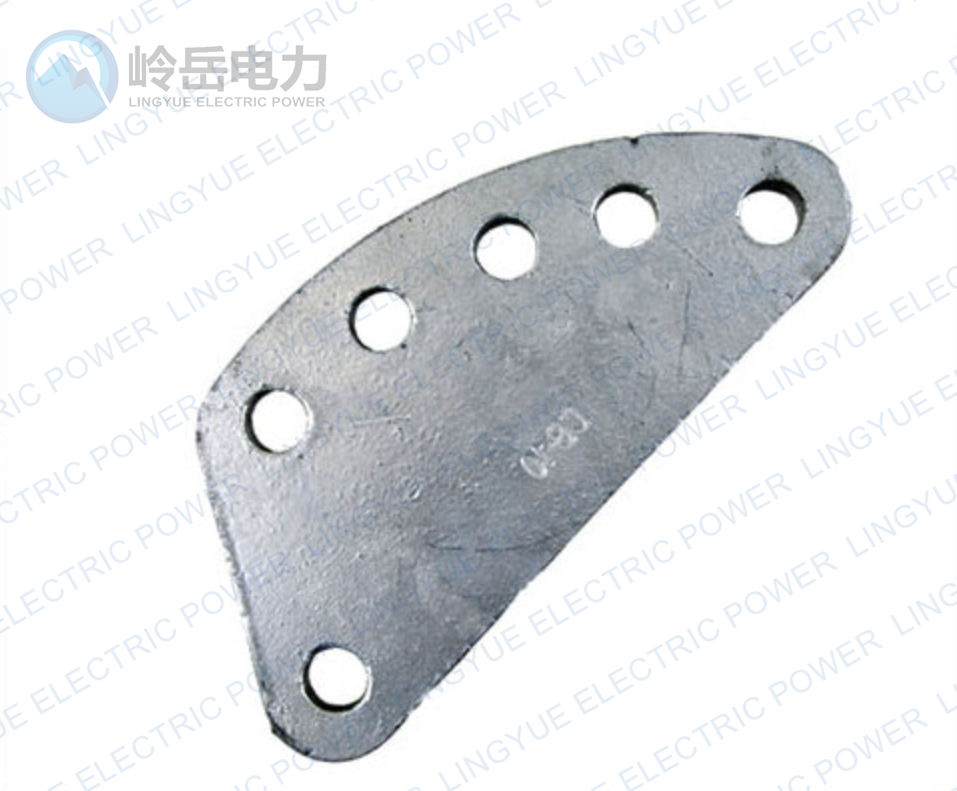

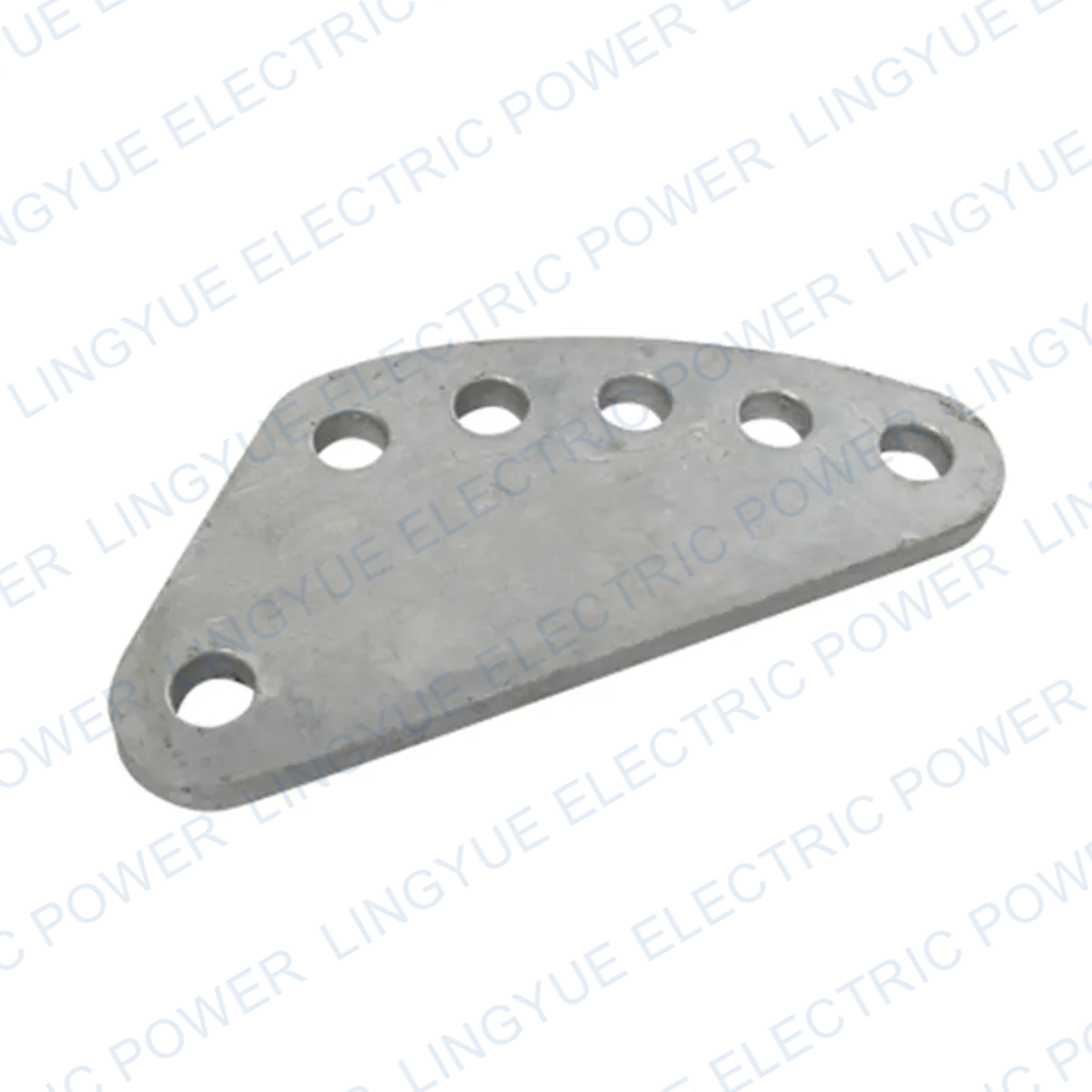

DB adjusting plate

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

DB Type Adjusting Plate is suitable for adjusting length of insulator string and conductor of transmission line & electric power substation.

DB type adjusting plate is also serially connected with the section of bundled conductor between connecting fitting & tension clamp subjected to tension insulator string as the looseness adjustment of two pieces of bundled conductor.

The installation of DB adjusting plate is easy and convenient.

The color of Adjusting Plate is silver white.

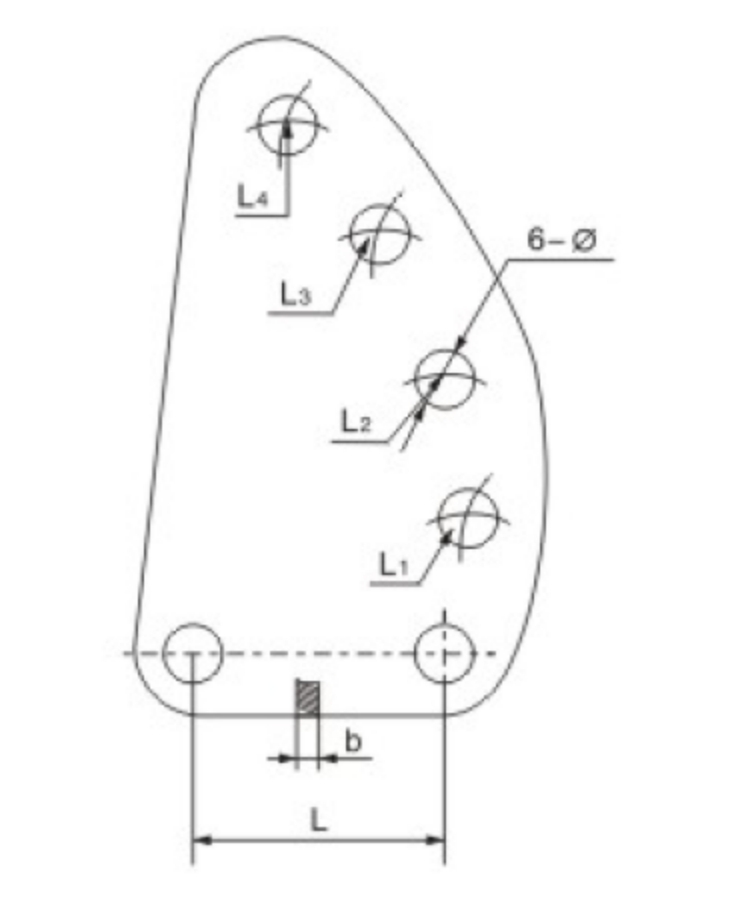

Item No.	Dimension							Rated Failure	Weight
Item No.	φ	L	L1	L2	L3	L4	b	load(KN)	(kg)
DB-7	18	70	95	120	145	170	16	70	1.7
DB-10	20	80	110	140	170	200	16	100	2.7
DB-12	24	100	135	170	205	240	16	120	3.2
DB-16	26	110	125	140	155	170	18	160	4.1
DB-20	30	120	135	150	165	180	26	200	7.4
DB-25	33	135	135	150	165	180	30	250	11.5
DB-30	39	120	140	160	180	200	32	300	12.5
DB-60	51	135	160	185	210	235	42	600	21.6
DB-5024	45	140	165	190	215	240	38	500	18.5
DB-5032	45	140	185	230	275	320	38	500	14.4
DB-21G	26	120	135	150	165	182	20	310	6.2
DB-32G	33	120	140	160	180	200	38	320	9.2
