Product Introduction

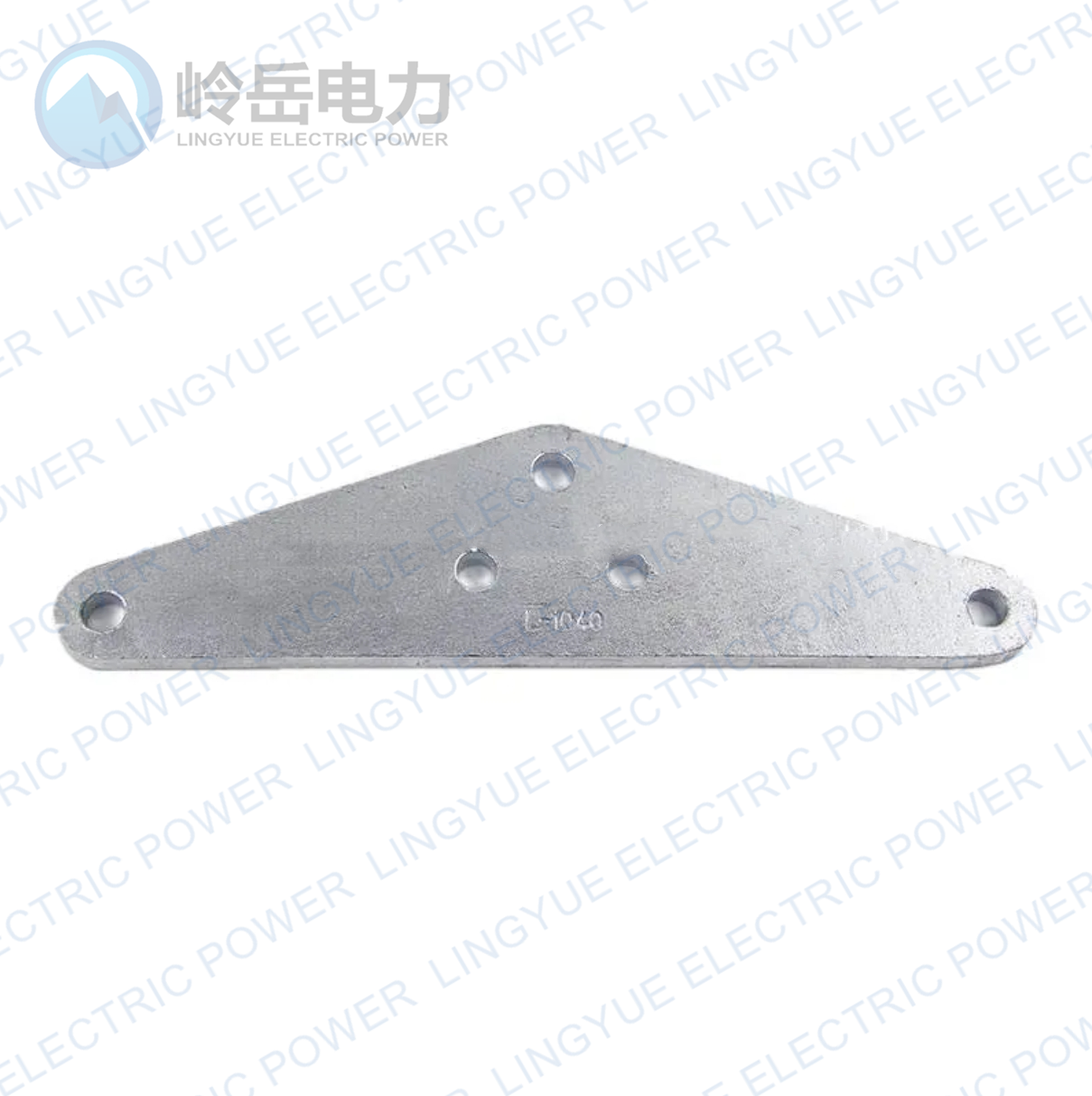

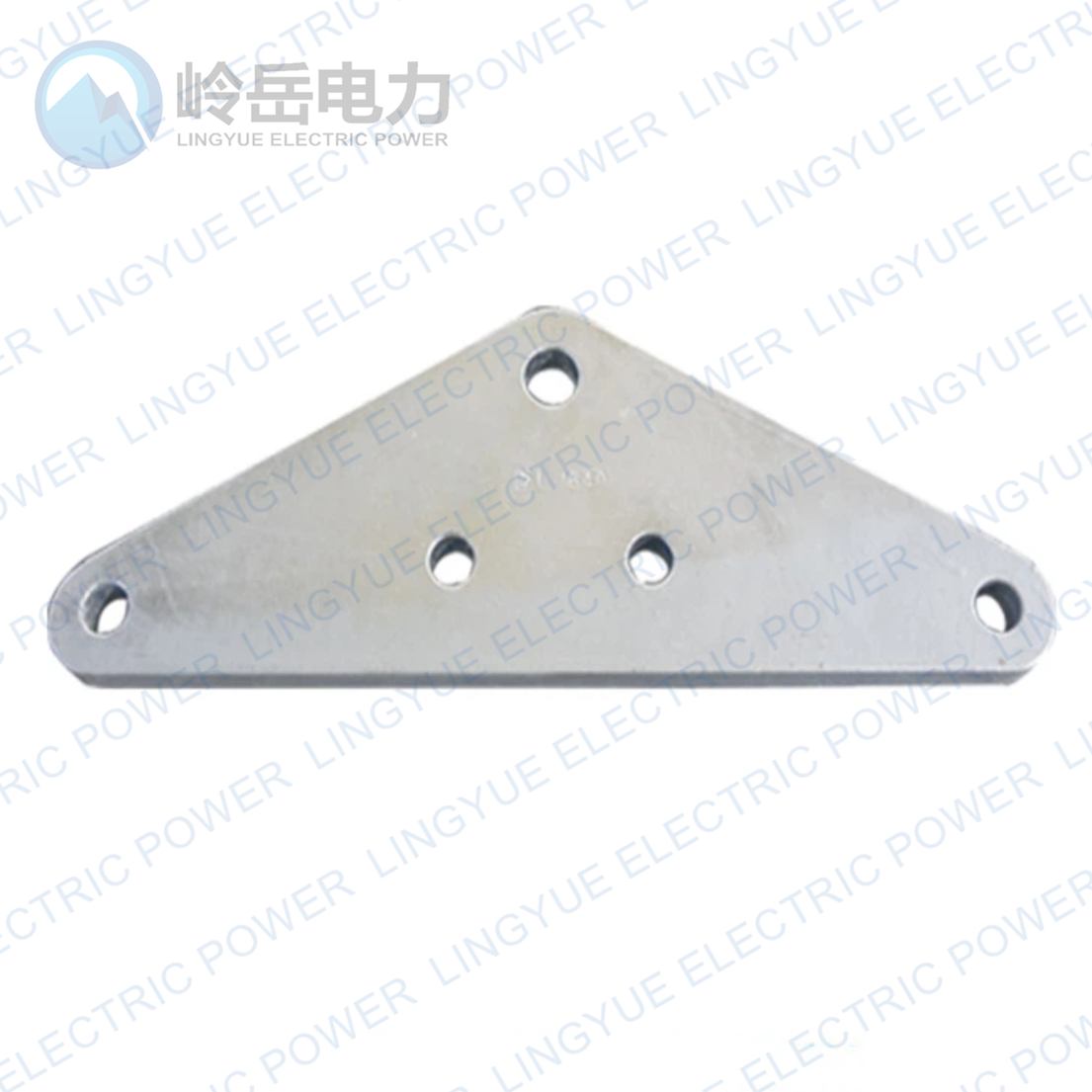

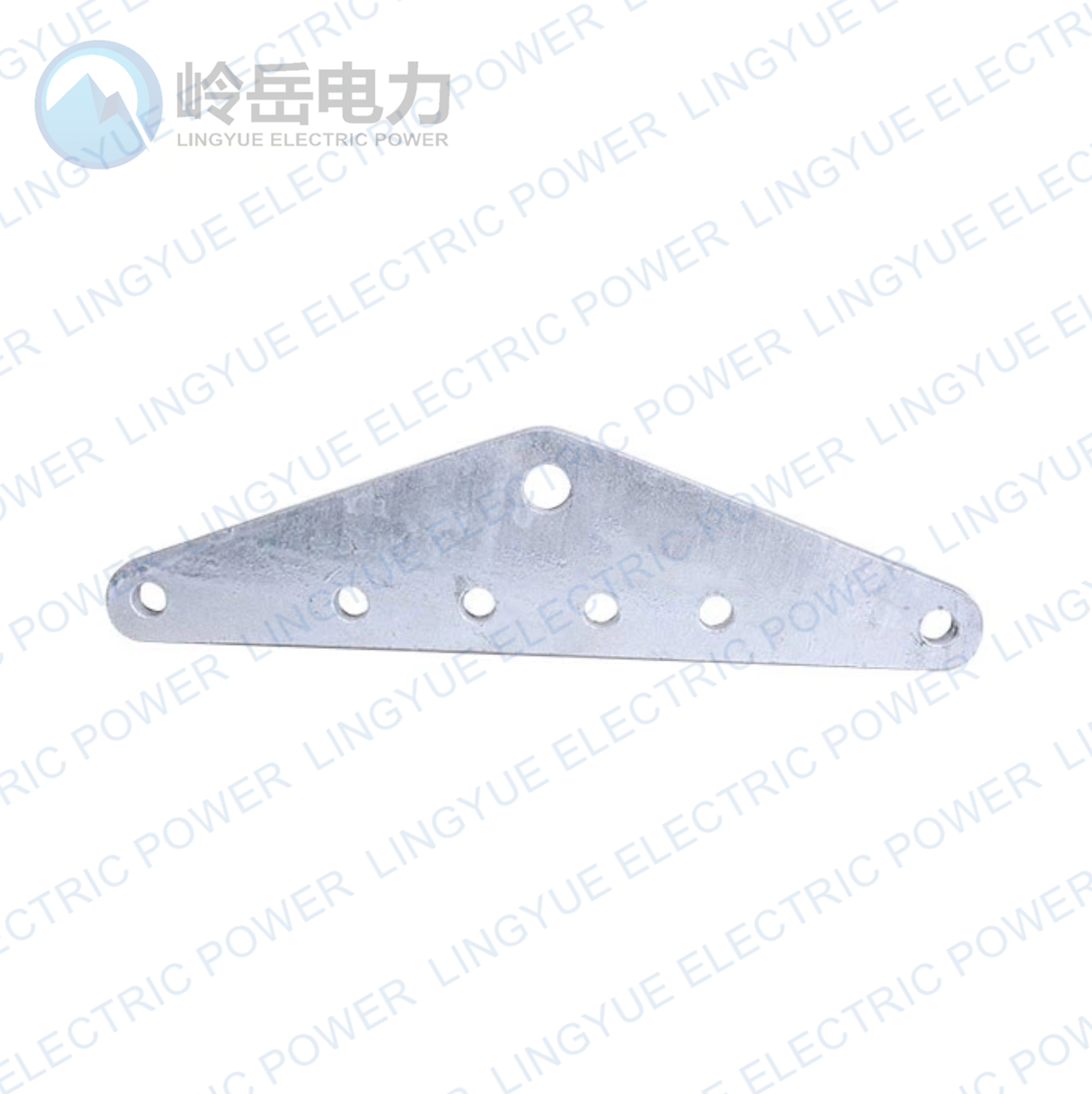

L Type Yoke Plate is suitable for assembling the suspension insulator to string, and it is also used for connection of one or several strings insulator and then suspending on the pole arm of perch as well as connecting of suspension clamp and dead end clamp and connection between stay wire and perch.


Material：Hot-dip galvanized steel.

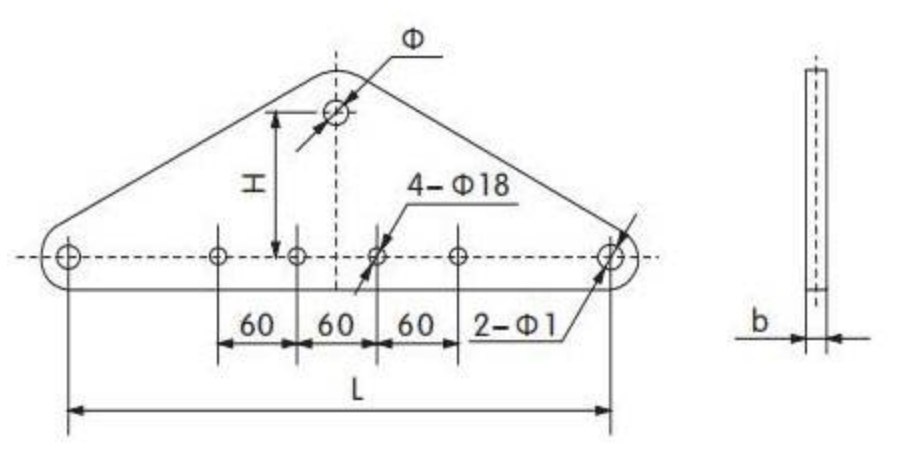

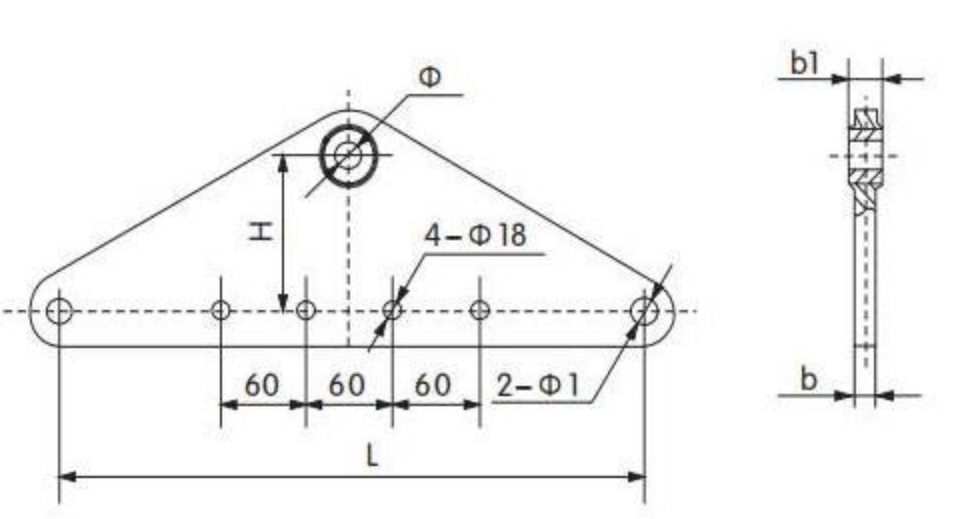

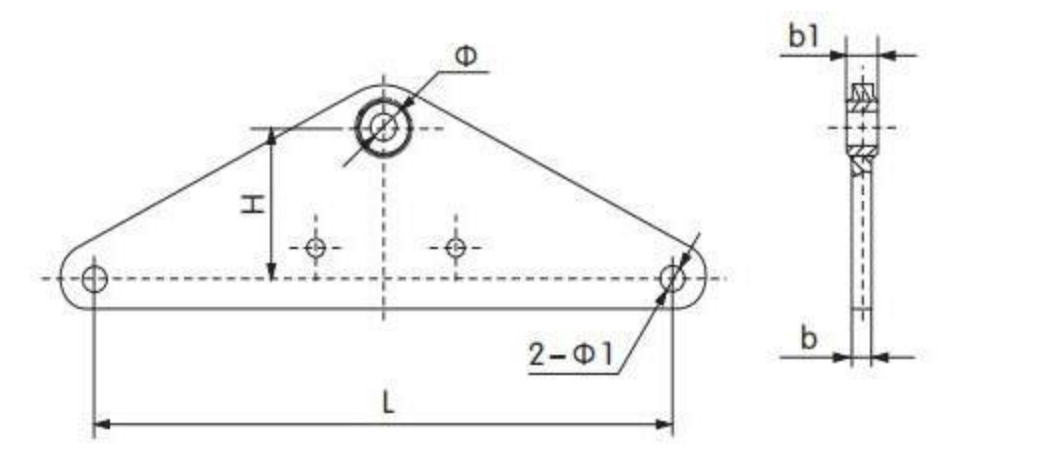

Catalog No.

Dimensions（mm）

Specified Failure Load（KN）

Weight（kg）

H

L

b1

b

∅

∅1

L-1040

70

400

16

16

20

18

100

4.43

L-1240

70

400

16

16

24

18

120

4.66

L-1640

100

400

18

18

26

20

160

5.80

L-2140

100

400

26

16

30

20

210

6.90

L-2052

100

520

26

16

30

26

200

8.00

L-2055

200

550

26

16

30

24

200

11.80

L-2540

110

400

30

16

33

24

250

9.00

L-3040

110

400

32

18

39

26

300

10.00

L-4255

250

550

38

24

45

30

420

24.40

L-5040

110

400

38

30

45

33

500

14.80

L-6045

200

450

42

32

51

39

600

25.50

L-6050

250

500

42

32

51

39

600

23.30

Packaging & Delivery

Packaging Details: In wooden box
