LC yoke plate

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

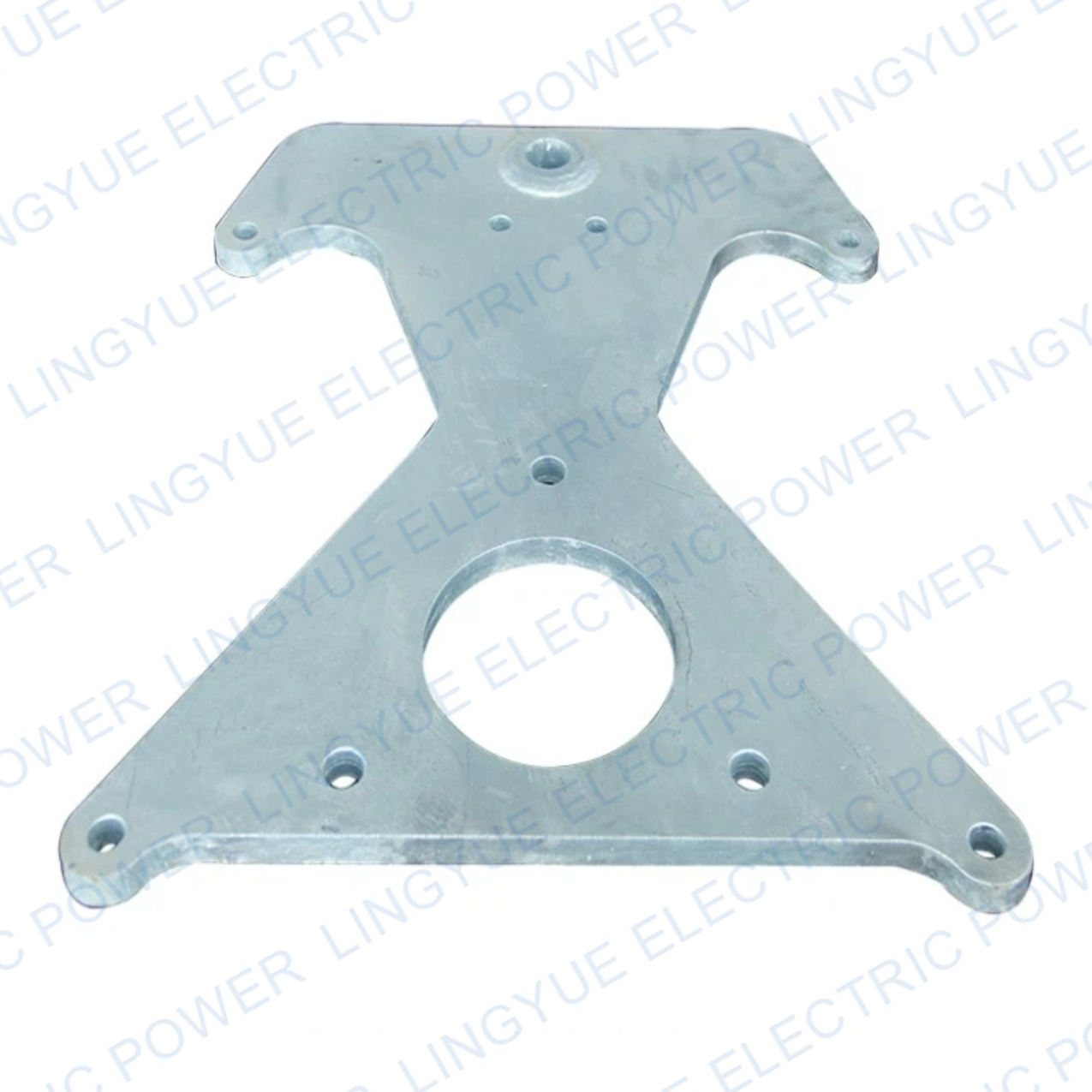

The transmission line yoke plate is made of hot-dip galvanized steel. The yoke plate can be made according to customer's requirements, including shape, size, etc.

Descriptions:

The transmission line yoke plate is made of hot-dip galvanized steel. The yoke plate can be made according to customer's requirements, including shape, size, etc.

Bid:

Hot-dip galvanized wire plate is used for connecting clamps with insulators and ground wire clamps with brackets or support structures, for connecting insulating column and single conductor, mounting insulating column and double detachable conductor, dual-core mounting conductors and mounting insulating column and double hinged suspension clamp.

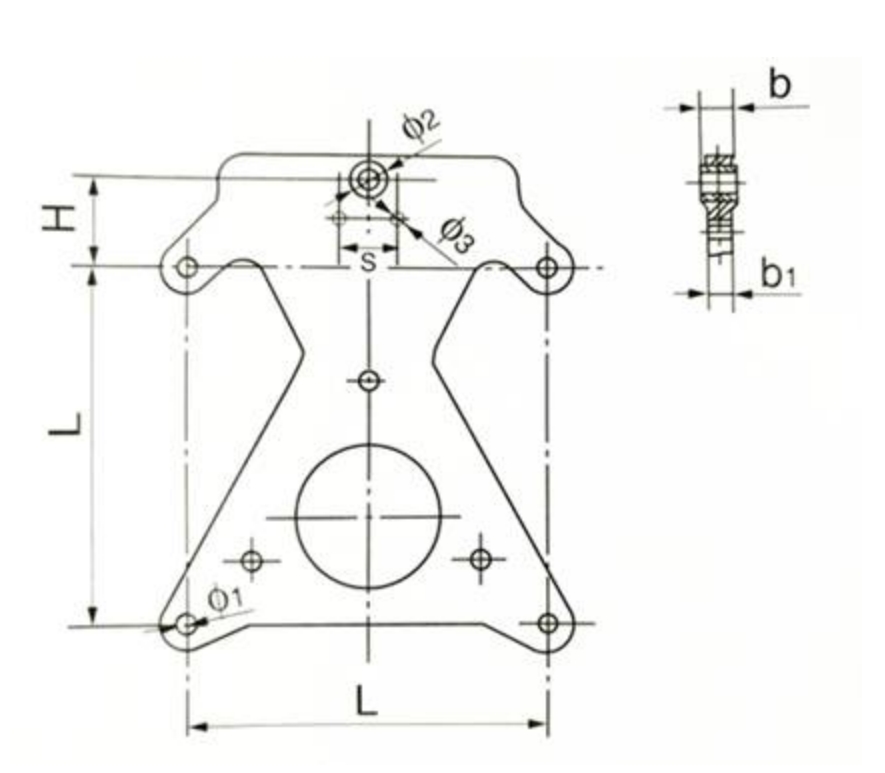

Catalogue No.	Dimensions (mm)								Nominal failure load (kN)	Weight (kg)
Catalogue No.	L	HOUR	Φ1	Φ2	Φ3	b	b1	S	Nominal failure load (kN)	Weight (kg)
LC-1645	450	95	20	26	28	28	28	80	160	26.0
LC-2145	450	95	18	30	-	26	18	-	210	20.0
LC-2545	450	95	20	33	18	30	18	80	250	+25.5
LC-3045	450	95	24	39	14	32	18	80	300	27.1
LC-3245	450	95	20	39	-	32	18	-	320	27.4
LC-4245	450	100	22	39	18	22	22	60	420	35.4
LC-1645A	450	95	20	26	18	18	18	80	160	26.0
LC-2145S	450	95	18	26	18	20	16	80	210	21.3
LC-2150S	500	95	18	26	18	20	16	80	210	+25.5
LC-3250S	500	95	20	33	18	28	18	80	320	29.0
LC-4250S	450	95	20	39	18	32	18	80	420	29.0
LC-6450S	500	95	20	45	18	36	18	80	640	30.5
