P type parallel celvis

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

The parallel fork can be customized according to customers' requirements.

Descriptions:

The parallel pin stud is made of stainless steel, and the other parts are made of galvanized steel. There are many types of forks with different shapes that are used in transmission lines. Parallel forks can be customized according to customer requirements.

Bid:

Parallel fork is a connecting clamp used for overhead power transmission line as a connecting fitting. Connecting fittings are used to connect and combine insulators, hanger clamps, strain gauge clamps and protective fittings to form a hanger or tension string.

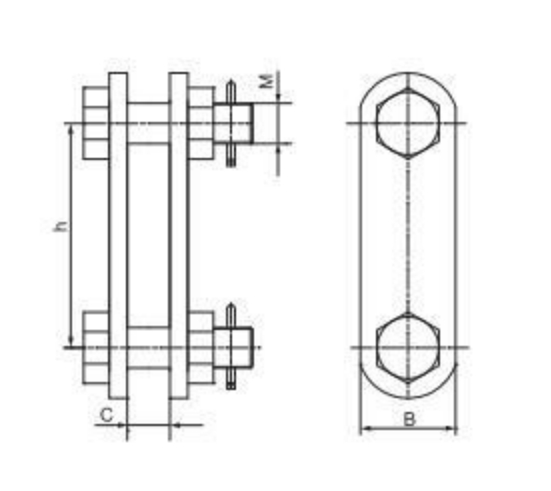

Catalog No .	Dimensions (mm)				Breaking load (KN)	Weight (kg)
Catalog No .	WITH	M	hour	IN	Breaking load (KN)	Weight (kg)
P-7	18	16	70	40	70	0.6
P-10	20	18	80	45	100	0.9
P-12	24	22	80	55	120	1.3
P-16	26	24	90	60	160	2.4
P-21	30	27	120	70	210	4.1
P-25	34	30	120	78	250	5.3
P-30	38	36	120	80	300	4.8
