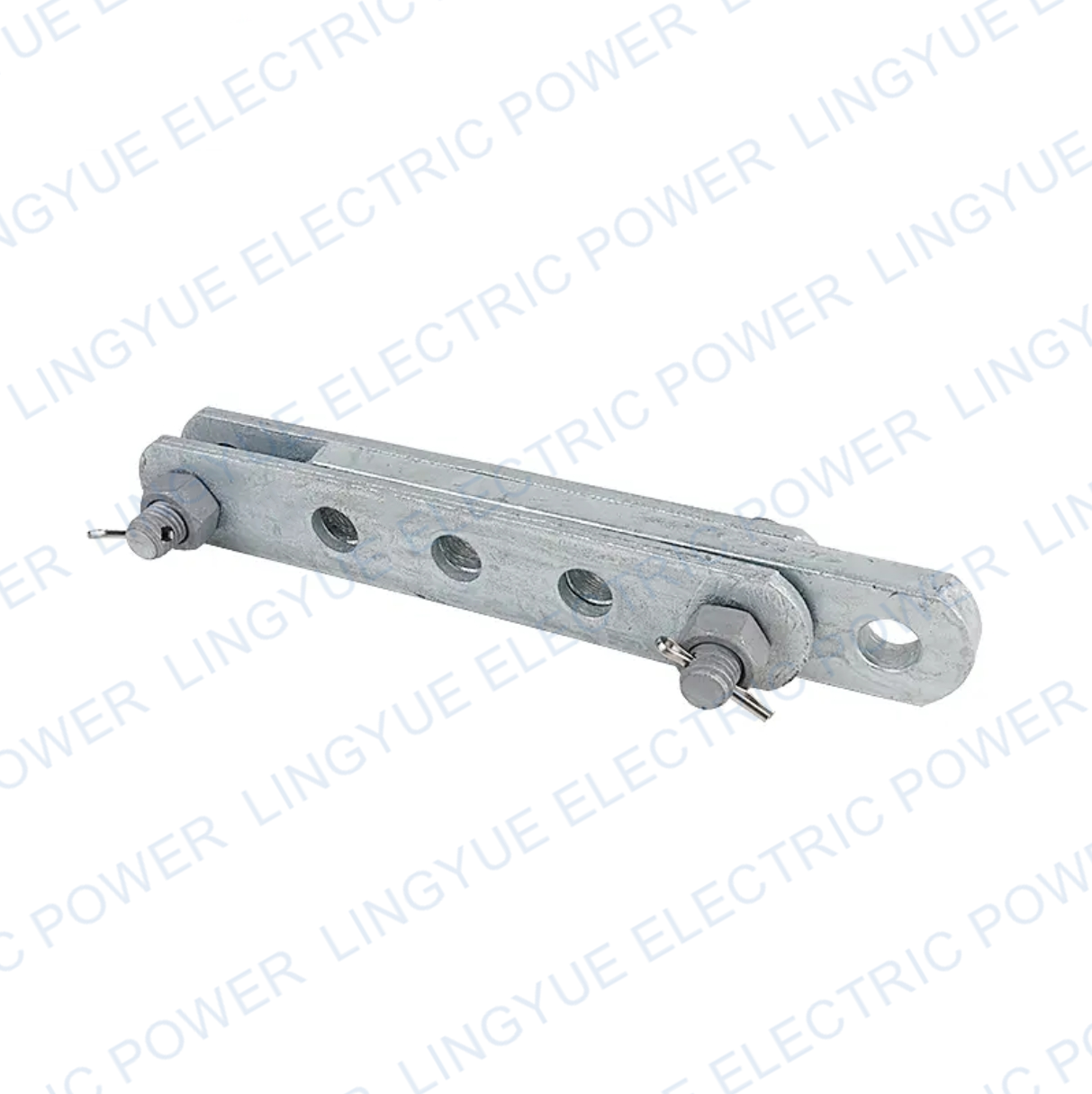

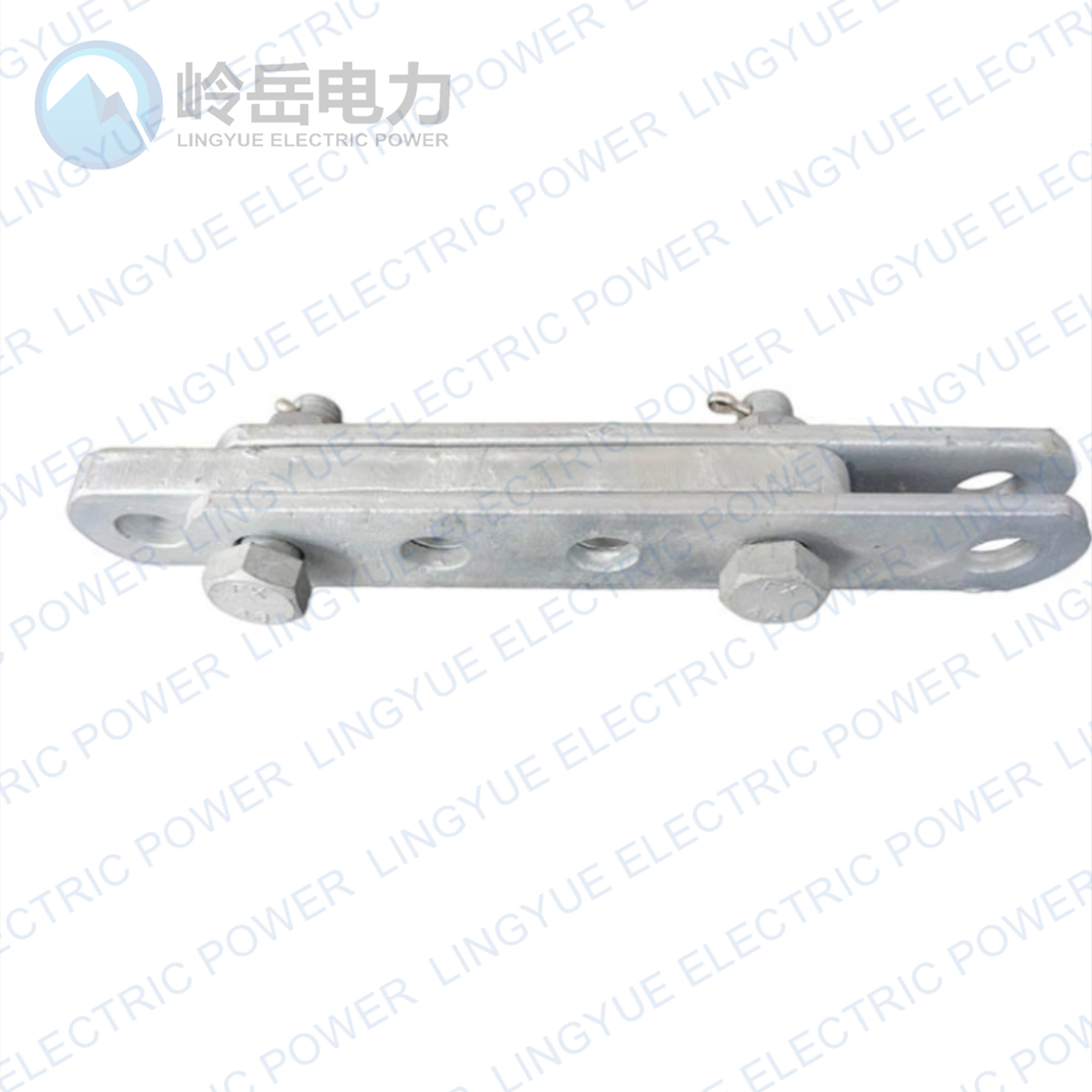

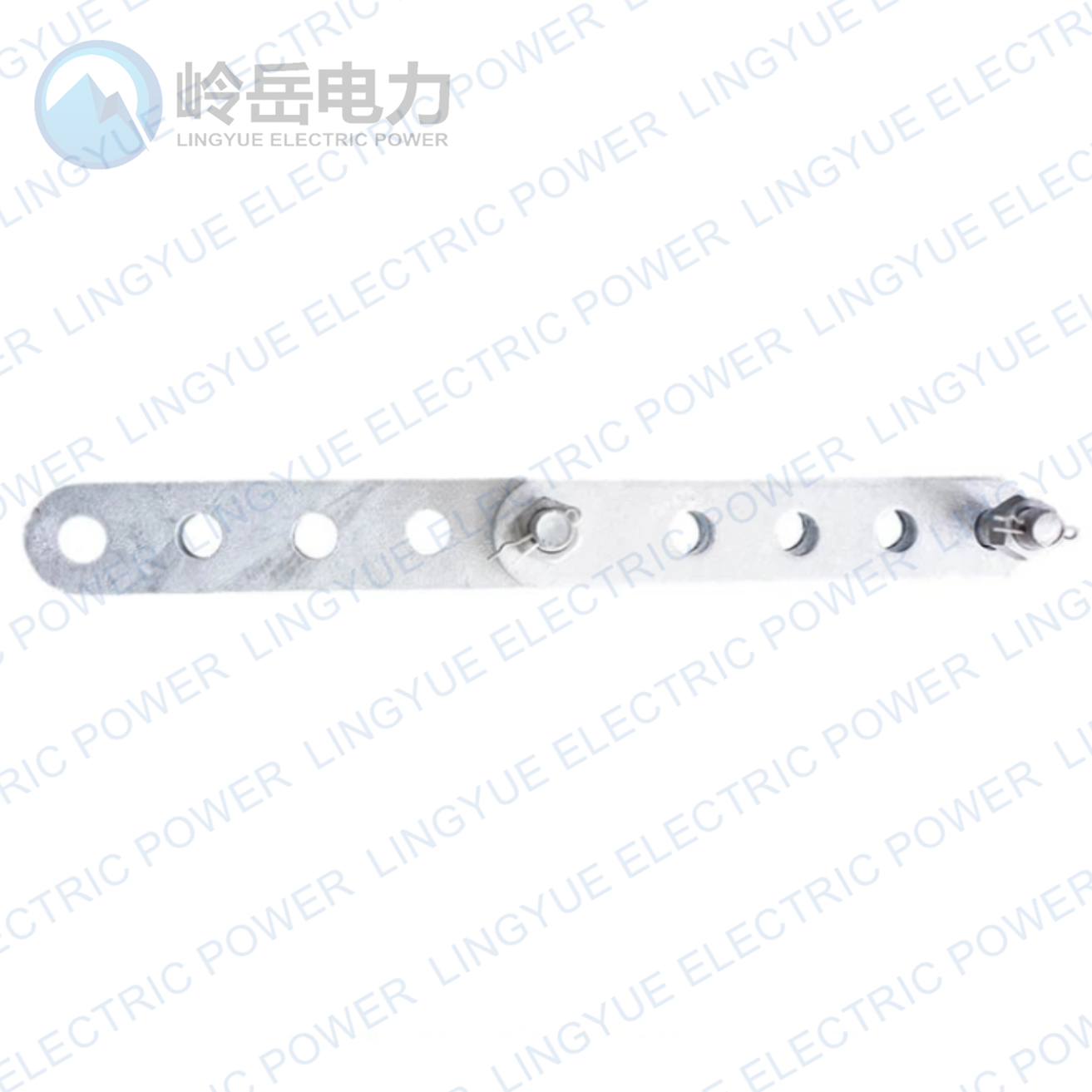

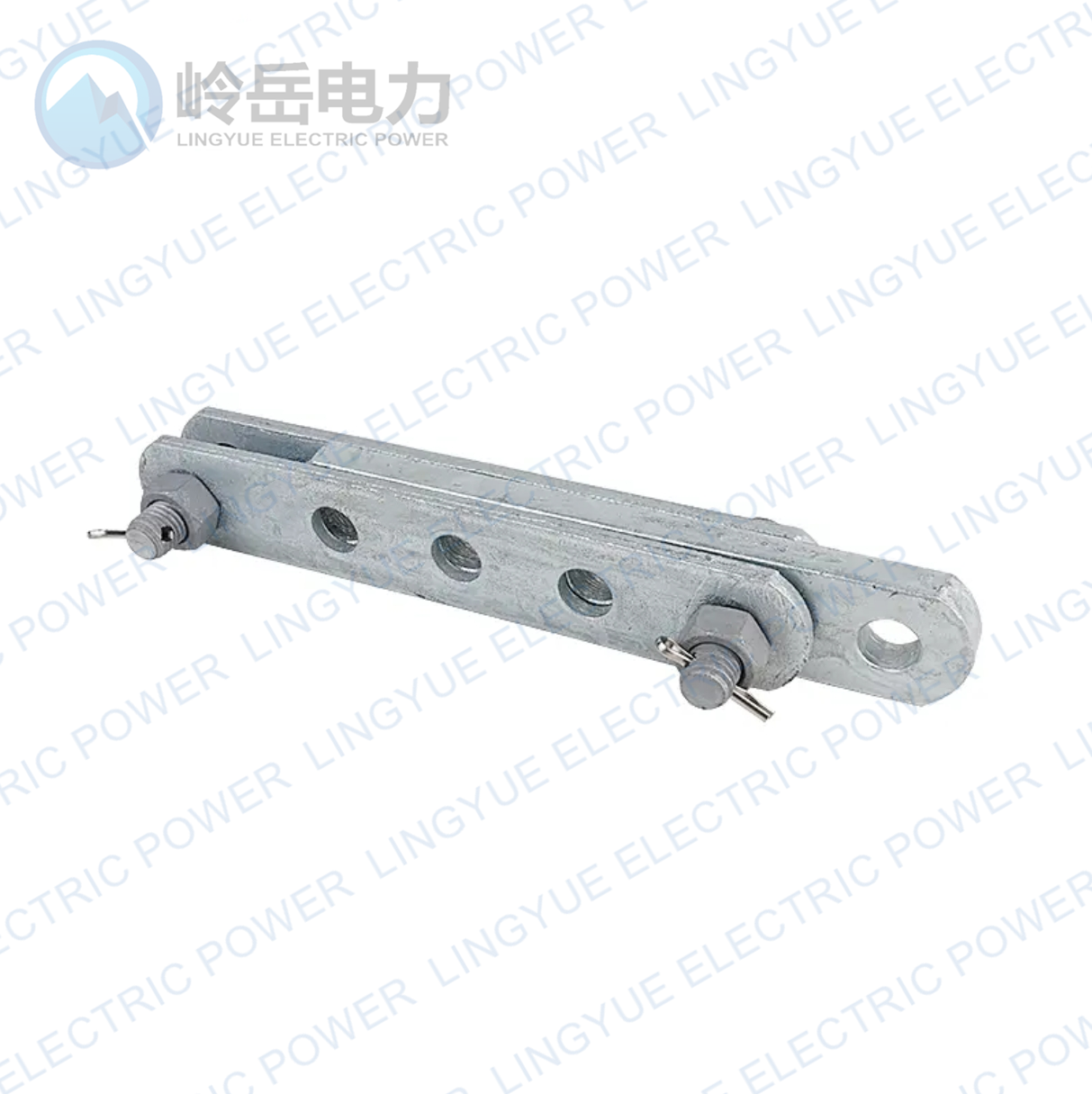

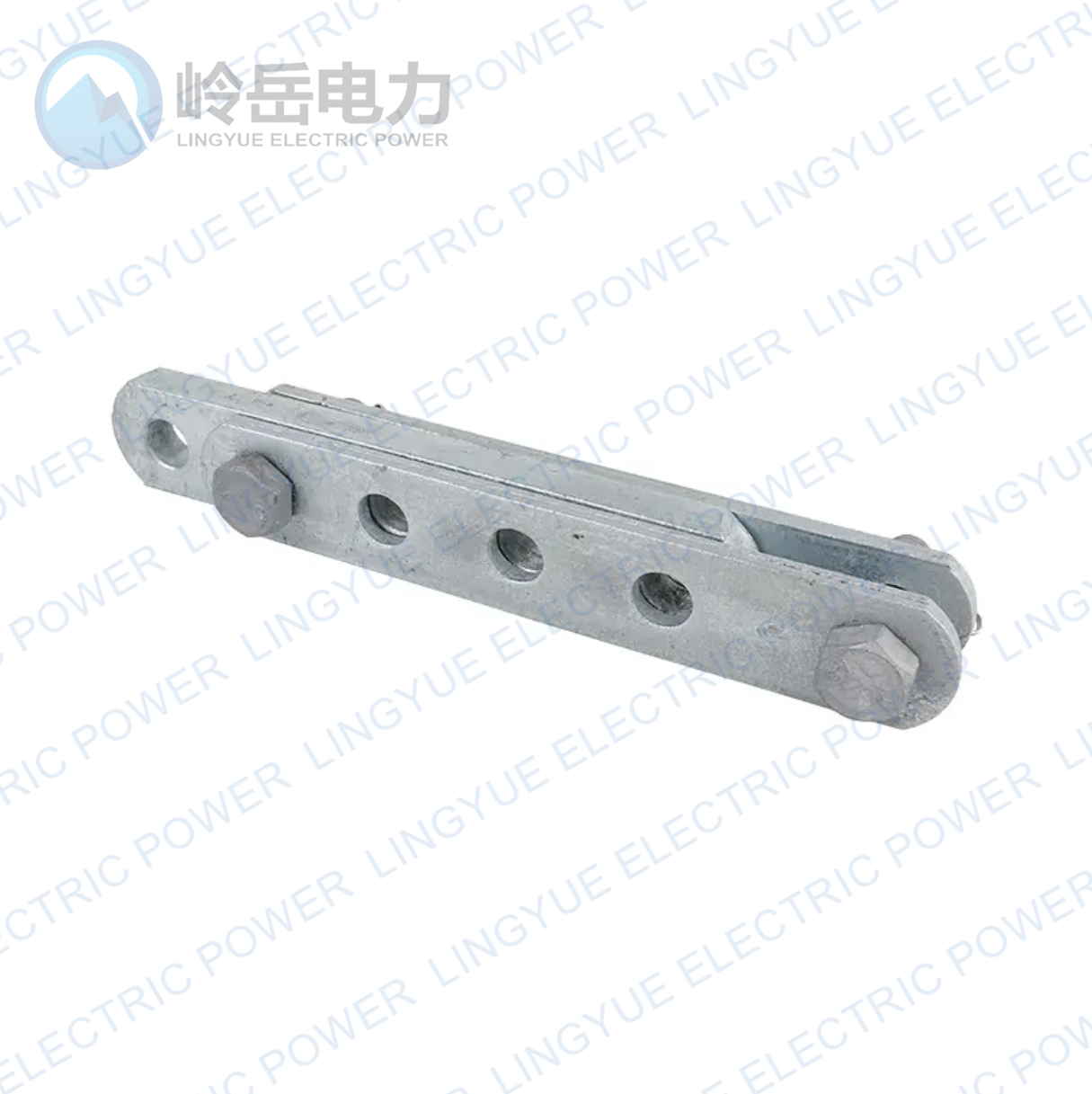

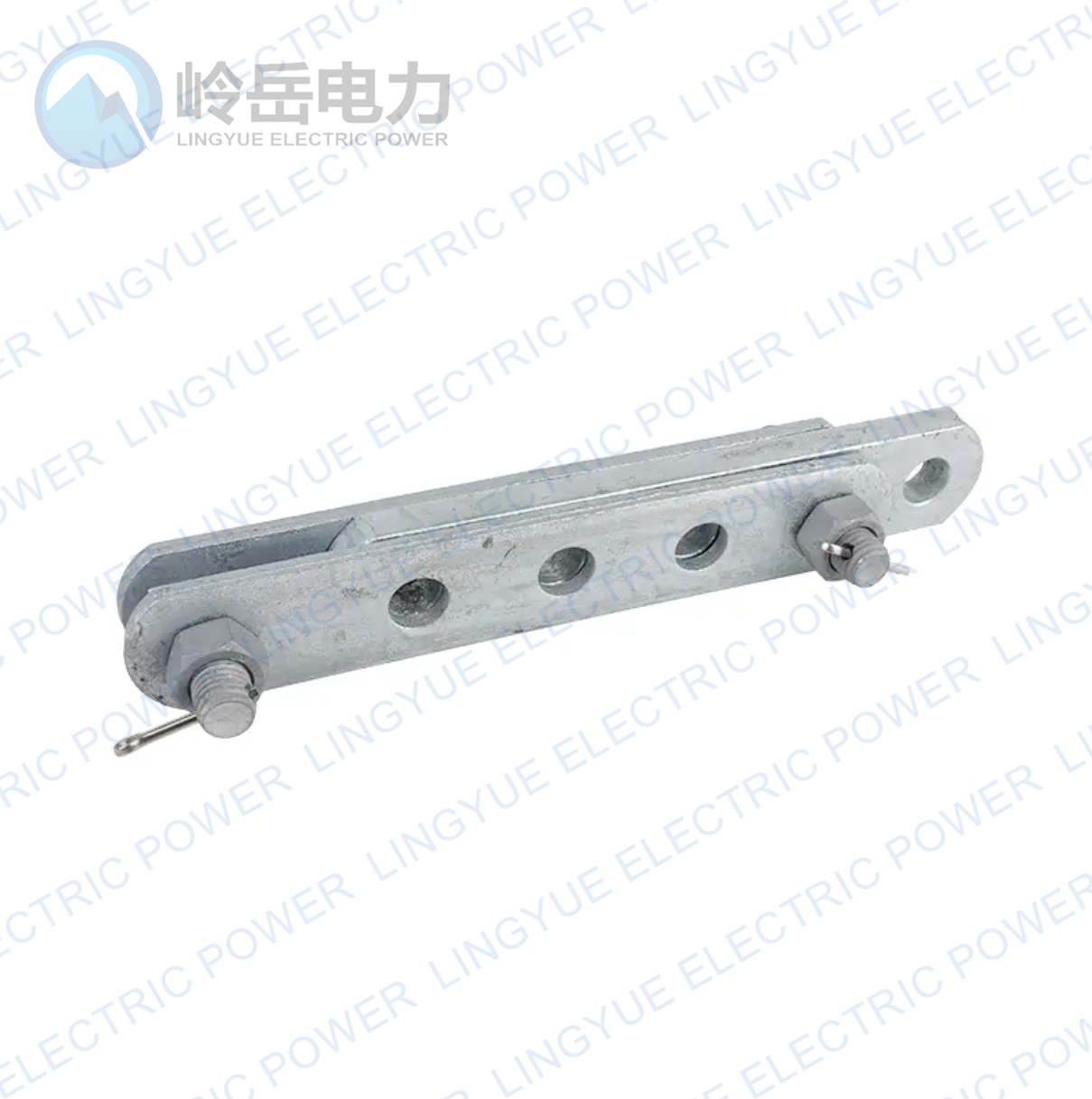

PT ajusting plate
Product Introduction

PT adjust plate is link fitting used in overhead line accessories.

It can be used to link clamps to insulator, or to link insulator and ground wire clamp to tower arms or subjection structure.



Cotter pin are stainless steel.



The other part is hot-dip galvanized steel.


Item No.

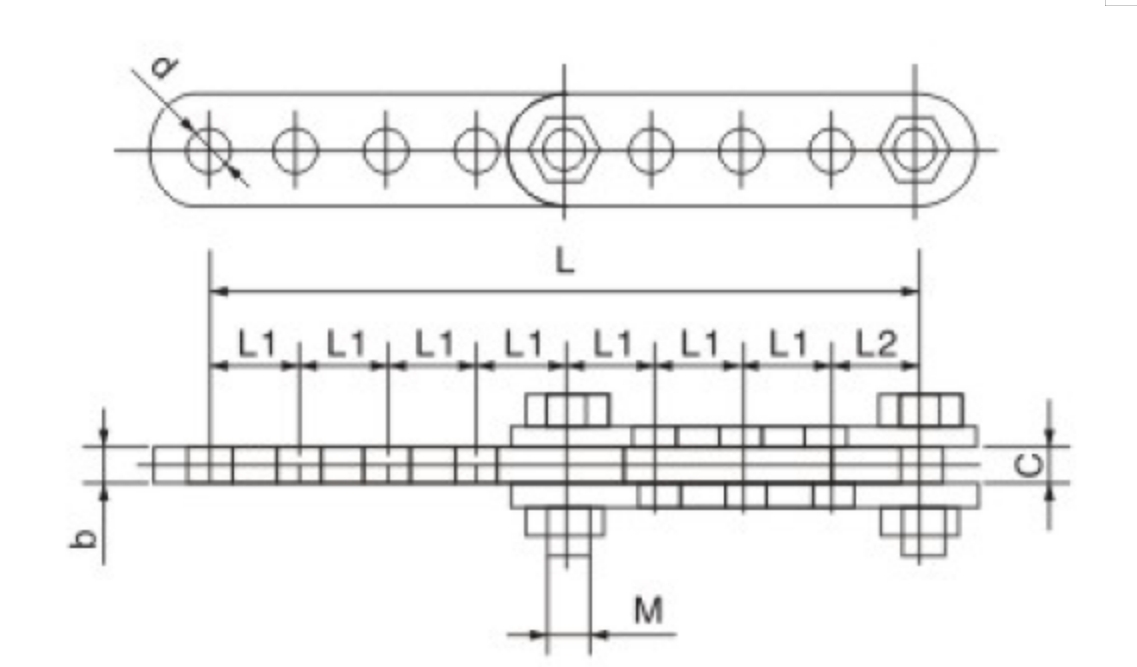

Dimension(mm)

Rated Failure load(kN)

Weight  (Kg)

L1

L2

M

d

b

c

L

PT-7

45

60

16

18

16

18

225

345

70

2

PT-10

50

65

18

20

16

20

225

300

100

2.9

PT-12

60

75

22

24

16

24

300

465

120

5.2

PT-16

65

50

24

26

18

26

325

505

160

7

PT-20

70

60

27

29

24

30

350

550

200

10.14

PT-30

80

70

36

39

32

38

400

630

300

14

PT-50

160

80

42

45

38

40

740

1280

500

24.6

PT-60

180

90

48

51

42

44

820

1390

600

34.6
