QH ball eye

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

The ball eye or ball bearing for transmission line is made of galvanized steel. The size can be designed according to requirements.

Descriptions:

The ball eye or ball bearing for transmission line is made of galvanized steel. The size can be designed according to requirements.

Bid:

The transmission line ball eye is used to fix ball insulators and socket insulators to other related hardware.

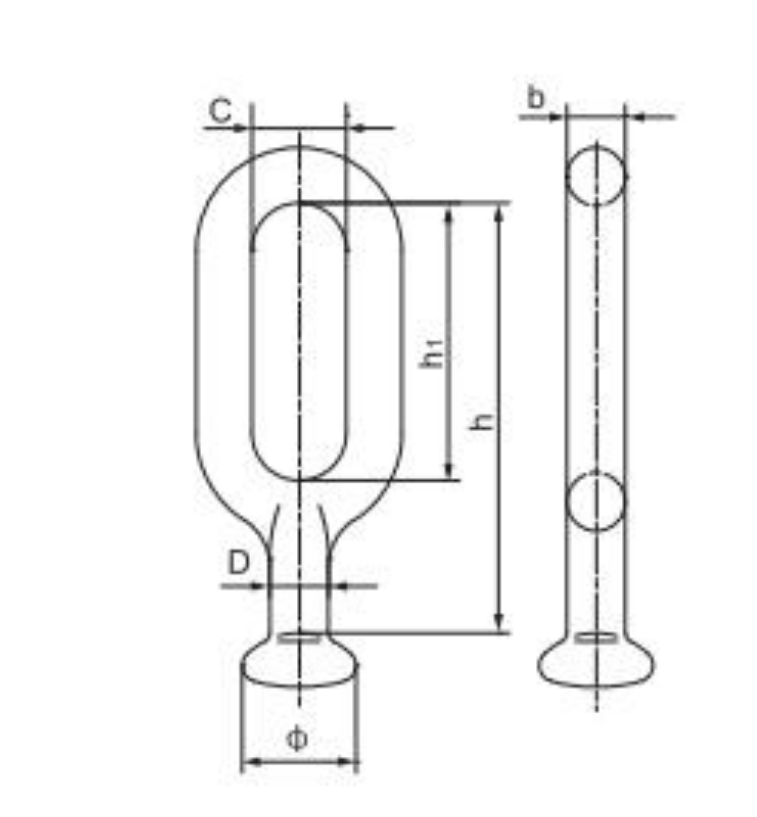

Catalog No .	Dimensions (mm)						Breaking load (kN)	Weight (kg)
	Φ	HOUR	H1	WITH	D	IN
QH-7	33.3	114	57	24	17	16	70	0.6
QH-10	33.3	110	60	22	17	18	100	0.8
QH-12	33.3	120	70	22	17	18	120	0.9
QH-16	41.0	127	80	34	21	20	160	1.2
QH-21S	41.0	155	100	34	21	20	210	1.2
QH-25S	49.0	165	100	34	25	24	250	1.8
QH-32S	49.0	175	110	34	25	28	320	2,2
