TC thimble clevis

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

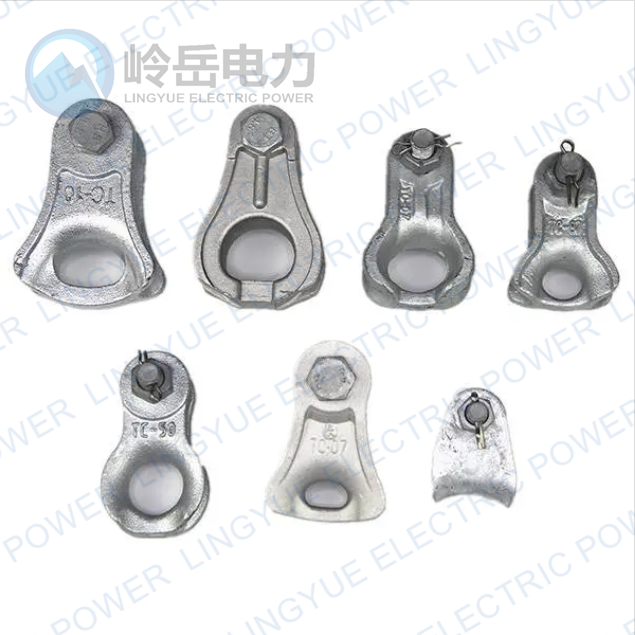

The thimble clevis is applied as interface fitting to connect the guy grip to dead-end insulator or U clevis. The unique design thimble clevis is widely used on pole lines, overhead lines, and transmission tower lines.

The thimble clevis is hot-dip galvanized casting iron or formed steel thimble with many kinds of structures. The thimble clevis is designed with a smooth internal contour to burden the stress concentration on the guy grip loop. The complete set includes casting thimble clevis body and bolt & nut. The bolt is to lock the U clevis and ball socket when completing the installation.

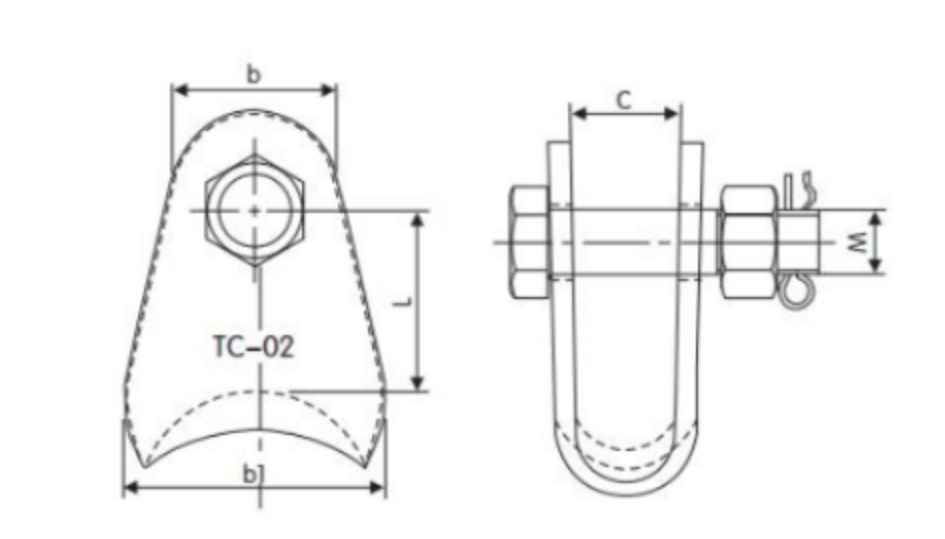

Catalog No.	Main dimensions（mm）					Specified failure load（KN）	Weight（kg）
	b	b1	L	C	M
TC-02	32	48.5	35	18	12	20	0.23

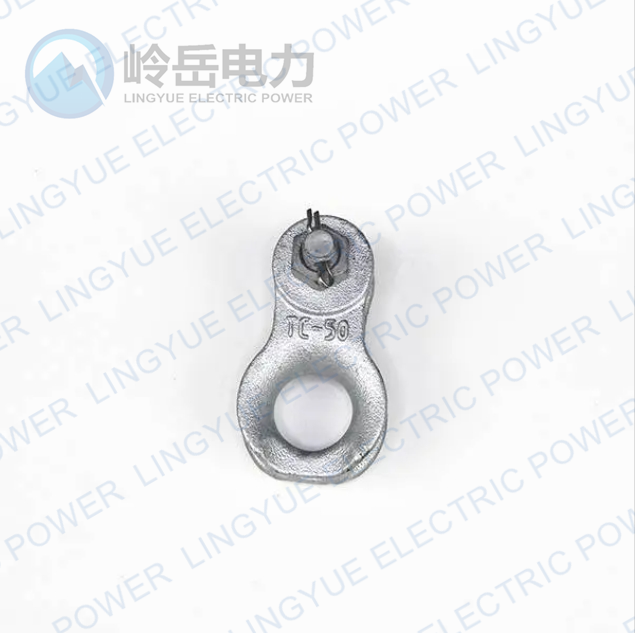

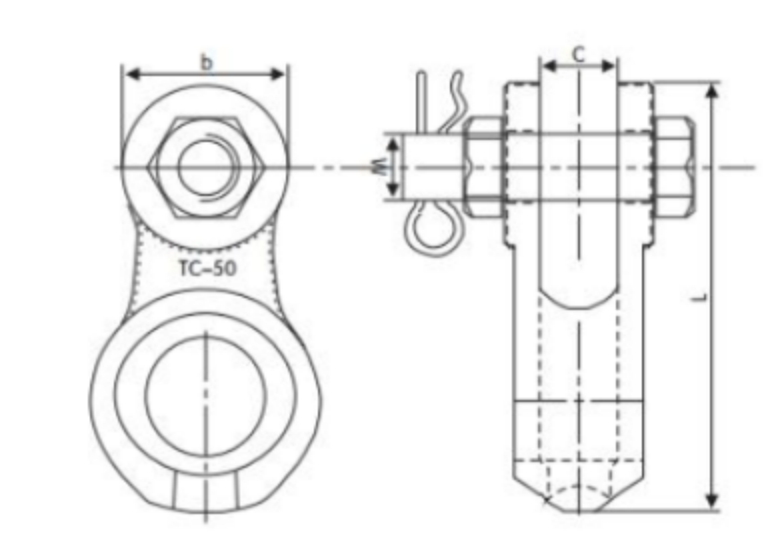

Catalog No.	Main dimensions（mm）				Specified failure load（KN）	Weight（kg）
	L	b	C	M
TC-50	104	40	18	14	50	0.41

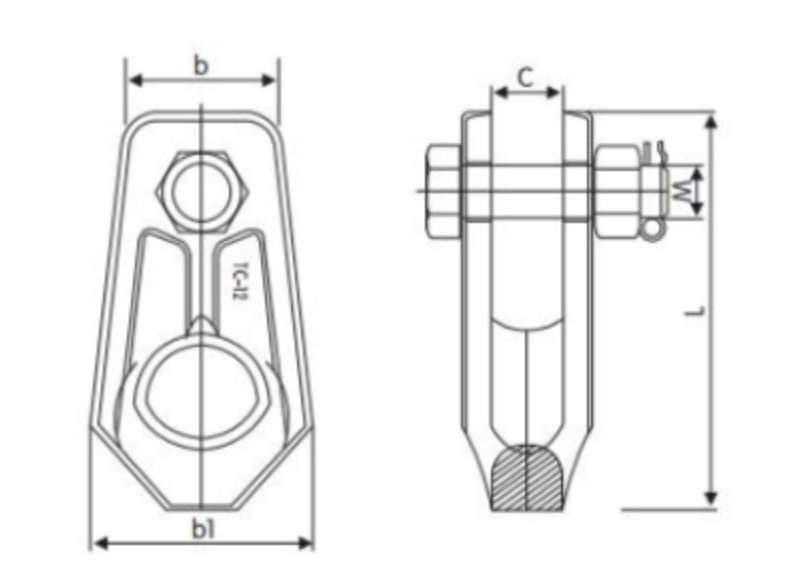

Catalog No.	Main dimensions（mm）					Specified failure load（KN）	Weight（kg）
	L	b	B1	C	M
TC-12	135	50	76	23	18	120	1.29
TC-16	152	50	86	24	18	160	1.69

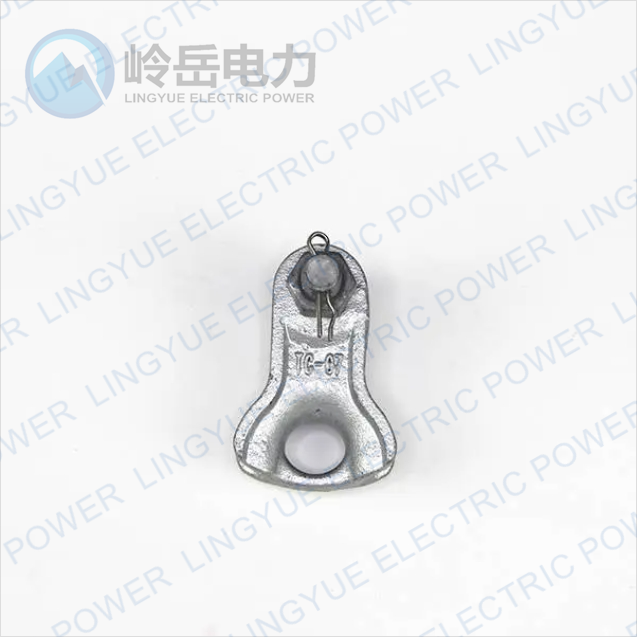

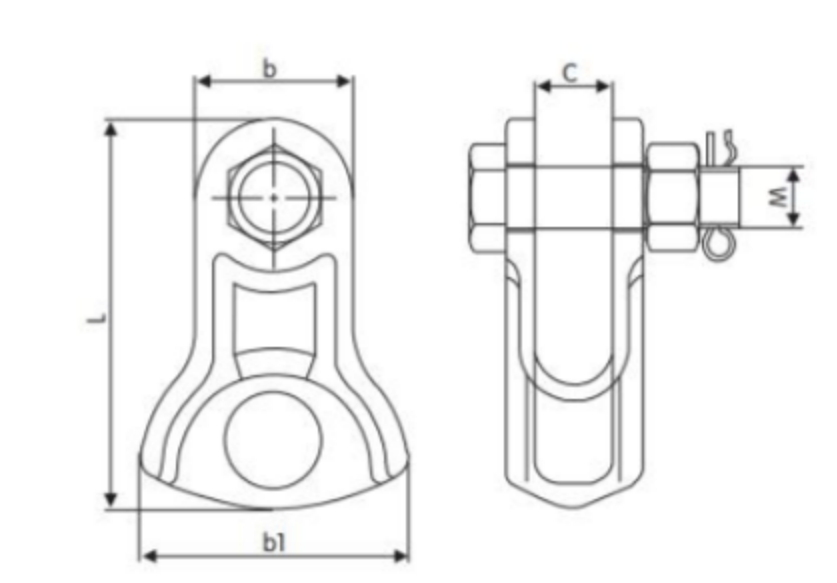

Catalog No.	Main dimensions（mm）					Specified failure load（KN）	Weight（kg）
	L	b	b1	C	M
TC-07	113	42	66	22	16	70	0.8

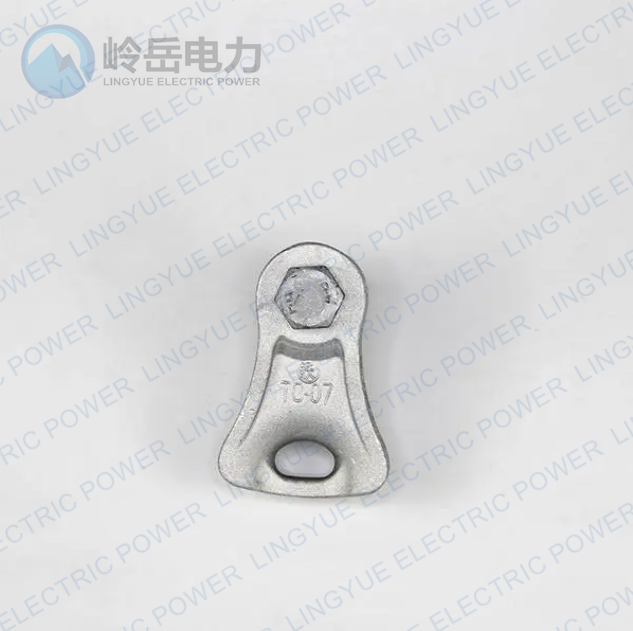

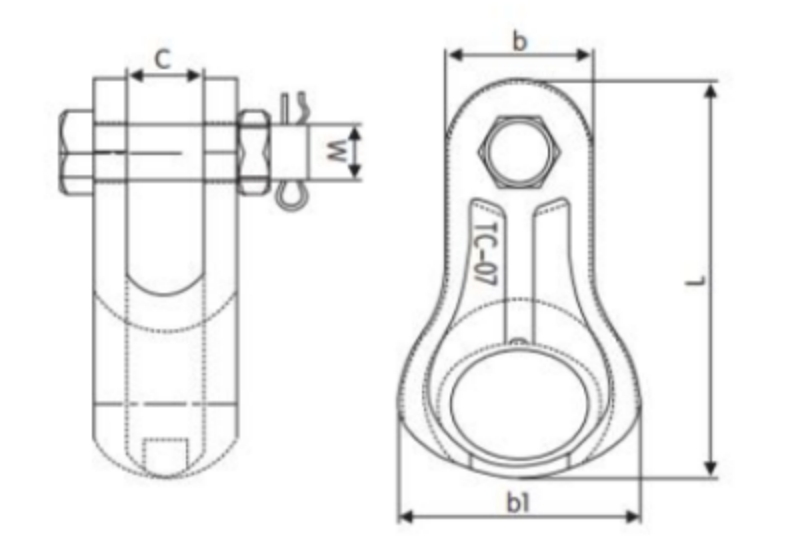

Catalog No.	Main dimensions（mm）					Specified failure load（KN）	Weight（kg）
	b	b1	L	C	M
TC-07	38	65	96	20	13	70	0.56

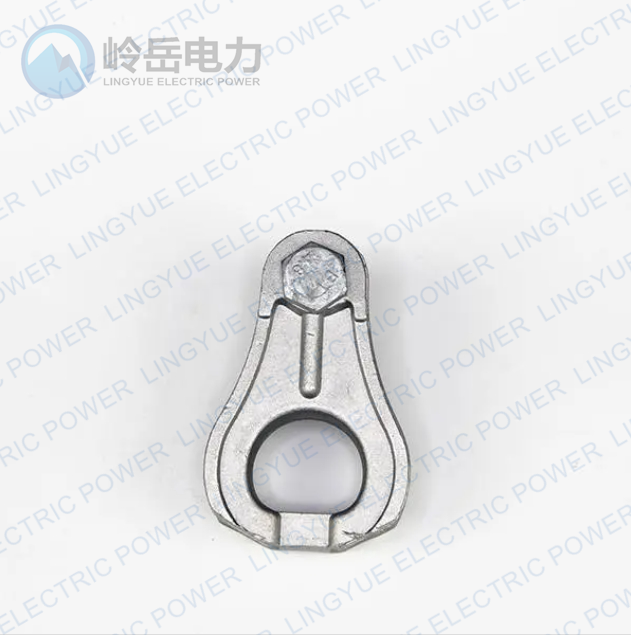

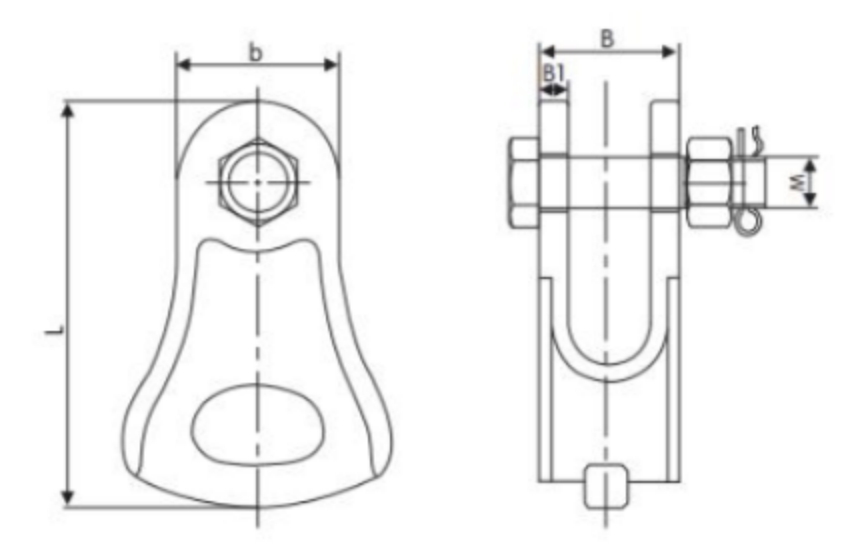

Catalog No.	Main dimensions（mm）					Specified failure load（KN）	Weight（kg）
	b	B	B1	L	M

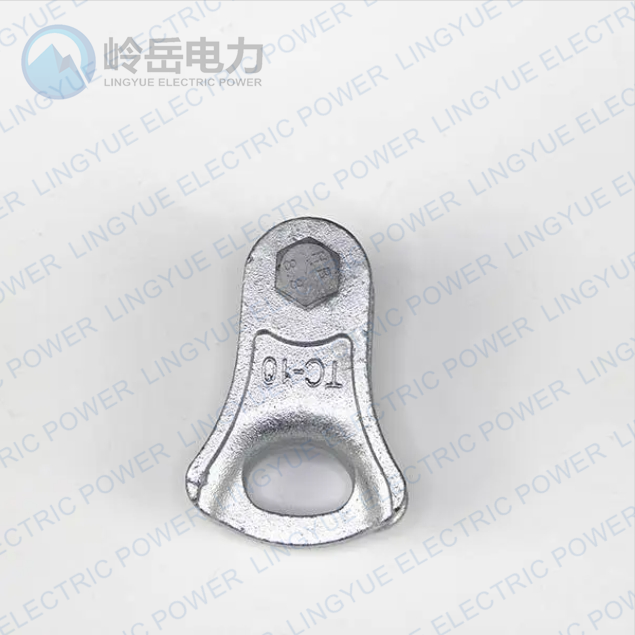

TC-10	50	44	9	126	16	100	0.9
TC-12	50	46	10	132	18	120	1.05
TC-16	54	48	11	136	20	160	1.15

Catalog No.	Main dimensions（mm）						Specified failure load（KN）	Weight（kg）

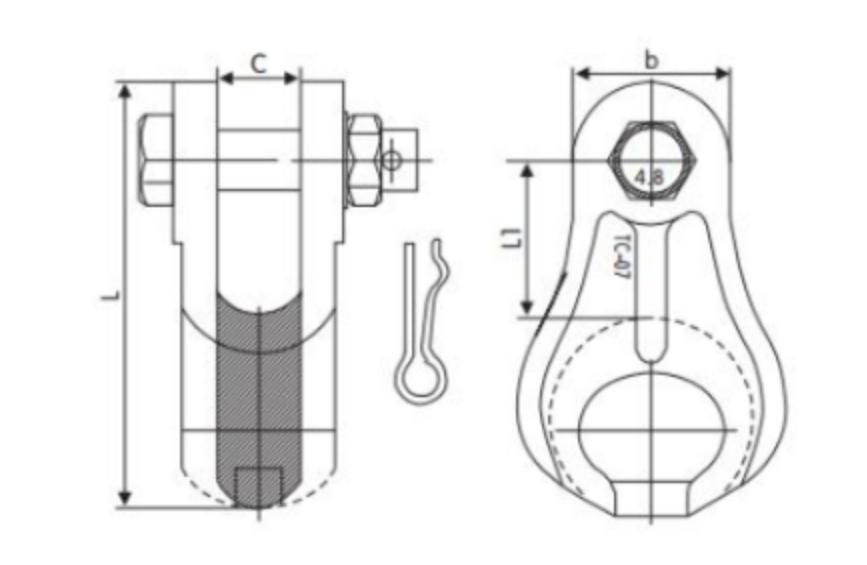

Catalog No.	L	L1	b	d	C	M	Specified failure load（KN）	Weight（kg）
TC-07	121	43	41	37	18	16	70	0.45
