U type bolt

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

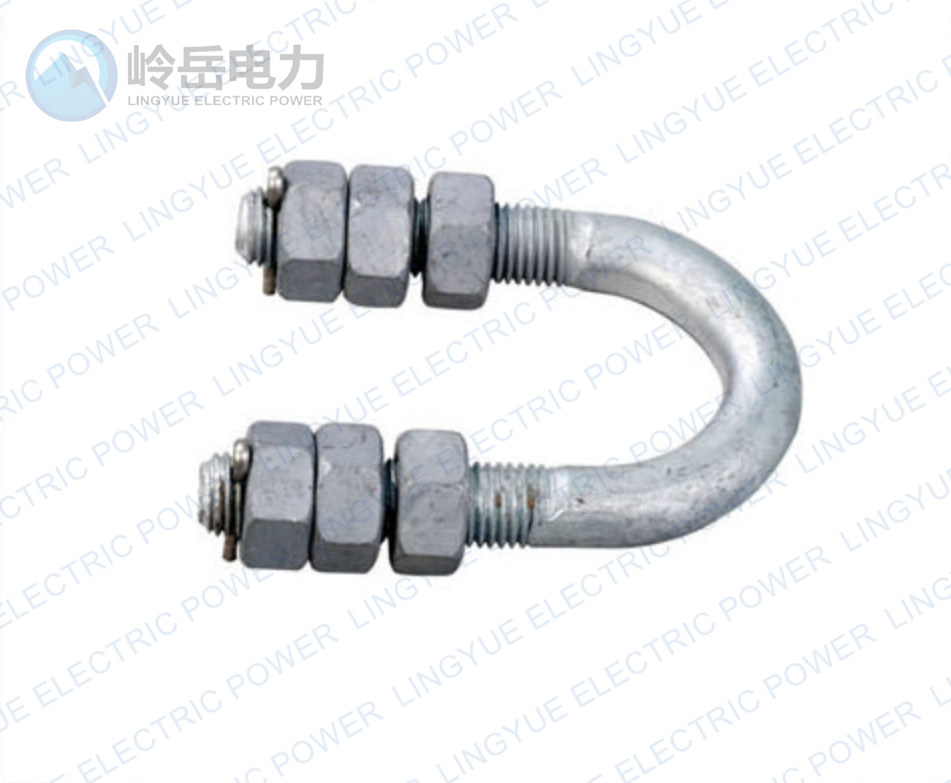

U bolt is also u bolt clamp, or u clamp, just as the name suggests, this bolt for power and telecommunication line assumes a U-shape. Like other bolts for the electrical overhead line, U-shape is used for connecting dead end and even power line to the pole. It can be used on both the wooden and concrete poles.

Although they are known as U bolt, they are not all the same. Instead, there are some slight variations in the way that they are designed.

These variations of U bolts are; Round U bolt, Square U bolt, and Semi-round U bolt. All these designs or shapes of U bolts can be used on concrete poles.

U bolts for overhead powerline come in different sizes. The smaller ones are mainly used for connecting ball sockets and tension clamps.

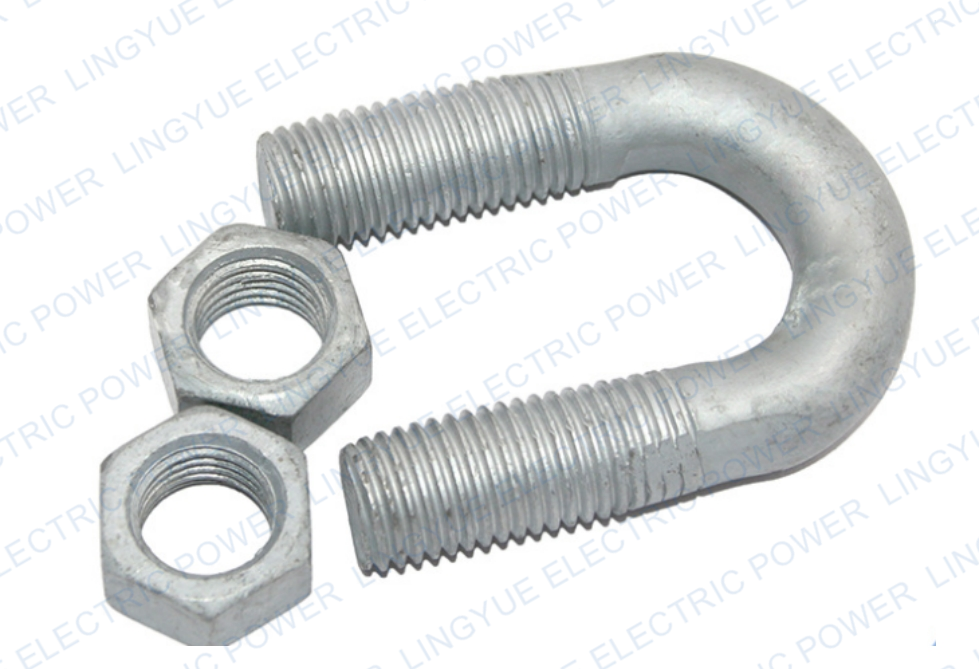

In terms of the construction, our U bolts are made of steel rod. This material is known for being strong and durable. It has a high tensile strength that can withstand external forces.

The steel rod is galvanized with a zinc coating that provides surface protection. The coating mainly protects against corrosion.

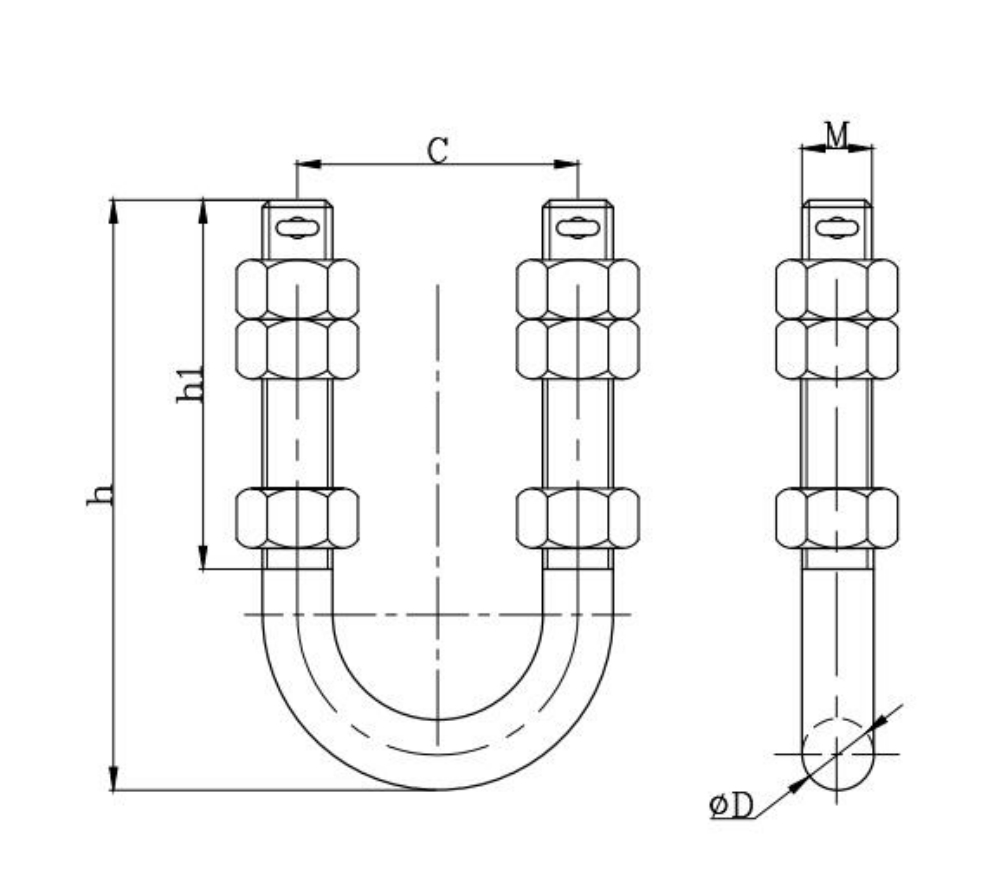

Catalogue No.	Dimensions (mm)					Nominal failure load (kN)	Weight (kg)
	WITH	M	D	hour	h1
U-1240	40	12	12	80	45	35	0.4
U-1440	40	14	14	90	60	35	0.42
U-1470	70	14	14	120	70	40	0.46
U-1660	60	16	16	90	60	50	0.6
U-1670	70	16	16	140	70	50	0.8
U-1680	80	16	16	122	80	50	0.62
U-1870	70	18	18	122	85	60	0.9
U-1880	80	18	18	122	80	60	0.9
U-2062	62	20	20	180	130	70	1.3
U-2070	70	20	20	125	95	70	1,1
U-2080	80	20	20	130	90	70	1,1
U-2090	90	20	20	145	90	70	1.4
U-20100	100	20	20	130	90	70	1.3
U-2280	80	22	22	138	95	100	1.4
U-2490	90	24	24	132	78	120	1.6
