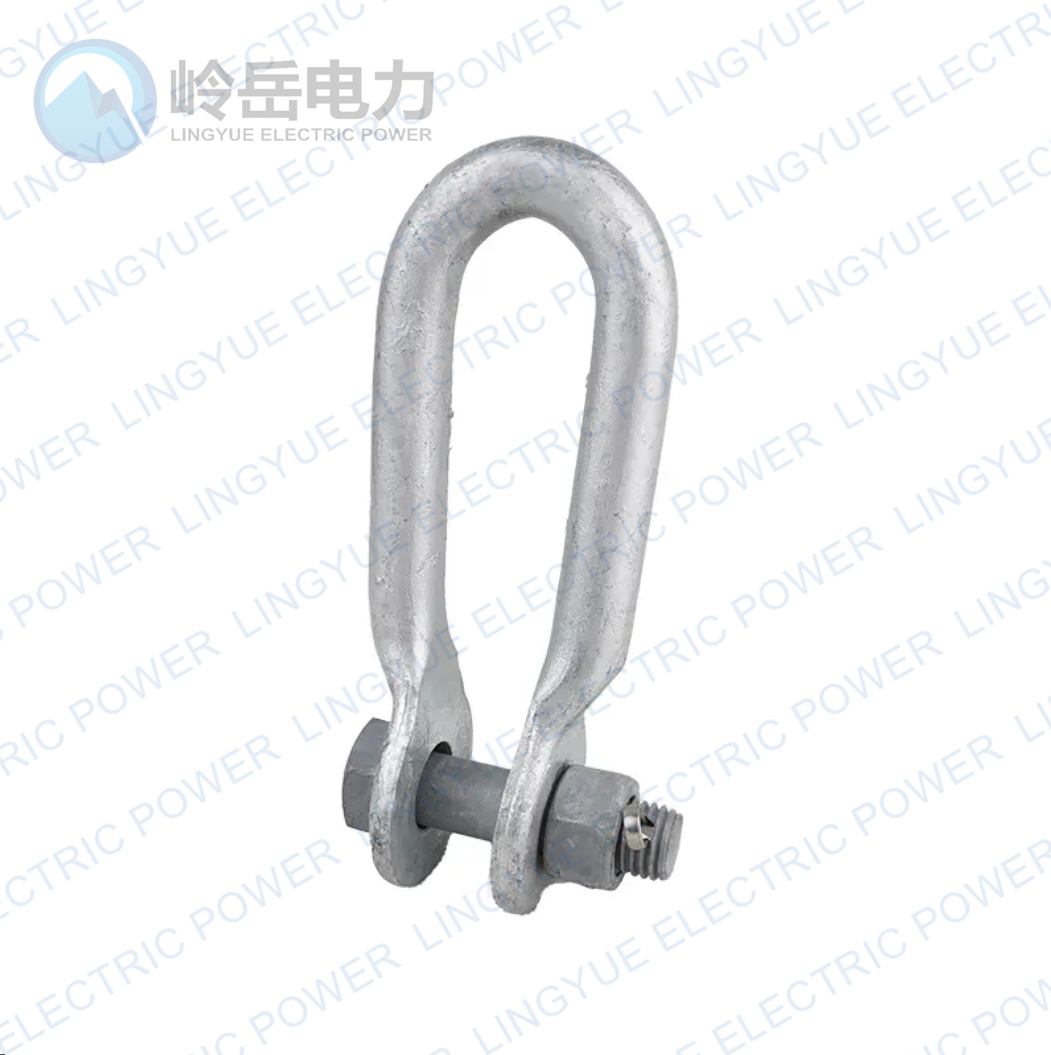

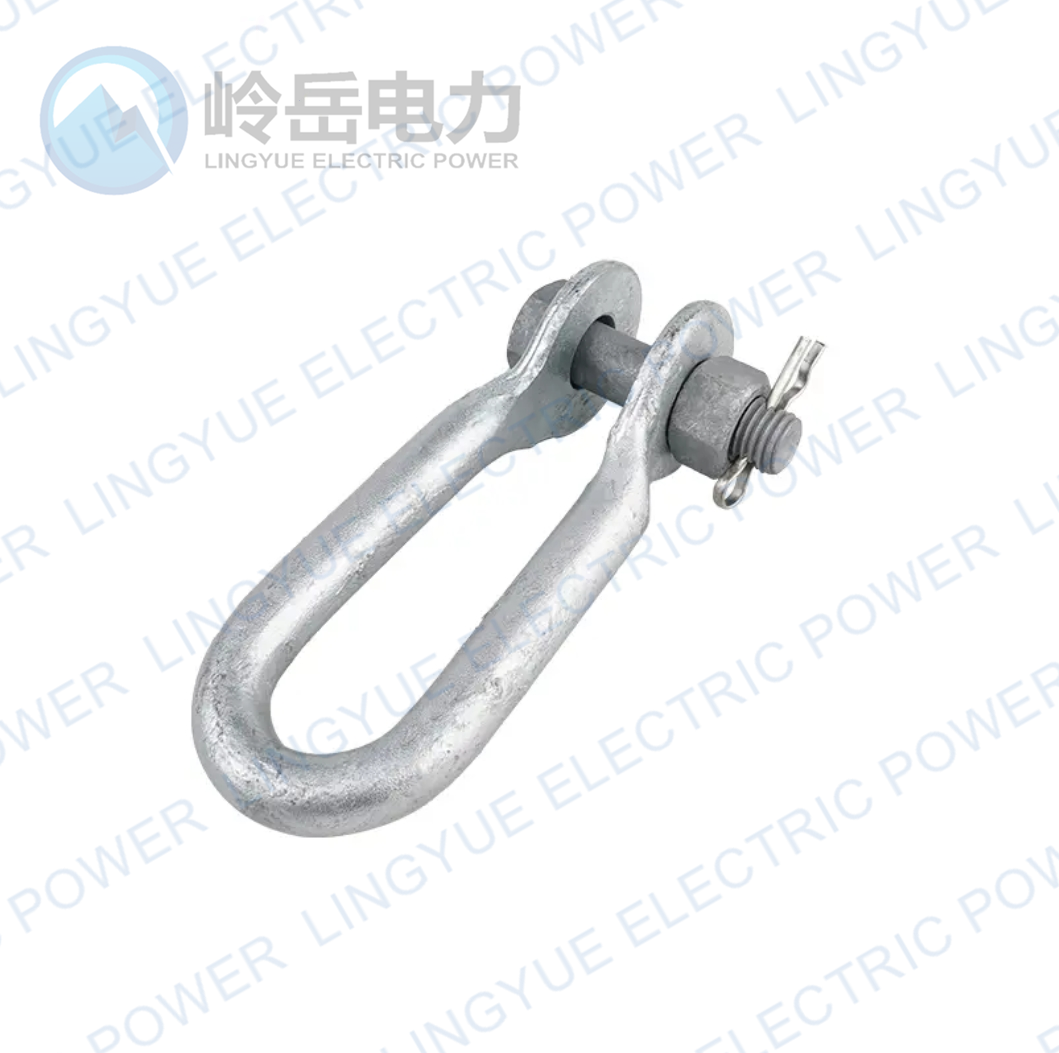

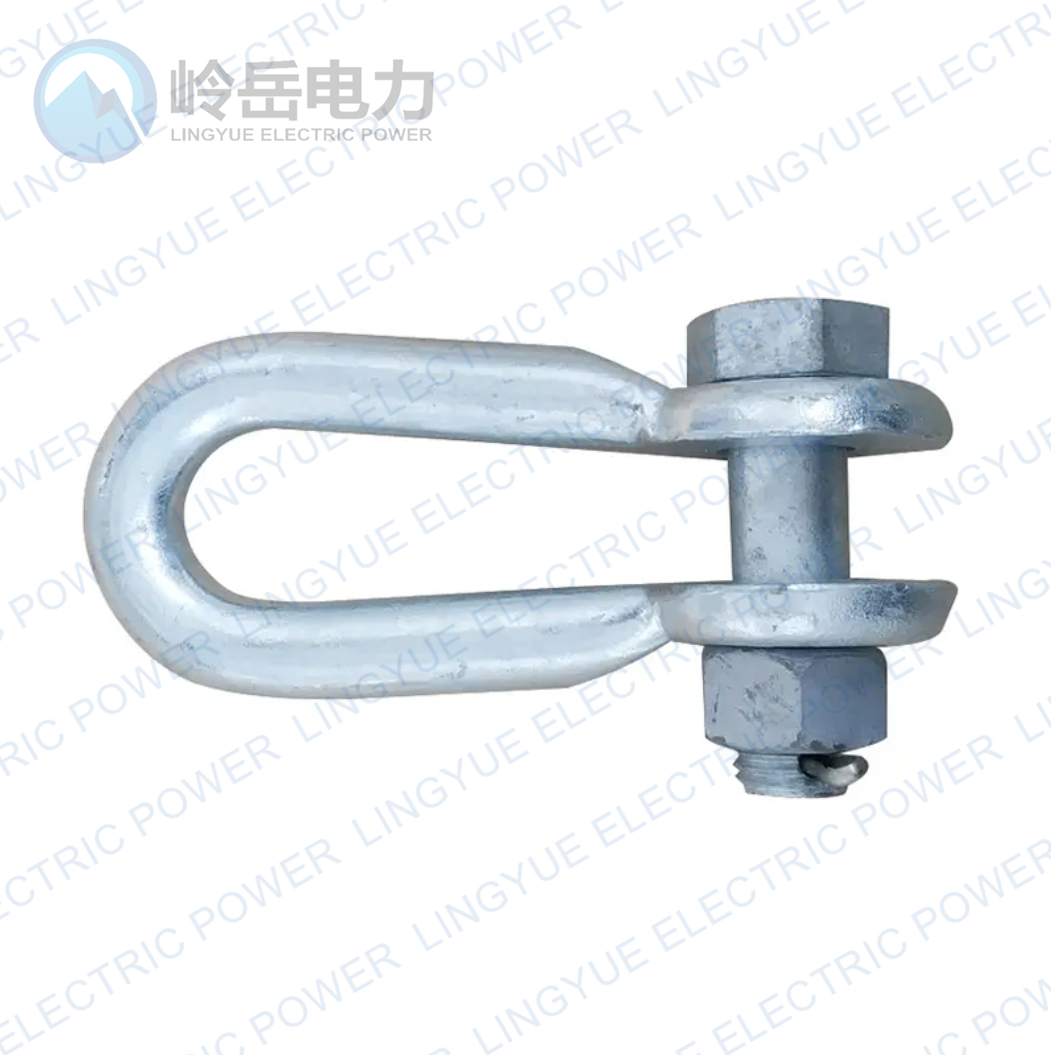

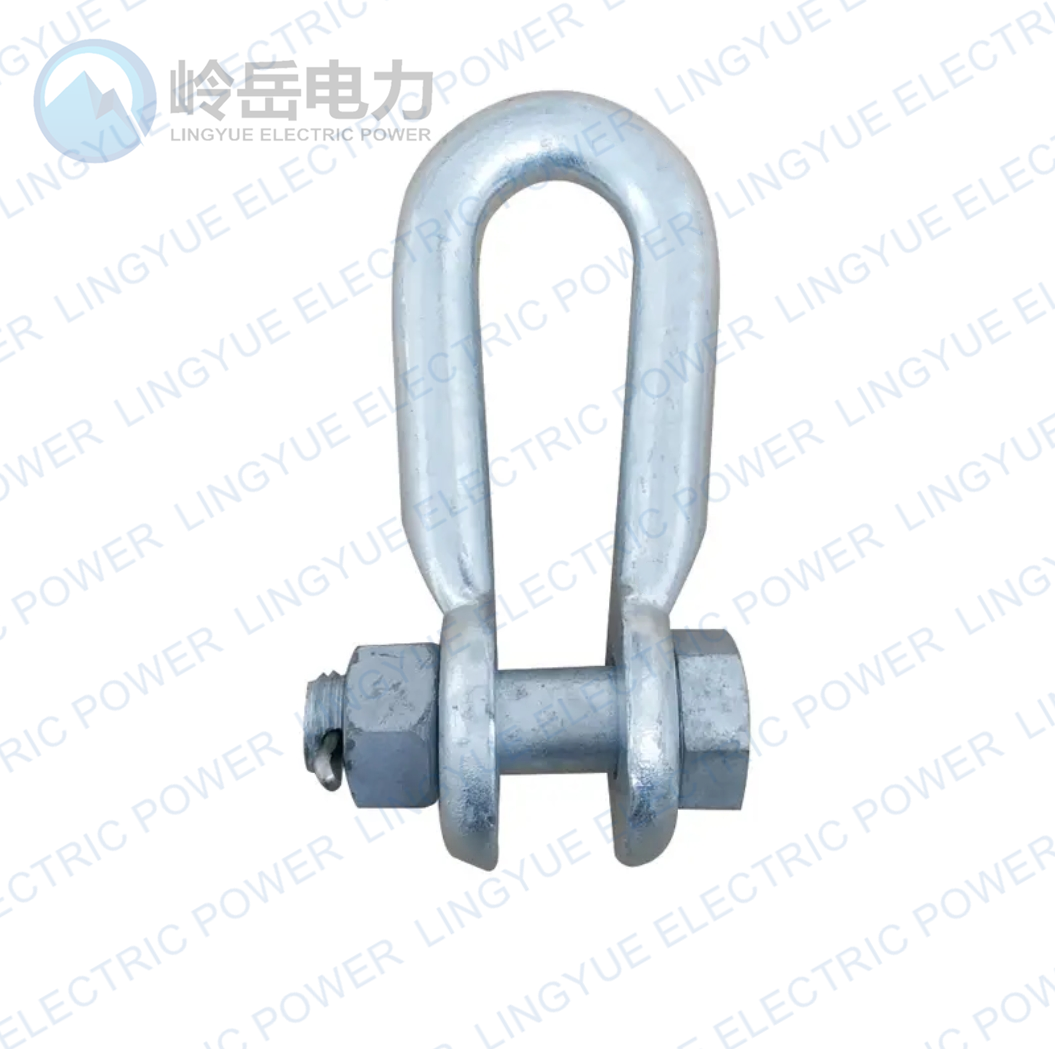

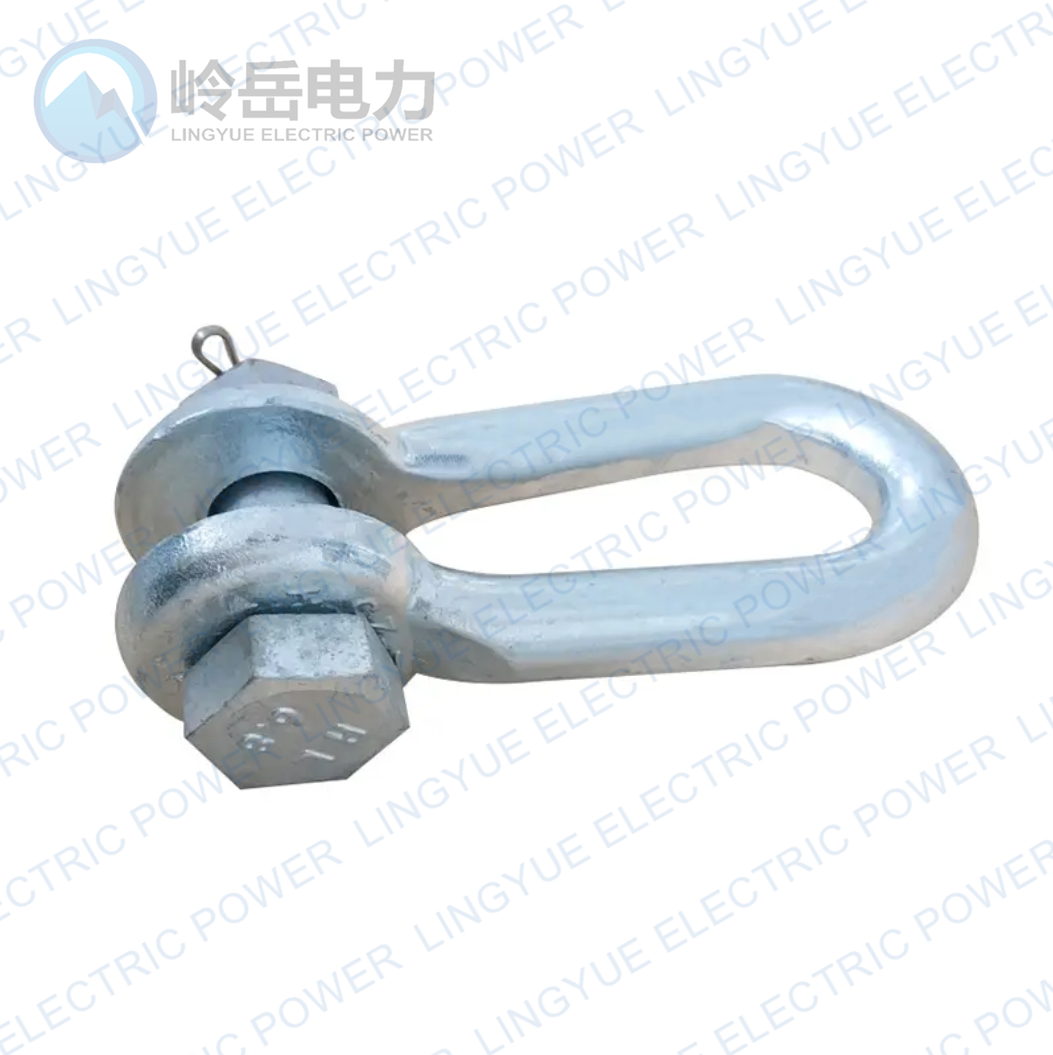

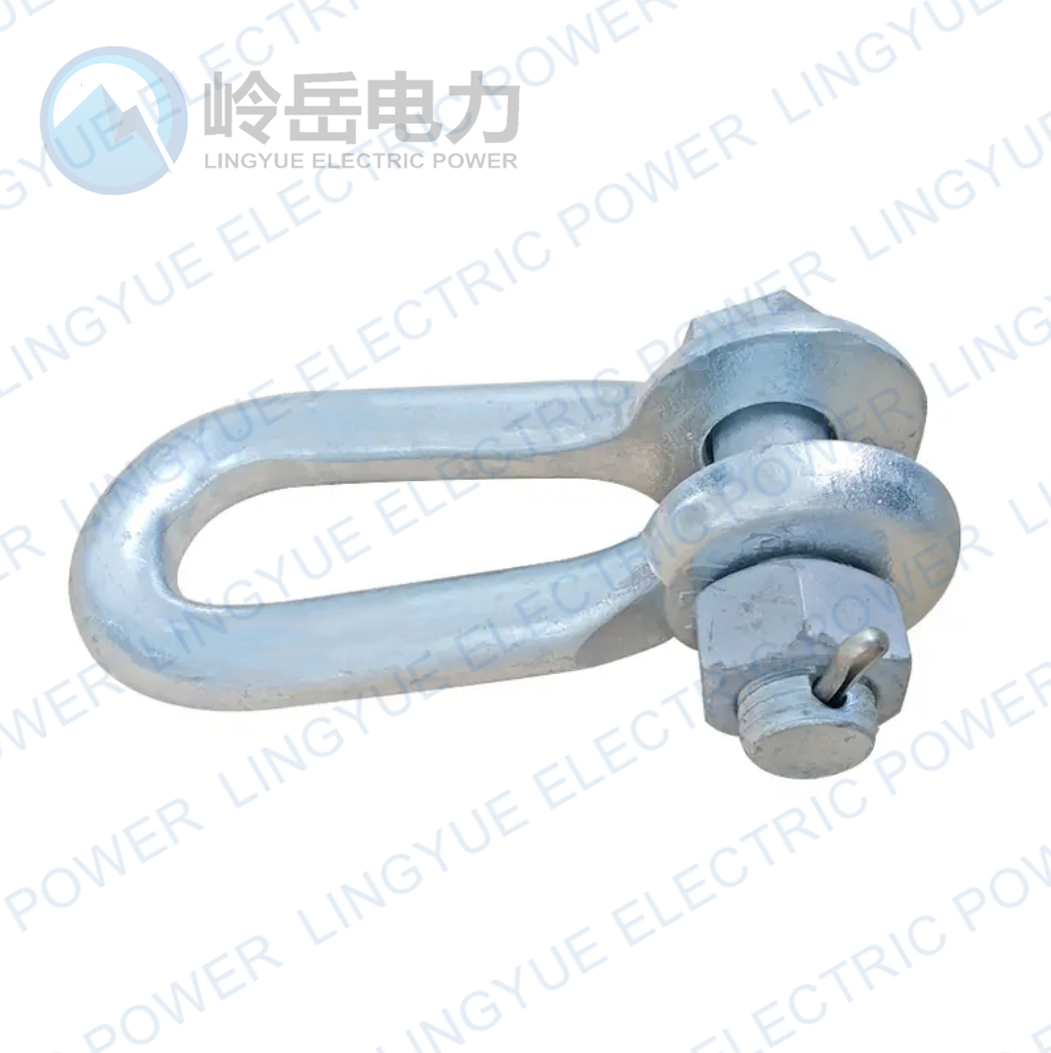

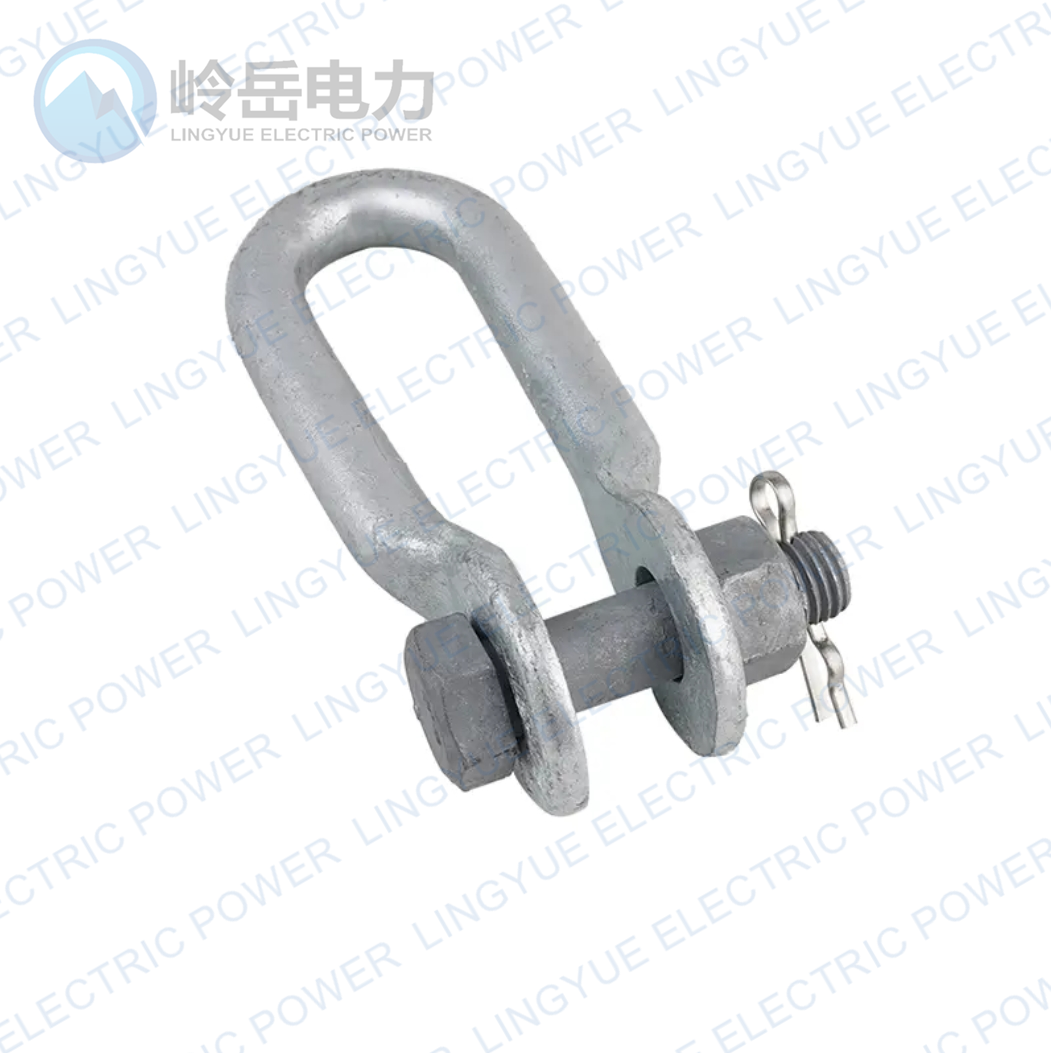

U type shackle

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

U type shackle is used for connecting insulator string of transformer substation to overhead transmission line or fixing stranded wire to pole。

U type shackle is made of hot-dip galvanized steel, which is mainly used for wiretapping of power transmission lines and substations. It is forged from round steel and can be used alone or in series. Overhead transmission line shackle is widely used to change the angle and extend the strain gauge.

The U-shaped anchor bracket is commonly used in various industries such as marine, construction, and mining. It is designed to hold and connect objects together securely. Its unique shape resembles the letter U and is easy to fasten and unfasten. It is made of high-quality materials that are resistant to corrosion and wear, ensuring its long service life and durability. It has become an indispensable tool for many professionals who require a reliable and durable connector.

U Type shackel

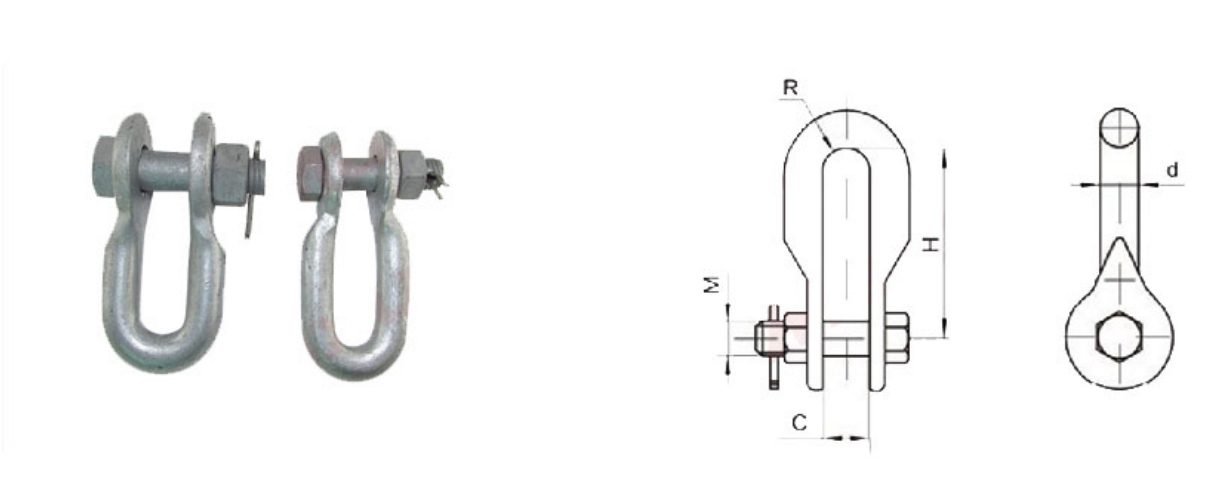

Model	Main size（mm）					Breaking load	Weight
Model	C	M	d	H	R	Breaking load	Weight
U-7	20	16	16	80	10	70	0.44
U-10	22	18	18	85	11	100	0.54
U-12	24	22	20	90	12	120	0.96
U-16	26	24	22	95	13	160	1.47
U-21	30	27	24	100	15	210	2.20
U-25	34	30	26	110	17	250	2.79
U-30	38	36	30	130	19	300	3.75
U-0770	20	16	16	70	10	70	0.50
U-1085	20	18	16	85	10	100	0.60
U-1290	22	22	18	90	11	120	1.00
U-1695	24	24	20	95	12	160	1.50
U-21100	24	24	20	100	12	210	1.80
U-25110	28	27	24	110	14	250	2.10
U-32130	36	32	28	130	18	320	3.00

Item No.	Dimension(mm)					Ultimate Strength(kn)	Weight (kg)
	C	d	B	L	R
UL-7	20	16	16	120	15	70	0.65
UL-10	22	18	18	140	17	100	0.92
UL-12	24	22	20	140	18	120	1.40
UL-16	26	24	22	140	19	160	1.64
UL-21	30	27	24	160	22	210	2.90
