WS type socket clevis

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

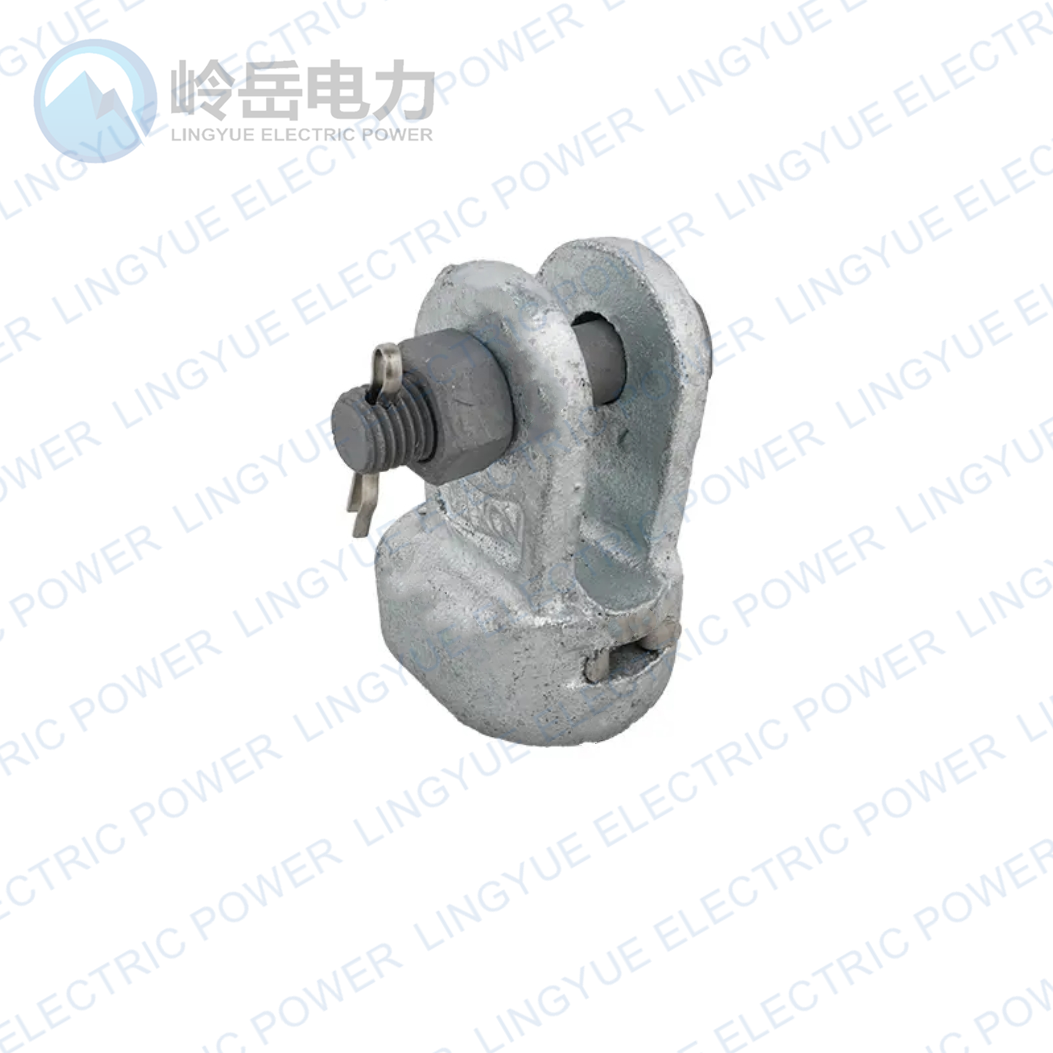

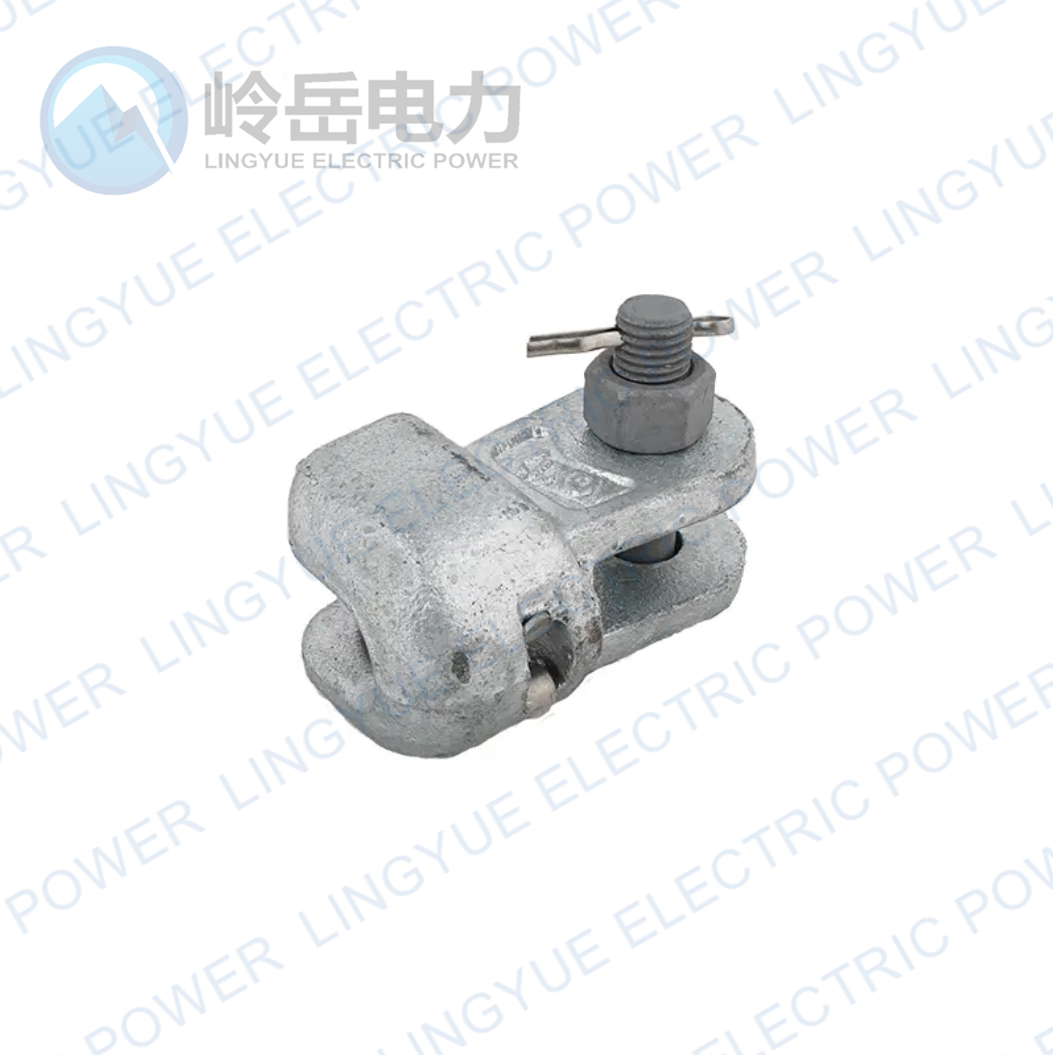

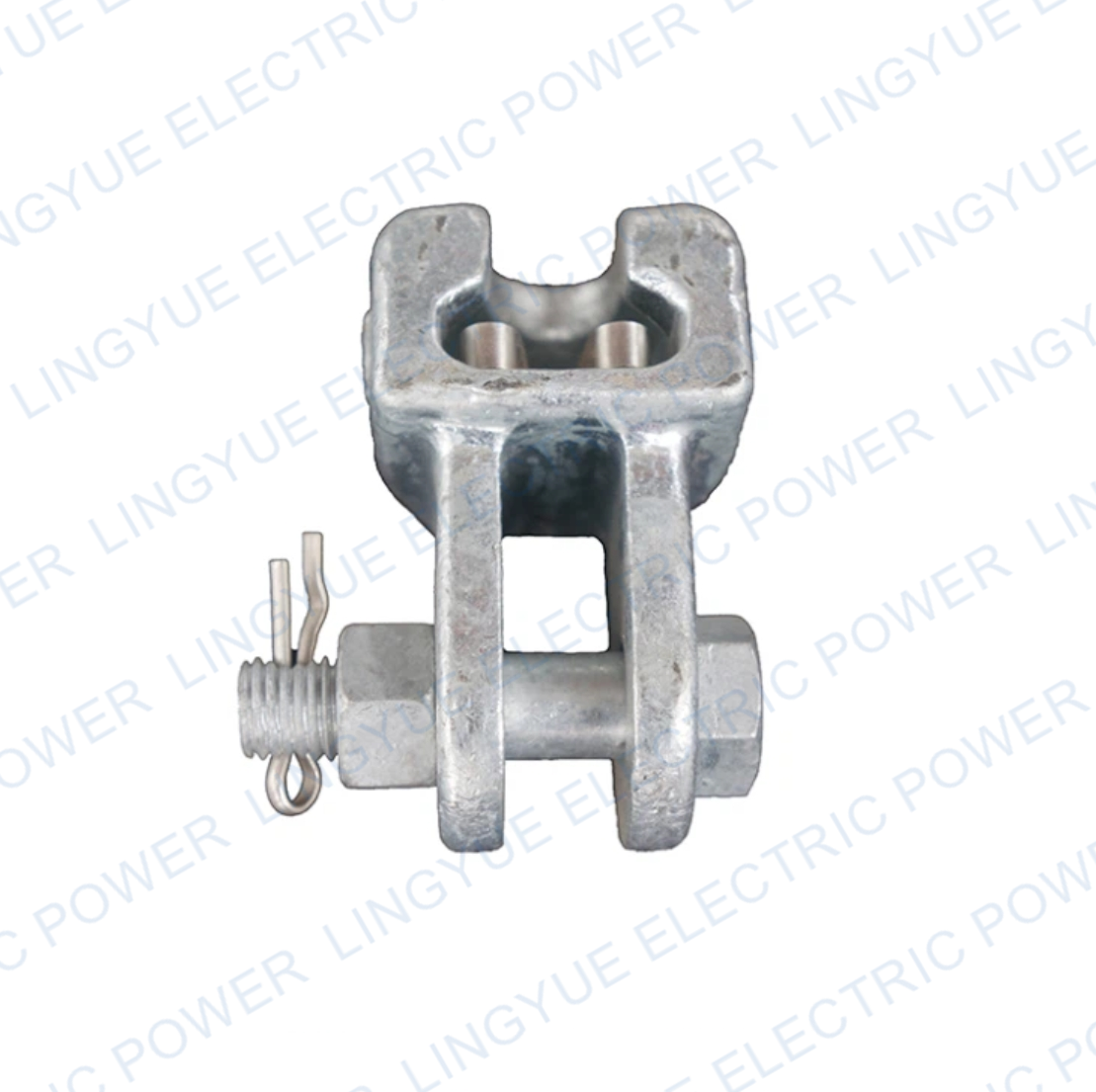

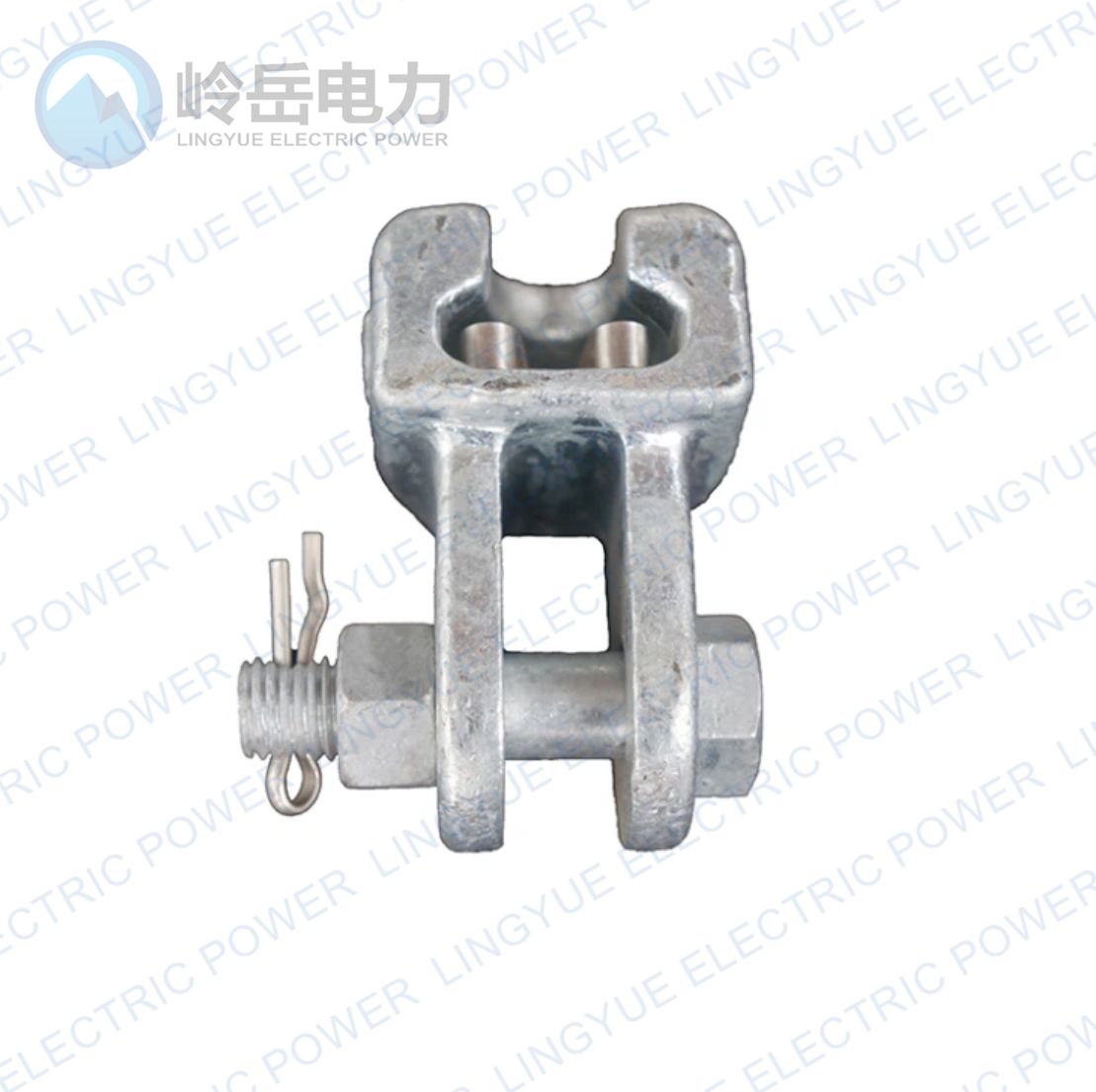

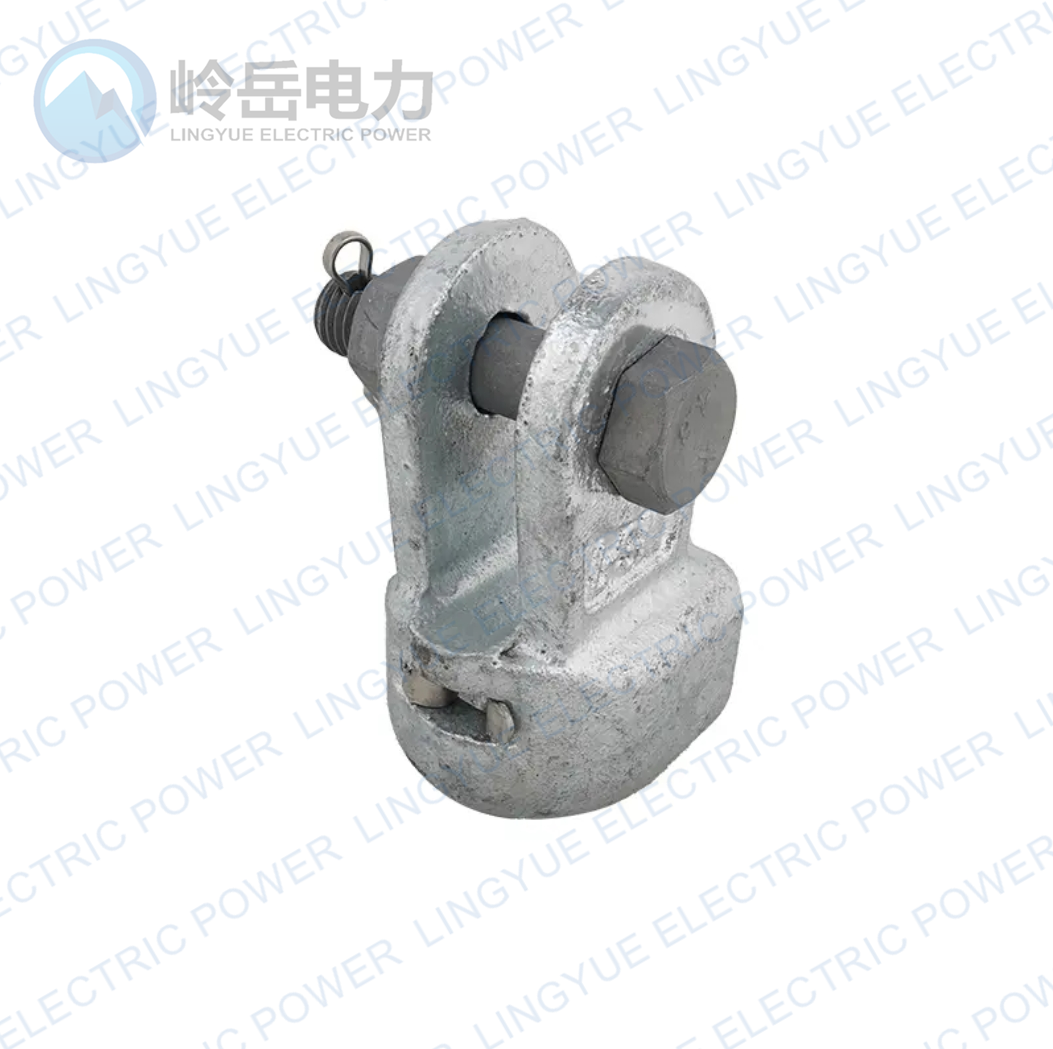

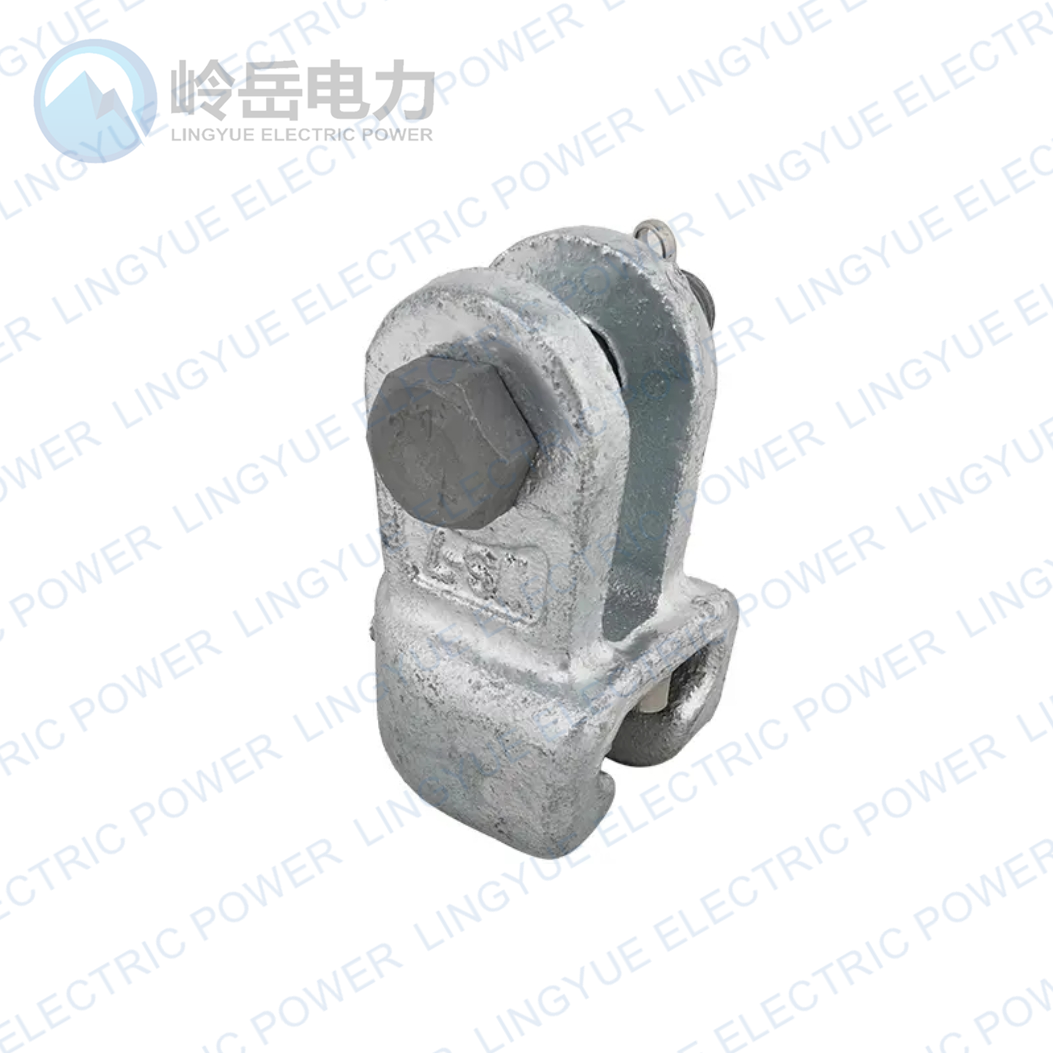

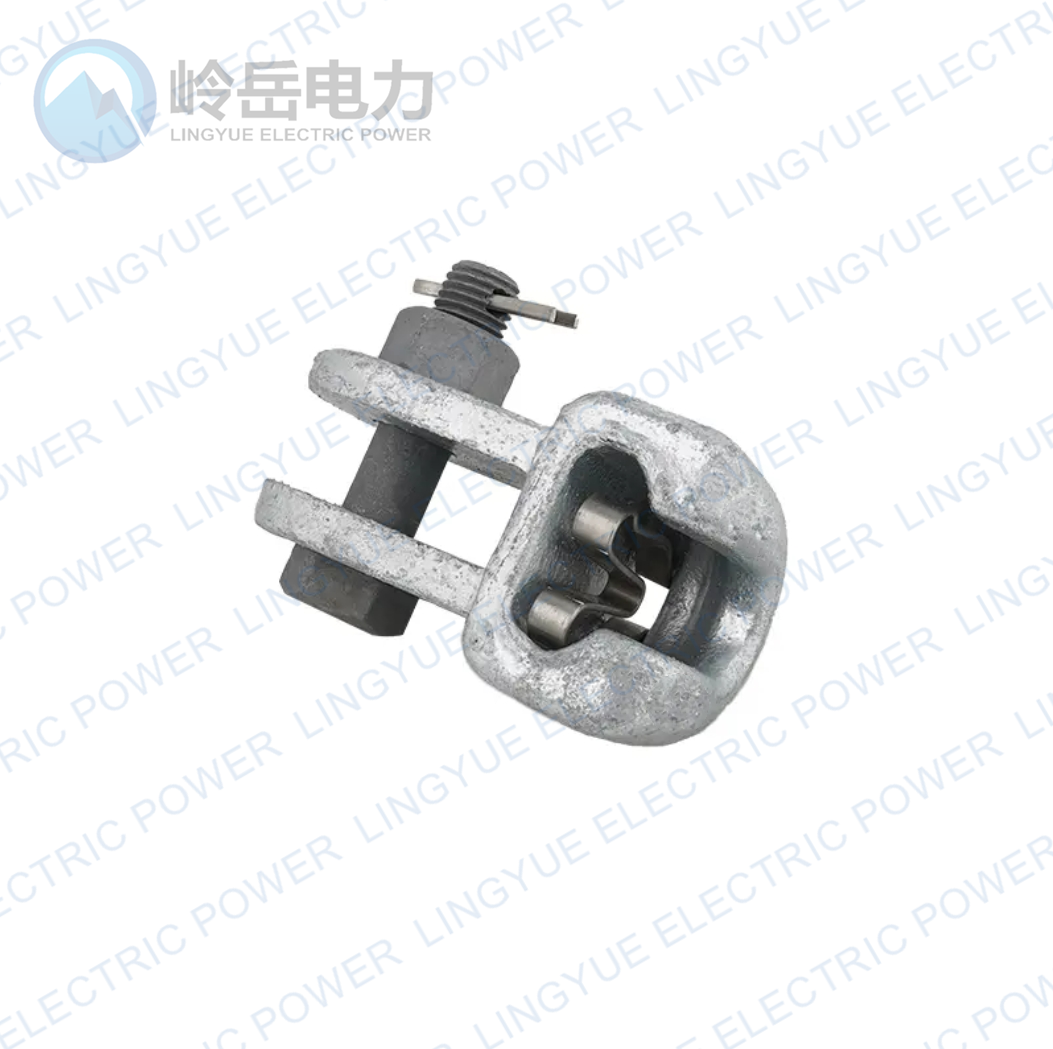

WS type socket eye is used to attach ball and socket insulators to other associated hardware.

It is made of malleable iron or casting steel and hot-dip galvanized.
Cotter pins are stainless steel.

As an important connecting fitting in the electrical network structure, the Clevis socket is mainly used to connect the hanging clamp and the insulator string, and cooperate with other accessories to connect the wire. The hook with the grip is used to fix the socket in the insulator chain, the mandrel in the socket is installed in the hook groove on one side of the hook, and the connectors are installed on both sides of the hook to connect with the towing ring connectors on both sides of the towing ring.

Advantage:

Its advantage is to achieve the required breaking load, convenient installation of tension clamp and hanging wires overhead for service personnel and reduction of pulling length by this fitting connecting conductor and insulator, connecting the suspension point of pole wire and tower.

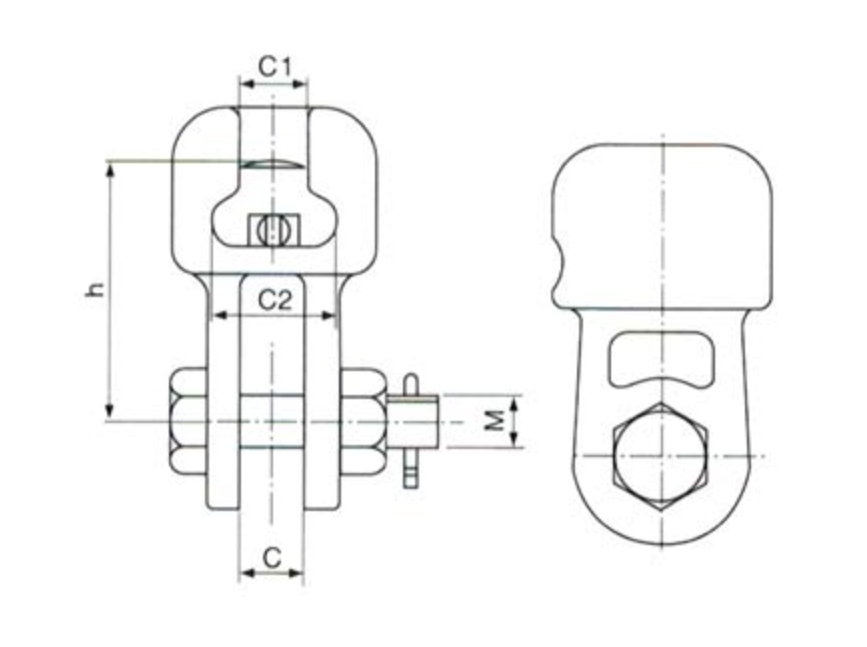

type	Dimension(mm)					Designated size of coupling	Rated failure load (KN)	Weight (kg)
type	C	C1	C2	M	H	Designated size of coupling	Rated failure load (KN)	Weight (kg)
WS-7	18	19.2	34.5	16	70	16	70	0.97
WS-10	20	19.2	34.5	18	85	16	100	1.70
WS-12G	20	19.2	34.5	18	85	16	120	1.70
WS-12	24	23.0	42.5	22	90	20	120	3.81
WS-12X	24	19.2	34.5	22	90	16	120	3.10
WS-12A	20	19.2	34.5	22	85	16	120	1.80
WS-16	26	23.0	42.5	24	95	20	160	2.64
WS-20	30	27.5	51.0	27	100	24	200	4.30
WS-20DF	30	23.0	42.5	27	100	20	200	4.50
WS-30	36	27.5	51.0	36	110	24	300	5.70
WS-16G	22	23.0	42.5	24	95	20	160	2.64
WS-21G	24	27.5	51.0	24	100	24	210	3.50
WS-32G	32	27.5	51.0	30	110	24	320	4.80
WS-42G	36	32.0	59.0	36	120	28	420	5.60
