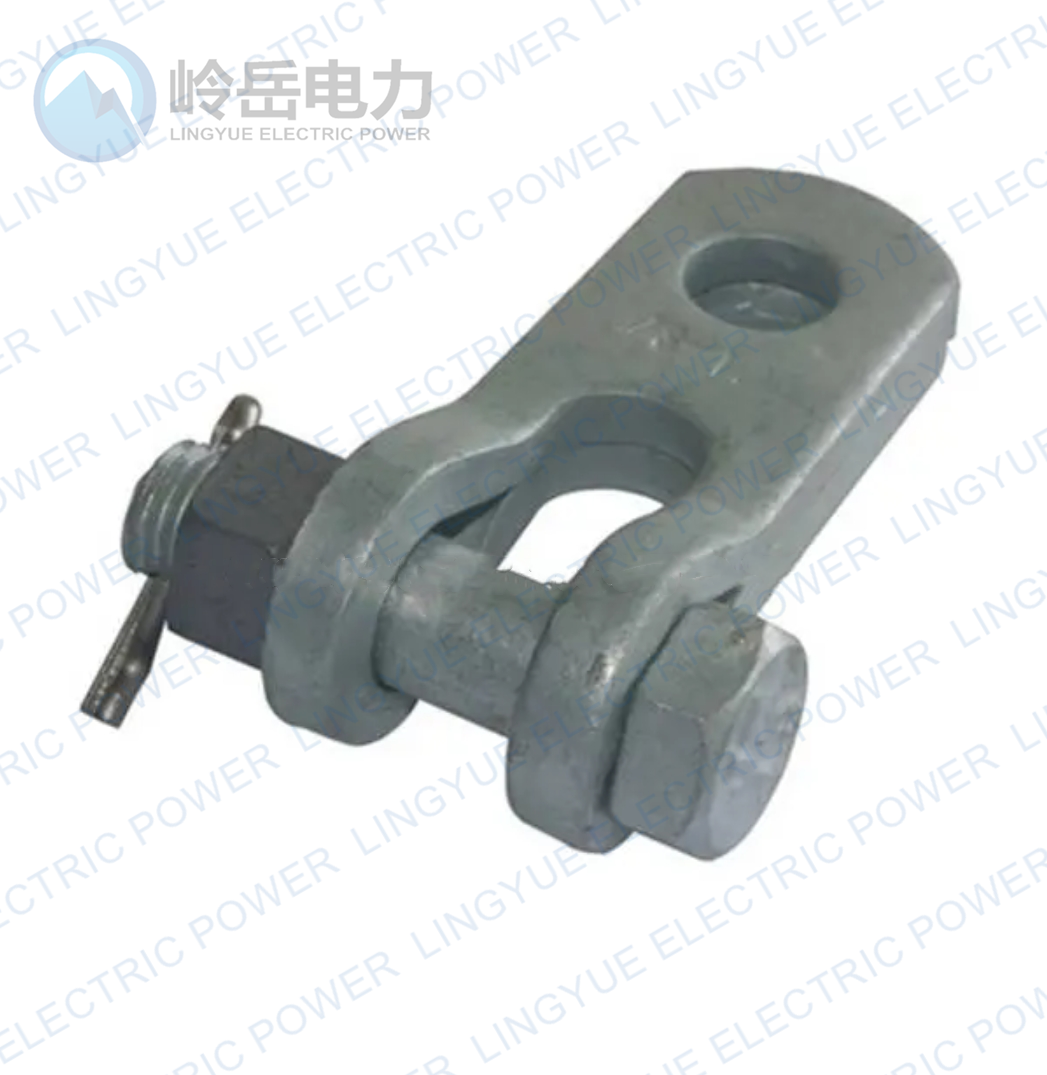

ZS type clevis

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

Coupling fittings are used to connect and combine insulators, hanger clamps, strain gauge clamps and protection fittings to form a hanger or tension string.

Descriptions:

The tongue with a fork can be divided into a three-legged fork and a four-legged fork. The four-legged fork is used to connect one plate at right angles to each other, which can be directly connected to the support as a starting blank for an insulated circuit. connect insulators and any other links that change the direction of the connection.

Bid:

Clevis tongue is made of hot-dip galvanized steel, which is used for overhead power line as a connecting clamp. The connecting fittings are used to connect and combine insulators, hanger clamps, strain gauges and protective fittings to form a hanger column. or tension string.

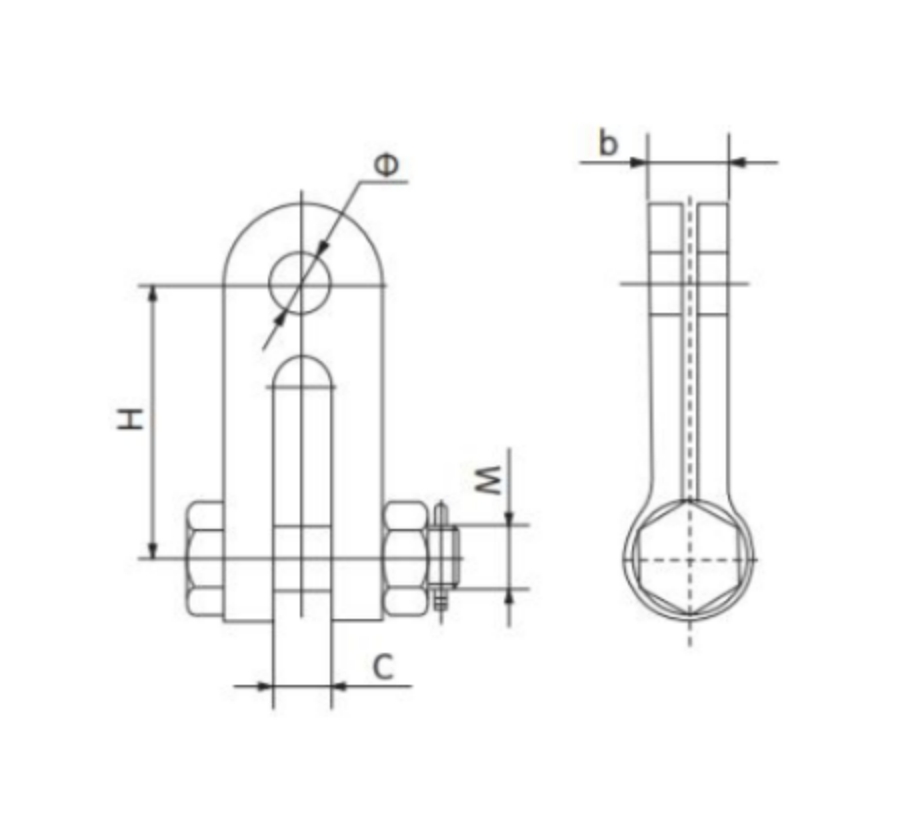

Stable design catalog No.	Catalog No.	Dimensions（mm）					Specified failure load（KN）	Weight（kg）
		C	b	M	∅	H
ZS-0780	ZS-7	18	16	16	20	80	70	0.58
ZS-1080		20	22	16	20	65	70	0.65
	ZS-10	20	18	18	20	80	100	0.90
	ZS-12	22	22	22	24	80	120	1.0
	ZS-16	26	24	24	26	90	160	1.60
	ZS-25	33	30	30	33	120	250	4.33
	ZS-30	38	34	36	39	150	300	5.64
