Product Introduction

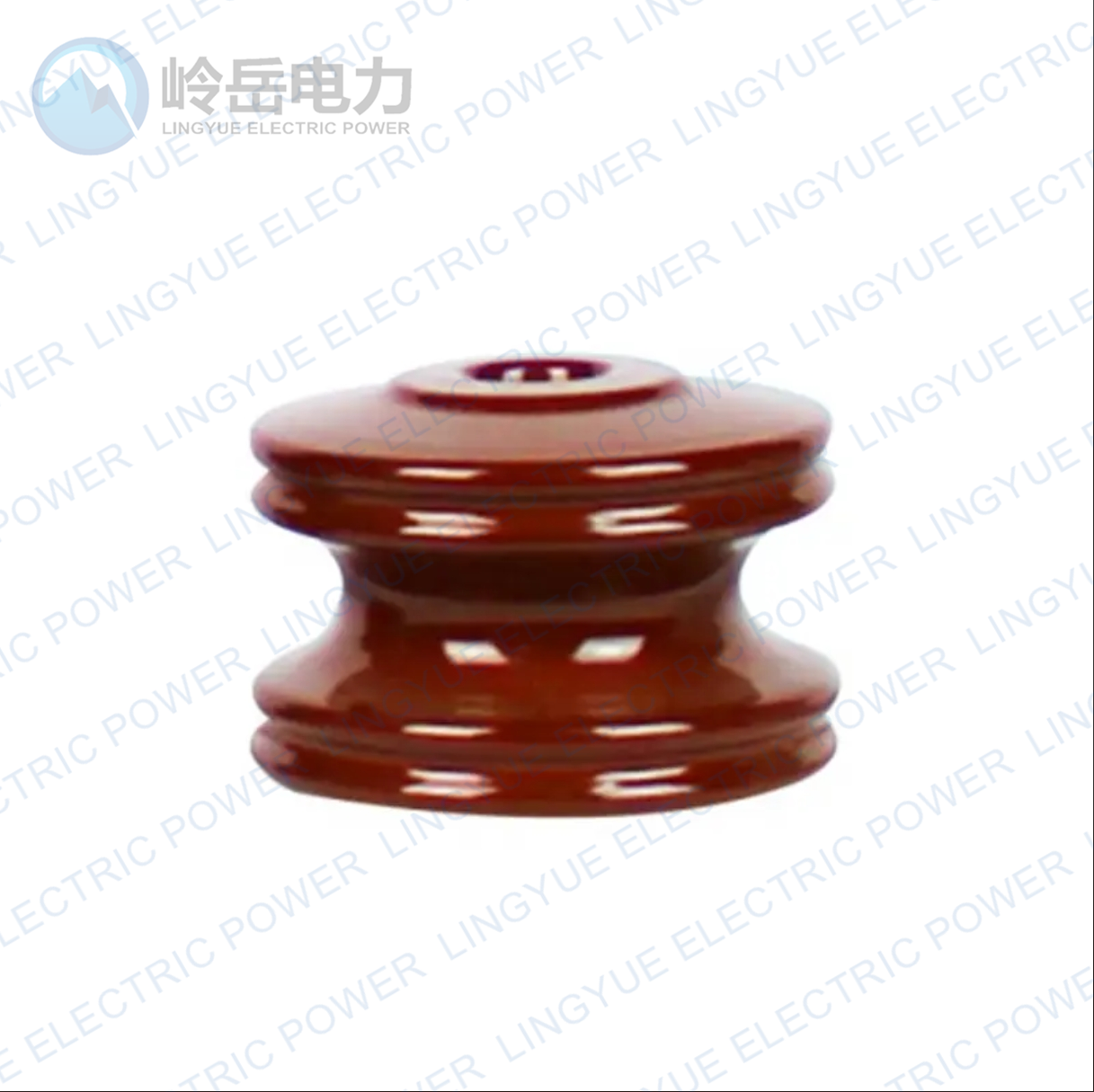

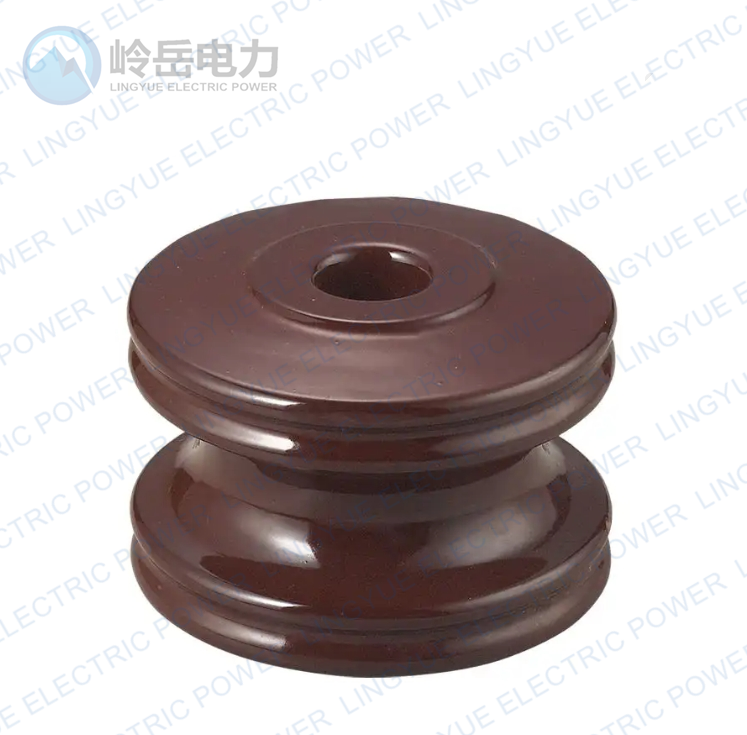

Shackle （Spool） Insulator

Standard: IEC60383

Voltage: Low voltage

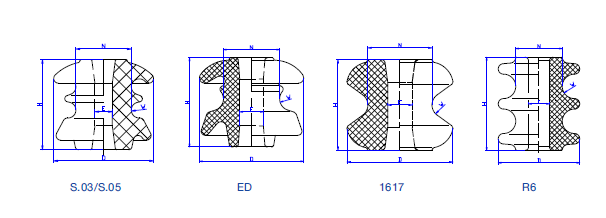

BS CLASS		Shackle					Spool
		S.03	S.05	ED-2	ED-2B	ED-3	1617	R6
Dimensions, mm	H - Height	57	75	75	76	65	65	80
	D - Diameter	63	88	80	89	70	76	70
	N - Neck Diameter	35	41	42	48	36	46	40
	E - Hole Diameter	11	17	20	21	16	17.5	18
	W-Wire Grooves Radius	5	8	10	10	8	9	10
Mechanical Failing Load, kN		6.25	15	10	12.5	8	9	240N
Power Frequency Flashover Voltage	Dry, kV	17	22	18	23	16	20	12
	Wet, kV	8	11	9	12	7	9	15
Net Weight, Each, Approx., kg		0.3	0.48	0.4	0.48	0.25	0.4	0.4
