FJP-500C grading ring
FJP-500C grading ring
FJP-500C grading ring
FJP-500C grading ring
FJP-500C grading ring
Inquiry Contact us

Like this product? Share with friends:

Product Introduction

The protective ring for insulators can be manufactured according to customer requirements. The protective ring body is made of aluminum, the other parts are made of hot-dip galvanized steel.

Descriptions:

The protective ring for insulators can be manufactured according to customer requirements. The protective ring body is made of aluminum, the other parts are made of hot-dip galvanized steel.



Bid:

The shielding protection ring belongs to the protection fitting. The protection fittings are used to limit the aeolian vibration of the overhead power lines and ground wire, or to level and shield the insulating column of 330 kV and above power lines and substations.

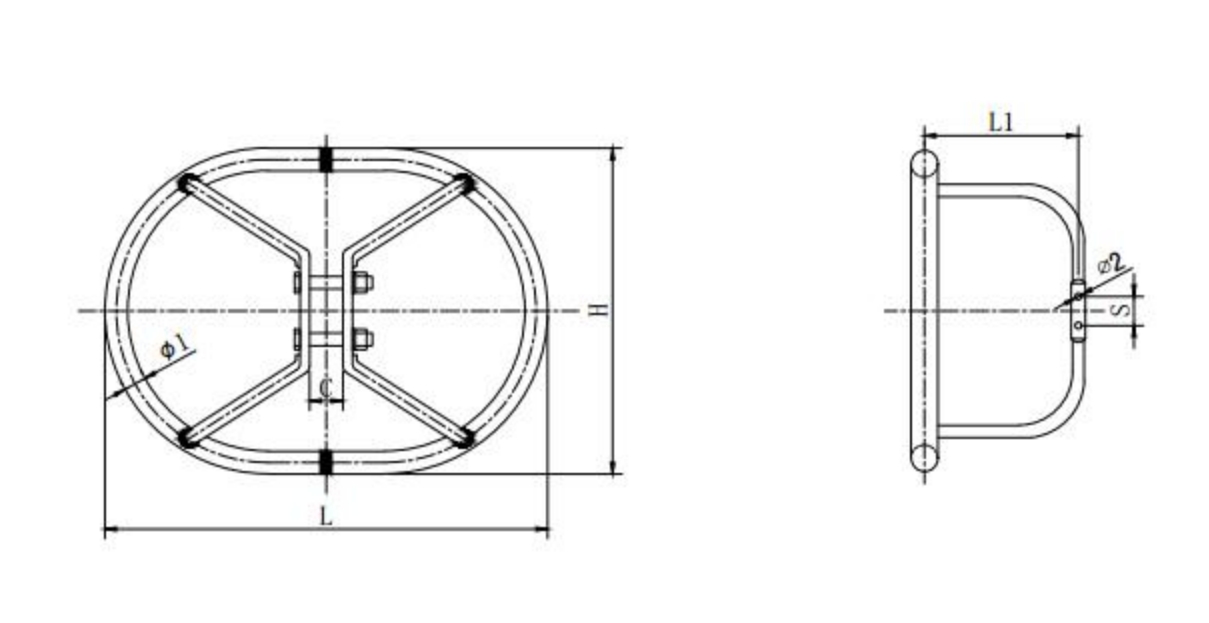

Catalogue No.

Dimensions (mm)

Weight (kg)


L

L1

HOUR

WITH

Φ1

Φ2

S


FJP-500CDL/M16

700

290

600

22

50

18

80

4.2

FJP-500XD1L/R80

700

245

600

50

50

14

45

4.2
