FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

FJQ Spacers For Double Conductor

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

FJQ type spacers damper is for double bus-bar conductor, it can inhibite the dynamic stress of wind vibration.

FJQ Jumper Spacer is used in overhead transmission line.

FJQ Spacer has higher safety performance.

FJQ Jumper Spacer belongs to protective fitting.

The body and keepers are aluminium alloy,The other parts are hot-dip galvanized steel.

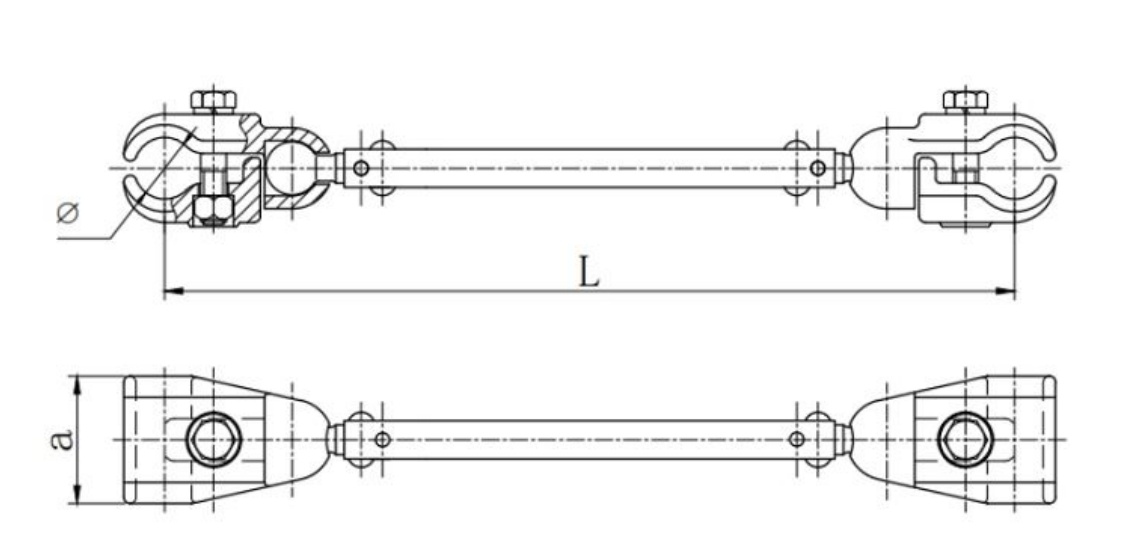

Catalogue No.	Cross-sectional area of the conductor	Dimensions (mm)			Weight
			Φ	L
FJQ-204	185~240	60	22.0	200	0.9
FJQ-205	300~400	60	29.0	200	1,1
FJQ-206	500~600	60	35.0	200	1.9
FJQ-404	185~240	60	22.0	400	1.0
FJQ-405	300~400	60	29.0	400	1.2
FJQ-406	500~600	60	35.0	400	2.0
FJQ-455	300~400	70	30.8	450	2.4
FJQ-404G	300~400	60	15.0	230	3.0
FJQ-405G	300~400	70	30.8	400	2.4
FJQ-555	240~300	62	25.2	550	2.7
Fjj-405	300~400	60	29.0	400	8.6
