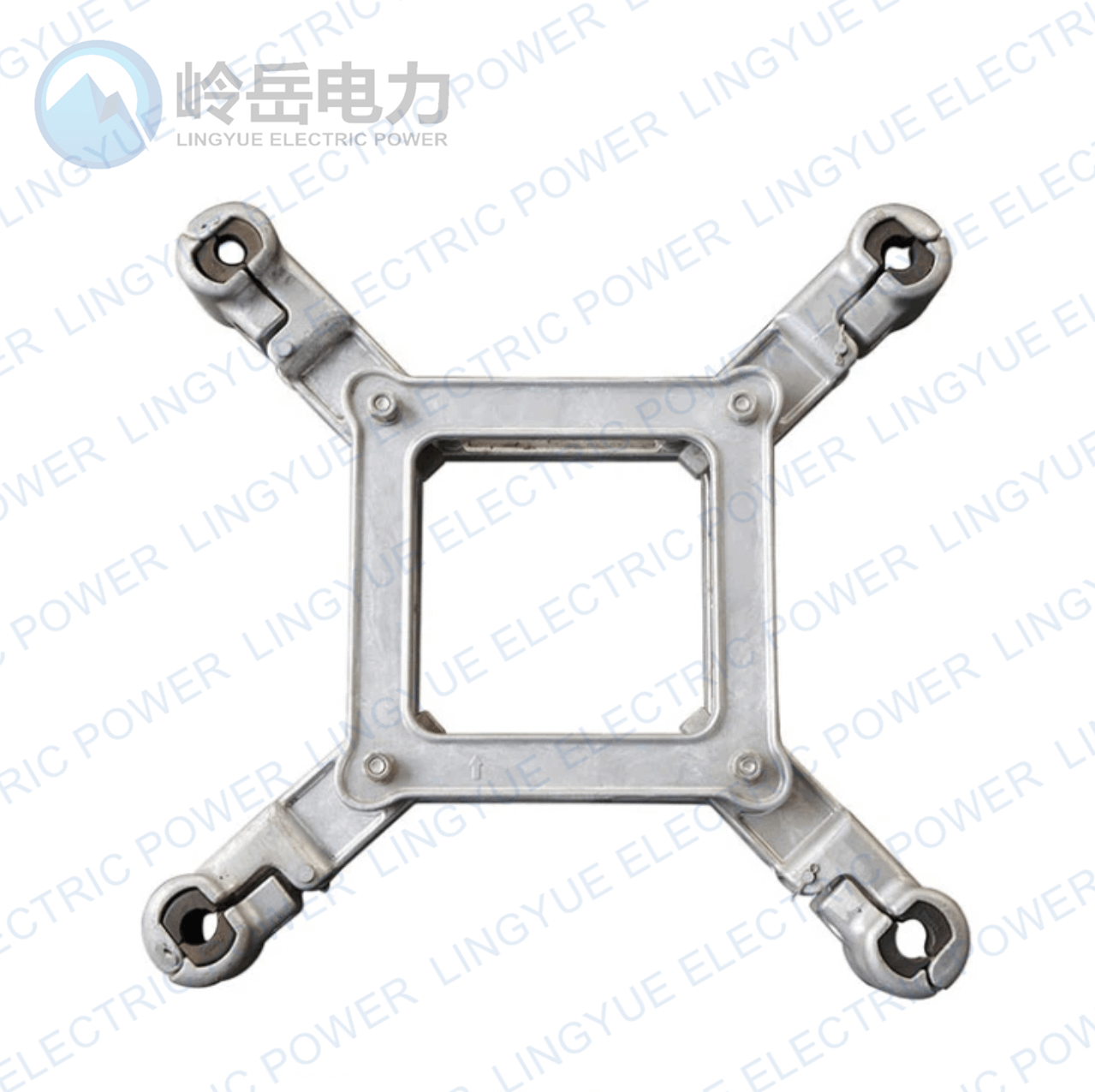

FJZ Spacer Dampers for Quad-bundle Jumper Conductors

FJZ Spacer Dampers for Quad-bundle Jumper Conductors

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

The body of the spacer flaps, keepers and bracket are aluminum alloy, shock absorbers are elastomer, other parts are hot-dip galvanized steel.

Descriptions:

The body of the spacer flaps, keepers and bracket are aluminum alloy, shock absorbers are elastomer, other parts are hot-dip galvanized steel.

Bid:

The spacer flap is mainly used to limit the relative movement between conductors and to maintain the geometry of the separating conductors during normal operation. For long distances in ultra-high-capacity transmission lines, two, four or more spatters per phase conductor are used.

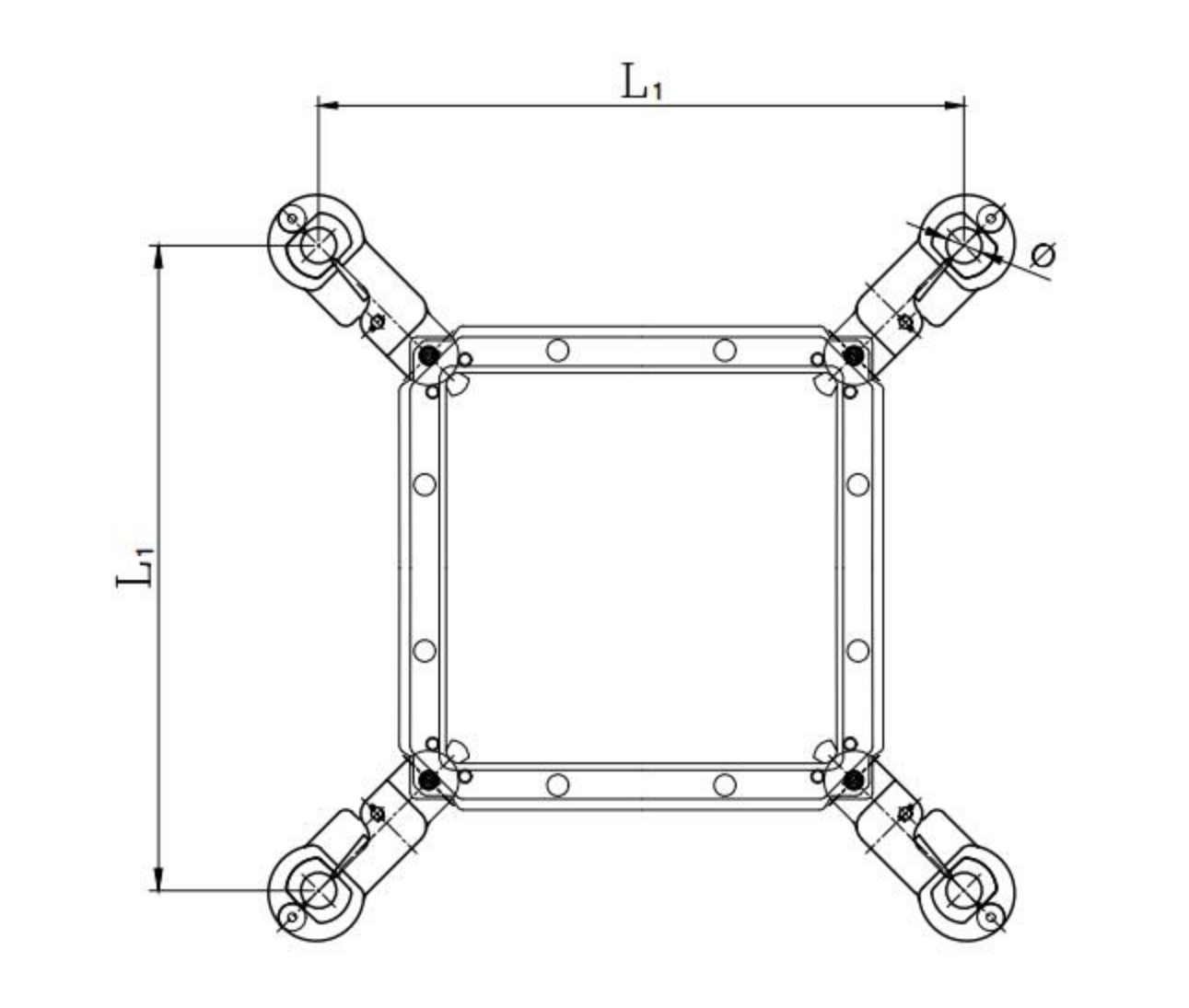

TYPE	Applicable conductor	main dimension(mm)
TYPE	Applicable conductor	L1	Φ
FJZ—445/27B	400/35	450	27
FJZ—445/30B	500/45	450	30
FJZ—445/34B	630/45	450	34
FJZ—450/34B	630/45	500	34
FJZ—450/36B	720/50	500	36
FJZF7—640/25	LGJK—310/50	400	25
FJZF7—640/28	400/50	400	28
FJZF7—640/3	500/45	400	30
