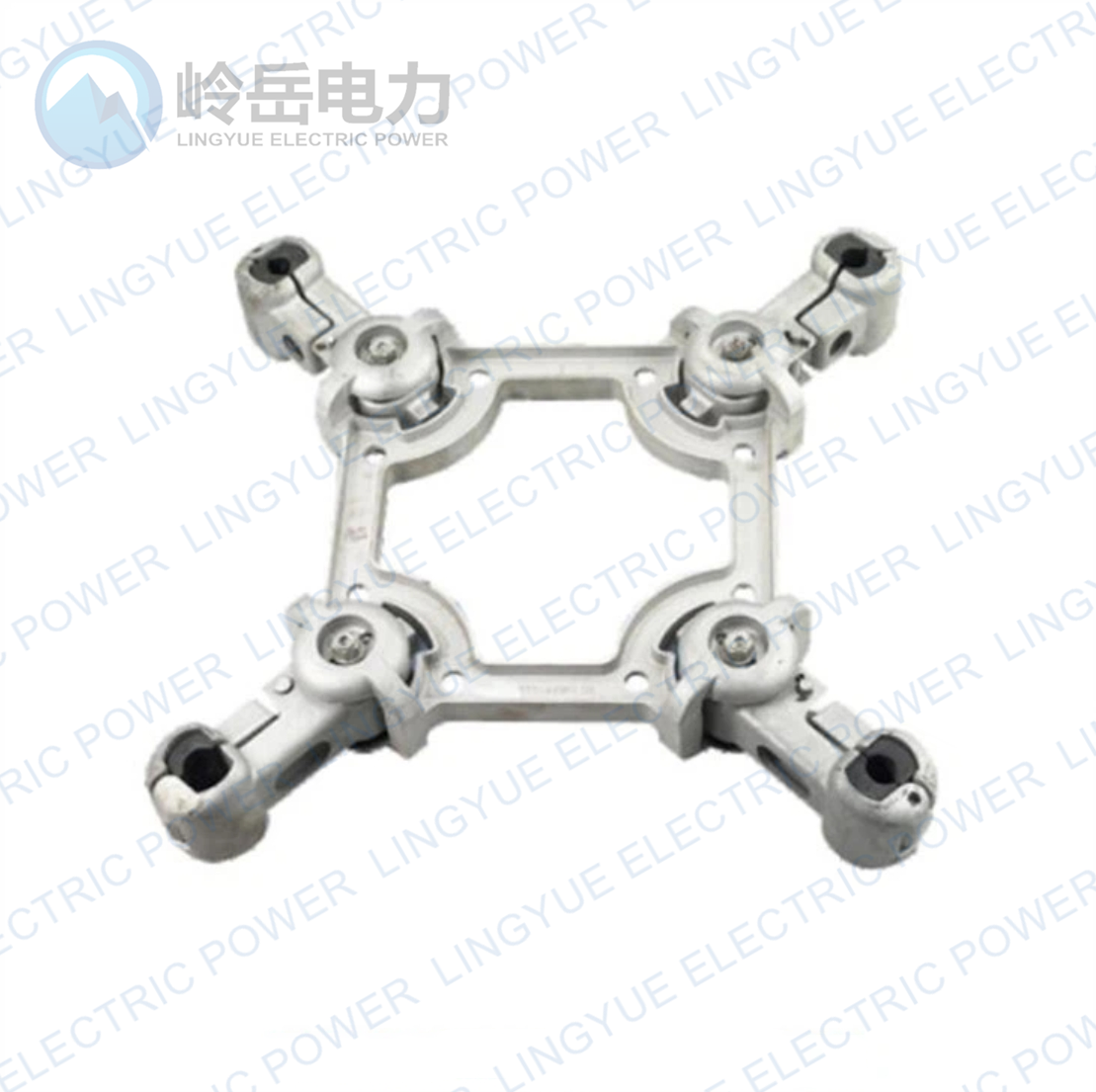

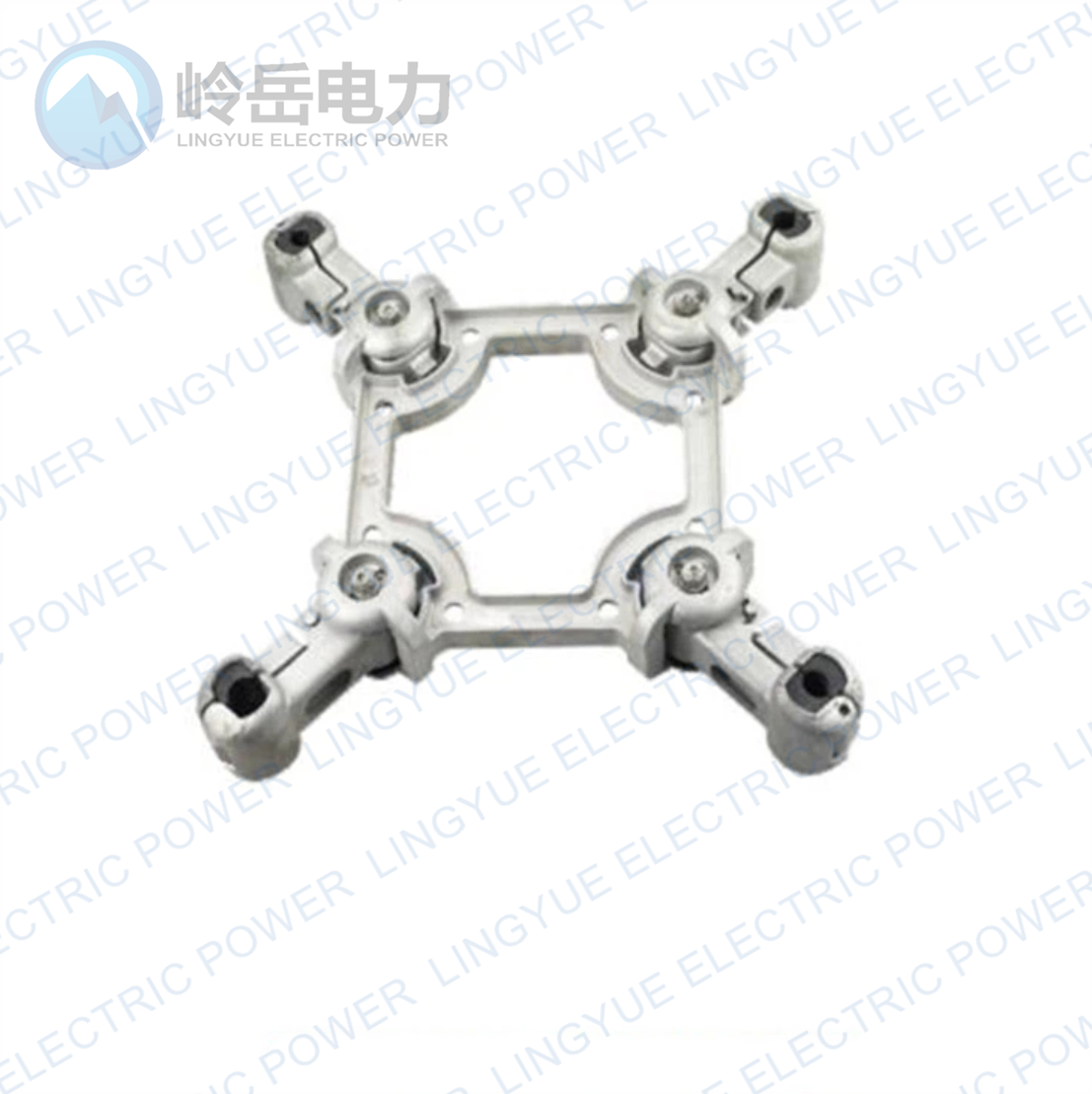

FJZ Square Separation Damper

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

The spacer damper is mainly used to limit the relative motion between the conductors and to maintain the geometry of the spliting conductors under normal operation.

For long distances, large-capacity UHV transmission lines use two, four or more spliting per phase conductor.

The body and keepers are aluminium alloy, The other parts are hot-dip galvanized steel.

Feature:
The characteristic of the damping spacer damper is that the rubber is used as a damping material on the movable joint of the spacer to absorb the vibration energy of the wire and create a damping effect on the vibration of the wire. Therefore, this type of distance damper is suitable for all regions. However, considering the economics of transmission lines, this type of distance damper is mainly used for lines in places where the wires are subject to vibration. Non-damping pads have poor damping properties and can be used on lines that are not subject to vibration or used as pads for jumpers.

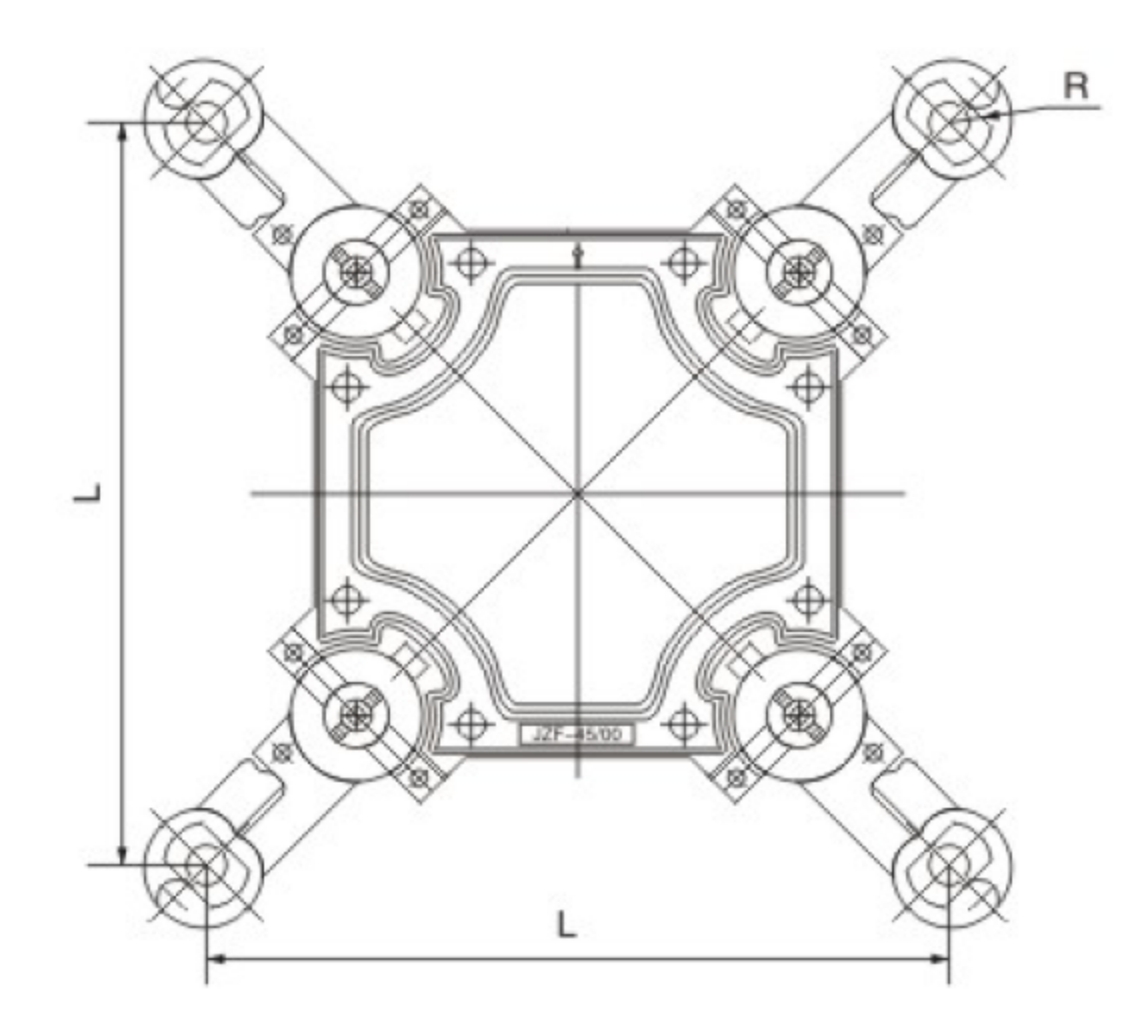

Item No.	Applicable	Dimensions(mm)		Weight
	Conductor(mm2)	L	R	(kg)
FJZ-445F/300	LGJ-300/20.25.40.50	450	9.7	7.8
FJZ-445F/300A	LGJ-300/70	450	10.6	8.8
FJZ-445F/400	LGJ-400/50.65	450	12	9.8
FJZ-445F/400A	LGJ-400/20.25.35	450	11.4	10.8
FJZ-445F/400B	LGJ-400/95	450	12.6	11.8
