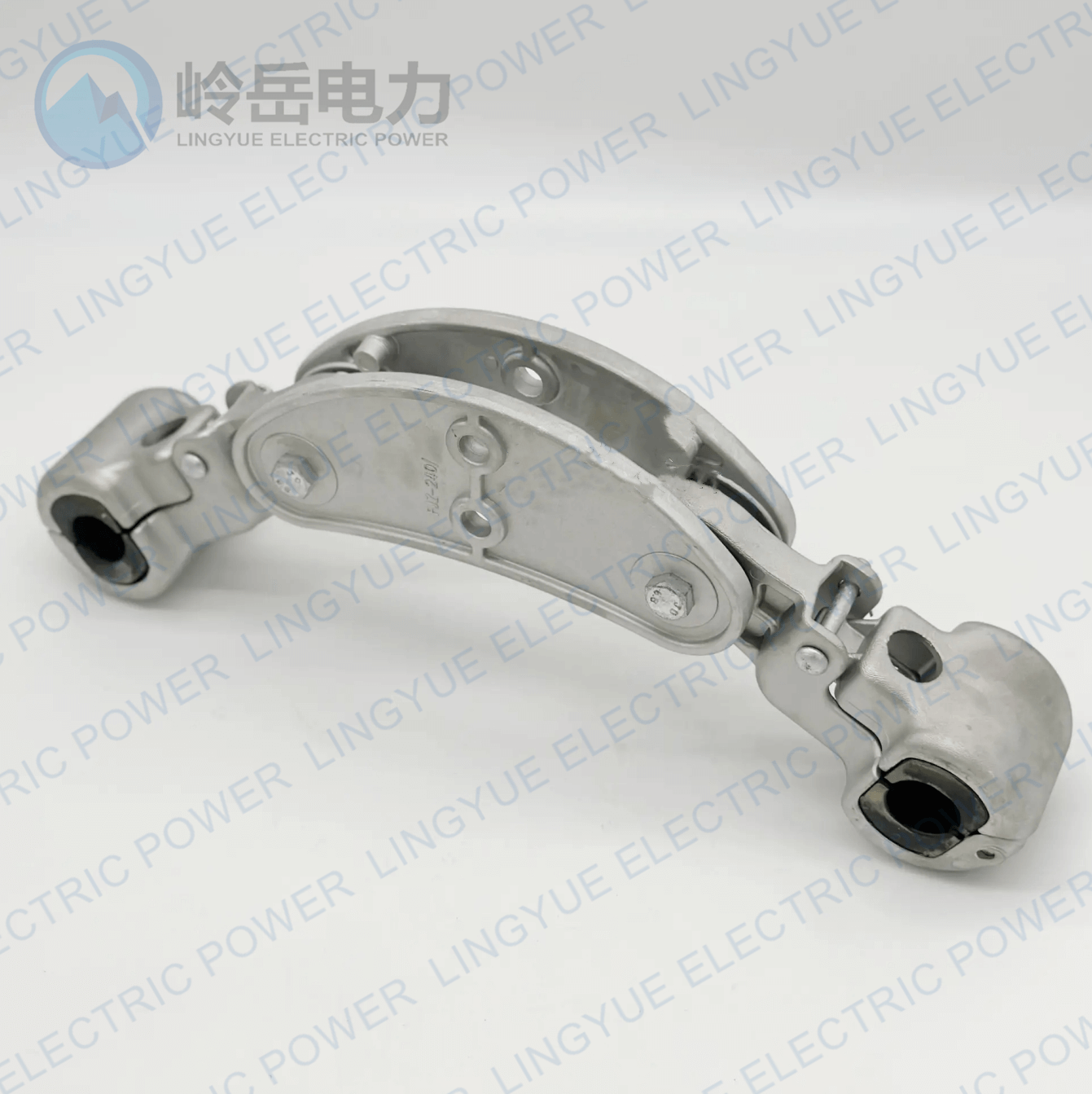

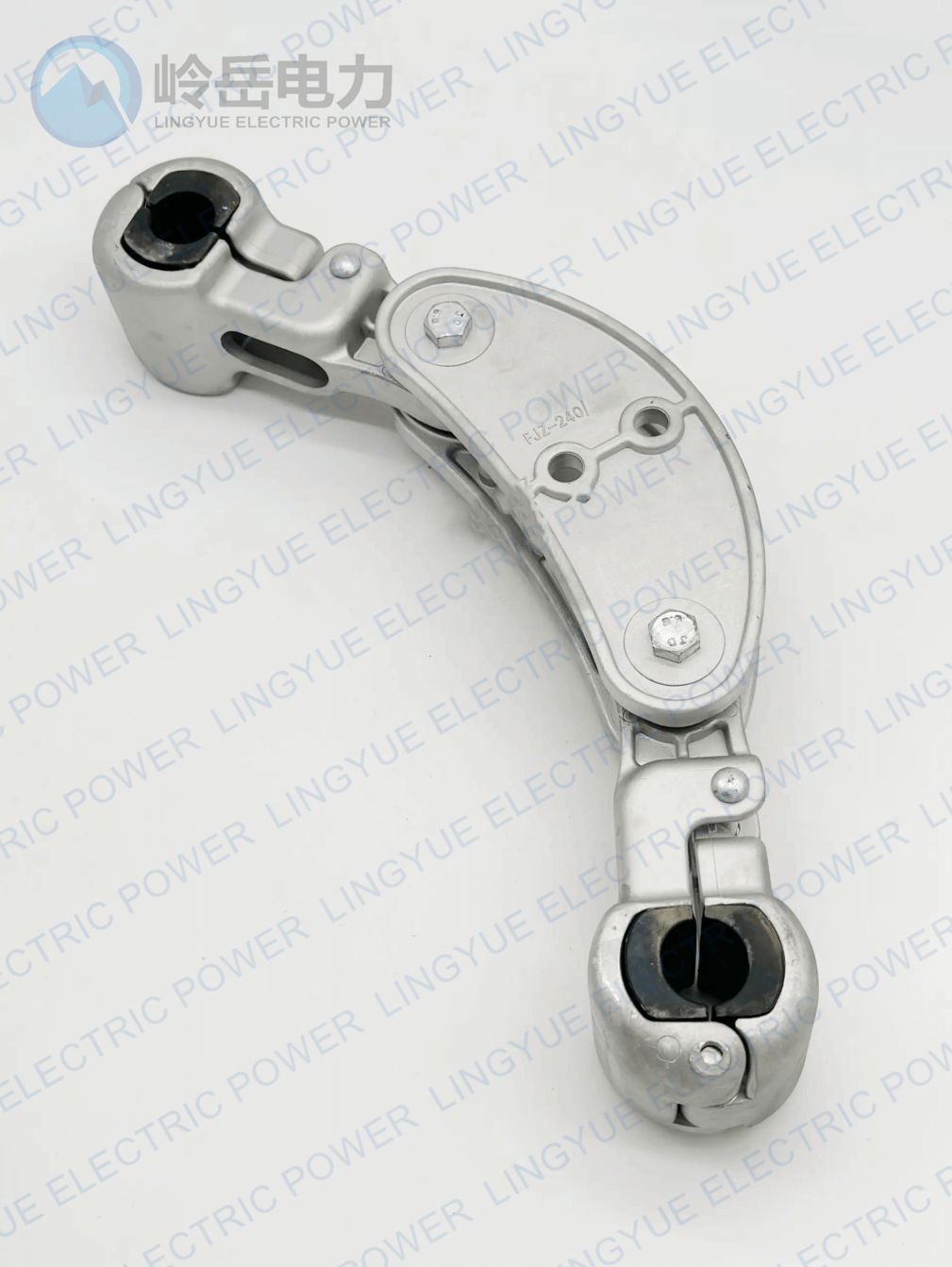

The FJZ double split spacer is a specific double split spacer model used in double split wire systems in electric power transmission lines. The FJZ double split spacer has a unique structure and design to meet the special requirements of double split wire systems.
The main role of the FJZ double split spacer is to hold and support the two wires in a double split wire system, maintaining the spacing and relative position between them. It is made of high-strength materials with good mechanical properties and corrosion resistance to withstand the tension of the wire and the influence of the external environment. In addition, the FJZ double split spacer also has good electrical properties to prevent the occurrence of electrical failures.
The installation position and number of FJZ double split spacers should be designed according to the specific engineering requirements. During the installation process, follow the technical specifications and operating procedures to ensure the installation quality and effect. Reasonable installation location and quantity can effectively ensure the stability of the wire and transmission efficiency, improve the safety and reliability of the transmission line.
In a word, FJZ double split spacer is an important part of double split wire system, and its unique design and excellent performance provide a strong guarantee for the safe and stable operation of transmission lines.
FJZ type spacer |
TYPE | Applicable conductor | main dimensionL
(mm) | (kg) |
FJZ—240/22 | JL/G1A—240/30、
JL/G1A—240/40 | 400 |
|
FJZ—240/24 | JL/G1A—300/25、
JL/G1A—300/40 | 400 |
|
FJZ—240/27 | JL/G1A—400/35 | 400 |
|
FJZ—240/28 | IL/G1A—400/50 | 400 |
|
FJZ—250/30 | IL/G1A—500/45 | 500 |
|
FJZ—260/30 | JL/G1A—500/45 | 600 |
|
FJZ—250/34 | JL/G1A—630/45
JL/G1A—630/55 | 500 |
|
FJZ—260/34 | IL/G1A—630/45
JL/GlA—630/55 | 600 |
|
