In the double split wire system, the installation position and number of the double split spacer rod also need to be designed according to the specific engineering requirements. Reasonable installation position and quantity can effectively ensure the stability of the wire and transmission efficiency.
Double split spacer rod is a special spacer rod, mainly used in double split wire system. In power transmission lines, double-split wire system is a common wire arrangement in which two wires are arranged in parallel to improve transmission capacity and reduce corona loss. The function of the double split spacer is to hold and support the two wires in this wire system, maintaining the spacing and relative position between them.
The design of the double split spacer should consider the diameter of the wire, the spacing, the mechanical properties of the material and the environmental factors. It needs to have enough strength and stability to withstand the tension of the wire and the influence of the external environment, such as wind and rain, temperature changes, etc. In addition, the double split spacer rod also needs to have good electrical performance to prevent the occurrence of electrical failures.
In the double split wire system, the installation position and number of the double split spacer rod also need to be designed according to the specific engineering requirements. Reasonable installation position and quantity can effectively ensure the stability of the wire and transmission efficiency.
In short, the double split spacer is an indispensable part of the double split wire system, and its design and selection is of great significance to ensure the safe and stable operation of the transmission line and improve the transmission capacity.
Spacers For Double bus-bar Conductor
Catalog No. | Suitable Conductor
Dia.(mm) | Main dimensions(mm) | Weight
(kg) |

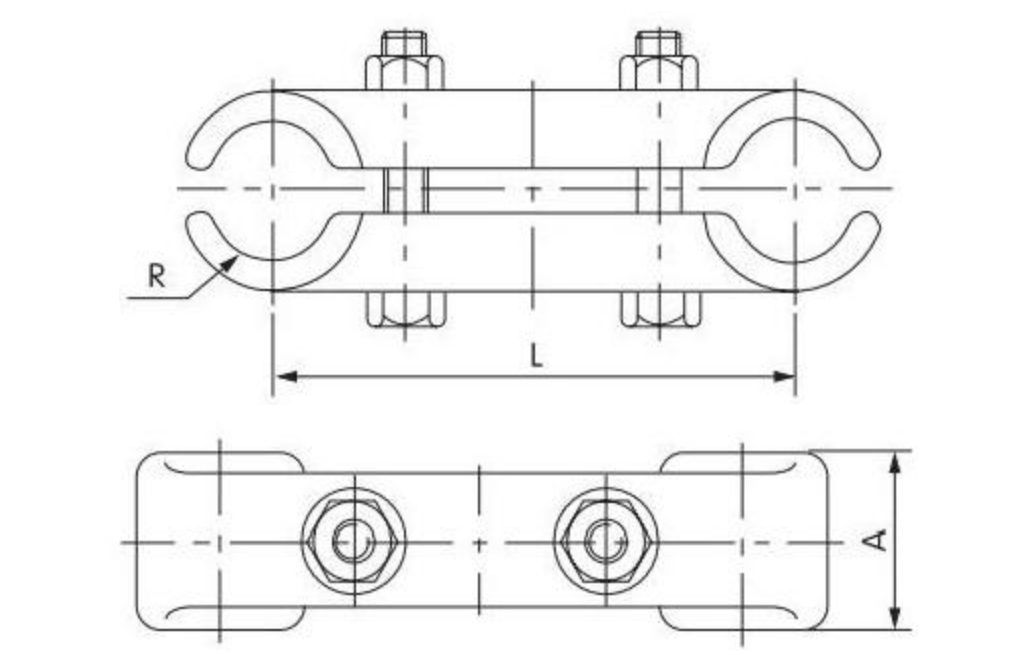

A | L | R |
MRJ-4/120 | 19.02~21.28 | 50 | 120 | 11 | 0.4 |
MRJ-5/120 | 23.70~27.36 | 60 | 120 | 14 | 0.6 |
MRJ-6/120 | 30.16~33.20 | 70 | 120 | 17 | 0.7 |
MRJ-4/200 | 19.02~21.28 | 50 | 200 | 11 | 0.9 |
MRJ-5/200 | 23.70~27.36 | 60 | 200 | 14 | 1.0 |
MRJ-6/200 | 30.16~33.20 | 70 | 200 | 17 | 1.2 |
MRJ-4/400 | 19.02~21.28 | 50 | 400 | 11 | 2.1 |
MRJ-5/400 | 23.70~27.36 | 60 | 400 | 14 | 2.5 |
MRJ-6/400 | 30.16~33.20 | 70 | 400 | 17 | 2.8 |
The clamp is aluminium alloy,the other parts are hot-dip galvanized steel.
