Product Introduction

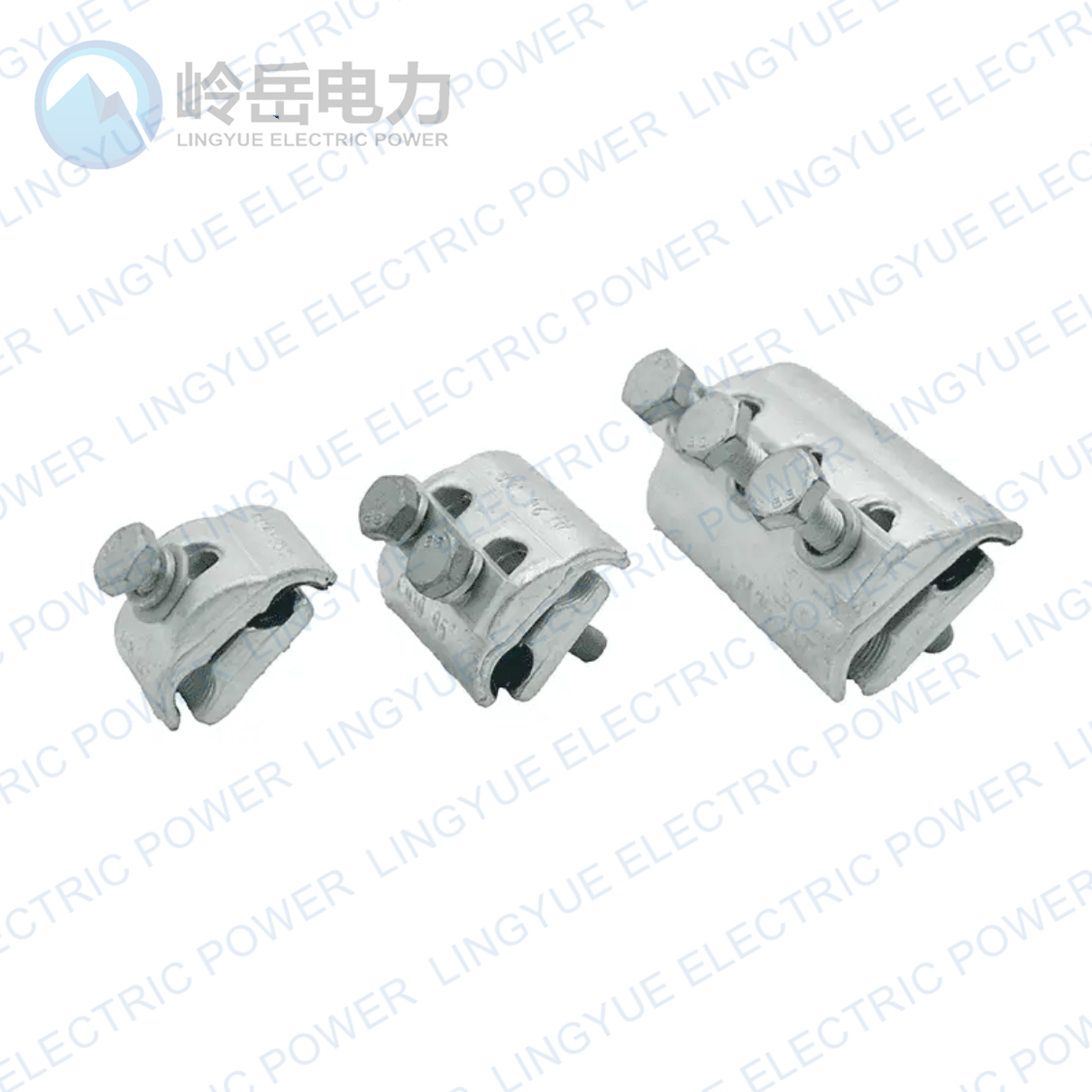

CAPG parallel groove clamp is used for non-load bearing connection and offset of aluminum stranded wire. . Aluminum stranded wire , it can be used with an insulating cover . For protective and insulating effect . Advanced forging technology improves the mechanical strength of the clamp. . Specially designed threaded hole and arched body shape. . This allows the clamp to accommodate different cable sizes on each side. .

Advantages:
1) Advanced forging technology improves the mechanical strength of the clamp.
2) Specially designed screw hole and arc-shaped body enable the clamp to adapt to different cable sizes on each side.
3) The materials of bolt and nut are optional and depend on customer's request. Options include hot-dip galvanized steel and stainless steel.

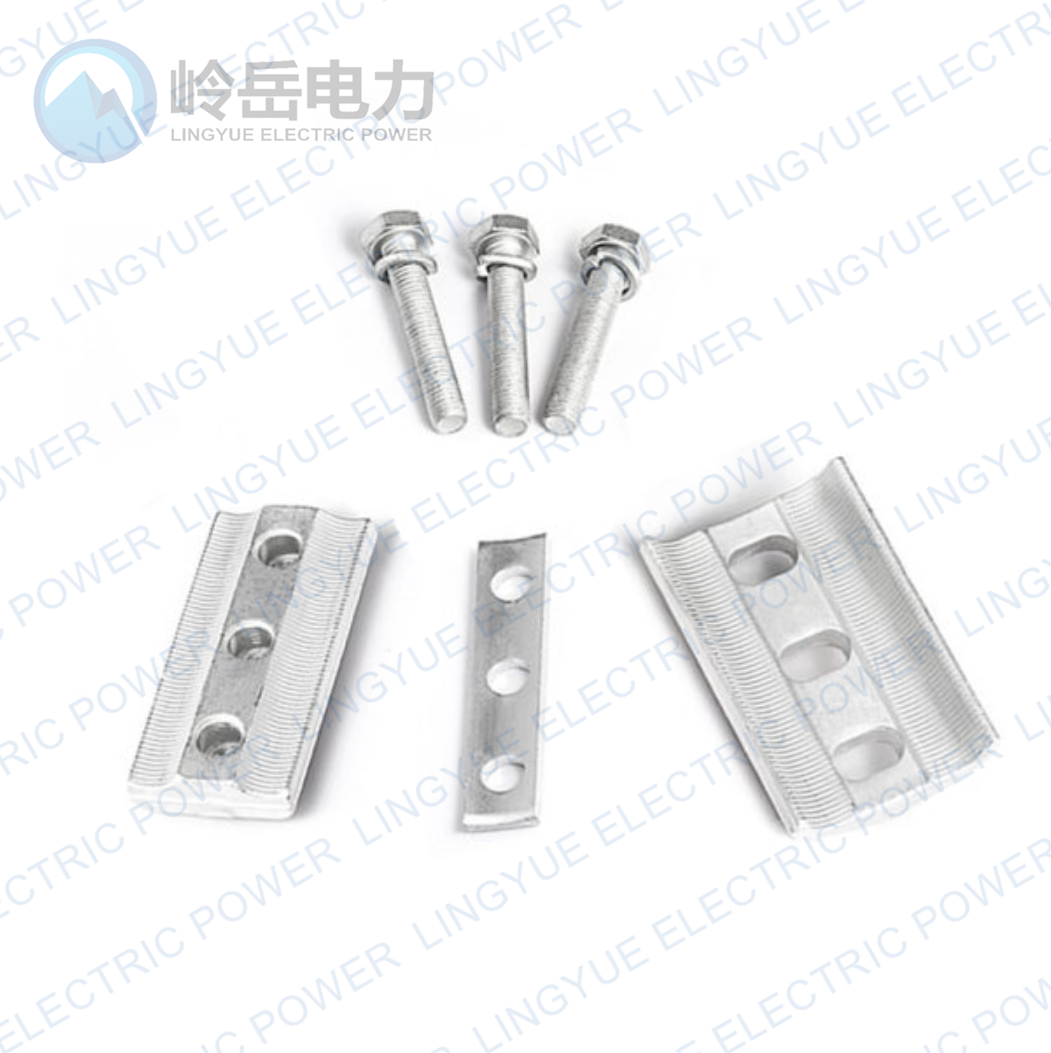

4) Pressure pad is adopted to achieve uniform pressure along the clamp.

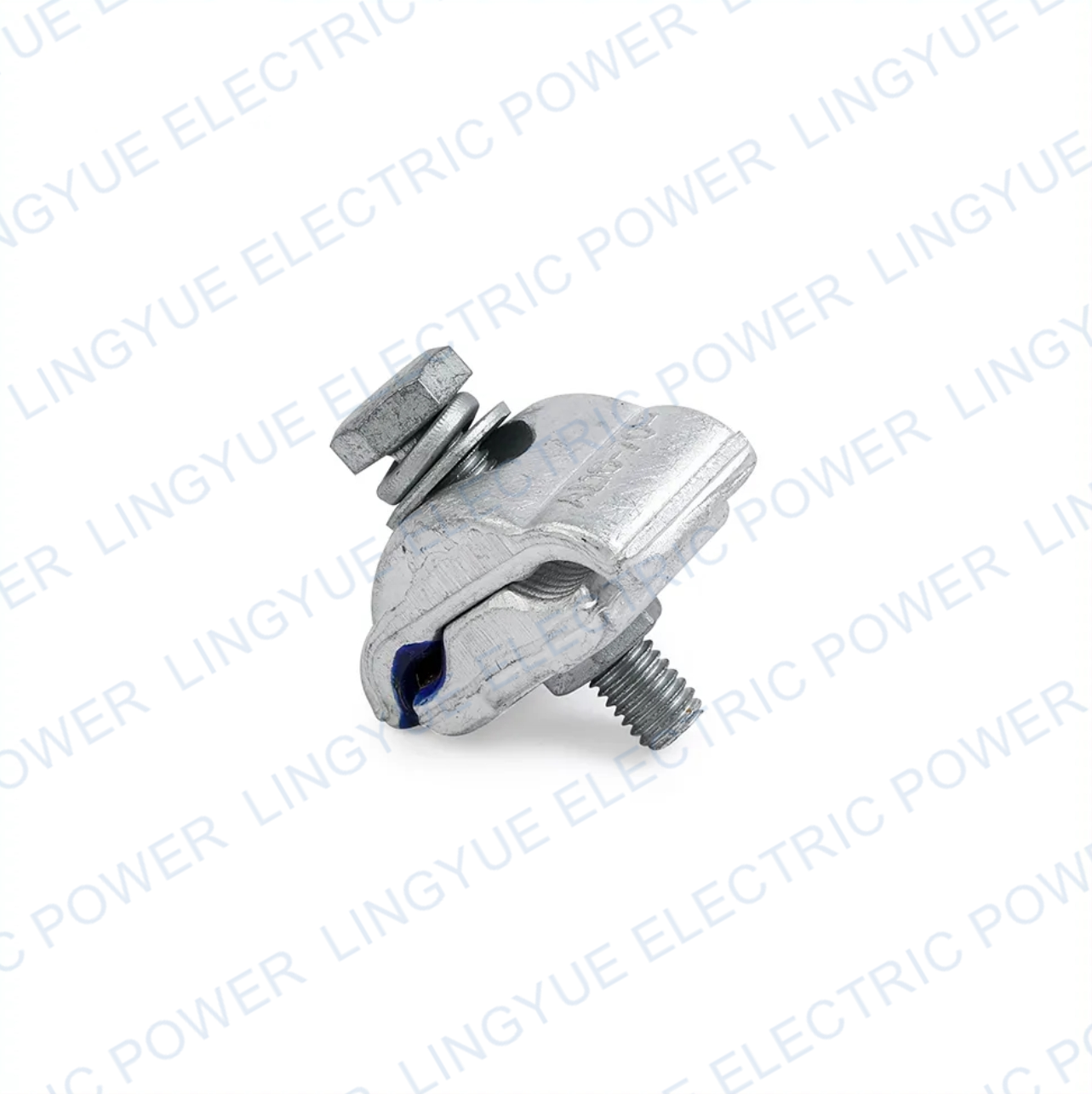

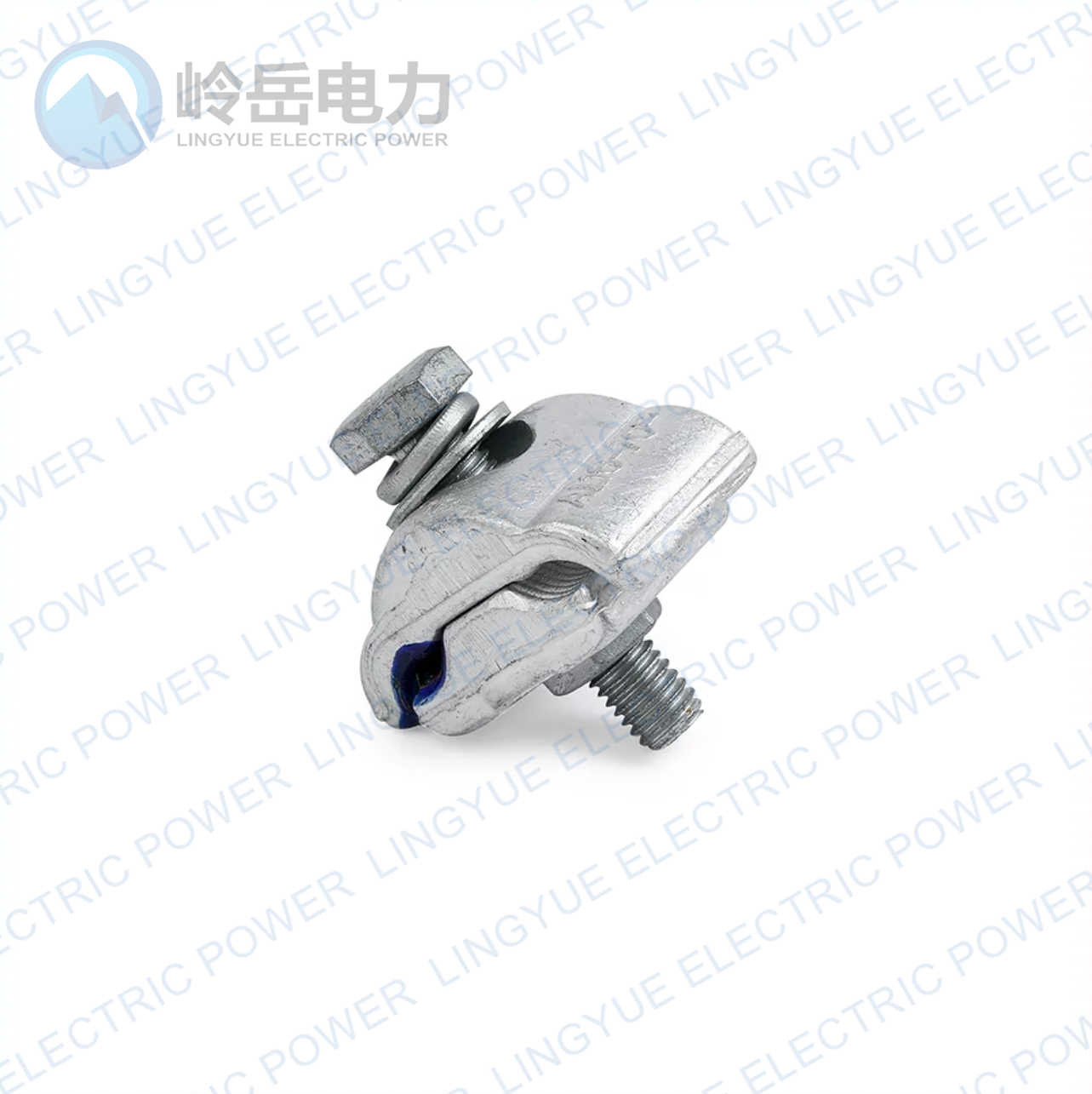

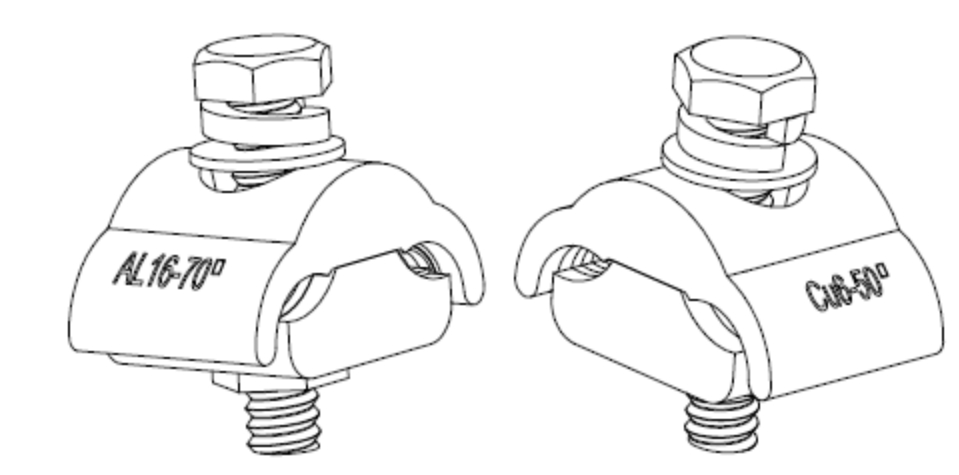

CAPG-A Series

Item number.	Size (mm²)	Bolt
CAPG-A1	Cu 6-50 Al16-70	Single bolt
CAPG-A2	Cu 10-95 Al25-150	Single bolt

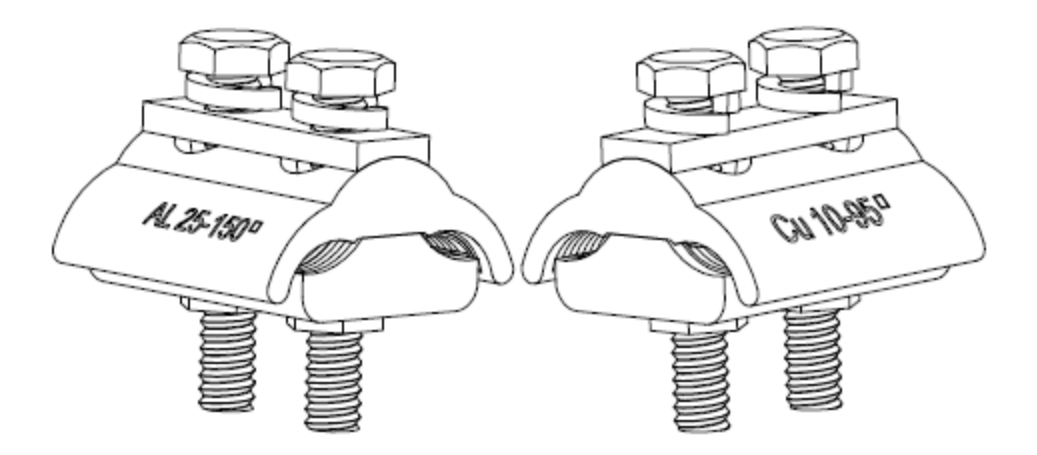

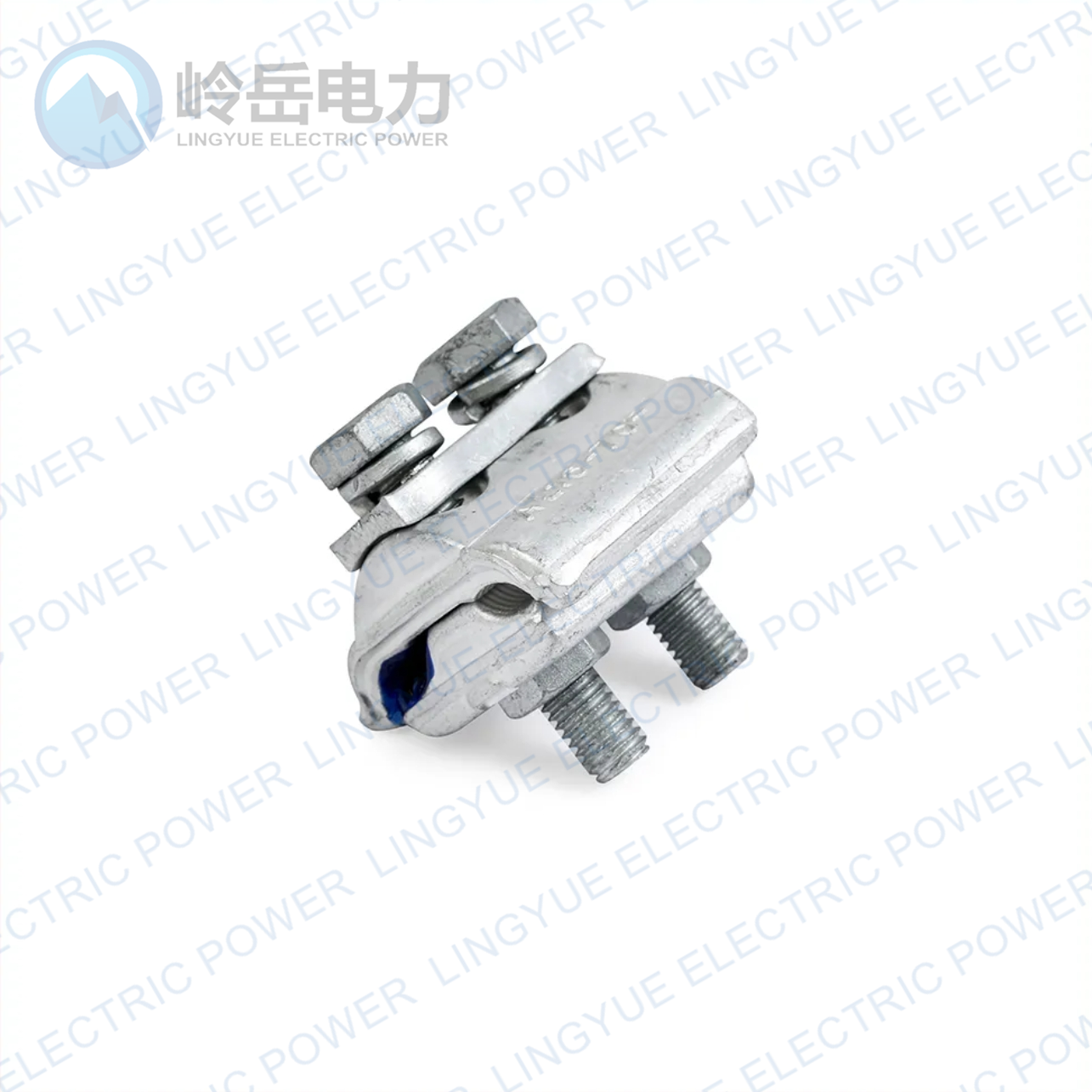

CAPG-B Series

Item number.	Size (mm²)	Bolt
CAPG-B1	Cu6-50 Al16-70	Double bolt
CAPG-B2	Cu10-95 Al25-150	Double bolt
CAPG-B3	Cu25-185 Al35-240	Double bolt

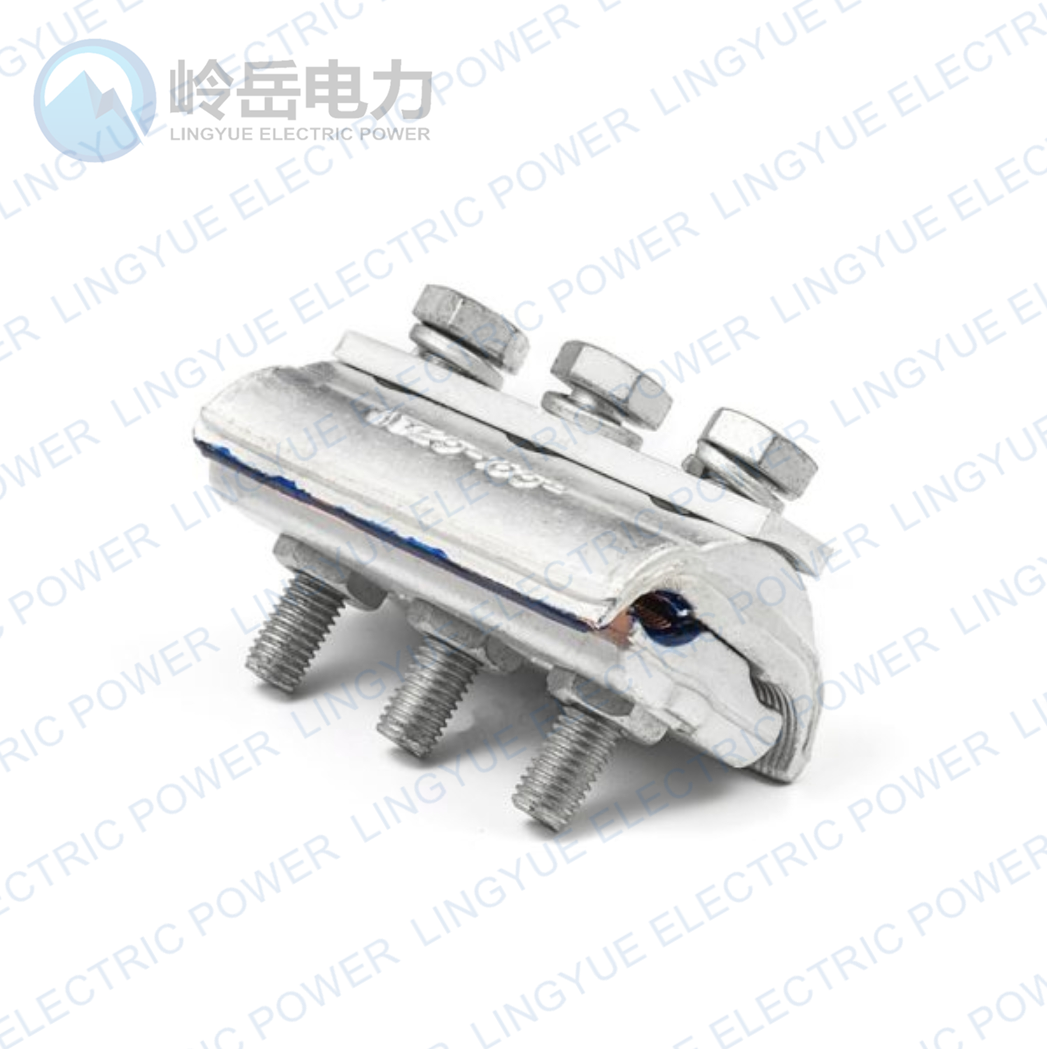

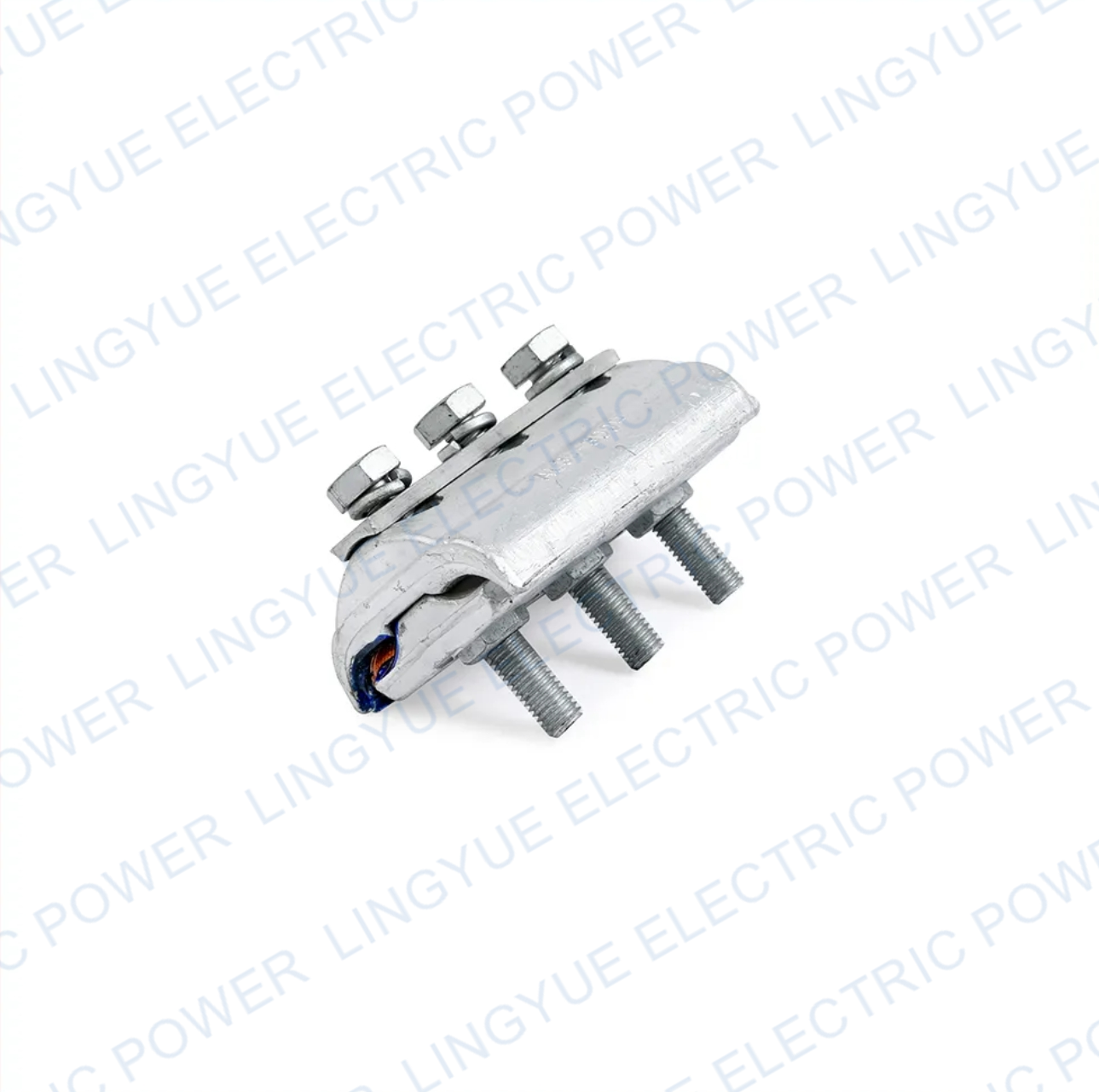

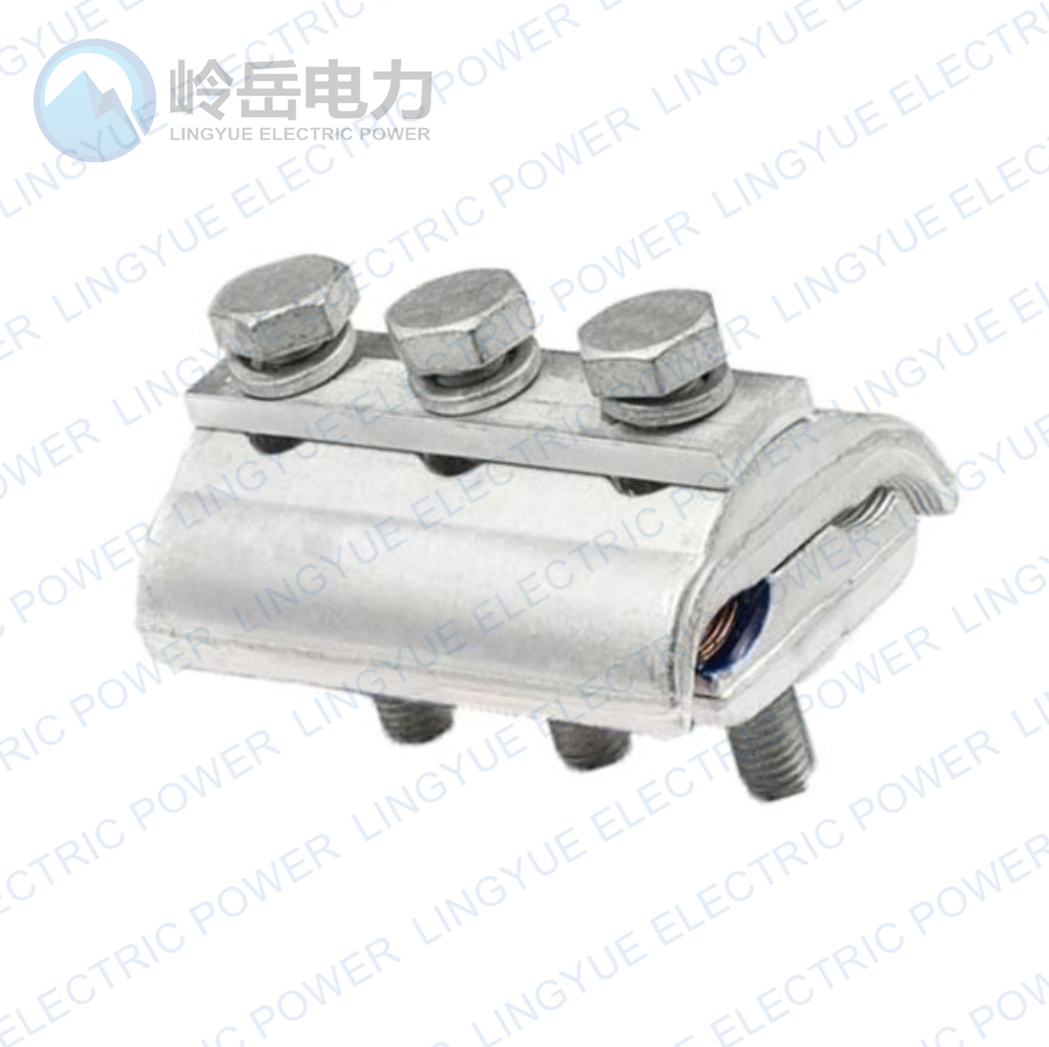

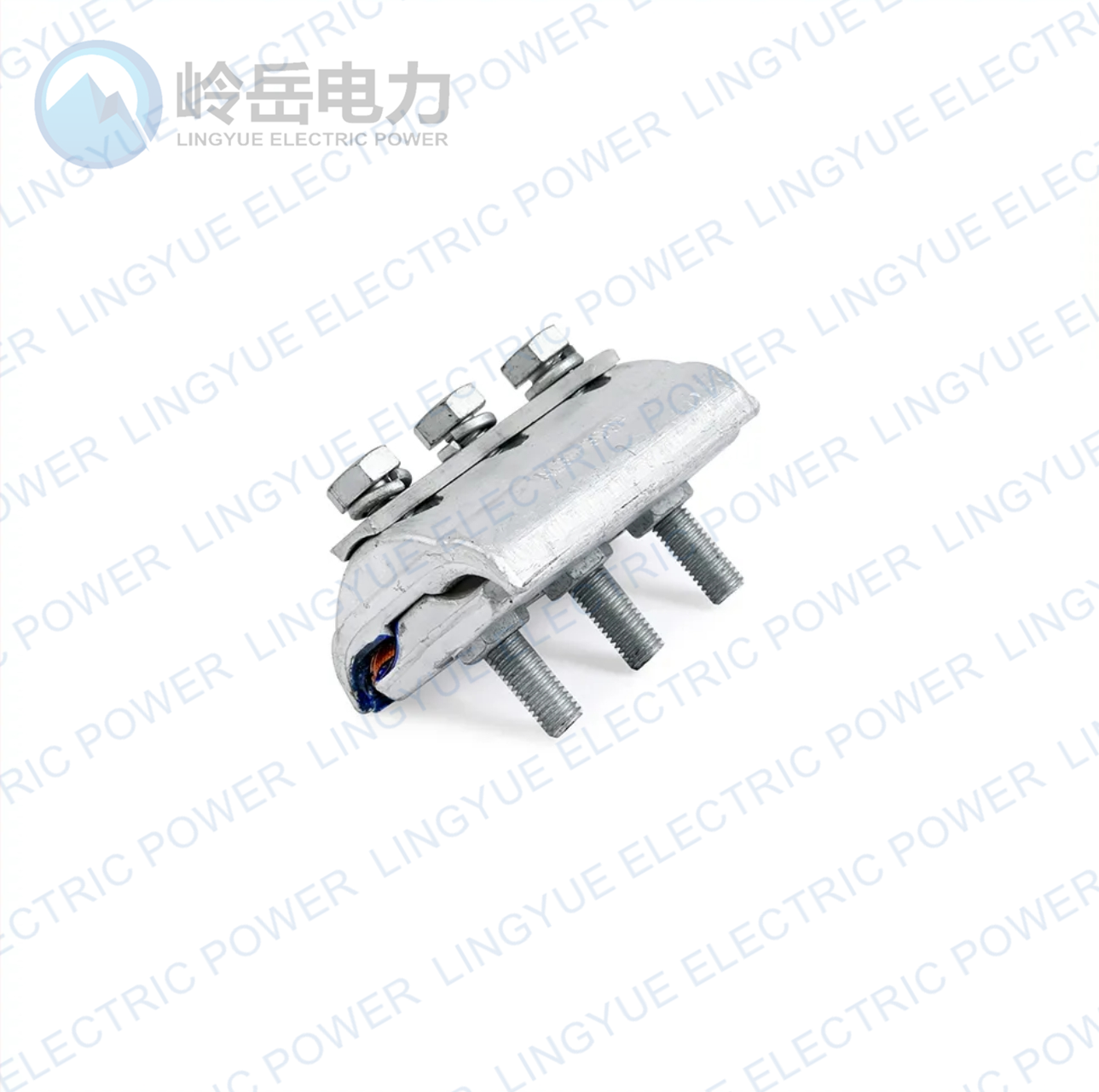

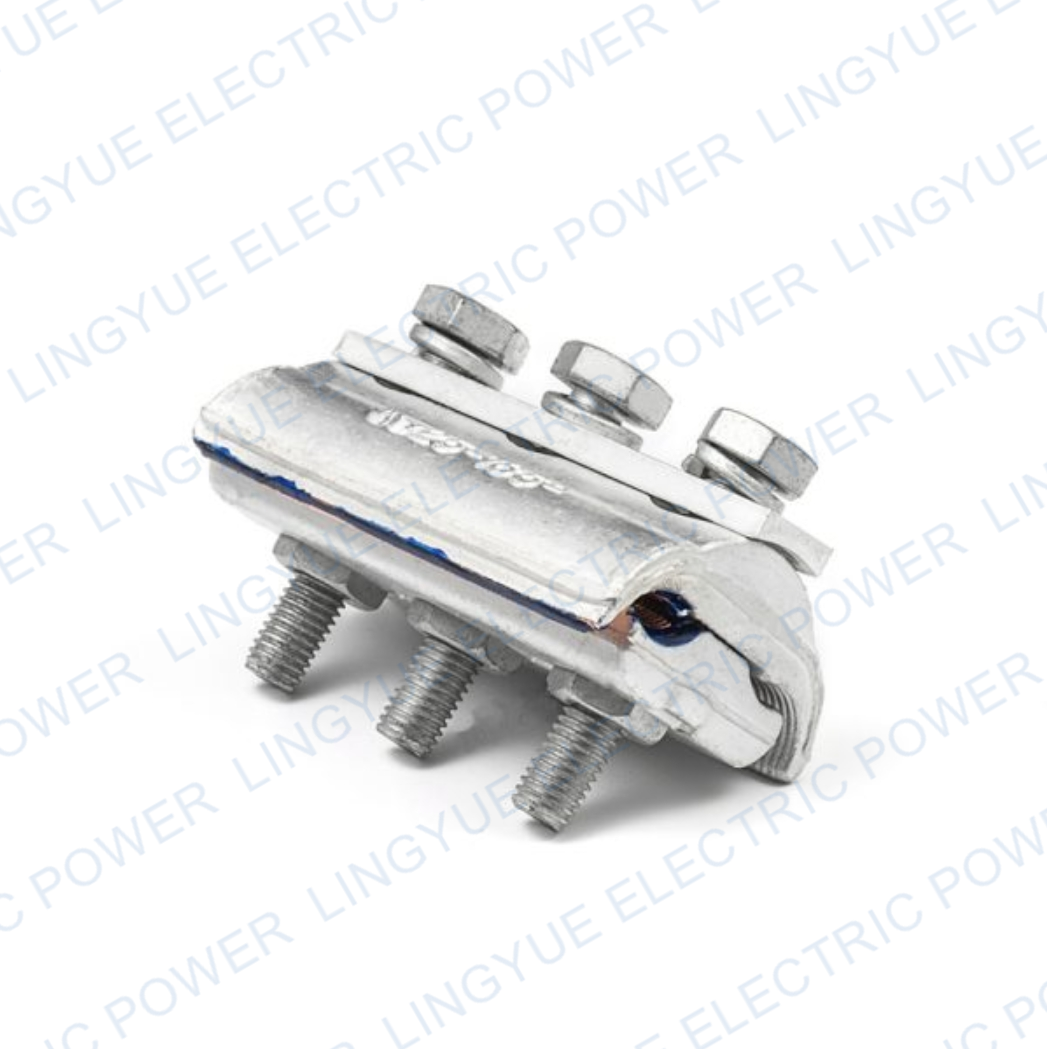

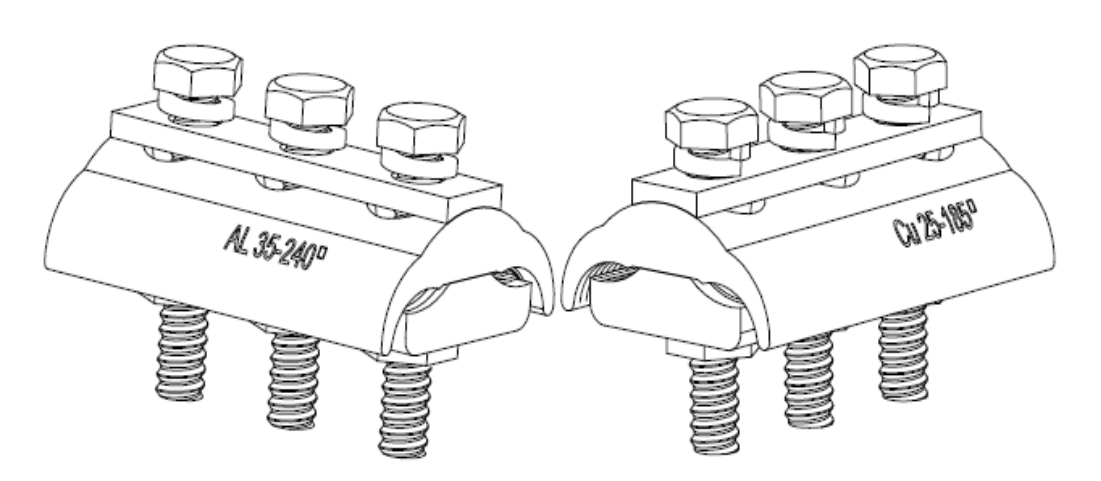

CAPG-C Series

Item number.	Size (mm²)	Bolt
CAPG-C1	Cu6-50 Al16-70	Tri-bolt
CAPG-C2	Cu10-95 Al25-150	Tri-bolt
CAPG-C3	Cu25-185 Al35-240	Tri-bolt
CAPG-C4	Cu35-240 Al35-300	Tri-bolt
