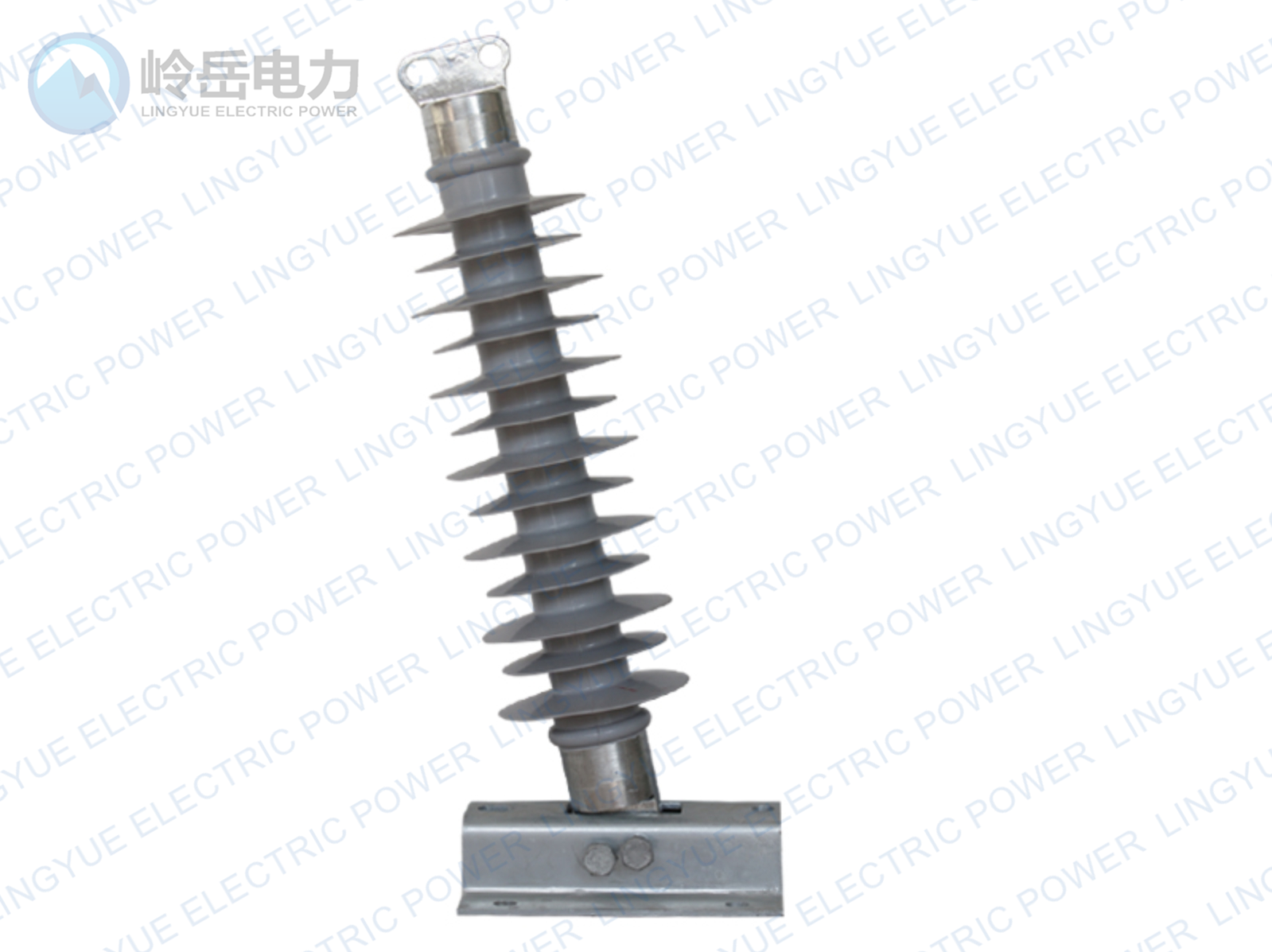

FPS-11/10
Dimensions
Shed Diameter: 98 & 78mm
Shed Spacing: 40mm
Section Length: 300mm
Dry Arcing Distance: 165mm
Leakage Distance: 450mm
Mechanical Values
Specified Cantilever Load (SCL): 10kN
Max Design Cantilever Load (MDCL): 5kN
Electrical Values
Low Frequency Dry Flashover Voltage: 70kV
Low Frequency Wet Flashover Voltage: 40kV
Critical Impulse Flashover Voltage, Positive: 110kV
Critical Impulse Flashover Voltage, Negative: 115kV
Packing and Shipping Data
Net Weight, Approximate: 4.0kg
FPS-11/8
Dimensions
Shed Diameter: 98 & 78mm
Shed Spacing: 40mm
Section Length: 300mm
Dry Arcing Distance: 165mm
Leakage Distance: 450mm
Mechanical Values
Specified Cantilever Load (SCL): 8kN
Max Design Cantilever Load (MDCL): 4kN
Electrical Values
Low Frequency Dry Flashover Voltage: 70kV
Low Frequency Wet Flashover Voltage: 40kV
Critical Impulse Flashover Voltage, Positive: 110kV
Critical Impulse Flashover Voltage, Negative: 115kV
Packing and Shipping Data
Net Weight, Approximate: 4.0kg
FPS-22/10
Dimensions
Shed Diameter: 135 & 105mm
Shed Spacing: 40mm
Section Length: 480mm
Dry Arcing Distance: 200mm
Leakage Distance: 610mm
Mechanical Values
Specified Cantilever Load (SCL): 10kN
Max Design Cantilever Load (MDCL): 5kN
Electrical Values
Low Frequency Dry Flashover Voltage: 80kV
Low Frequency Wet Flashover Voltage: 60kV
Critical Impulse Flashover Voltage, Positive: 130kV
Critical Impulse Flashover Voltage, Negative: 135kV
Packing and Shipping Data
Net Weight, Approximate: 5.2kg
FPS-22/12.5
Dimensions
Shed Diameter: 135 & 105mm
Shed Spacing: 40mm
Section Length: 480mm
Dry Arcing Distance: 200mm
Leakage Distance: 610mm
Mechanical Values
Specified Cantilever Load (SCL): 12.5kN
Max Design Cantilever Load (MDCL): 6.3kN
Electrical Values
Low Frequency Dry Flashover Voltage: 80kV
Low Frequency Wet Flashover Voltage: 60kV
Critical Impulse Flashover Voltage, Positive: 130kV
Critical Impulse Flashover Voltage, Negative: 135kV
Packing and Shipping Data
Net Weight, Approximate: 5.2kg
FPS-33/10
Dimensions
Shed Diameter: 122 & 92mm
Shed Spacing: 40mm
Section Length: 515mm
Dry Arcing Distance: 325mm
Leakage Distance: 1000mm
Mechanical Values
Specified Cantilever Load (SCL): 10kN
Max Design Cantilever Load (MDCL): 5kN
Electrical Values
Low Frequency Dry Flashover Voltage: 140kV
Low Frequency Wet Flashover Voltage: 120kV
Critical Impulse Flashover Voltage, Positive: 220kV
Critical Impulse Flashover Voltage, Negative: 230kV
Packing and Shipping Data
Net Weight, Approximate: 6.8kg
FPS-33/12.5
Dimensions
Shed Diameter: 122 & 92mm
Shed Spacing: 40mm
Section Length: 540mm
Dry Arcing Distance: 315mm
Leakage Distance: 1160mm
Mechanical Values
Specified Cantilever Load (SCL): 12.5kN
Max Design Cantilever Load (MDCL): 6.3kN
Electrical Values
Low Frequency Dry Flashover Voltage: 140kV
Low Frequency Wet Flashover Voltage: 120kV
Critical Impulse Flashover Voltage, Positive: 220kV
Critical Impulse Flashover Voltage, Negative: 230kV
Packing and Shipping Data
Net Weight, Approximate: 6.8kg
FPS-66/10
Dimensions
Shed Diameter: 160 & 140mm
Shed Spacing: 40mm
Section Length: 930mm
Dry Arcing Distance: 620mm
Leakage Distance: 2200mm
Mechanical Values
Specified Cantilever Load (SCL): 10kN
Max Design Cantilever Load (MDCL): 5kN
Electrical Values
Low Frequency Dry Flashover Voltage: 180kV
Low Frequency Wet Flashover Voltage: 160kV
Critical Impulse Flashover Voltage, Positive: 325kV
Critical Impulse Flashover Voltage, Negative: 350kV
Packing and Shipping Data
Net Weight, Approximate: 8.4kg
