Product Introduction

BL series specific forms parallel groove clamp is suitable for unendure force splicing and branch on the aerial wire.It has the function of protection and insulation when it matches insulating sheath.



Structure Feature

1.Select oxidize-resistance aluminium alloy.

2.Teeth-shape structure,touch with lowly resistance,reliable splicing.



Datas



Type

Conductor Cross-section(mm²）

Bolt

JBL-H-1A

16-70

2*M8*50

JBL-H-2A

16-120

2*M10*55

JBL-H-3A

50-240

2*M10*70

JBL-H-2B

16-120

3*M10*55

JBL-H-3B

50-240

3*M10*70

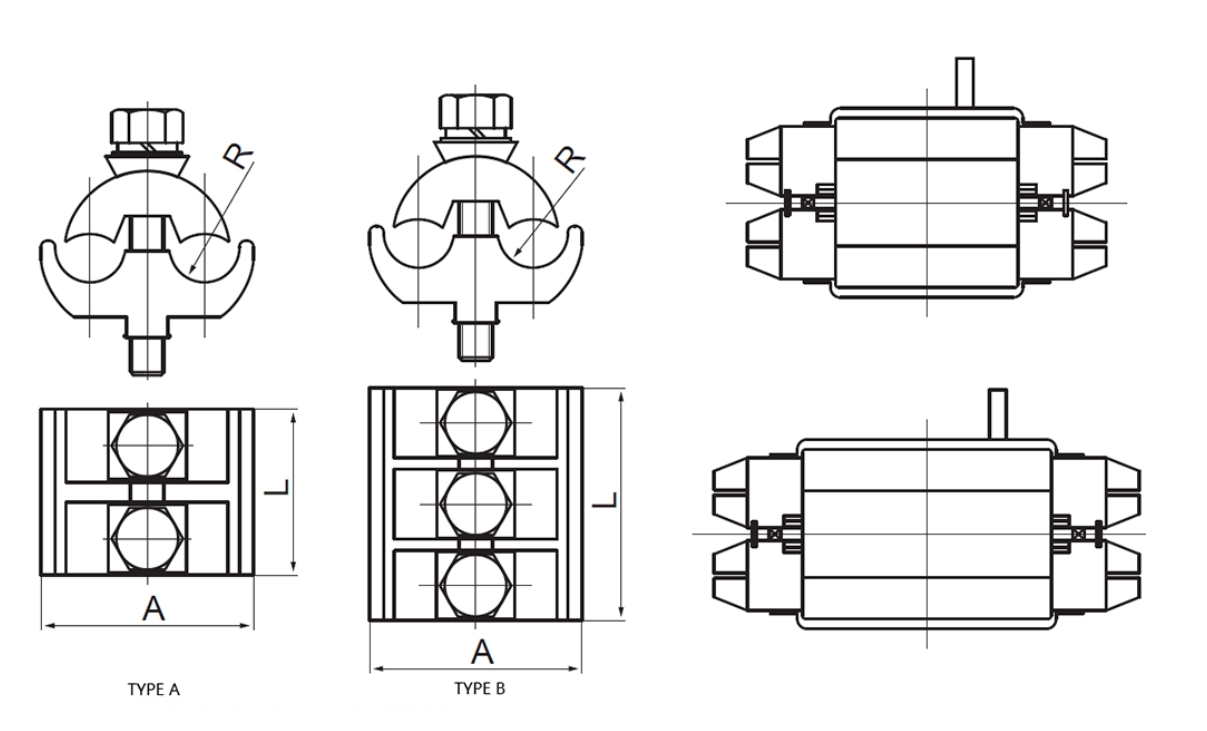

Notice:A type is 2 bolts,B type is 3 bolts.




Type

Conductor Cross-section(mm²）

Bolt

JBL-B-2A

16-120

2*M10*55

JBL-B-3A

50-240

2*M10*70

Notice:A type is 2 bolts.
