Product Introduction

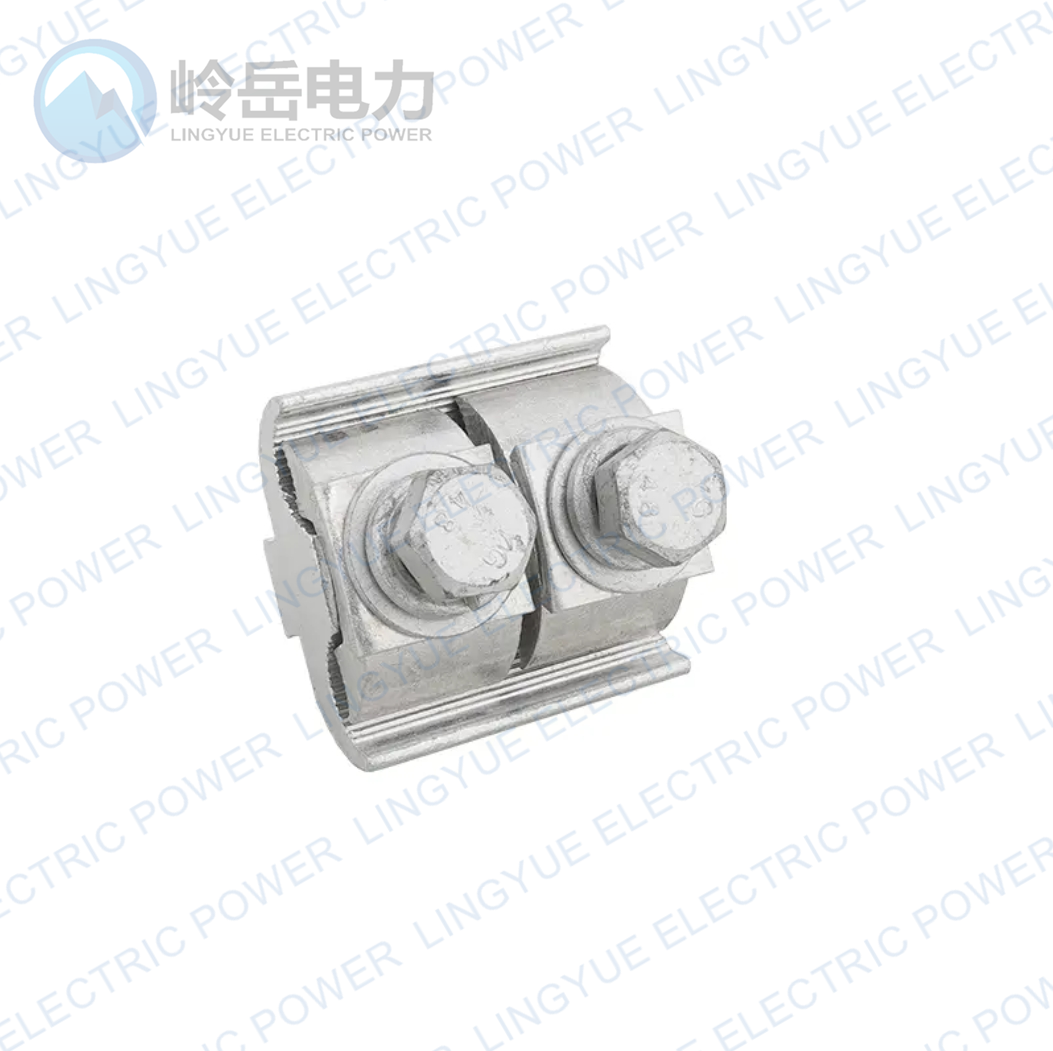

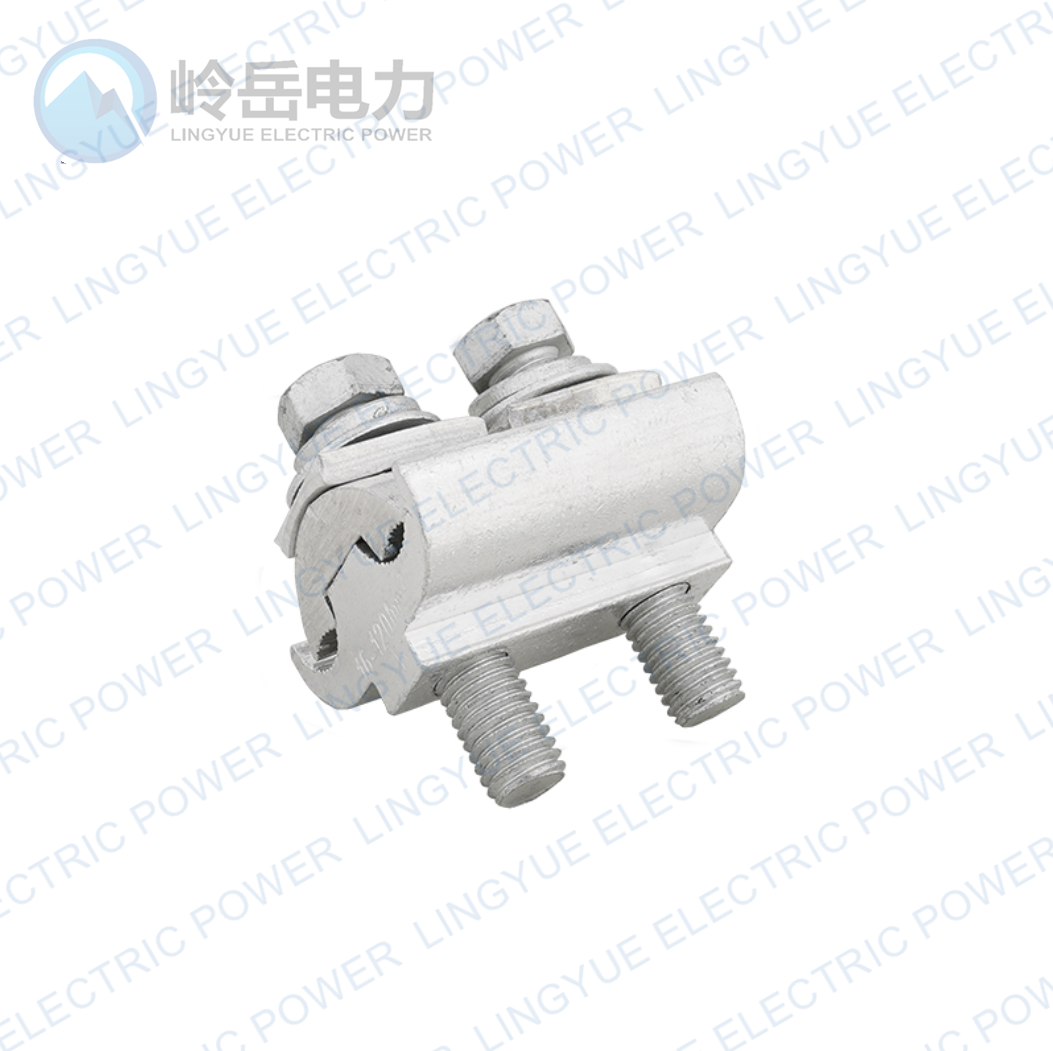

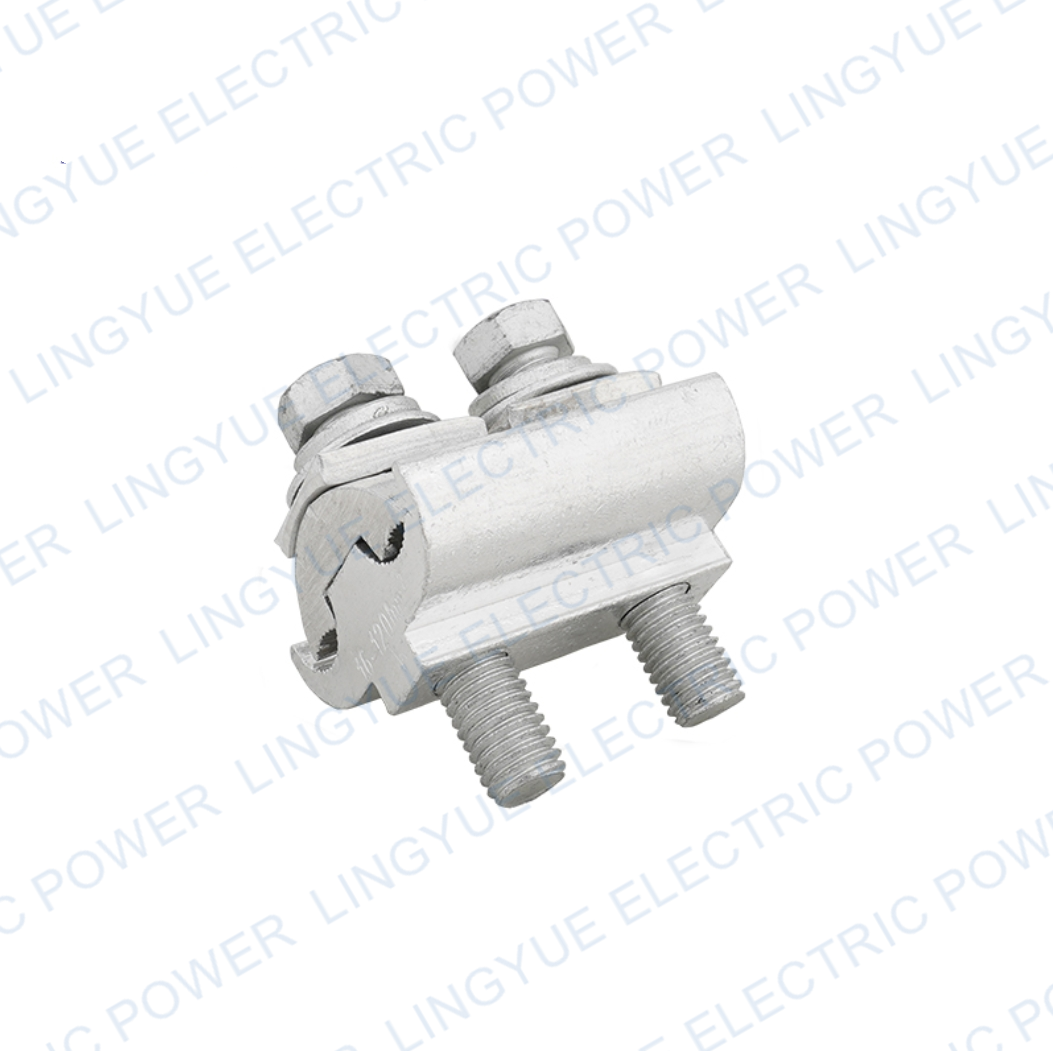

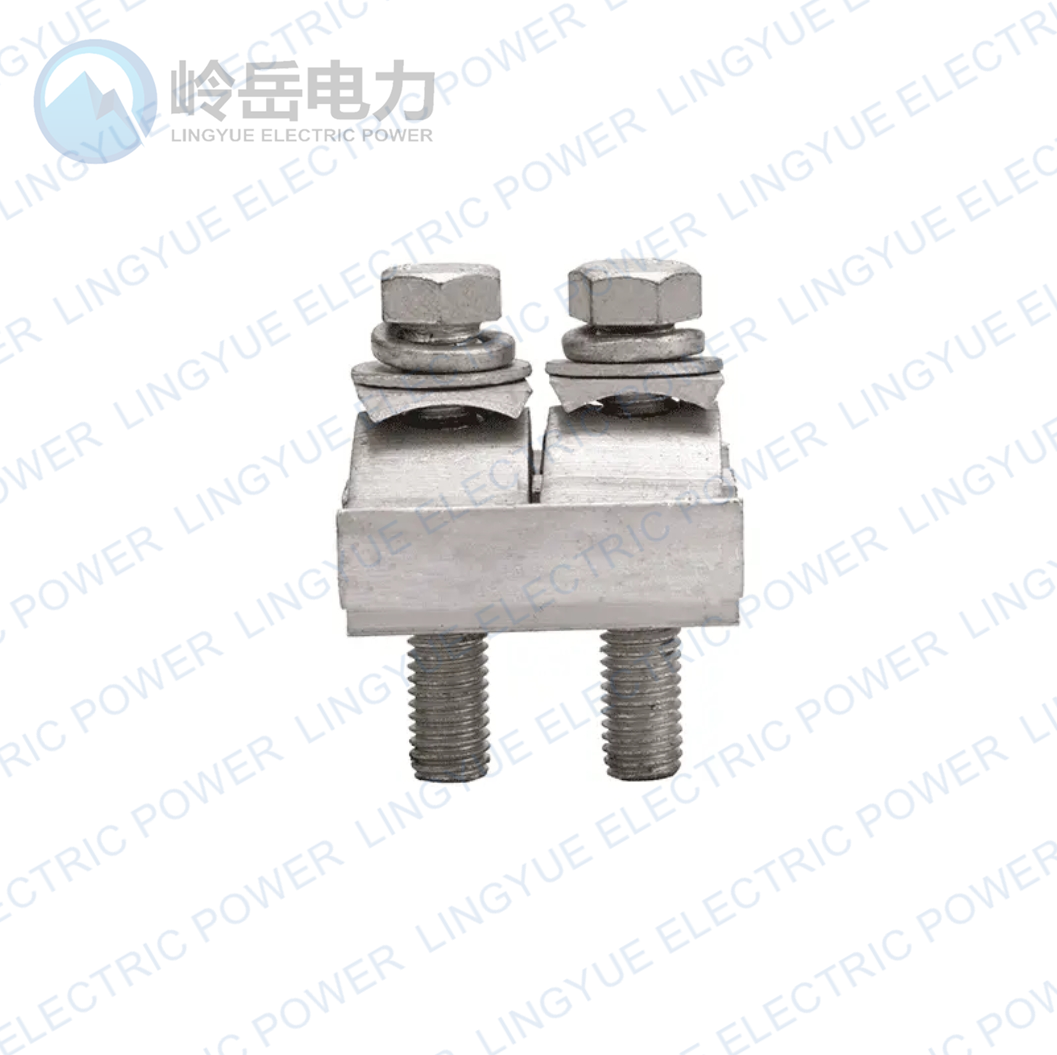

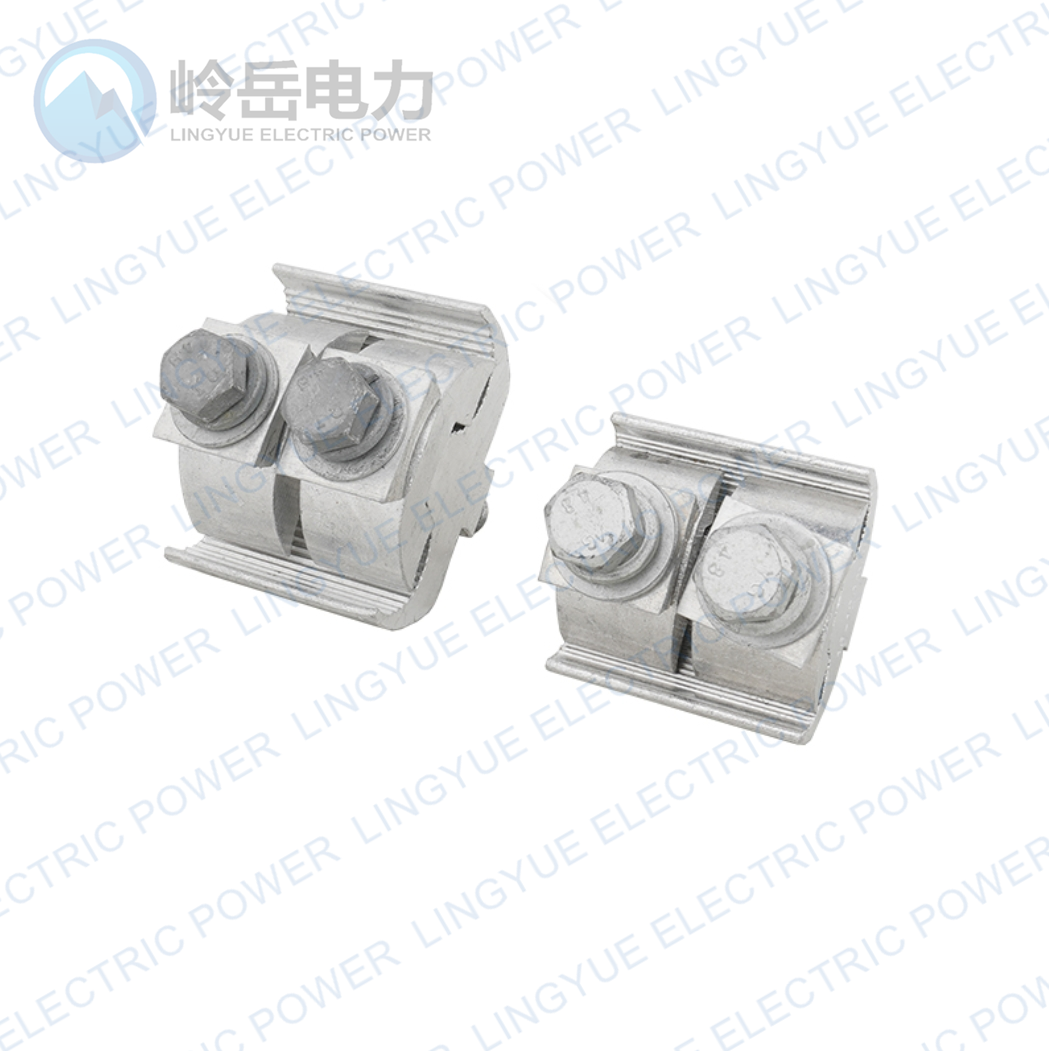

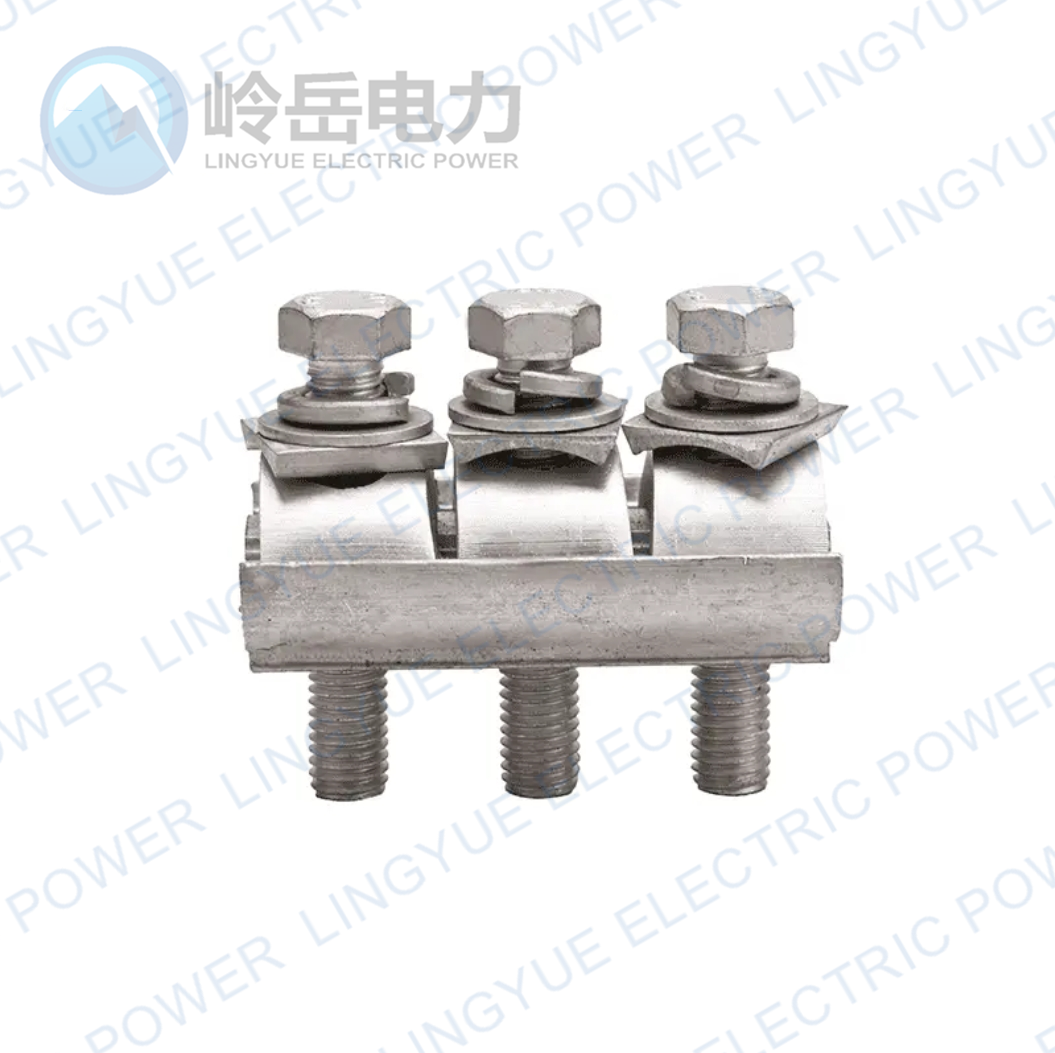

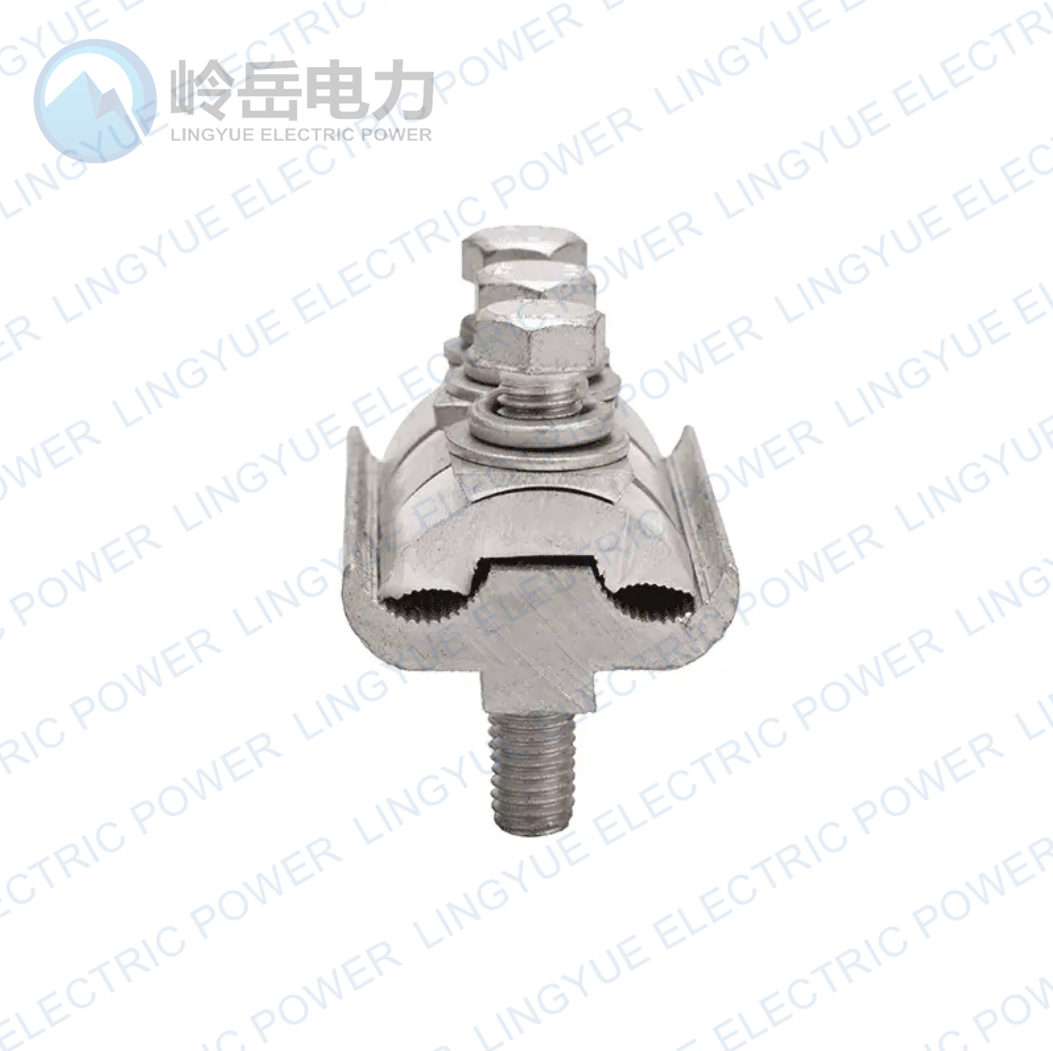

JBL(Y) series aluminum parallel groove clamp is designed to connect two parallel bare aluminium conductors.



There are two types.


Pressure pad ensuring uniform pressure along the clamp.
Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact


Stainless steel A2 bolts and nuts available according to order.




Item No.

Wire range(mm2)

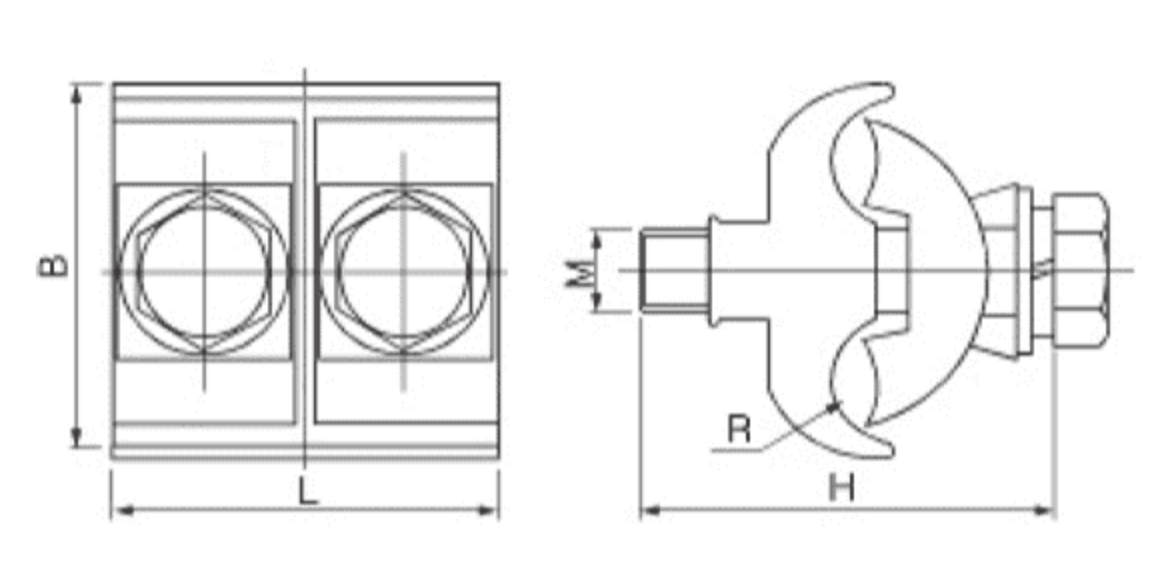

Main Dimension(mm)

Bolts Qty.



L

B

H

R

M


JBL(Y)-16-70

10-70

43

36

45

5

8

2

JBL(Y)-16-120

16-120

46

45

50

7

10

2


16-120

67

45

50

7

10

3

JBL(Y)-50-240

50-240

47

63

65

10

10

2


50-240

70

63

65

10

10

3

JBL(Y)-120-300

120-400

70

74

70

12.5

12

2


120-400

90

74

70

12.5

12

3
