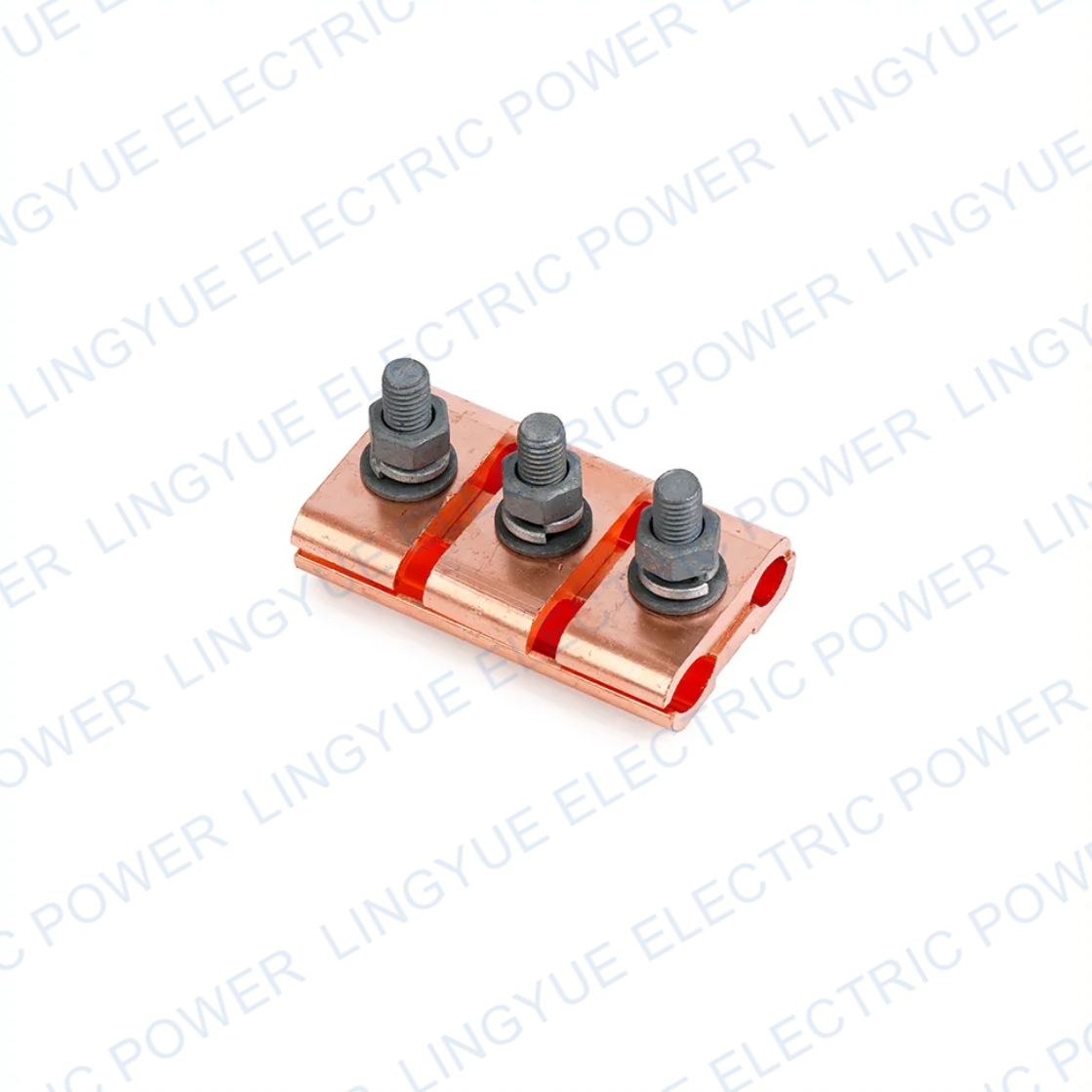

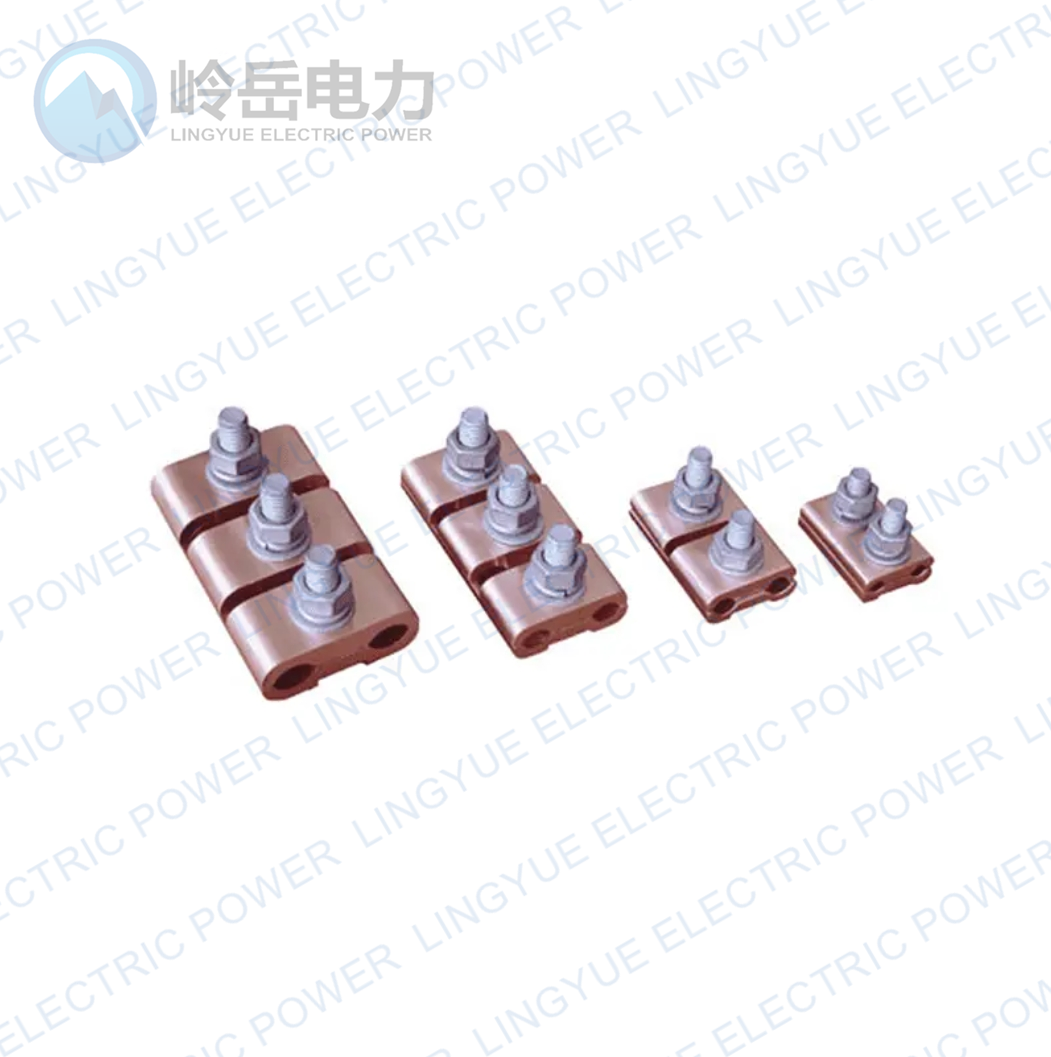

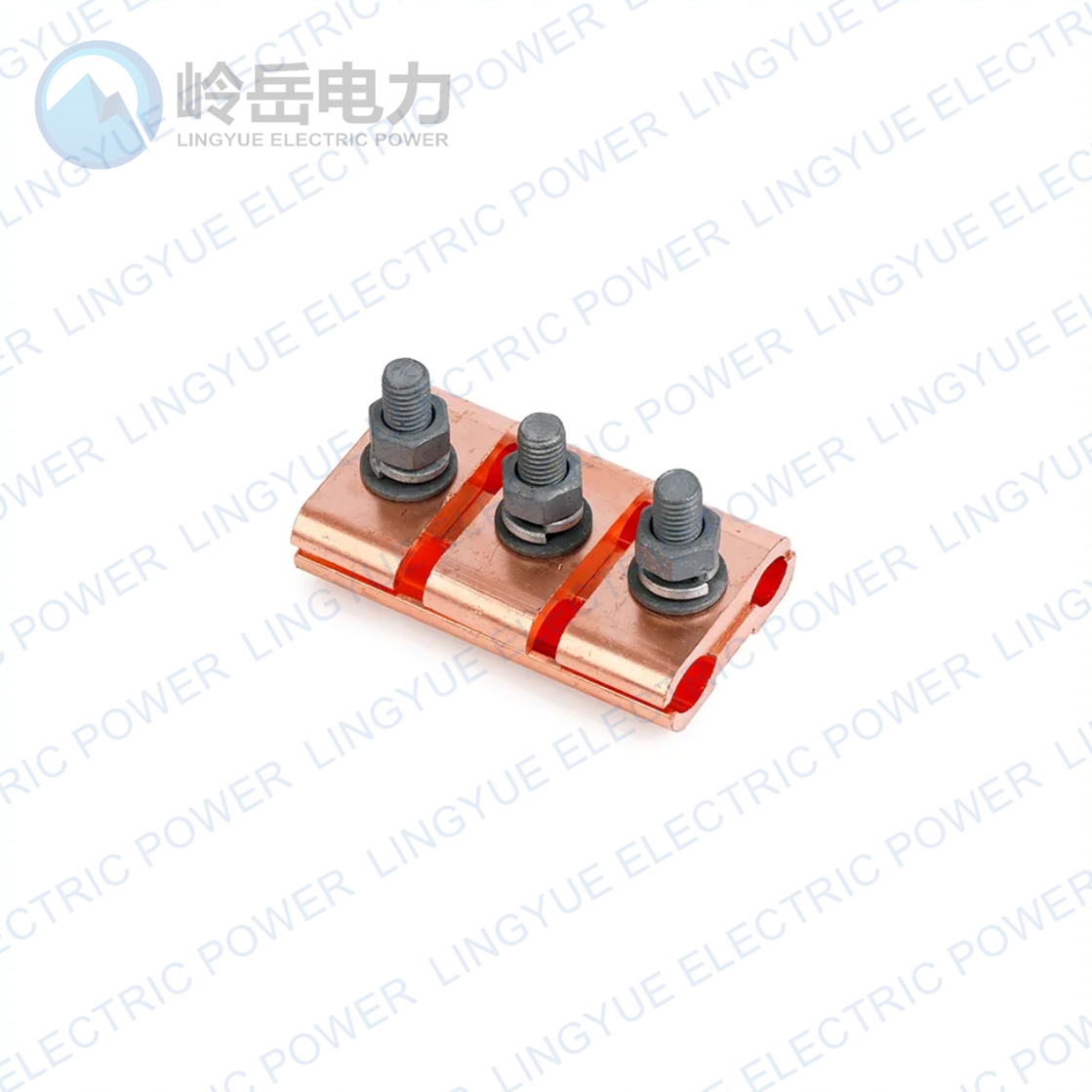

JBT series copper parallel groove clamp is designed to connect two parallel bare copper conductors.
The arc is held in a large area, and the wire is not easy to creep;
Large span range, suitable for wires of different diameters;
Installation is convenient and flexible.

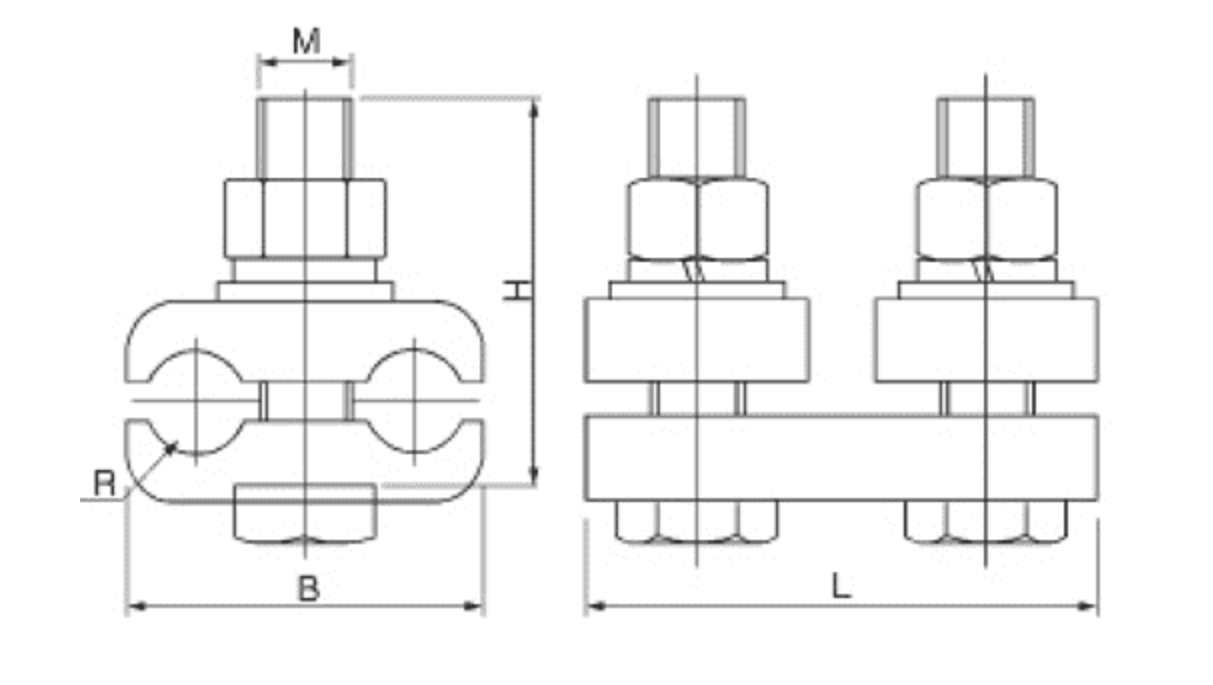

Item No. | Wire range(mm2) | Main Dimension(mm) | Bolts Qty. | ||||
L | B | H | R | M | |||
JBT-00 | 16-25/16-25 | 50 | 35 | 35 | 3.5 | 10 | 2 |
JBT-10 | 35-50/16-25 | 60 | 40 | 35 | 5/3.5 | 10 | 2 |
JBT-11 | 35-50/35-50 | 60 | 40 | 35 | 5 | 10 | 2 |
JBT-21 | 70-95/35-50 | 98 | 50 | 50 | 7/5 | 12 | 2 |
JBT-22 | 70-95/70-95 | 98 | 50 | 50 | 7 | 12 | 2 |
JBT-31 | 120-150/35-50 | 108 | 62 | 50 | 8.5/5 | 12 | 3 |
JBT-32 | 120-150/70-95 | 108 | 62 | 50 | 8.5/7 | 12 | 3 |
JBT-33 | 120-150/120-150 | 108 | 62 | 50 | 8.5 | 12 | 3 |
JBT-41 | 185-240/35-50 | 108 | 65 | 50 | 11/5 | 12 | 3 |
JBT-42 | 185-240/70-95 | 108 | 65 | 50 | 11/7 | 12 | 3 |
JBT-43 | 185-240/120-150 | 108 | 65 | 50 | 11/8.5 | 12 | 3 |
JBT-44 | 185-240/185-240 | 108 | 65 | 50 | 11 | 12 | 3 |
