JK guy wire clamp
Product Introduction

JK series guy clip comes either with forged steel or malleable iron base.



They are made from Grade 316 or Grade 304 Stainless Steel for corrosion resistance and durability and are ideal for marine, industrial and architectural wire projects.



lt is the most economical way of securing down guy and a clamping pace to clamp ground wire to ground rod.



Hot-dip galvanized steel or stainless steel.




Type

Suitable Dia. Steel Wire

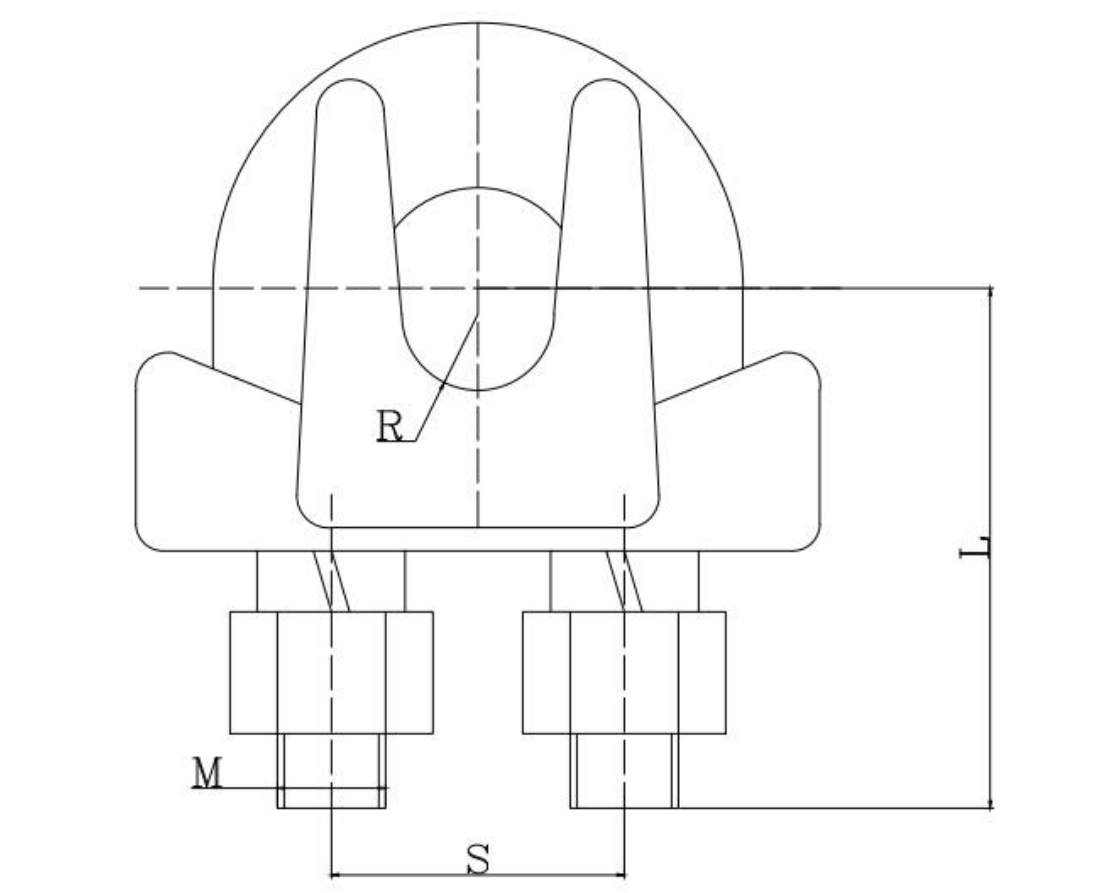

Dimensions (mm)

Weight (kg)

m

L

s

r

JK-0

4.2-5.4

16

41

17

4

0.08

JK-1

6.6-7.8

18

54

22

5

0.2

JK-2

9.0-11.0

22

72

28

6

0.3

JK-3

12.0-14.0

24

60

33

7.5

0.35

The body is malleable cast iron.The rest are steel parts, all hot dip galvanized
