Product Introduction

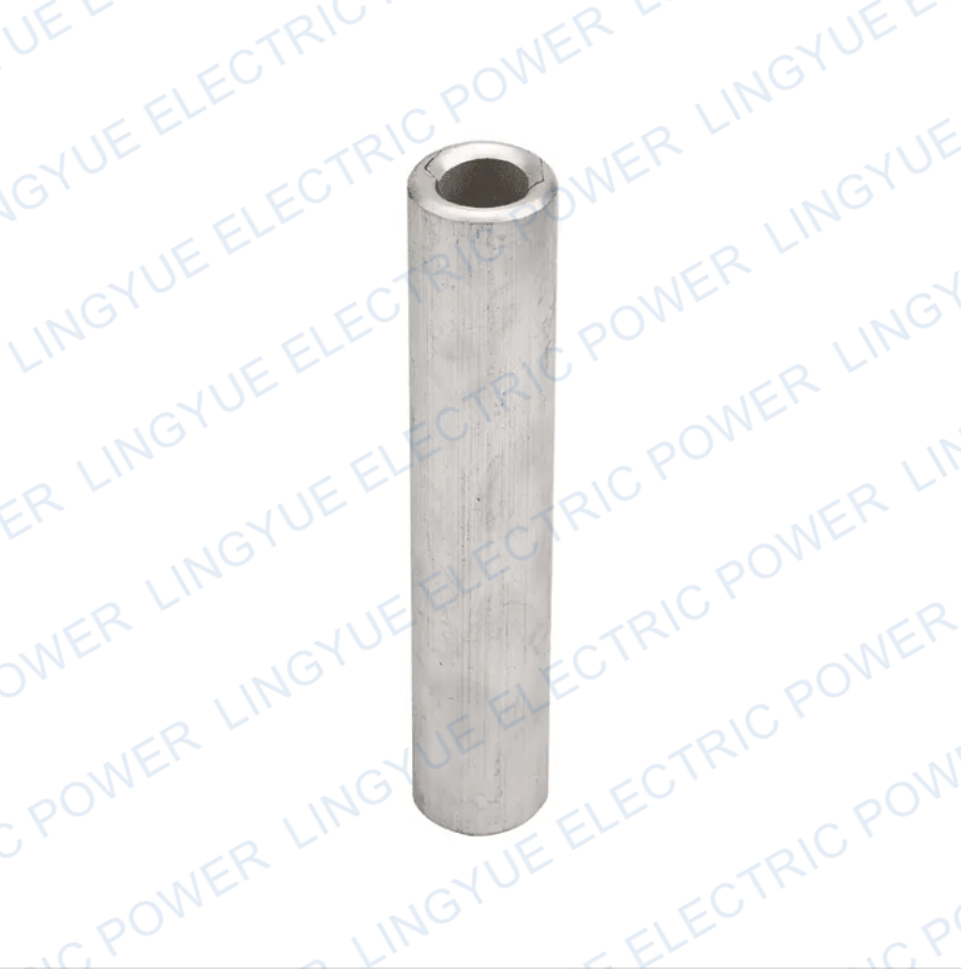

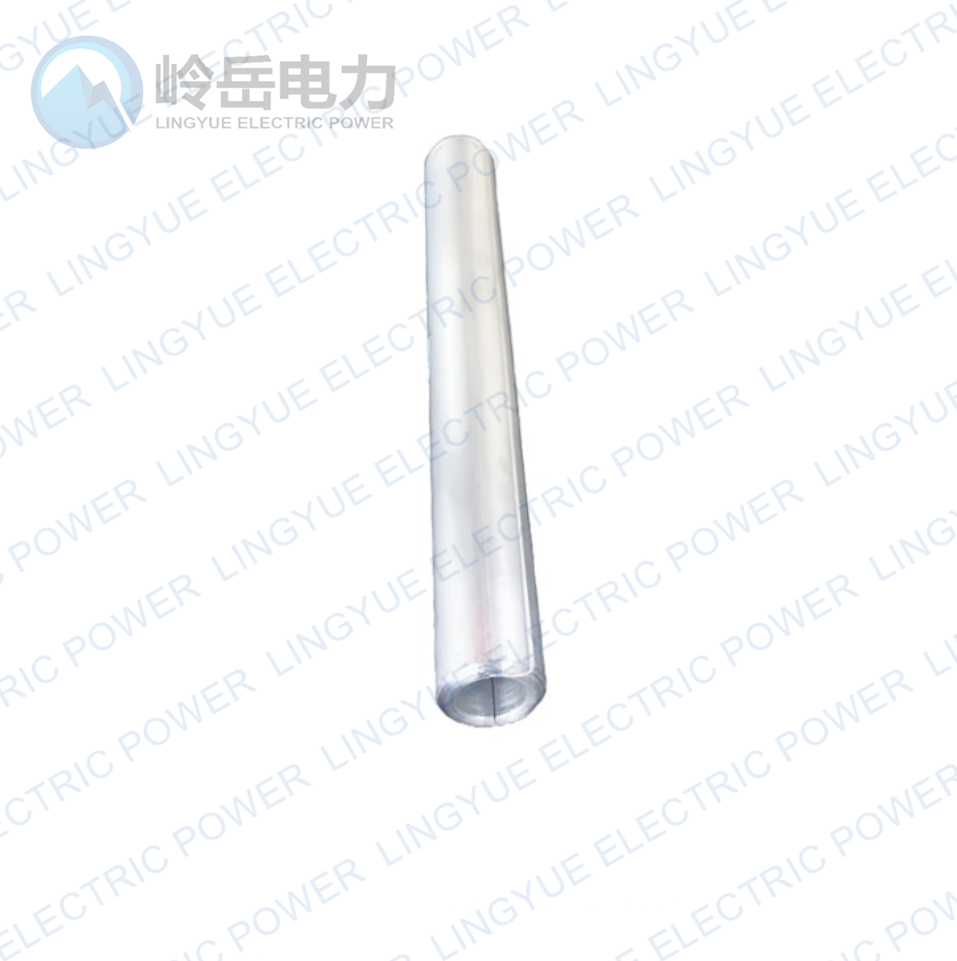

JX Repair Sleeve for Steel Wire Conductor is suitable for repairing damaged conductor to resume electric & mechanical performance of the conductor.



Material：AL ≥99.5%

Surface: Bright

Application: Repair damaged and unbroken aluminum conductor



Catalogue No.

Suitable conductor

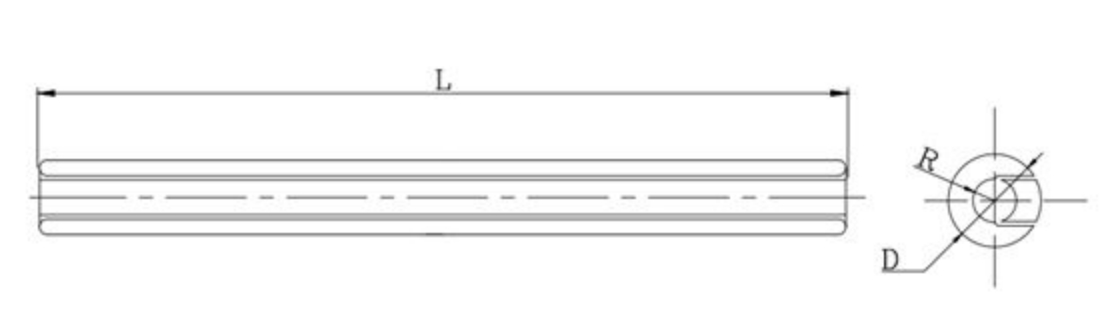

Dimensions (mm)

Weight (kg)

D

L

r

JX-70/40

LGJF-70/40 LGJF-70/40

26

200

7.5

0.2

JX-90/40

LGJ-90/40

30

150

8.0

0.3

JX-95/55

LGJ-95/55

32

150

9.0

0.3

JX-95/140

LGJ-95/140

32

200

11.0

0.7

JX-150/25

LGJ-150/25

30

150

9.5

0.3

JX-150/35

LGJ-150/35

30

150

9.5

0.2

JX-185

LGJ-185/25 185/30 185/45 210/10

32

150

10.5

0.2

JX-185/10

LGJ-185/10

32

150

10.0

0.2

JX-210

LGJ-210/25 210/35

34

200

11.0

0.3

JX-240

LGJ-240/30 240/40 210/50

36

200

11.5

0.4

JX-300

LGJ-300/20 300/25 300/40 300/50

40

250

13.0

0.6

JX-300/15

LGJ-300/15

40

250

12.5

0.6

JX-400

LGJ-400/20 400/25 400/35

45

300

14.5

0.8

JX-400/50

LGJ-400/50

45

320

14.5

0.9

JX-500

LGJ-500/35 500/45 500/65

52

320

16.0

1,1

JX-630

LGJ-630/45 630/55 630/80

60

370

18.0

1.7

JX-800

LGJ-800/70 800/100

65

370

+20.5

1.9

JX-800/55

LGJ-800/55

65

370

20.0

1.9
