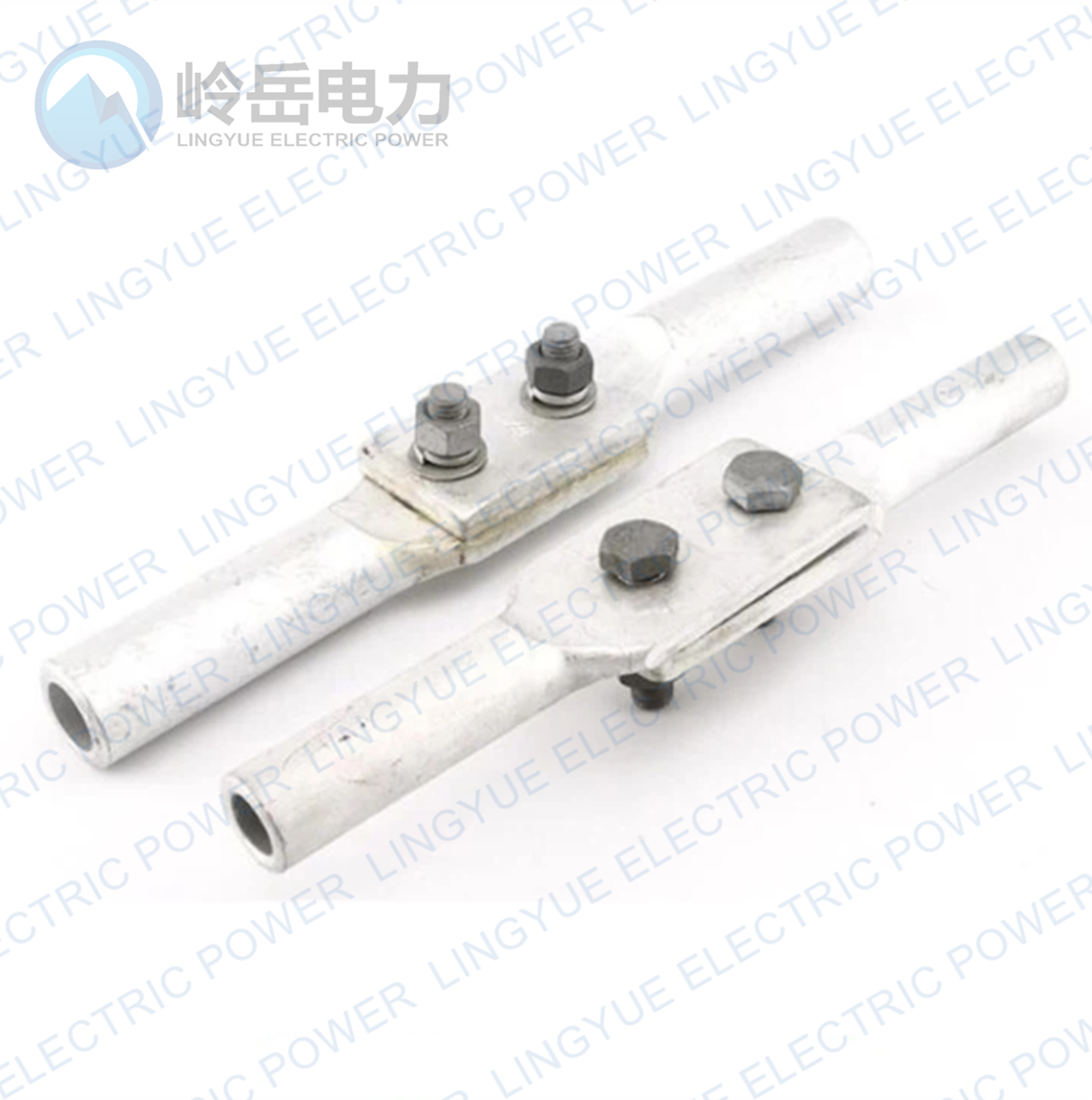

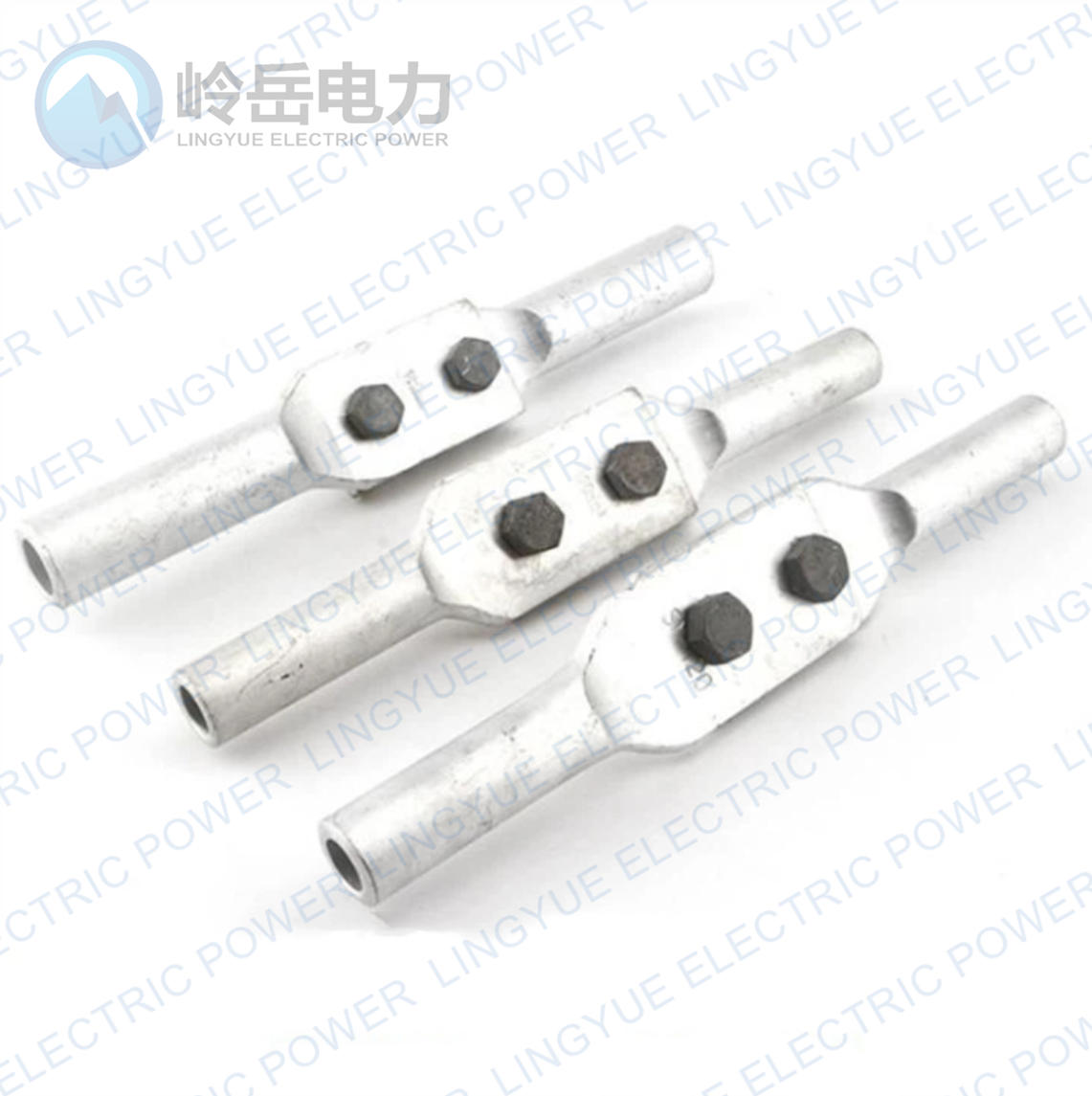

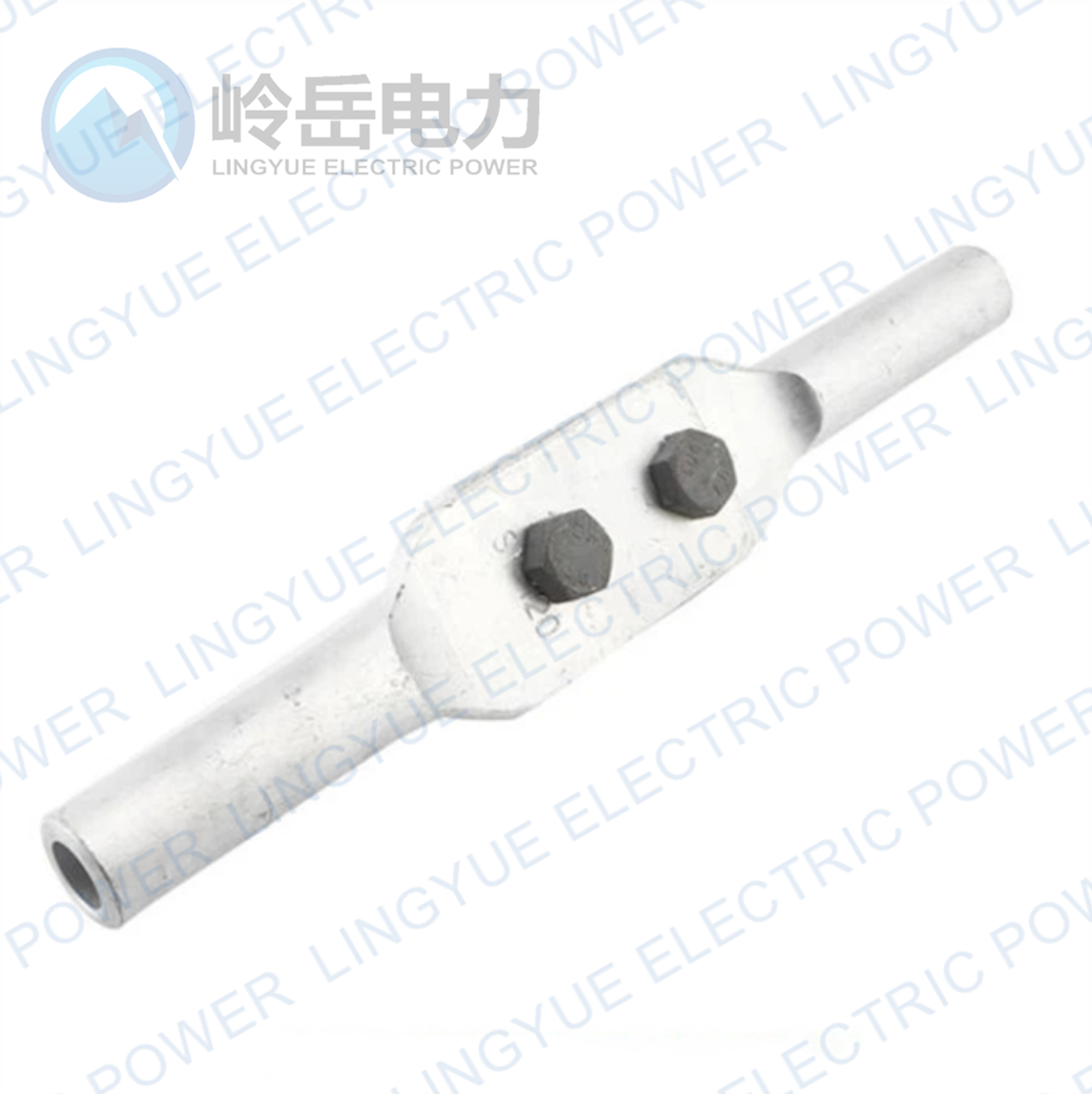

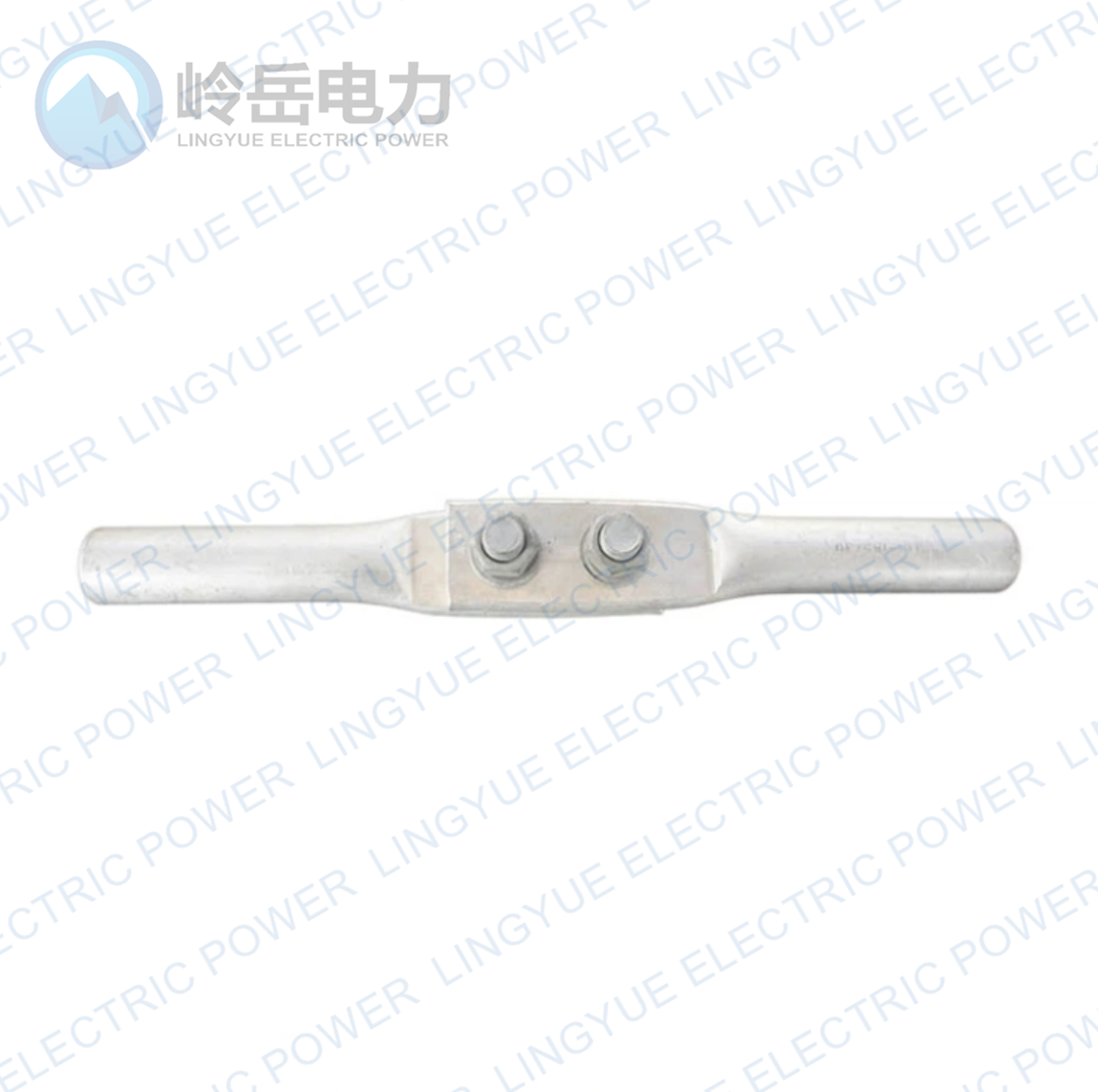

JYT jumper connector

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

A jumper clamp is an accessory for connecting jumpers between two busbars in a power transmission system.

Description:
The body of the connecting jumper is made of aluminum, the other parts are made of galvanized steel.

Application:
The jumper clamp is an accessory for connecting jumpers between two busbars in a power transmission system.

Advantages:

Convenient installation, high electrical conductivity, high tensile strength, high safety performance, high production efficiency and saving metal materials

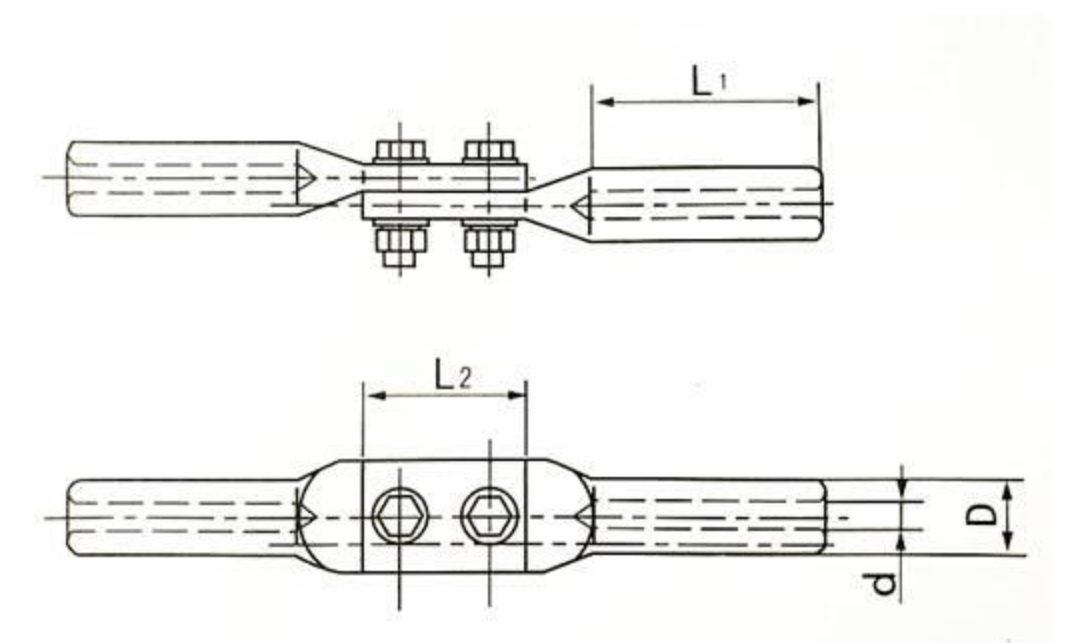

Catalogue No.	Suitable conductor	Dimensions (mm)				Weight (kg)
Catalogue No.	Suitable conductor	D	L1	L2	D	Weight (kg)
JYT-35/6	LGJ-35/6	16	60	30	9.5	0.3
JYT-50/8	LGJ-50/8	18	60	30	11.0	0.3
JYT-70/10	LGJ-70/10	22	70	30	13.0	0.4
JTY-95/15	LGJ-95/15	26	80	30	15.0	0.5
JYT-95/55	LGJ-95/55	26	81	40	17.5	0.5
JYT-120/7	LGJ-120/7	28	80	40	16.0	0.6
JYT-120/20	LGJ-120/20	26	80	40	16.5	0.6
JYT-150/8	LGJ-150/8	30	90	40	17.5	0.7
JYT-150/20	LGJ-150/20	30	90	40	18.0	0.7
JYT-150/25	LGJ-150/25	30	90	40	18.5	0.7
JYT-185/10	LGJ-185/10	32	90	40	+19.5	0.7
JYT-185/25	LGJ-185/25	32	90	40	+20.5	0.7
JYT-185/30	LGJ-185/30	34	100	40	+20.5	0.7
JYT-210/10	LGJ-210/10	34	100	40	+20.5	0.8
JYT-210/25	LGJ-210/25	34	100	40	+21.5	0.8
JYT-210/35	LGJ-210/35	34	100	40	22.0	0.8
