CGH clamp

Inquiry Contact us

Like this product? Share with friends:

Product Introduction

CGH series suspension clamps are used to connect the conductors to the insulators.

The Clamp body and keepers are made of aluminium alloy

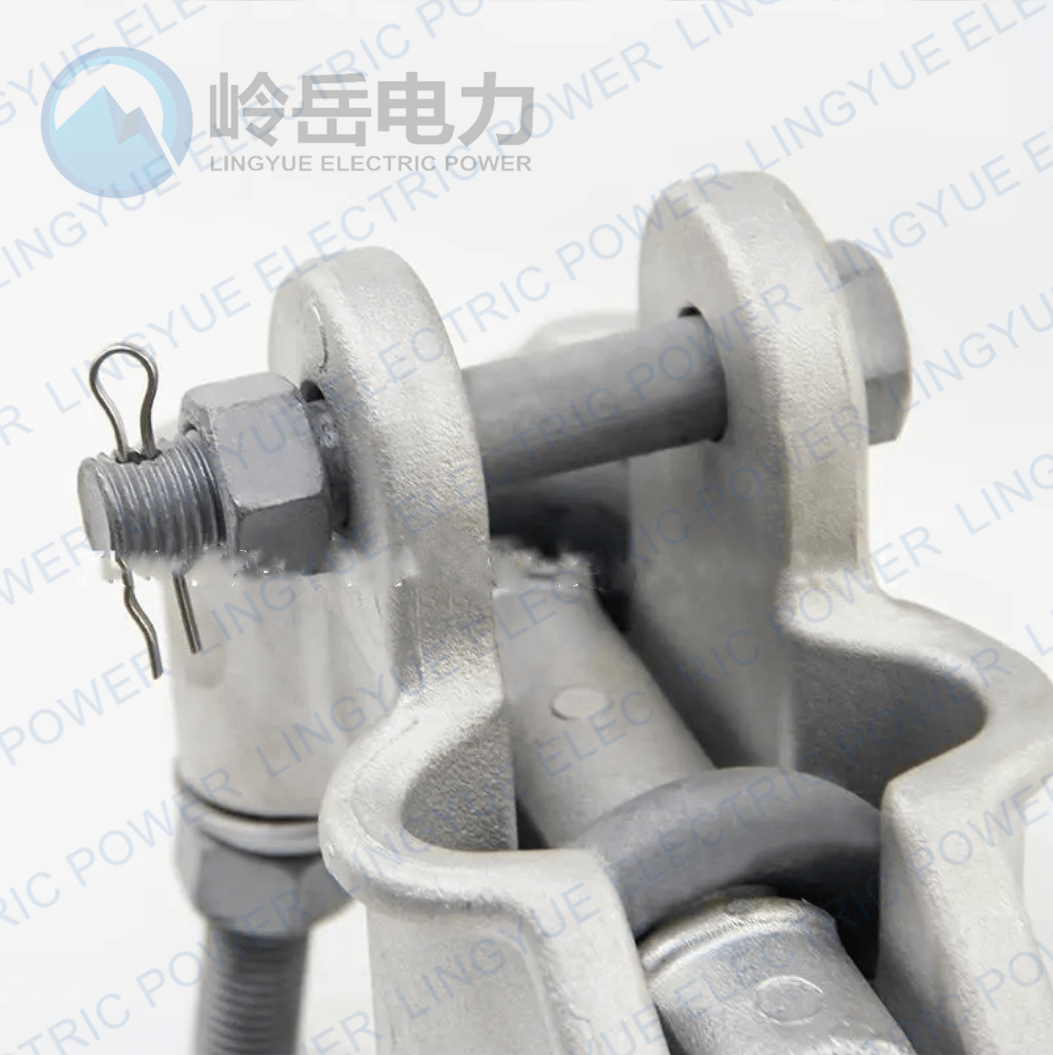

The Cotter-pins are made of stainless steel,

The other parts are hot-dip galvanized.

Catalog No.	Suitable Conductor Dia.（mm）	Main dimensions(mm)					Specified Failure load (kN)	Weight (kg)

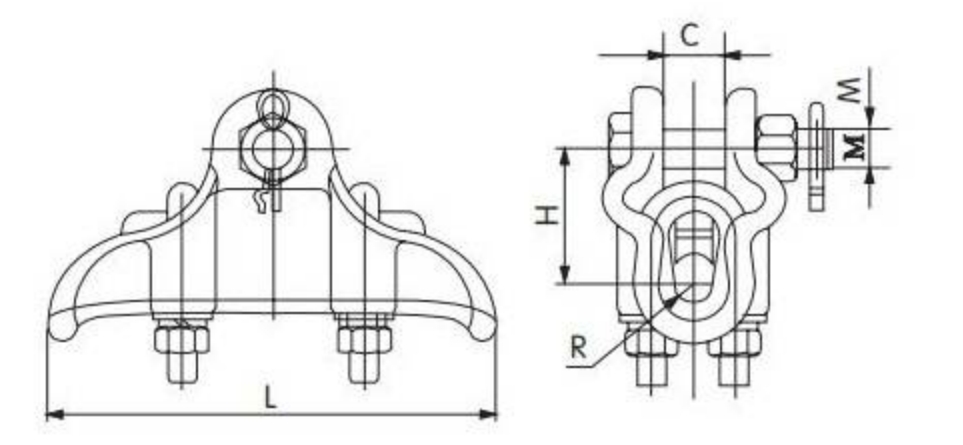

Catalog No.	Suitable Conductor Dia.（mm）	H	C	M	R	L	Specified Failure load (kN)	Weight (kg)
CGH-2	5.1-12.5	52.5	25	16	18.0	166	40	1.0
CGH-3	12.4-17	50.5	23	16	11.5	200	40	1.5
CGH-4	19-23.5	59.5	27	16	13.5	225	40	2.3
CGH-5	24.2-28	70	32	16	16.0	260	60	4.4
CGH-6	25-35	68	35	16	17.5	216	60	3.6
CGH-8	48-53	97	56	20	27	300	60	5.5

The clamp body and keepers are aluminium alloy, cotter-pin is stainless steel, the other parts are hot-dip galvanized steel.
