Product Introduction

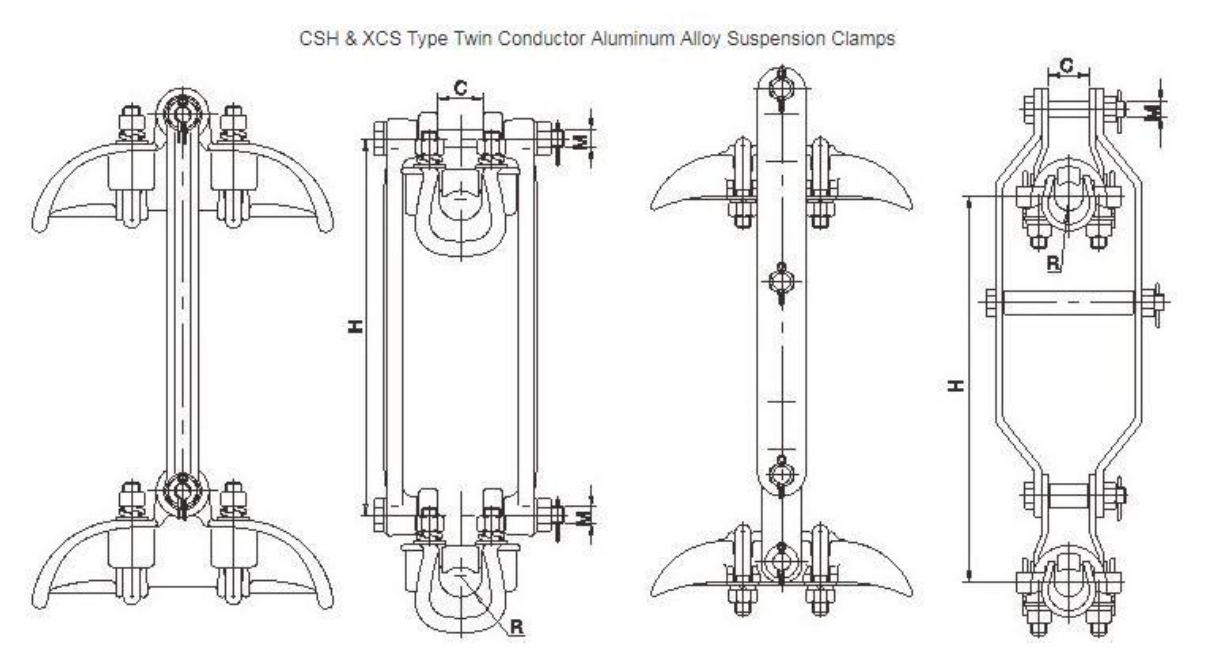

CSH & XCS type two-conductor aluminum alloy clamps are adopted ductile iron casting and aluminum alloy, especially suitable for overhead transmission line over 110kV; the main body and pressing clamp are made of high-strength aluminum alloy. After heat treatment, it has hysteresis and energy-saving performance.

Type	Equivalent type	Conductor diameter (with wrapped objects) (mm)	Size (mm)				Nominal failure load (kN)	Matched clamp
Type	Equivalent type	Conductor diameter (with wrapped objects) (mm)	H	R	C	M	Nominal failure load (kN)	Matched clamp
CSH-0422	HSS-220	12.4-18.0	400	11	22	16	40	CGKH-3
CSH-426	HSS-280	18.0-26.0	400	13	28	16	40	CGKH-4
CSH-0734	HSS330 HSS370	26.0-34.0	400	17	36	16	70	CGKH-5
CSH-0742	HSS-480	34.0-40.0	400	21	45	16	70	CGKH-6
CSH-0746		40.0-46.0	400	23	48	16	70	CGKH-7
CSH-0726Ф	KSG-4	20.0-26.0	400	13	28	16	70	KGF-4
CSH-0734Ф	KSG-5	26.0-34.0	400	17	36	16	70	KGF-5
CSH-1040F	TsSh-1040	34.0-40.0	400	20	42	18	100	KGF-1040
CSH-1046F	TsSh-6	40.0-46.0	400	23	48	18	100	KGF-6
XCS-2	UKHS-2	7.1-13.0	250	7.0	22	16	40	HGU-2
XCS-3	UHS-3	13.1-21.0	250	11.0	18	16	40	HGU-3
XCS-4	UHS-4	21.1-26.0	400	13.5	19	18	70	HGU-4
XCS-5	UKHS-5	23.0-33.0	400	17.0	42	18	100	HGU-5
HKS-6	SKS-6	34.0-45.0	400	23.0	42	18	100	HGU-6
